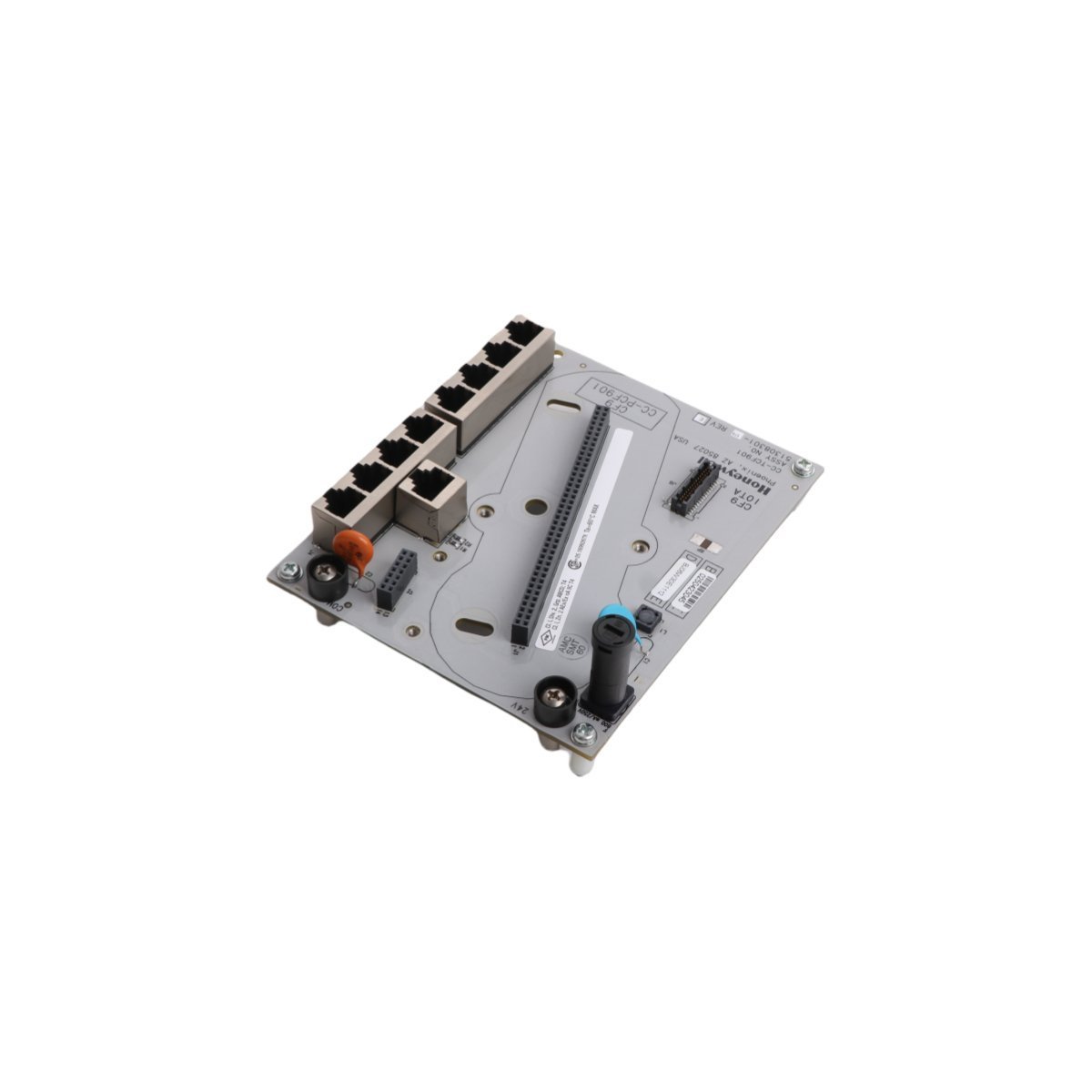

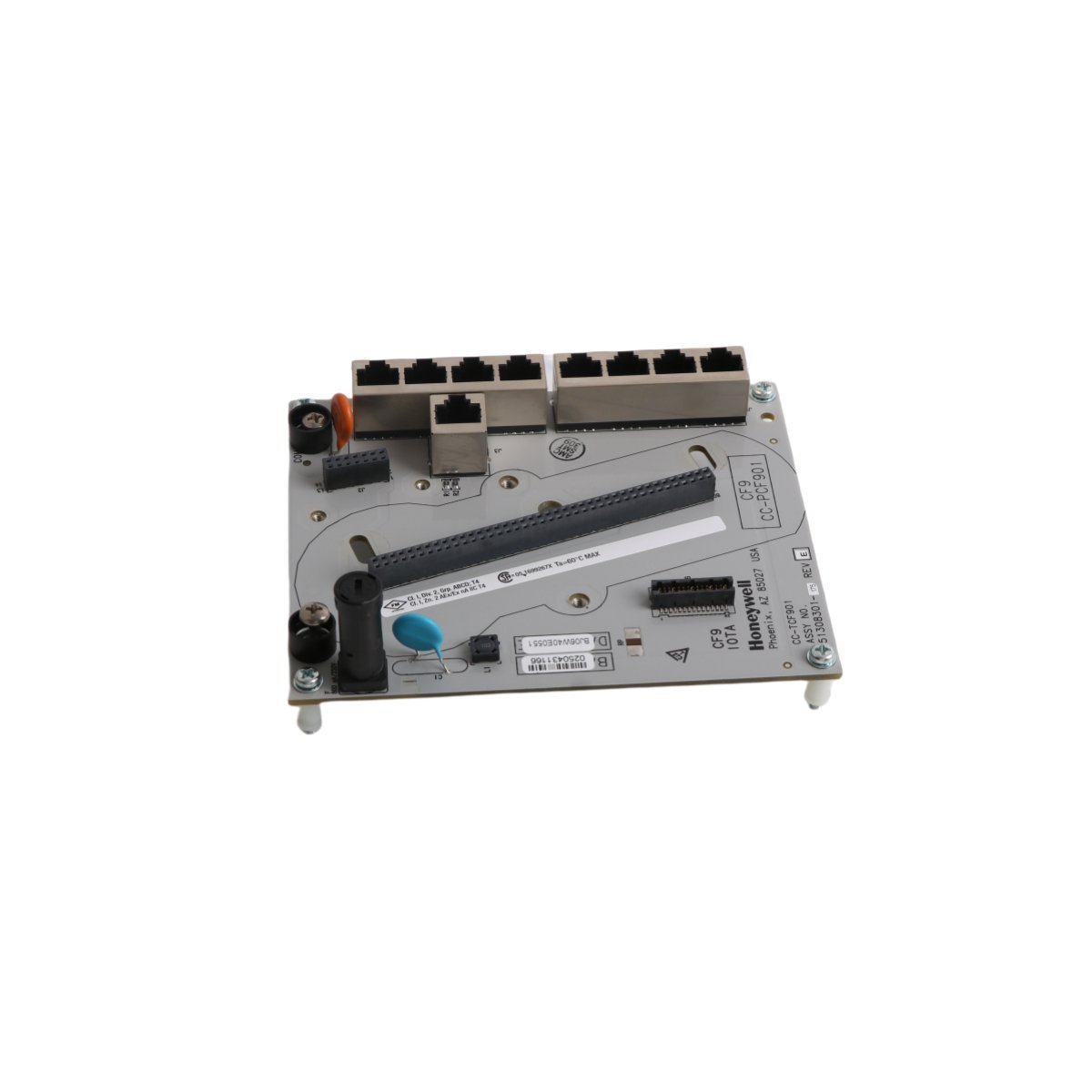

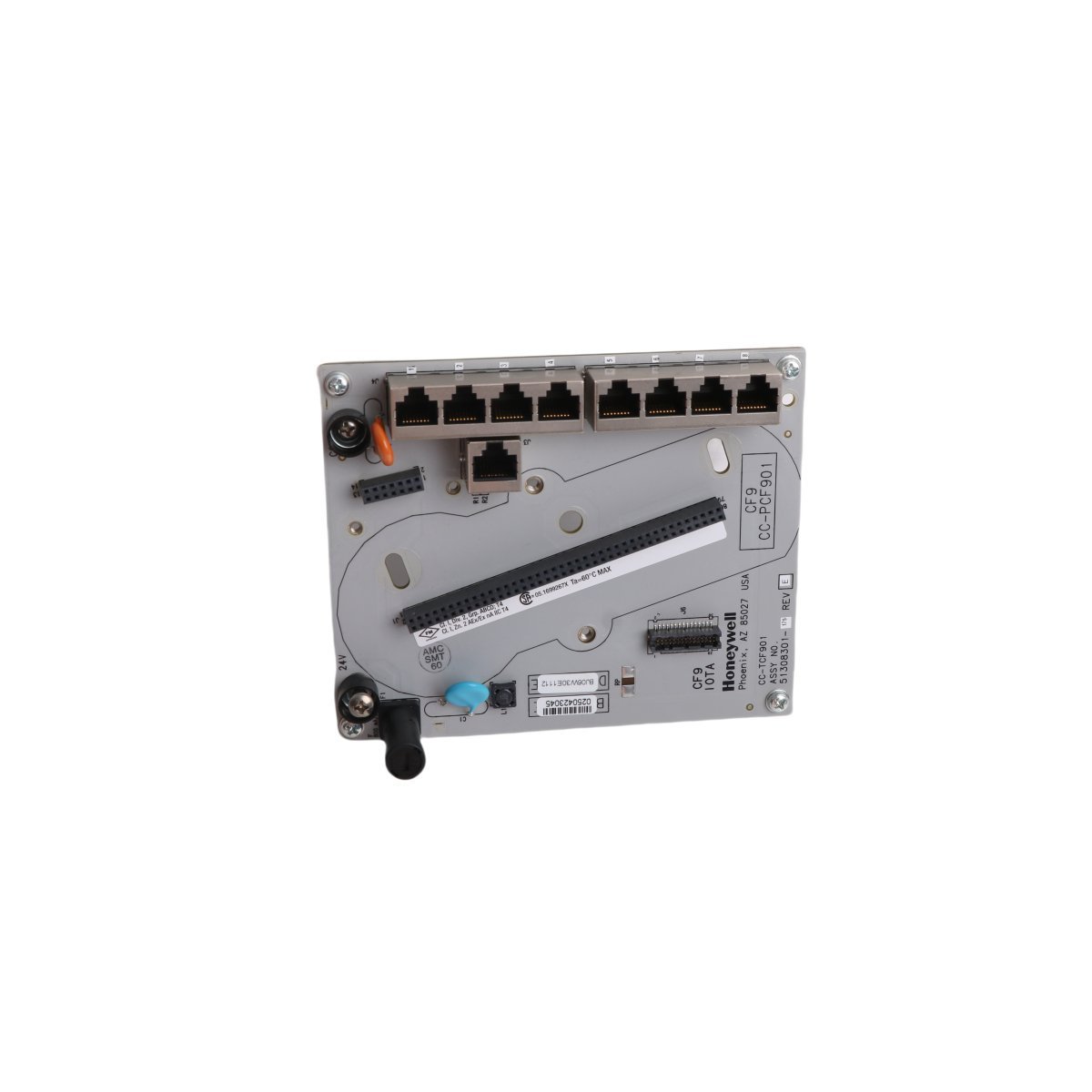

CC-TCF901 51308301-175 Honeywell Safety Control Firewall Module

Honeywell CC-TCF901 51308301-175 Safety System Control Firewall Module

Configured for deterministic traffic isolation and network security filtering within Experion PKS safety system platforms, the Honeywell CC-TCF901 51308301-175 (CC-TCF901 51308301-175 Control Firewall Module) provides direct physical/electrical execution. Engineers install this module between local control networks and supervisory Ethernet backplanes to shield safety controllers from unauthorized packet floods. Meanwhile, the internal hardware inspects incoming control messages, enforces protocol filtering rules, and routes validated signals directly to downstream I/O processors.

Hardware Specifications

Process Control & Loop Processing Features

This control firewall module executes real-time packet inspection while maintaining complete channel-to-channel isolation between field networks and system buses. The internal processing engine filters 4-20 mA HART loop protocol pass-through traffic and FOUNDATION Fieldbus data blocks, thereby preventing unauthorized command injections into safety loops. Additionally, onboard cold junction compensation (CJC) diagnostic routines cross-check temperature telemetry passing through field termination assemblies, which guarantees continuous loop precision across field instrument links.

Frequently Asked Questions

Q: How does the firewall module maintain network throughput while processing high-volume field telemetry?

A: An onboard dedicated network processor evaluates packet headers at hardware wire speeds; consequently, it routes validated Ethernet traffic to the backplane without adding measurable latency to safety control loops.

Q: What grounding mechanism prevents transient voltage surges from damaging internal firewall logic circuits?

A: Galvanic isolation transformers decouple the external Ethernet interfaces from the internal backplane bus, while integrated surge suppression components shunt common-mode voltage spikes directly to the chassis ground frame.

Field Installation Guidelines

Technicians must verify system power isolation and wear an ESD grounding wrist strap before handling the Honeywell CC-TCF901 51308301-175 card. Align the board edges with the enclosure card guides, push the module firmly into the slot until rear connectors mate completely with the backplane, and tighten all retaining fasteners to secure the assembly.

Field wiring requires shielded Category 6 or industrial-grade Ethernet cables. Installers must ground cable shields at a single dedicated earth bus bar, and they must maintain a minimum engagement of 5 full threads on metal conduit connections. Finally, technicians must route low-voltage Ethernet cables through separate cable runs away from high-voltage AC distribution wiring to avoid electromagnetic noise coupling.
