Brief Product Description
The Allen-Bradley 80190-220-01-R functions as a specialized gate driver board that facilitates the precise triggering and regulation of Silicon-Controlled Rectifiers (SCRs). This self-powered module ensures reliable power semiconductor management within industrial drives and high-current automation environments.
Product Overview

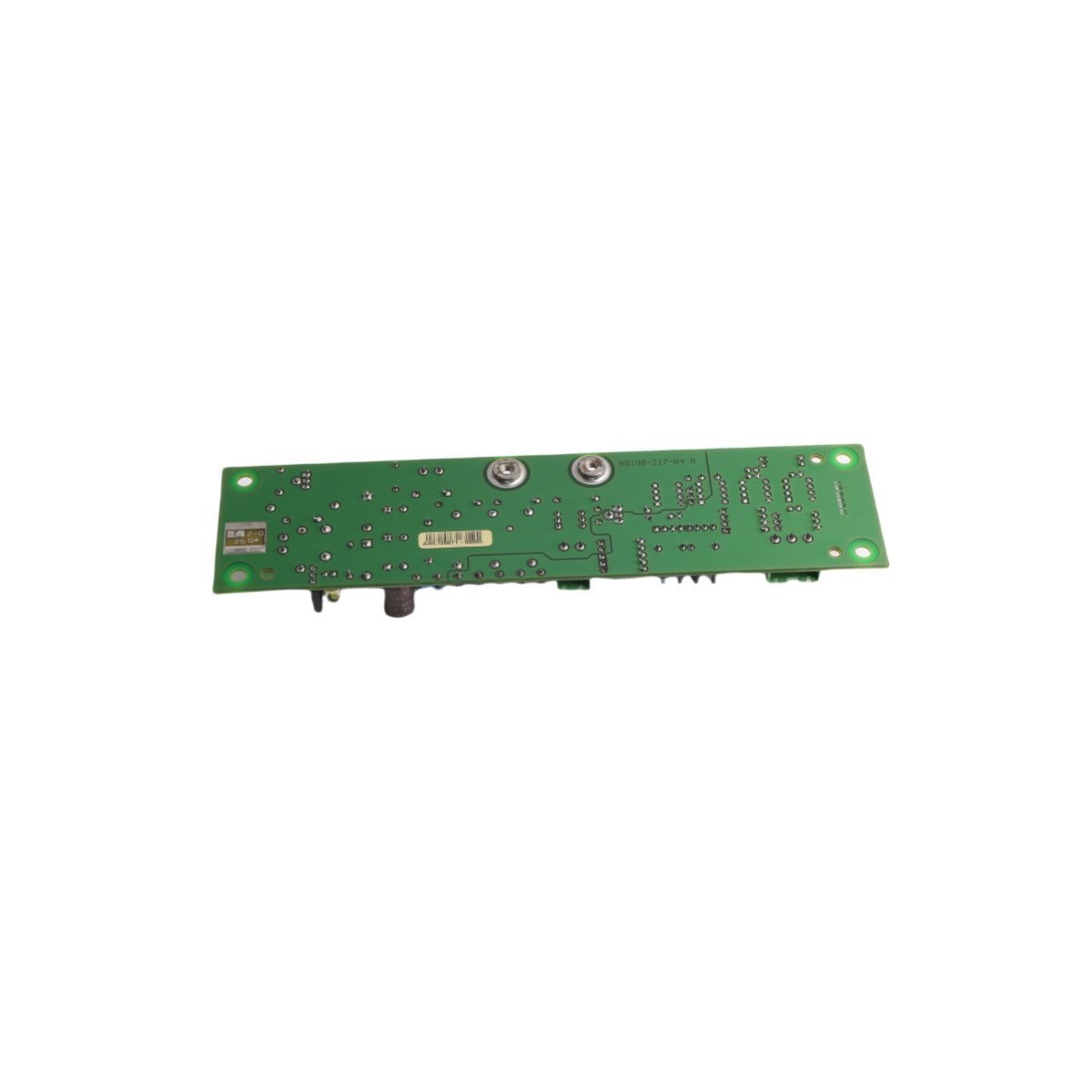

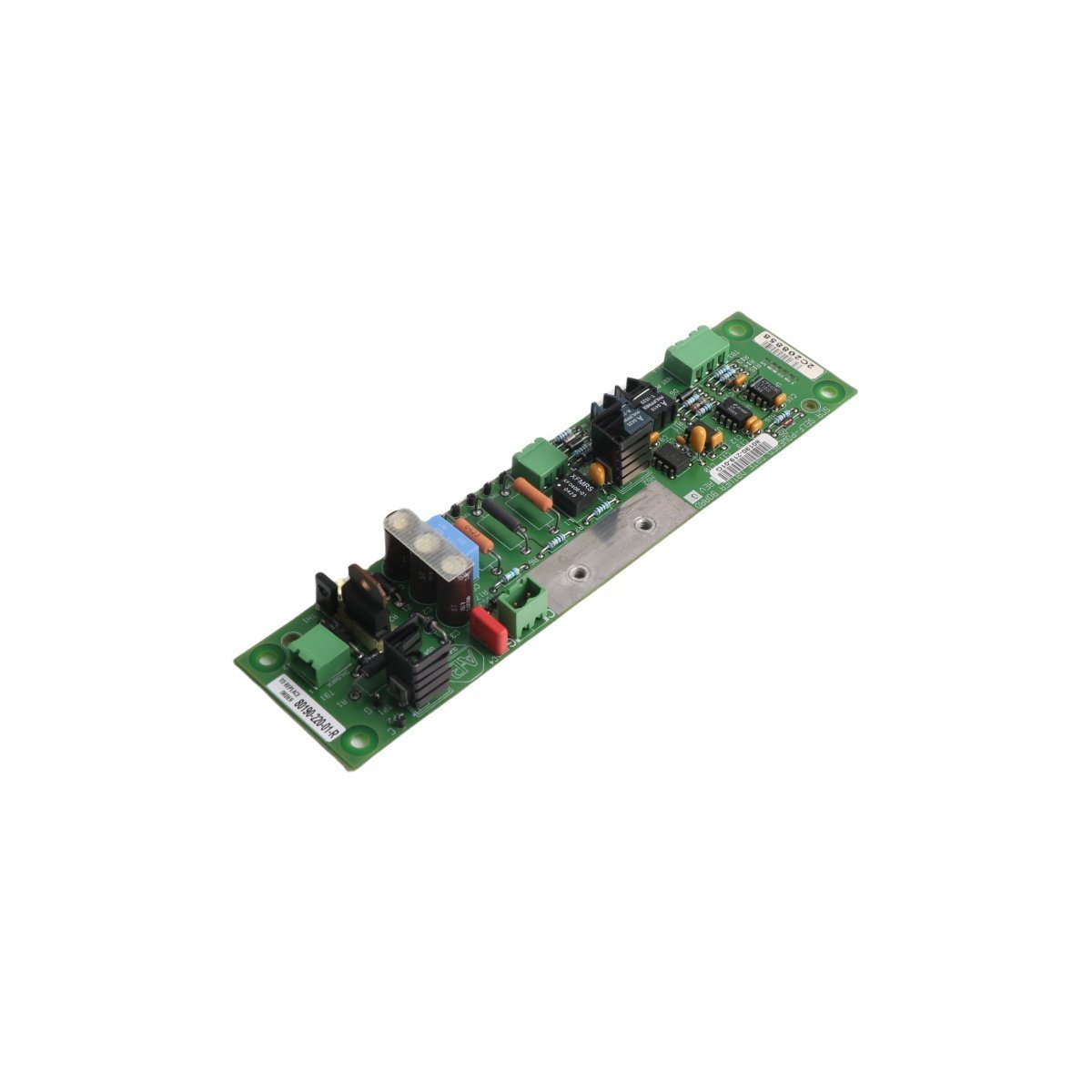

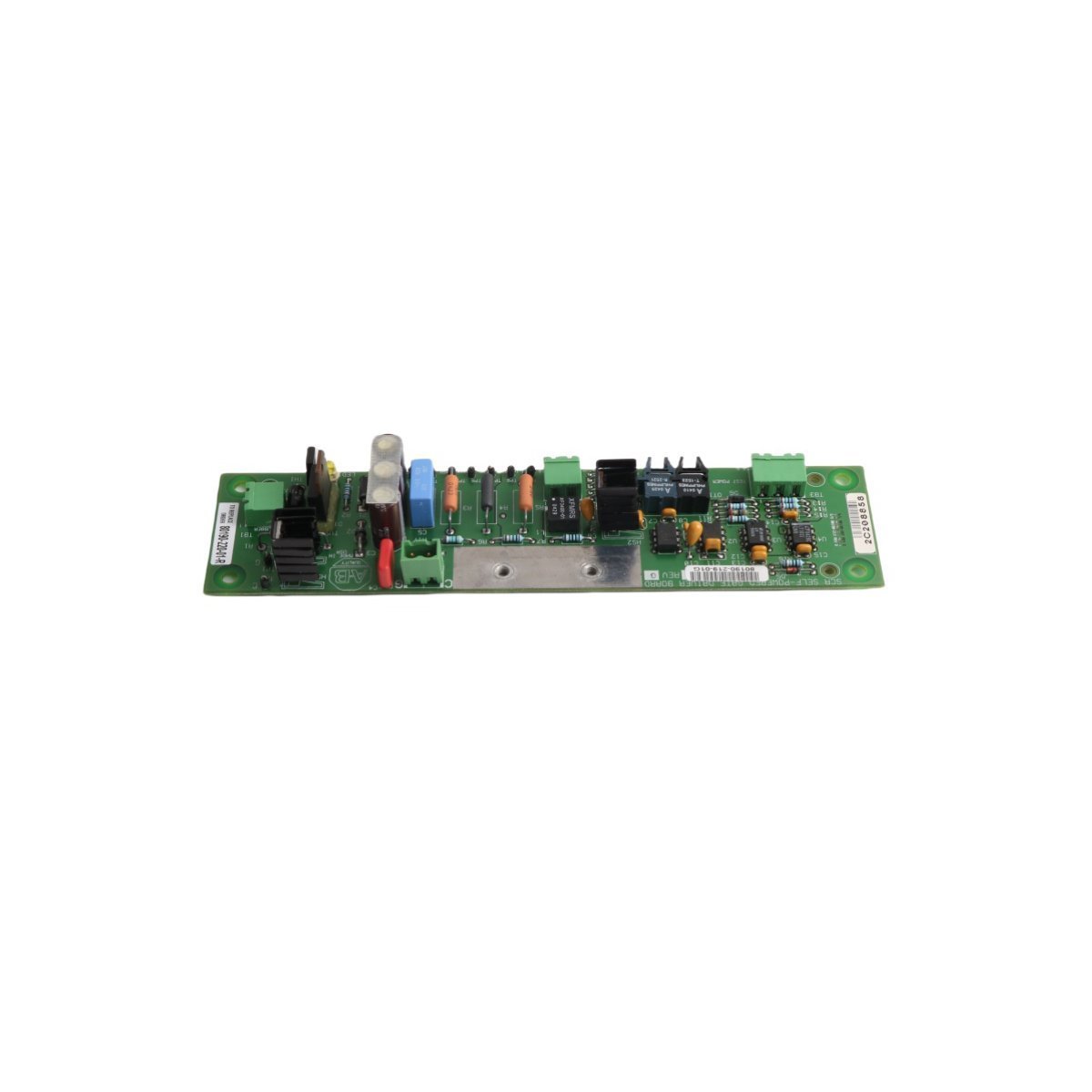

The 80190-220-01-R operates as a critical gate-drive interface within the Rockwell Automation power hardware portfolio. This printed circuit board (PCB) specializes in the high-speed triggering of SCRs (thyristors), which are essential for managing large electrical loads in industrial power conversion. By utilizing a self-powered design, the board eliminates the requirement for external power supplies, thereby streamlining the wiring architecture of control cabinets. Furthermore, the 80190-220-01-R provides the high-current pulses necessary to ensure clean, simultaneous turn-on of power semiconductors, which prevents hardware stress and extends the lifespan of the drive system. Consequently, this driver board serves as a vital component for maintaining signal integrity in heavy-duty manufacturing and motor control applications.
Technical Specifications
- Brand: Allen-Bradley / Rockwell Automation
- Model Number: 80190-220-01-R
- Component Type: SCR Gate Driver / Control Board
- Function: Power Semiconductor Triggering
- Architecture: Self-Powered SCR Gate Drive
- Current Handling: Optimized for High-Current Thyristor Systems
- Shipping Weight: 0.1 kg
- Dimensions: 20.7 x 5.0 x 2.5 cm
- Origin: USA
- Condition: Brand New Original Stock
Operational Characteristics
The 80190-220-01-R incorporates advanced circuitry to minimize signal propagation delay, ensuring real-time responsiveness during complex power modulation cycles. Because the module utilizes high-grade industrial components, it maintains stable gate-pulse timing even in environments characterized by significant electromagnetic interference (EMI). Additionally, the slim form factor allows for efficient mounting within high-density drive racks where space remains at a premium. Transitioning to this specialized driver board helps prevent “misfiring” of SCRs, which is a common cause of harmonic distortion and equipment failure in unoptimized systems.
Engineering Advantages
The primary engineering benefit of the 80190-220-01-R lies in its robust gate-drive isolation and self-sustaining power architecture. This design significantly reduces the potential for ground loops and electrical noise to reach the primary PLC logic. Moreover, the board’s precision-engineered output ensures a sharp rise time for gate pulses, which is critical for the synchronized operation of multi-phase thyristor bridges. Since the module is rated for harsh operating conditions, it delivers consistent performance in sectors ranging from steel production to high-capacity chemical processing. Ultimately, specifying the genuine 80190-220-01-R ensures that maintenance professionals and OEMs can maintain the highest standards of reliability and safety in their power control infrastructures.
