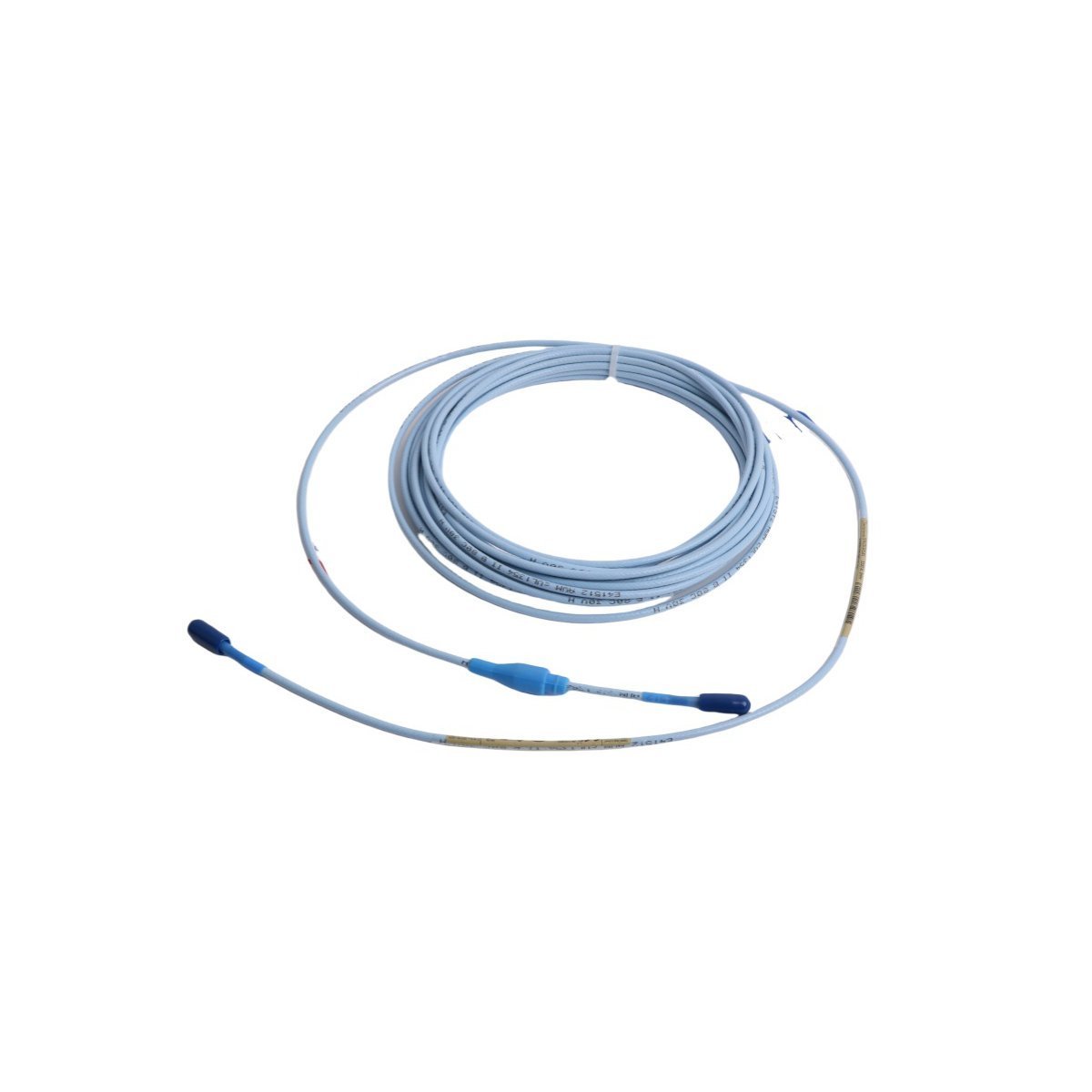

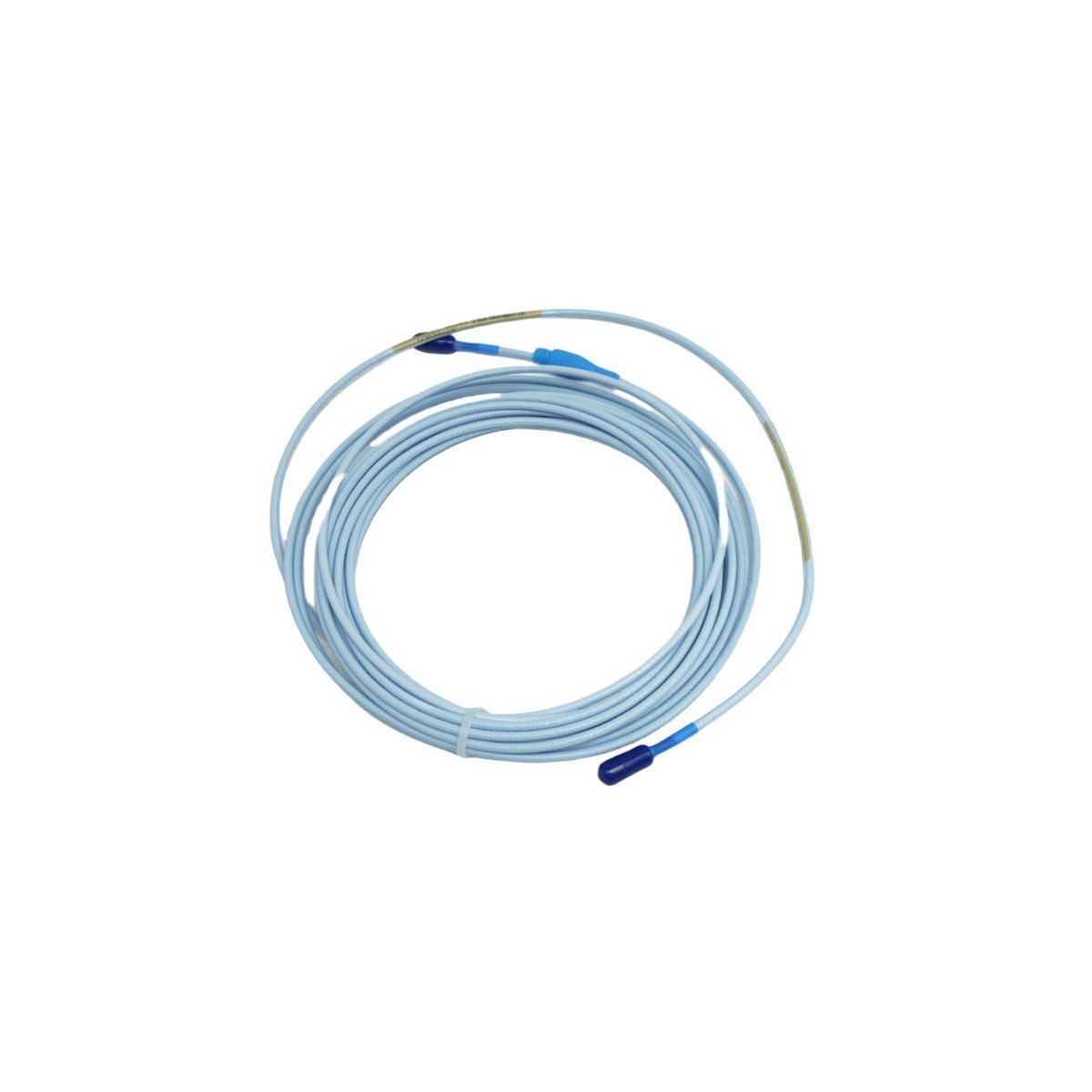

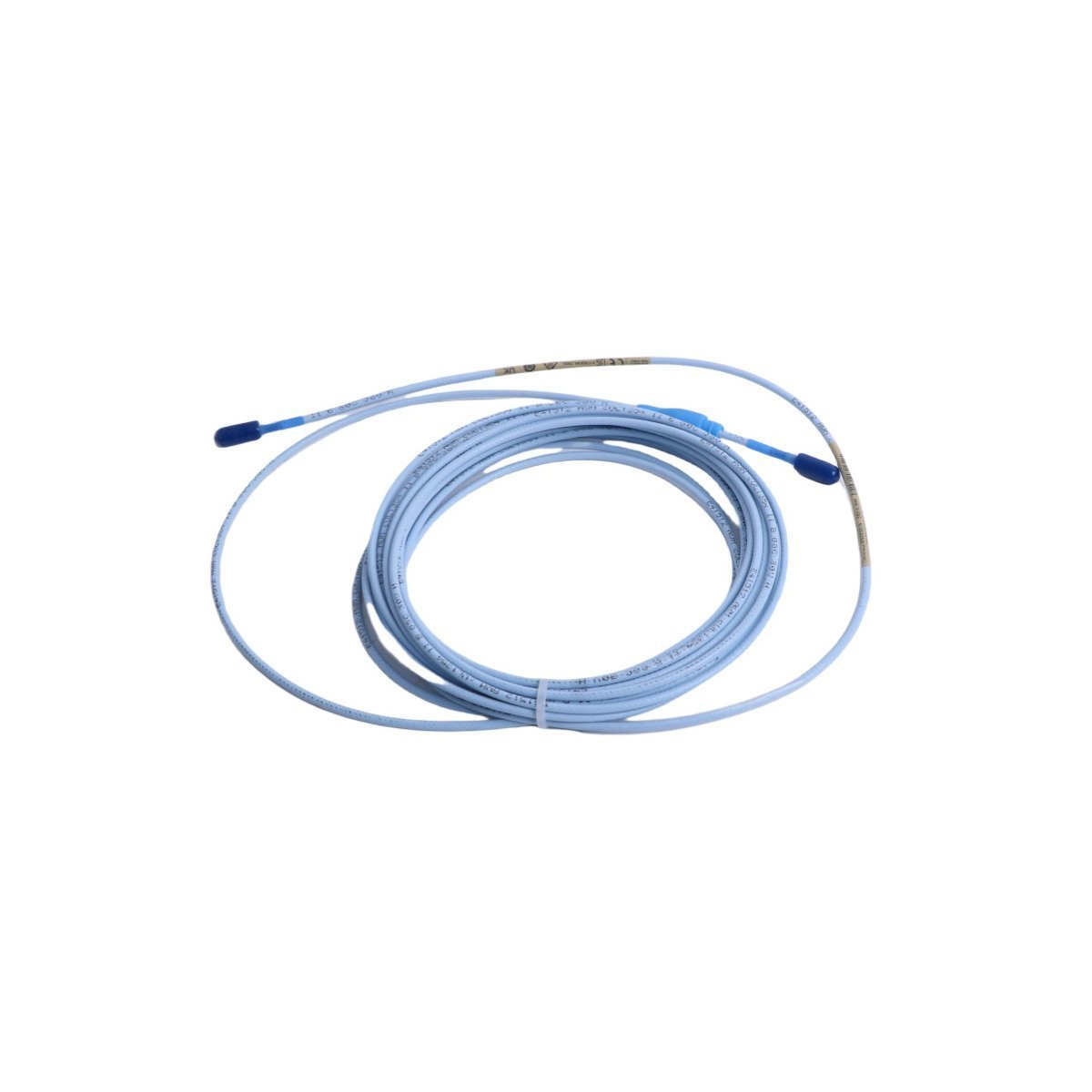

Configured for precise eddy-current proximity measurements in machinery protection networks, the Bently Nevada 330130-085-02-CN (330130 Proximity Probes) provides direct physical/electrical execution. The instrument converts the proximity gap between the 8 mm probe tip and the target rotating shaft into a proportional electrical signal. It works natively as part of a 3300 XL Proximity Transducer System to relay mechanical displacement variables directly to Turbine Supervisory Instrumentation (TSI) backplanes.

Hardware Specifications

Machinery Monitoring & TSI Characteristics

The transducer configuration relies on strict eddy-current probe scaling to guarantee an output of 200 mV/mil within its linear range. Field calibration teams utilize the system to execute gap voltage validation, targeting a -10 VDC baseline at the midpoint of the linear physical gap. Because rotating machinery generates severe high-frequency oscillations, the mechanical armor prevents external physical shear while the internal structural shield provides robust cross-talk suppression between parallel cable runs. Field engineers track changing rotor dynamics through the resulting low-impedance voltage loops, enabling early detection of fluid-film bearing failures or unbalance anomalies.

Frequently Asked Questions

Q: How does the M12 quick-disconnect assembly maintain signal integrity under continuous vibration? A: The M12 hardware assembly features a threaded locking collar that creates a solid mechanical coupling. This design prevents intermittent pin contact and eliminates high-frequency noise that standard spring-loaded couplings often introduce when subjected to severe rotor dynamics.

Q: Can this 8.5-meter probe connect directly to a standard 5.0-meter Proximitor sensor? A: No, engineers must match the cable length to the specific Proximitor sensor calibration matrix. Connecting an 8.5-meter probe configuration to a 5.0-meter sensor disrupts the tuned RF tank circuit, which severely distorts the 200 mV/mil scaling curve.

Q: Does the IP67 rating allow for continuous subsea or fully submerged sensor operations? A: No, the IP67 rating certifies protection against dust ingress and temporary liquid immersion. Continuous submersion in corrosive industrial process fluids requires specialized hermetic housings or high-pressure viton boot installations.

Field Installation Guidelines

• Shielding and Grounding: Installers must isolate the probe body from structural machine grounds. Ground the extension cable outer shield exclusively at the monitoring rack common ground bus bar to prevent ground loops.
• Coaxial Cable Routing: Maintain a minimum bend radius of 25.4 mm (1.0 inch) along the 8.5-meter armored cable run. Sharp bends alter the internal impedance profiles and degrade system accuracy.
• Thread Engagement: When mounting the probe through the machine casing wall, ensure a minimum of 5 full threads of engagement. Use a calibrated torque wrench to avoid crushing the internal coil assembly.
• Connector Isolation: Wrap the M12 connector junction with self-amalgamating silicone tape if the junction sits outside the terminal box. This step prevents moisture penetration and maintains high insulation resistance.
