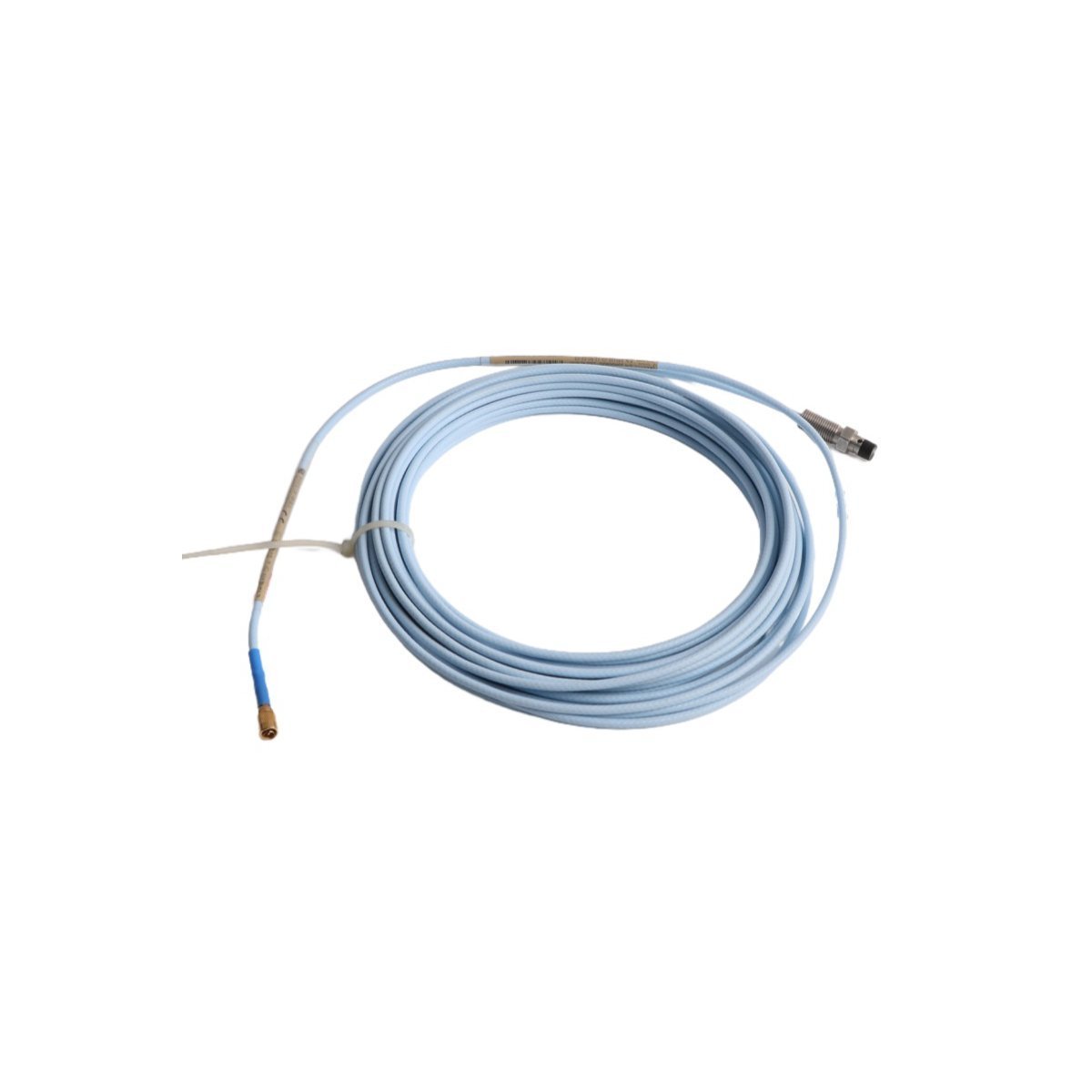

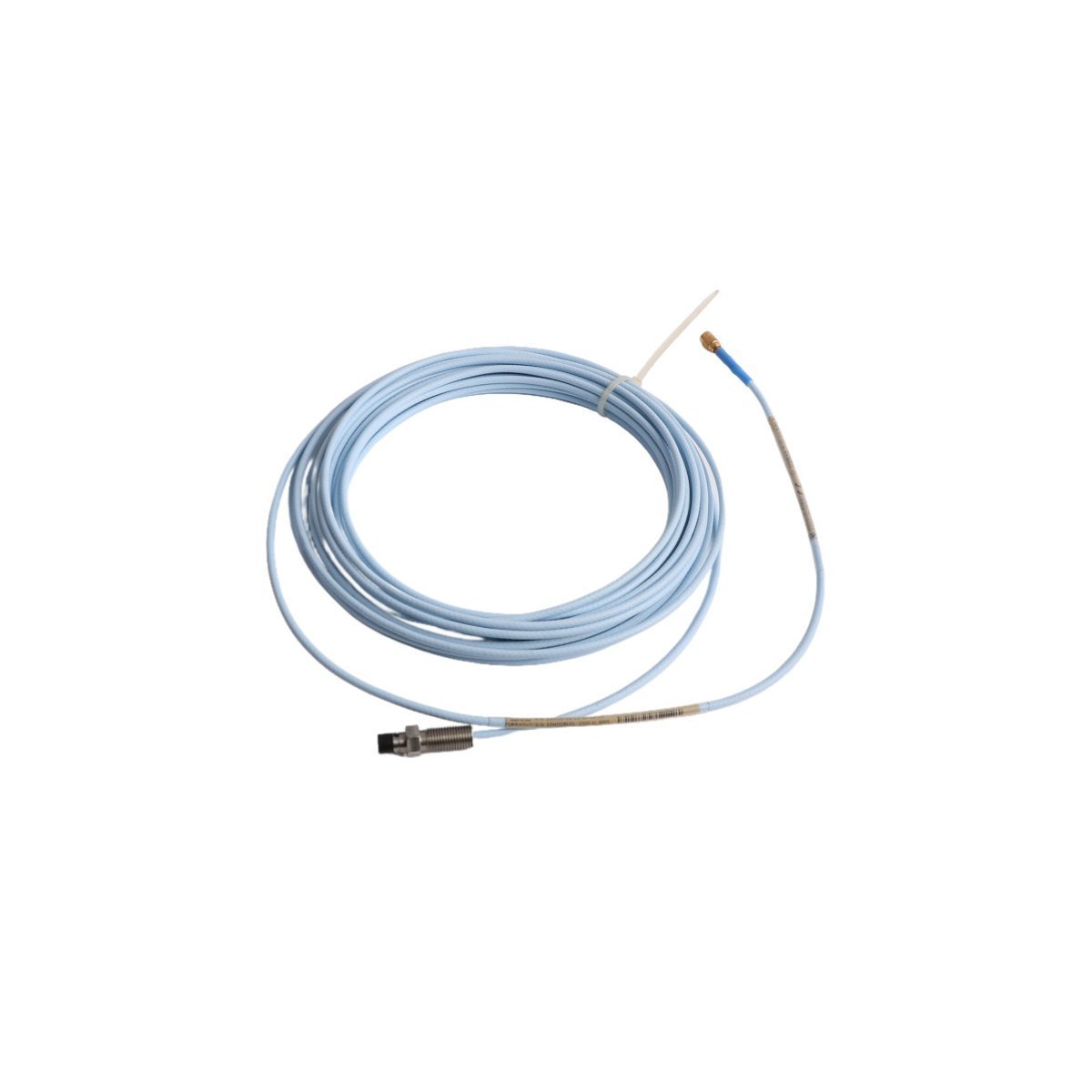

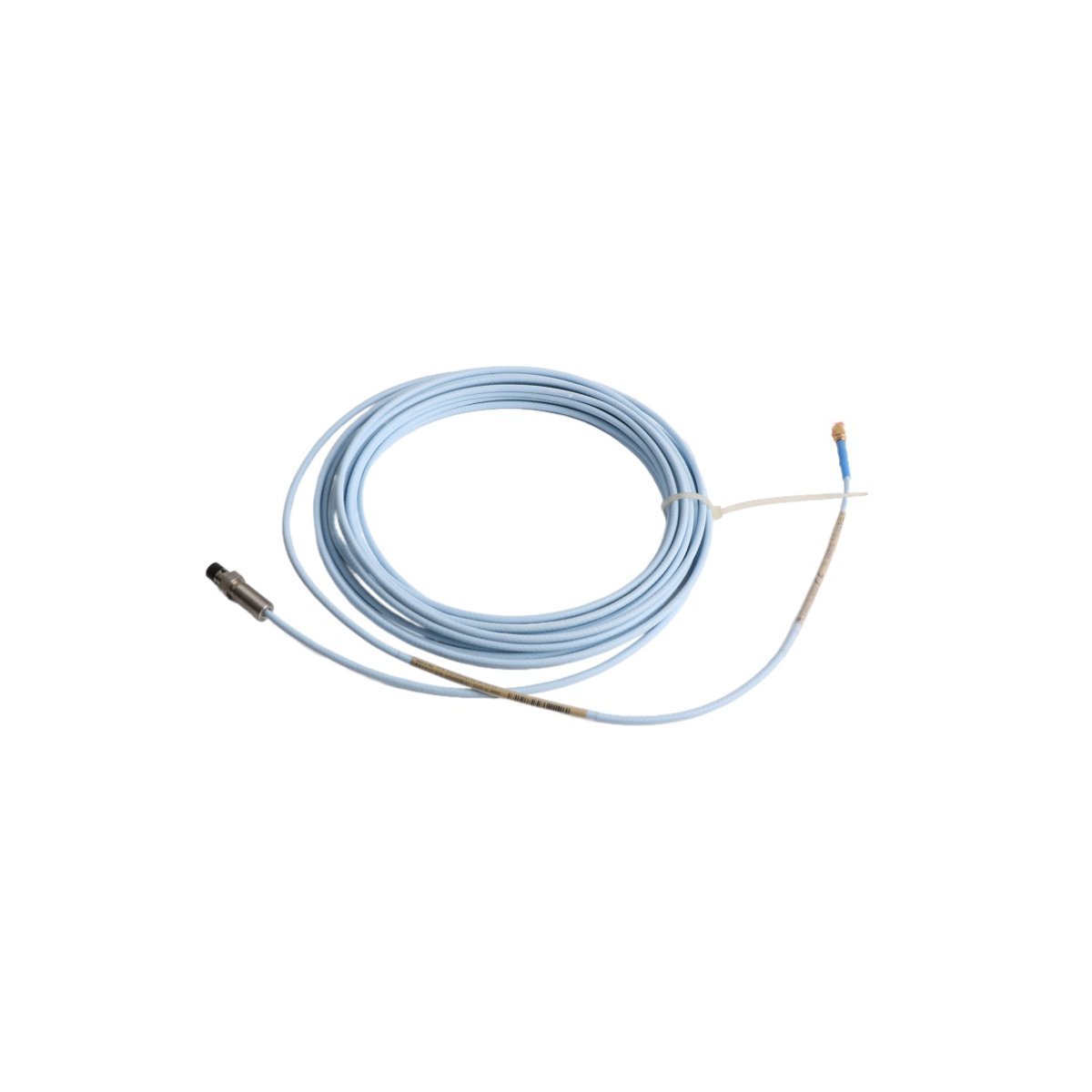

Bently Nevada 3300 XL 8mm Non-Contact Proximity Probe 330105-02-12-90-02-05

Brief Product Description

This industrial-grade eddy current probe measures dynamic shaft vibration and static rotor position. The hardware provides critical data to machine protection systems for asset preservation.

Product Overview

The Bently Nevada 330105-02-12-90-02-05 reverse mount probe tracks mechanical movement without physical contact. The device generates an active radio frequency field to detect target distance changes. Consequently, the sensor outputs a clean voltage signal directly proportional to the gap. This reliable measurement helps predictive maintenance teams evaluate machinery health before failures occur.

Because this hardware complies fully with the rigorous API 670 standard, it integrates seamlessly into global industrial safety systems. The modular design enables complete interchangeability among probes, extension cables, and Proximitor sensors. This flexibility eliminates time-consuming bench calibration and matches components instantly. Furthermore, backward compatibility allows operators to deploy this component with legacy 3300 series 5 mm and 8 mm systems.

Configuration Analysis and Option Code Guide

The unique alphanumeric code determines the specific mechanical dimensions and physical attributes of the sensor.

• Unthreaded Length Option (-02): Provides a 0.2-inch unthreaded tip length to facilitate precise mechanical positioning.
• Overall Case Length Option (-12): Features a compact 1.2-inch total case body length optimized for space-constrained brackets.
• Total Length Option (-90): Specifies a 9.0-meter system length to align matching electrical impedance parameters.
• Connector Option (-02): Includes a miniature ClickLoc coaxial connector to prevent accidental loose connections.
• Agency Approval Option (-05): Standard multiple hazardous area certifications for explosive industrial environments.

Technical Specifications

The design criteria outline the environmental capacities and physical dimensions for this proximity transducer.

• Manufacturer: Bently Nevada (Baker Hughes)
• Part Number: 330105-02-12-90-02-05
• Sensor Category: Eddy Current Proximity Transducer
• Probe Diameter: 8 mm
• Thread Profile: 3/8-24 UNF-2A Reverse Mount
• Storage Temperature Limits: -51 °C to +177 °C
• System Integration: 3300 XL Transducer Environment
• Country of Origin: United States of America
• Unit Weight: 0.06 kg

Primary Applications

Turbomachinery instrumentation engineers deploy this specialized hardware across heavy processing environments.

• Radial Vibration Tracking: Capturing high-frequency lateral shaft displacement inside fluid-film bearings.
• Axial Thrust Drift Control: Monitoring critical rotor position movement to protect thrust bearings.
• Keyphasor Reference Capture: Providing once-per-turn timing pulses for phase angle diagnostic calculations.
• High-Speed Turbine Defense: Supplying real-time rotation telemetry on large steam and gas turbine trains.
