Bently Nevada 330101-00-43-15-02-05 3300 XL Proximity Probes

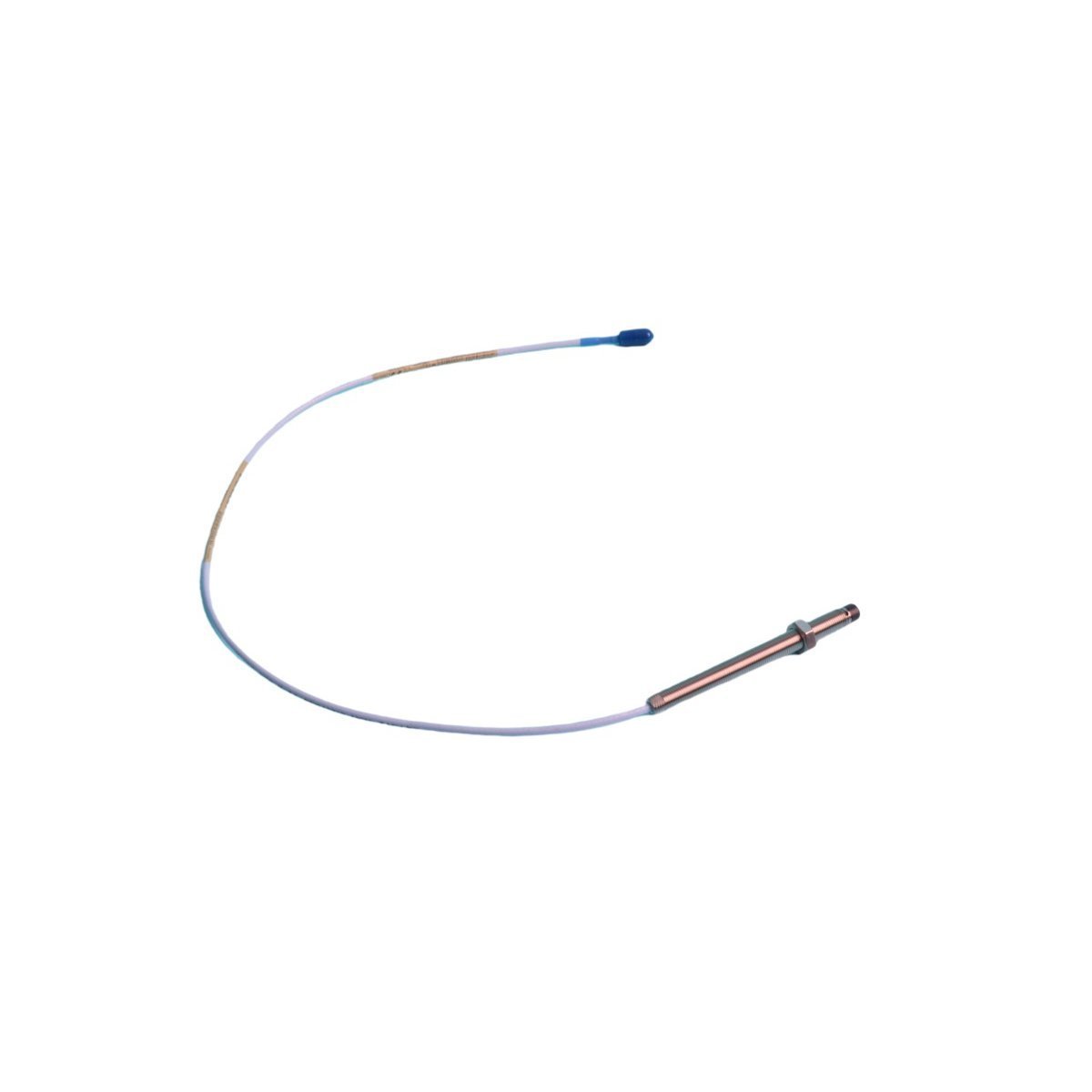

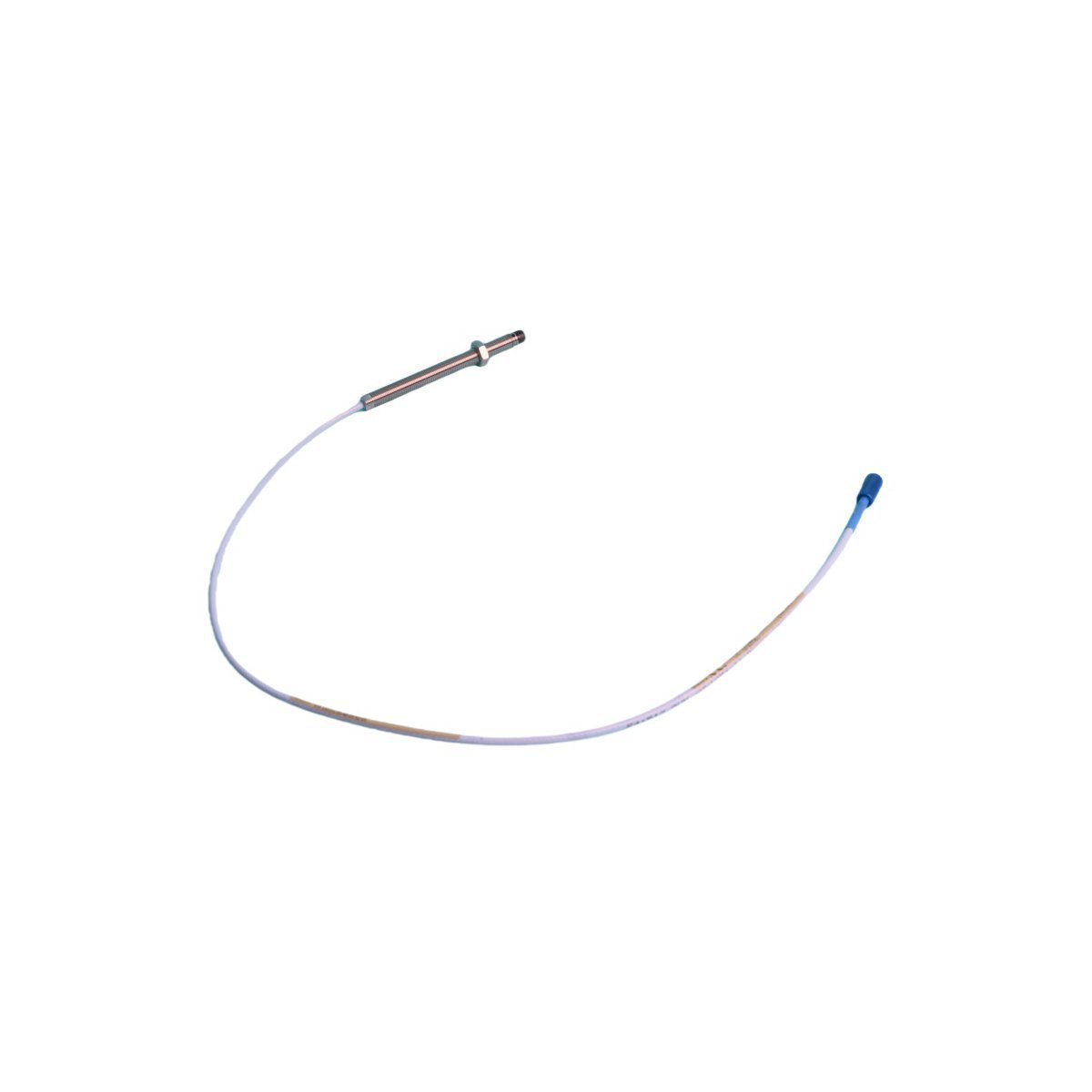

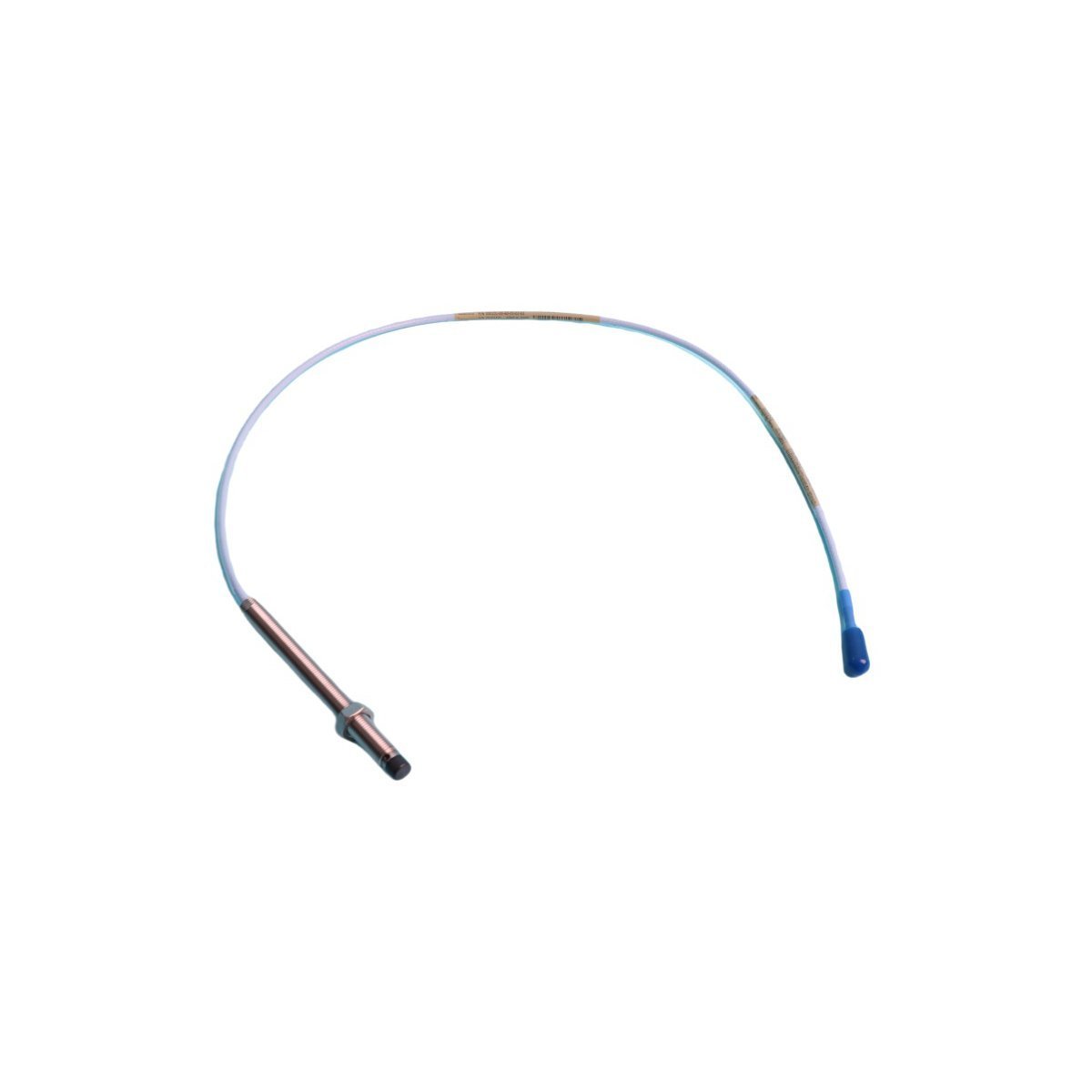

Bently Nevada 330101-00-43-15-02-05 3300 XL 8 mm Proximity Probes

The Bently Nevada 330101-00-43-15-02-05, also cataloged as the 330101 Proximity Probes, operates as a dedicated hardware component for precision vibration and position monitoring within Turbine Supervisory Instrumentation (TSI) platforms. The instrument executes non-contacting eddy current displacement measurements to capture static position and dynamic vibration signals from rotating target surfaces. Field systems interface this module directly with machinery protection systems to transmit raw physical metrics for Keyphasor reference tracking and speed detection loop execution.

Hardware Specifications

Machinery Monitoring & TSI Characteristics

The internal design relies on precise eddy-current probe scaling to guarantee linear conversion of the physical gap into standard electrical voltage metrics. Field technicians perform gap voltage validation procedures across the dynamic range, targeting a baseline -10 VDC output to verify optimal position placement. Because the probe encounters severe high-frequency harmonics near rotating components, the robust mechanical assembly delivers high-efficiency cross-talk suppression when operators deploy multiple proximity circuits in parallel configurations. This continuous physical measurement loop tracks micro-inch changes in rotor dynamics, providing direct analog inputs to external vibration monitors.

Frequently Asked Questions

Q: Does the design require manual bench calibration when swapping the probe within an active 3300 XL system?

A: No. The design incorporates complete component interchangeability across the 3300 XL series. Plant operators replace the probe body directly without performing manual loop calibration or bench scale adjustments.

Q: How does the ClickLoc connector assembly protect signal transmission against external vibration?

A: The miniature coaxial ClickLoc mechanical connection structure locks the extension cable junction securely into place. This termination style actively prevents contact resistance fluctuations and blocks induced electrical noise.

Q: What mounting constraints apply to the 4.3-inch case length specification?

A: The 4.3-inch total case length requires a matching machine casing clearance or specialized bracket insertion. Installers must verify that the thread profile engages fully while preventing the probe tip from striking the target shaft during initial installation.

Field Installation Guidelines

• Thread Engagement and Torque: Insert the 3/8-24 UNF thread into the mounting port. Field teams must ensure a minimum of 5 full threads of engagement to secure the assembly against operational machine vibration.
• Shielding Protocol: Run the probe coaxial lead inside a dedicated conduit network. Connect the outer shield line exclusively to the instrumentation common ground bus inside the main monitoring rack enclosure to eliminate ground loops.
• Mechanical Clearance: Maintain a minimum clear path radius around the 8 mm probe tip to prevent side-view interference from the casing wall, which degrades the eddy-current probe scaling accuracy.
• Bending Constraints: Avoid twisting or kinking the 1.5-meter integral cable during installation. Field routing must maintain a minimum bend radius of 25.4 mm (1.0 inch) to preserve internal core signal paths.
