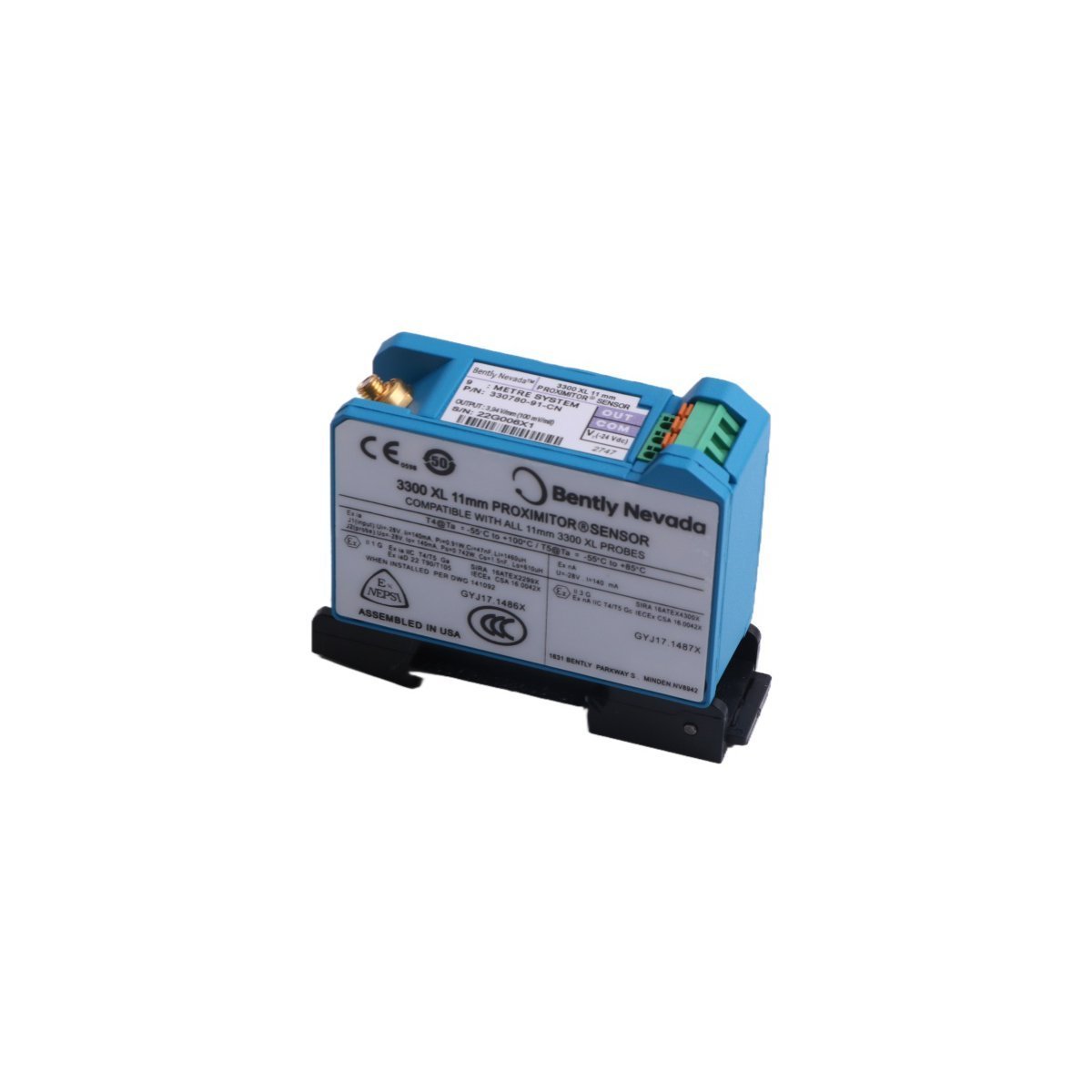

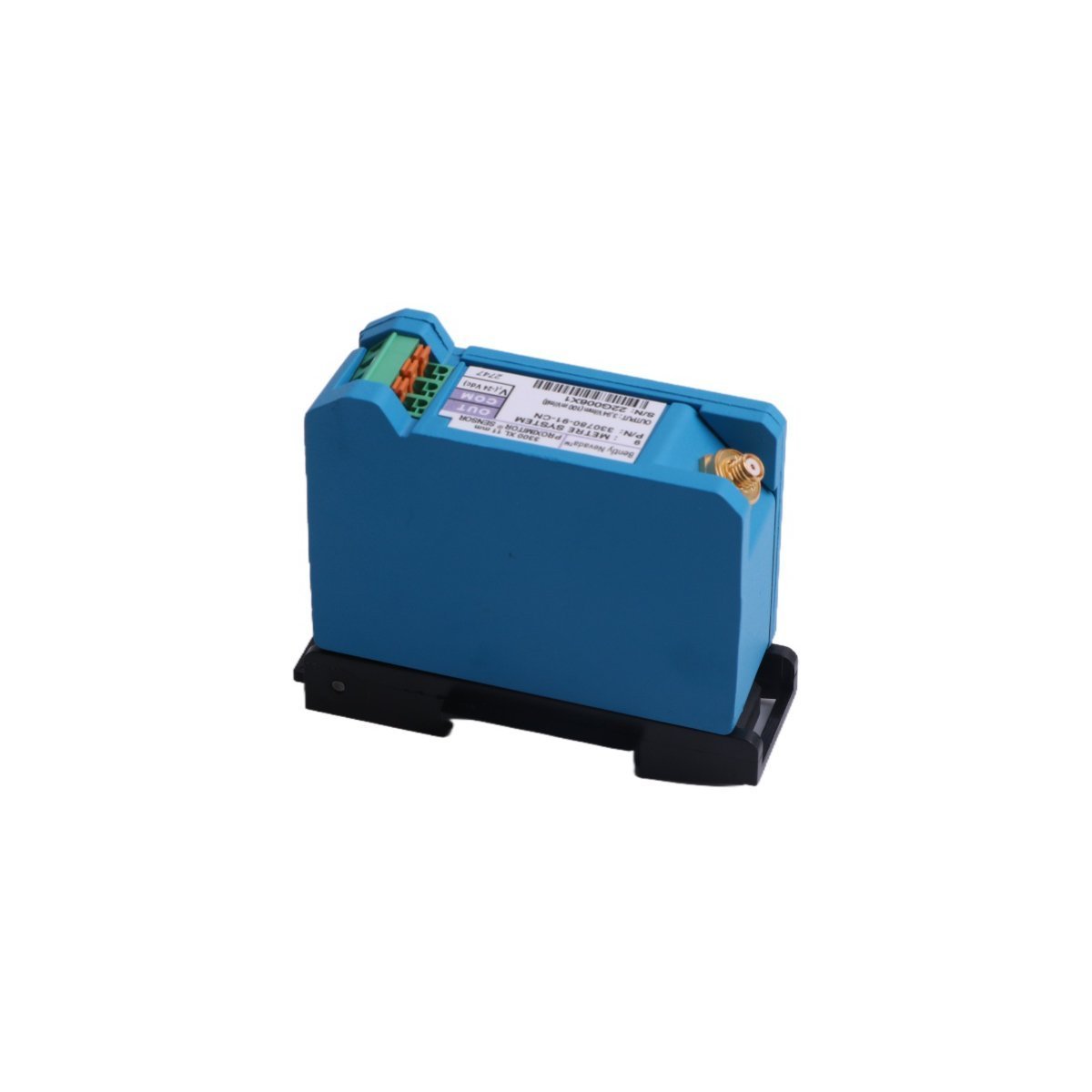

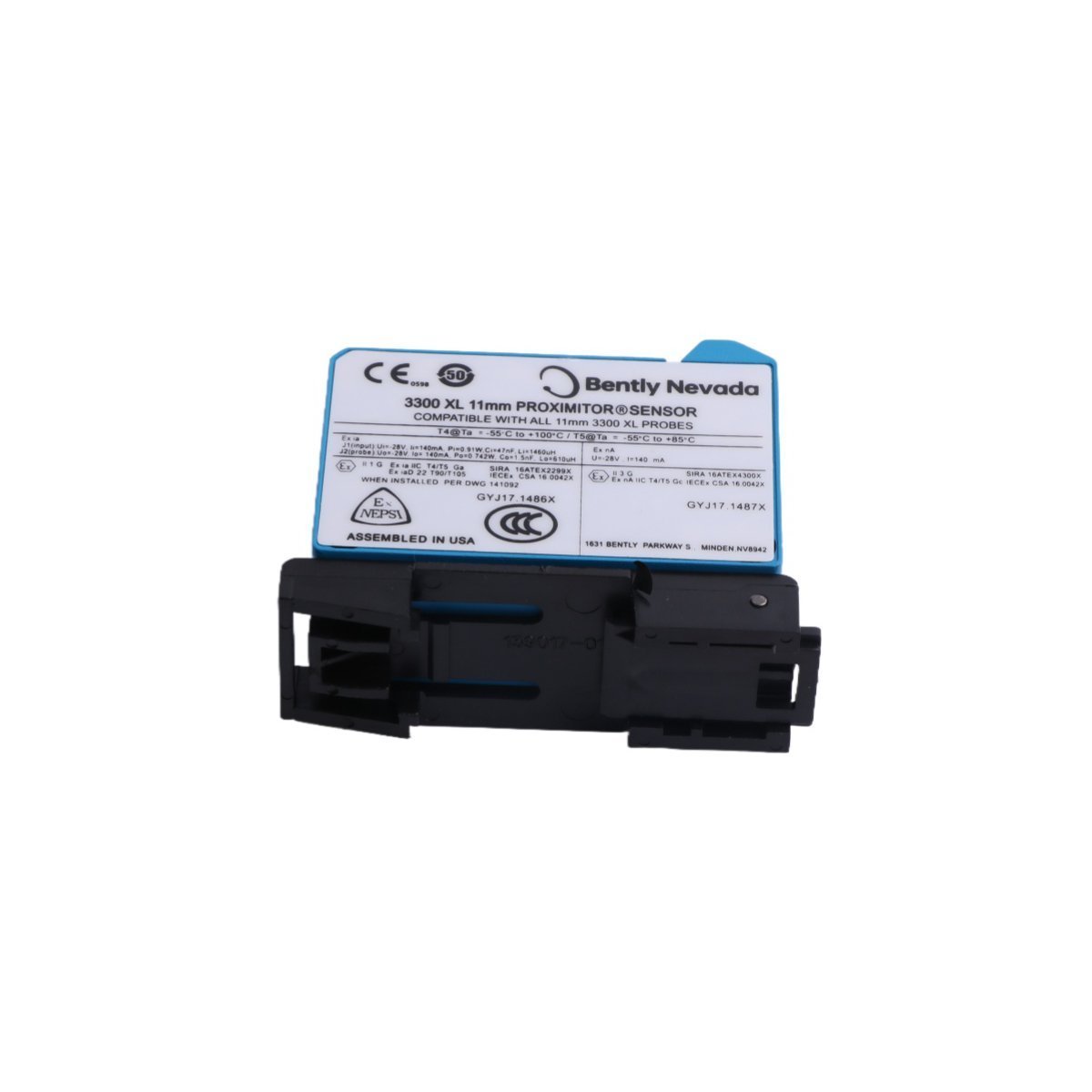

Bently Nevada 330780-91-CN 3300 XL 11 mm Proximitor Sensor

The Bently Nevada 330780-91-CN, also cataloged as the 330780 Proximitor Sensor, operates as a dedicated hardware component for non-contacting displacement and vibration measurements within Turbine Supervisory Instrumentation (TSI) networks. The device conditions the high-frequency radio frequency (RF) signal generated by a 3300 XL 11 mm proximity probe and outputs a linear voltage proportional to the gap distance between the probe tip and the target conductive surface.

Hardware Specifications

Machinery Monitoring & TSI Characteristics

The sensor incorporates specific circuitry designed for eddy-current probe scaling, matching the electrical characteristics of the 3300 XL 11 mm transducer system. The internal oscillator drive mechanism maintains precise gap voltage validation across the specified calibration range. Field calibration targets -10 VDC as the center point of the linear operational range to ensure linear voltage output over the scale factor. The robust A380 aluminum enclosure shields internal components from electromagnetic interference, which actively prevents signal cross-talk suppression failures when multiple Proximitor modules occupy the same DIN-rail segment. This hardware configuration supplies continuous data directly to machinery protection systems for real-time tracking of rotor dynamics.

Frequently Asked Questions

Q: How does the presence of intrinsic safety barriers affect the input voltage requirements?

A: Intrinsic safety barriers introduce an inline voltage drop across the power supply loop. Engineers must increase the incoming negative supply voltage to a minimum of -23 VDC (up to -26 VDC) to maintain proper calibration and internal regulatory headroom.

Q: Can this sensor operate with a 5.0-meter system length cable configuration?

A: No. The internal tuning and eddy-current probe scaling circuits require a matched 9.0-meter physical length, combining the probe and extension cable, to prevent severe measurement deviation and uncalibrated scale factor outputs.

Q: Is this module hot-swappable while the terminal blocks are energized?

A: Plant operators must isolate the power source before disconnecting the terminal blocks. Hot-swapping risks generating electrical transients that can disrupt adjacent channels or damage sensitive input cards on the monitoring rack.

Field Installation Guidelines

• DIN-Rail Mounting: Securely latch the base onto a standard 35 mm DIN rail. Maintain a minimum clearance of 25 mm between adjacent Proximitor sensors to ensure optimal heat dissipation and prevent cross-talk.
• Shielding and Grounding: Field technicians must terminate the coaxial cable outer shield at the system common ground point inside the monitoring rack. Isolation washers must prevent the sensor housing from making accidental contact with structural steel or electrical conduits.
• Coaxial Cable Routing: Avoid sharp bends in the extension cable. Maintain a minimum bend radius of 25.4 mm (1.0 inch) to preserve coaxial signal integrity and prevent internal conductor degradation.
• Terminal Torque: Tighten all screw terminals to a maximum rating of 0.56 N-m (5 in-lb) to ensure structural termination without stripping the internal threads.
