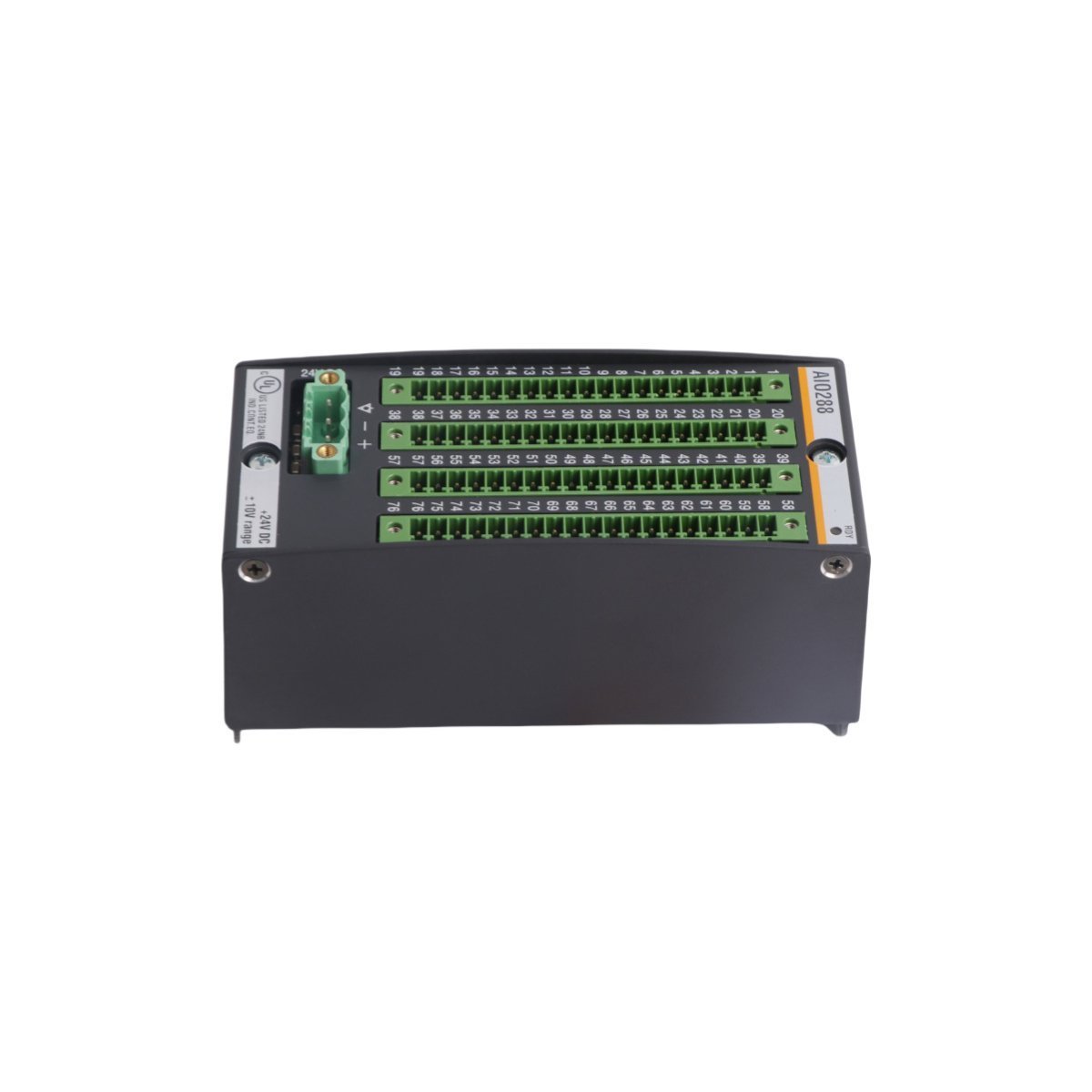

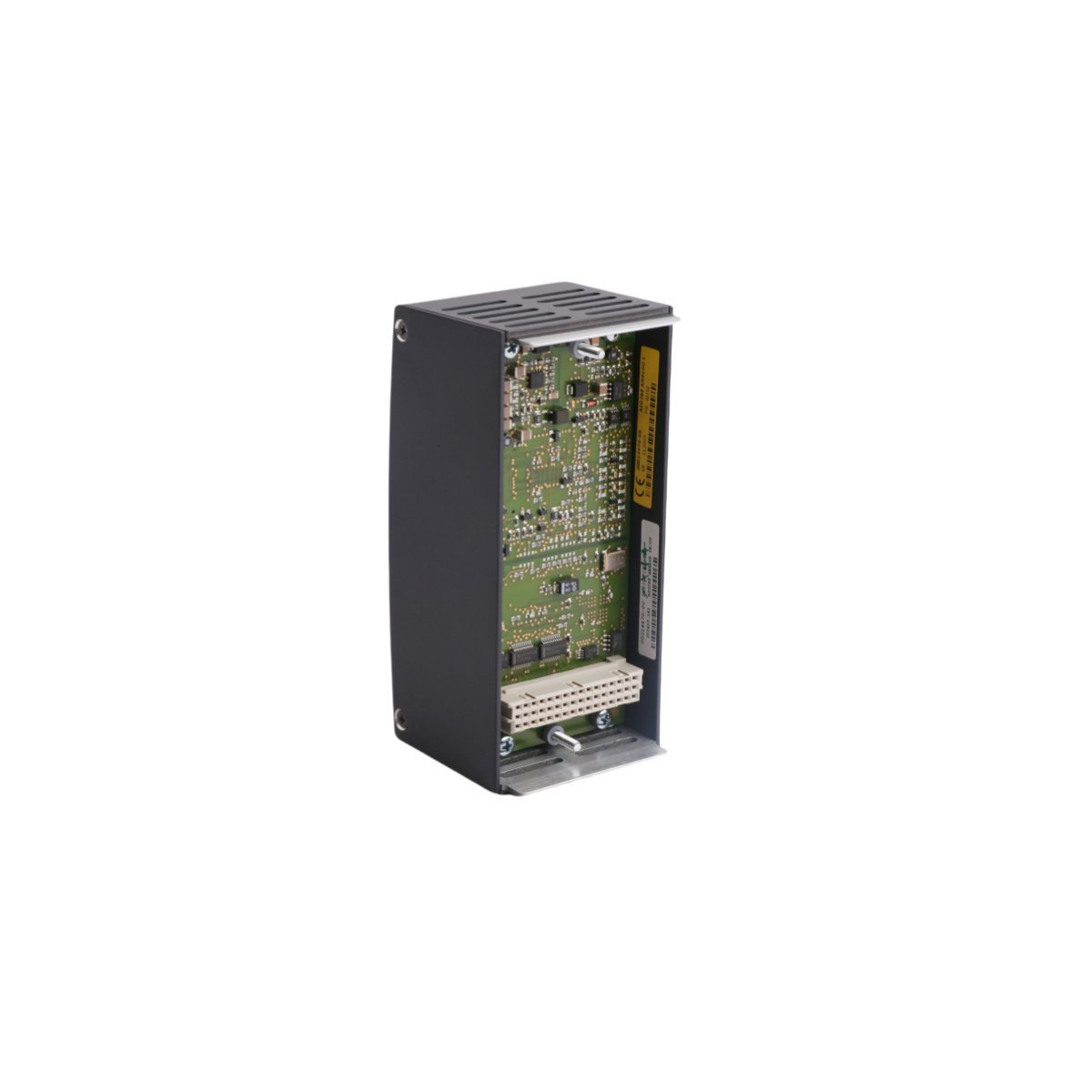

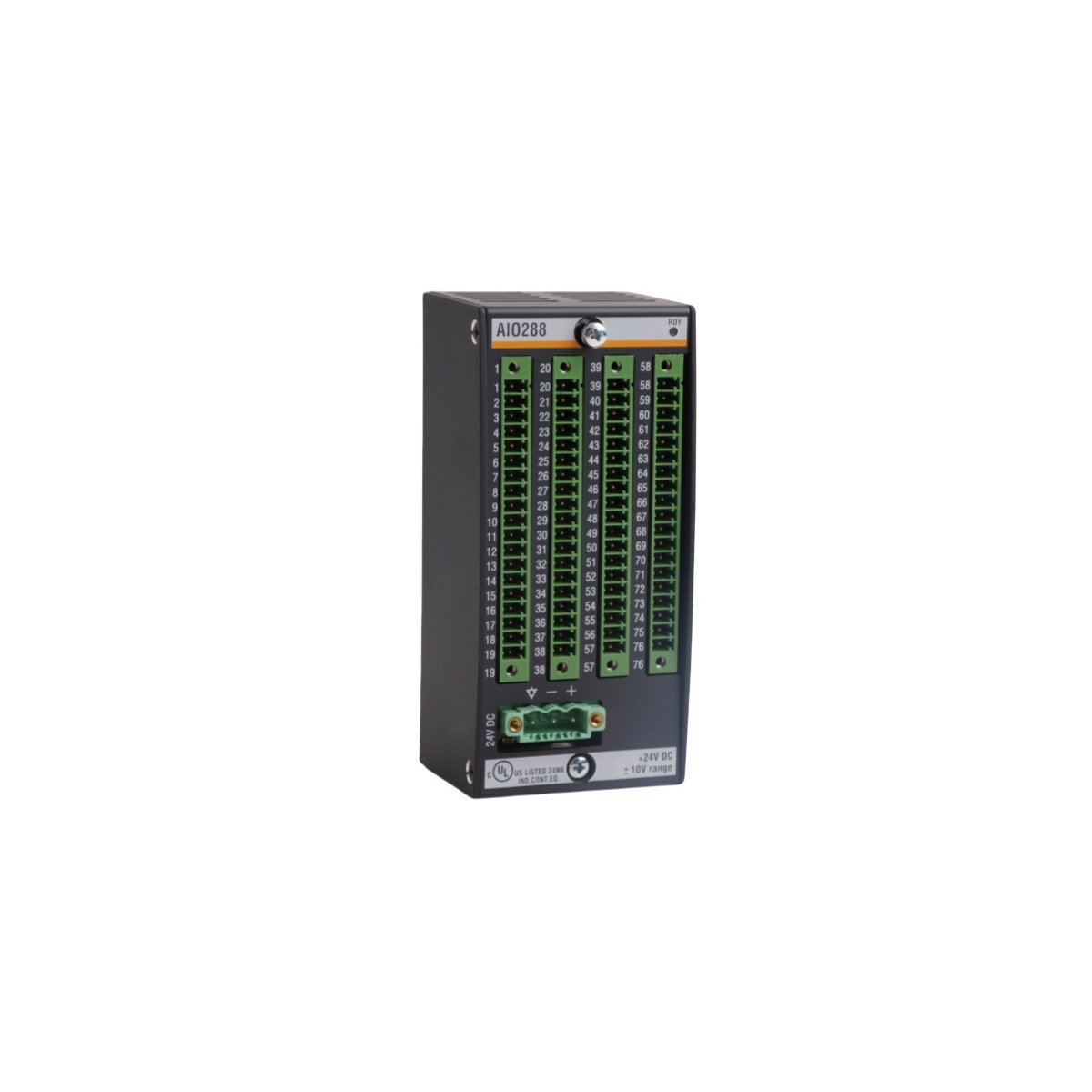

Bachmann AIO288 Analog Input/Output Module

The Bachmann AIO288 is a high-precision, multifunctional analog module engineered for the M1 automation system. This unit integrates eight analog input channels and eight analog output channels within a single compact housing. It manages a diverse range of signal types, including voltage, current, and resistance, providing a centralized solution for interfacing with industrial sensors and actuators. Because the module supports both single-ended and differential input modes, it effectively minimizes electrical noise interference in complex wiring environments.

Specialized Sensor Support and Diagnostics

Beyond standard analog signals, the AIO288 offers dedicated support for temperature and position sensing. The module accommodates up to four Pt100 or Pt1000 RTD sensors using either 2-wire or 4-wire connection methods. Furthermore, it provides an integrated power supply for up to four potentiometers. To ensure maximum system uptime, Bachmann has equipped this module with advanced diagnostic features. These include automatic wire break detection for voltage inputs and overload protection for potentiometer supplies. Consequently, maintenance teams can identify field-side wiring faults immediately without extensive manual testing.

Technical Specifications

Key Functional Advantages

Automation engineers utilize the AIO288 for several critical performance benefits:

• Hardware Versatility: Combines inputs and outputs to save backplane space and reduce hardware costs.
• Integrated Safety: Built-in sensor monitoring prevents control logic errors caused by failed field devices.
• Precision Control: 16-bit resolution ensures accurate feedback for high-performance closed-loop applications.
• Thermal Stability: Designed to operate reliably under the variable temperatures found in industrial settings.
