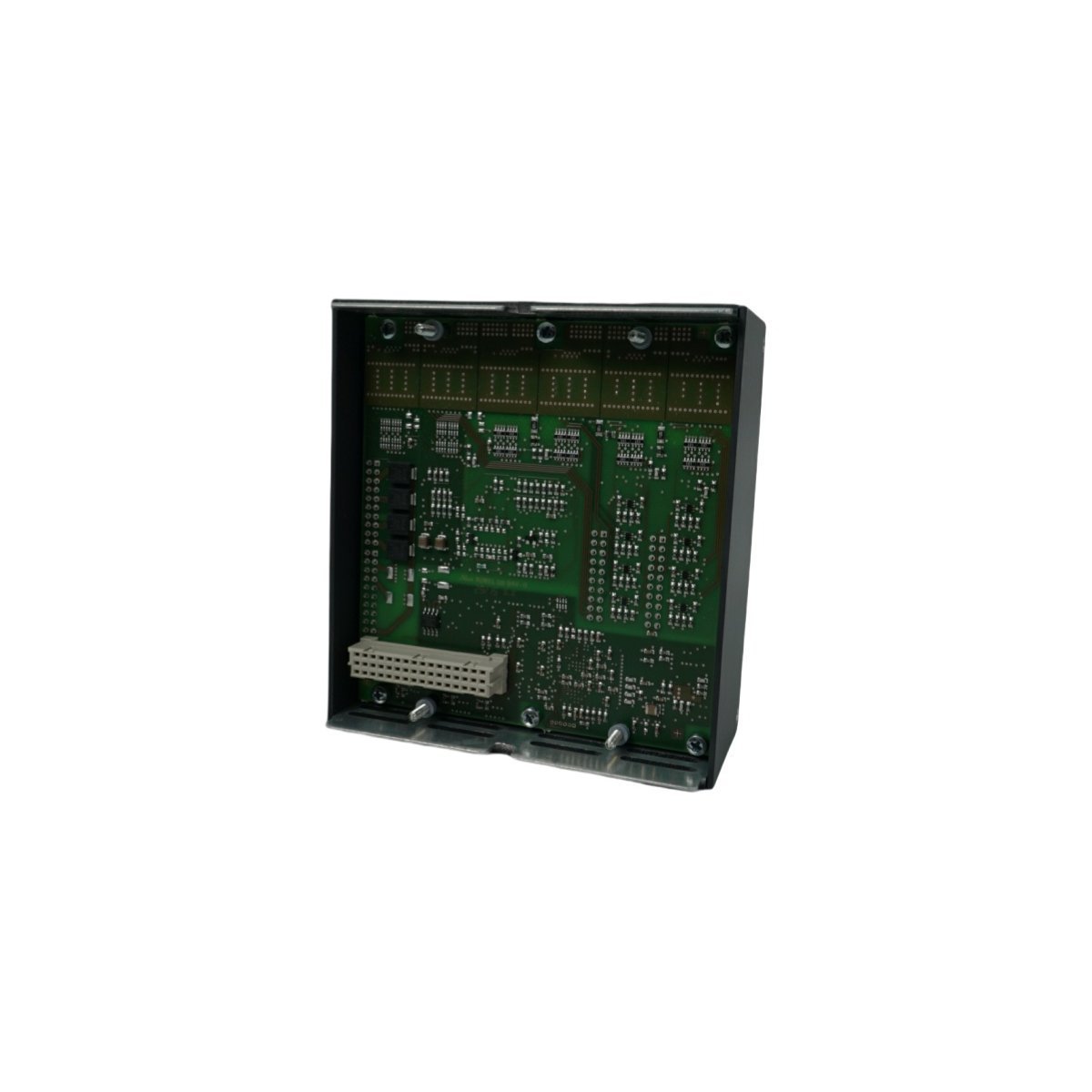

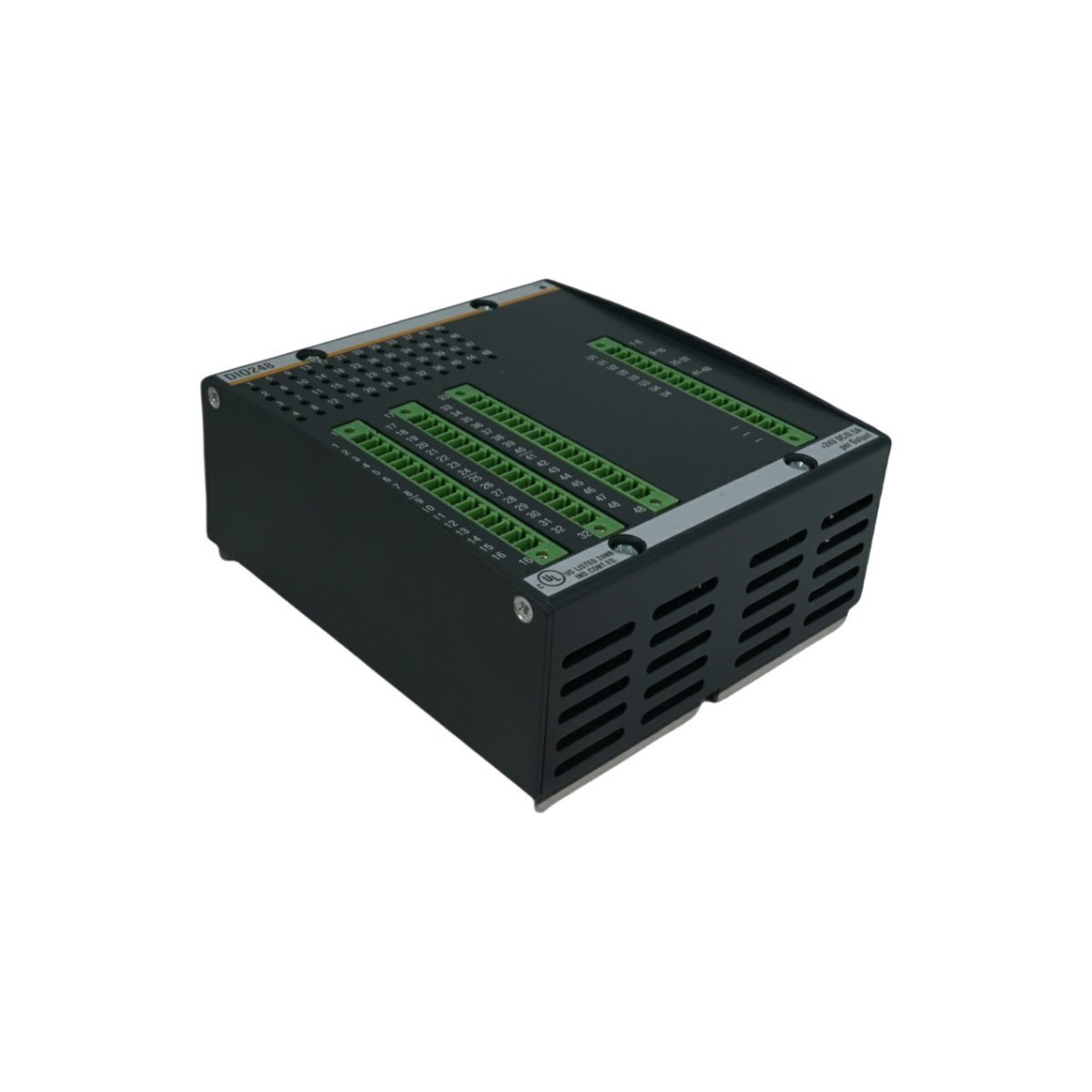

Bachmann DIO248 Digital Input/Output Module

The Bachmann DIO248 is a versatile digital interface module designed for the M1 automation system. It offers 48 channels of digital I/O, providing exceptional density for complex control cabinets. This module features a flexible architecture where 32 channels serve as dedicated inputs, while the remaining 16 channels function as programmable “mixed” ports. Users can configure these 16 ports as either inputs or outputs depending on specific application needs. This adaptability allows engineers to consolidate various sensor and actuator connections into a single slot, significantly reducing hardware costs and cabinet space requirements.

Technical Specifications

Diagnostics and Rugged Design

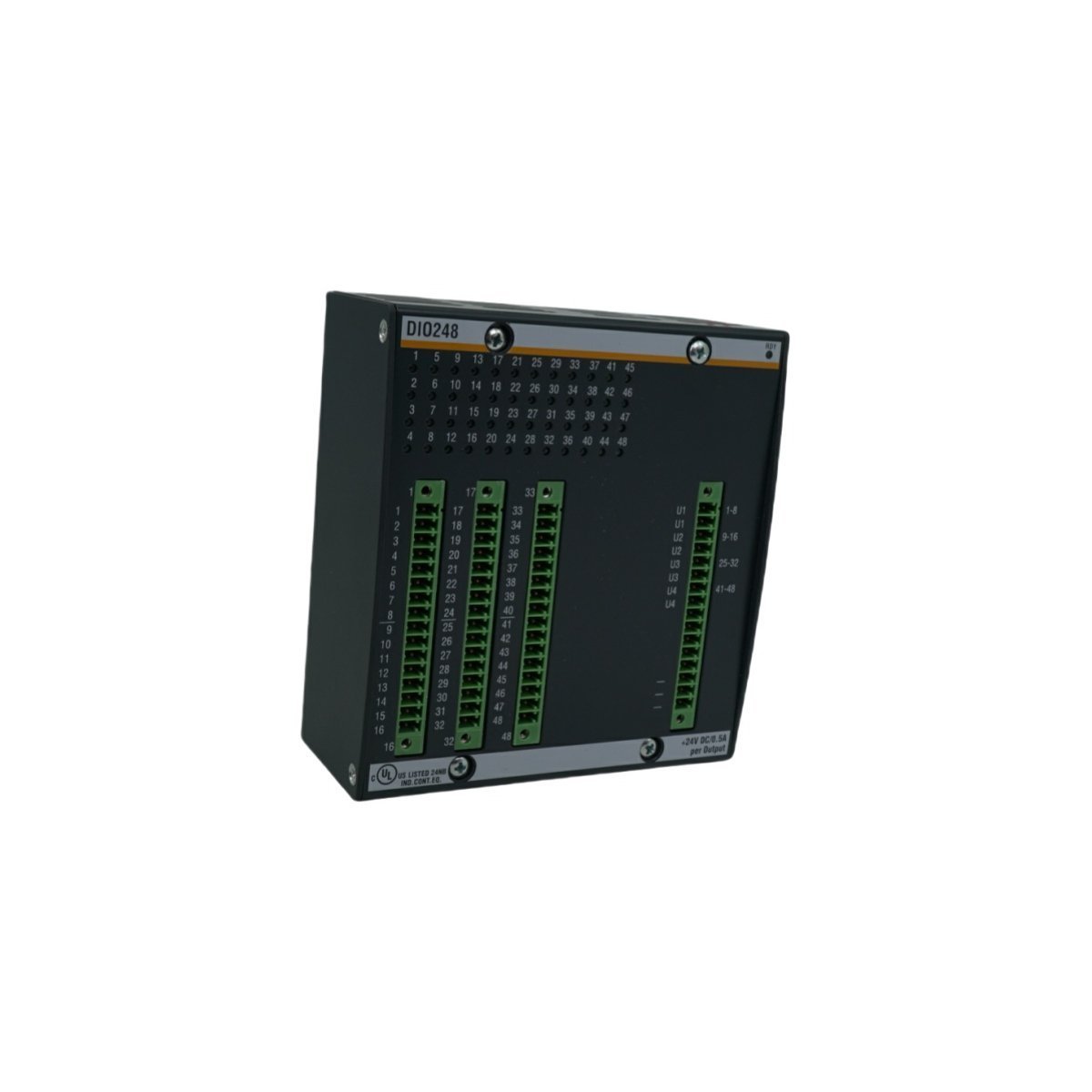

The DIO248 prioritizes system uptime through comprehensive diagnostic features. Individual LED indicators on the front panel display the real-time status of every channel, allowing for rapid visual troubleshooting. The module also monitors external power supply levels and features built-in protection against short circuits and reverse polarity. Because the design eliminates the need for additional potential distribution rails, wiring becomes cleaner and more reliable. Its rugged construction ensures stable performance in harsh manufacturing sectors, including renewable energy, maritime automation, and heavy industrial processing.

Application Use Cases

The flexible nature of the DIO248 makes it suitable for several specialized roles:

• Machine Monitoring: Utilize 32-bit counters for precise part counting and speed detection.
• Proportional Control: Drive hydraulic or pneumatic valves using the onboard PWM functionality.
• Sensor Aggregation: Connect a high volume of photoelectric or inductive sensors via high-density inputs.
• Event Triggering: Use interrupt-capable inputs for time-sensitive safety or process signals.
