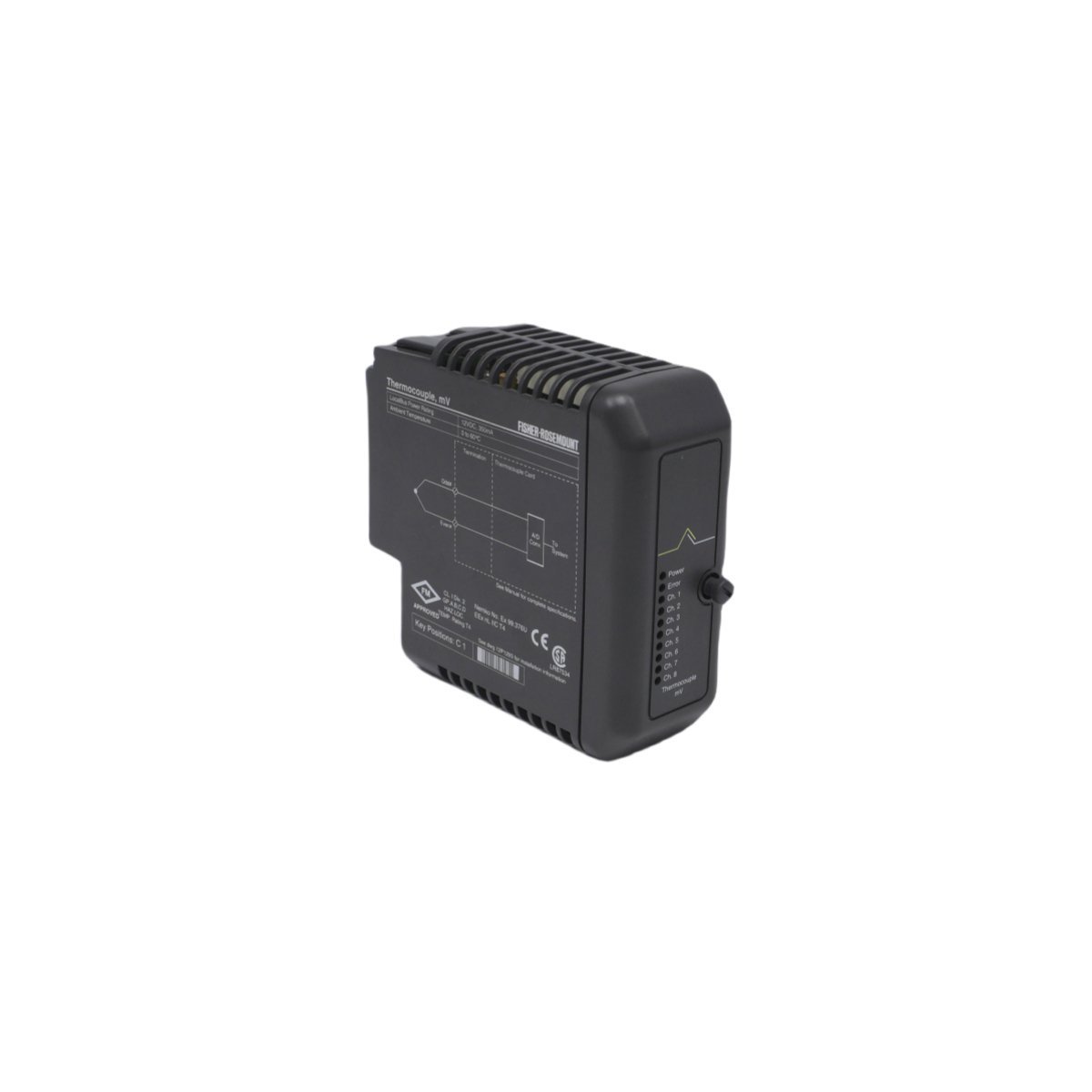

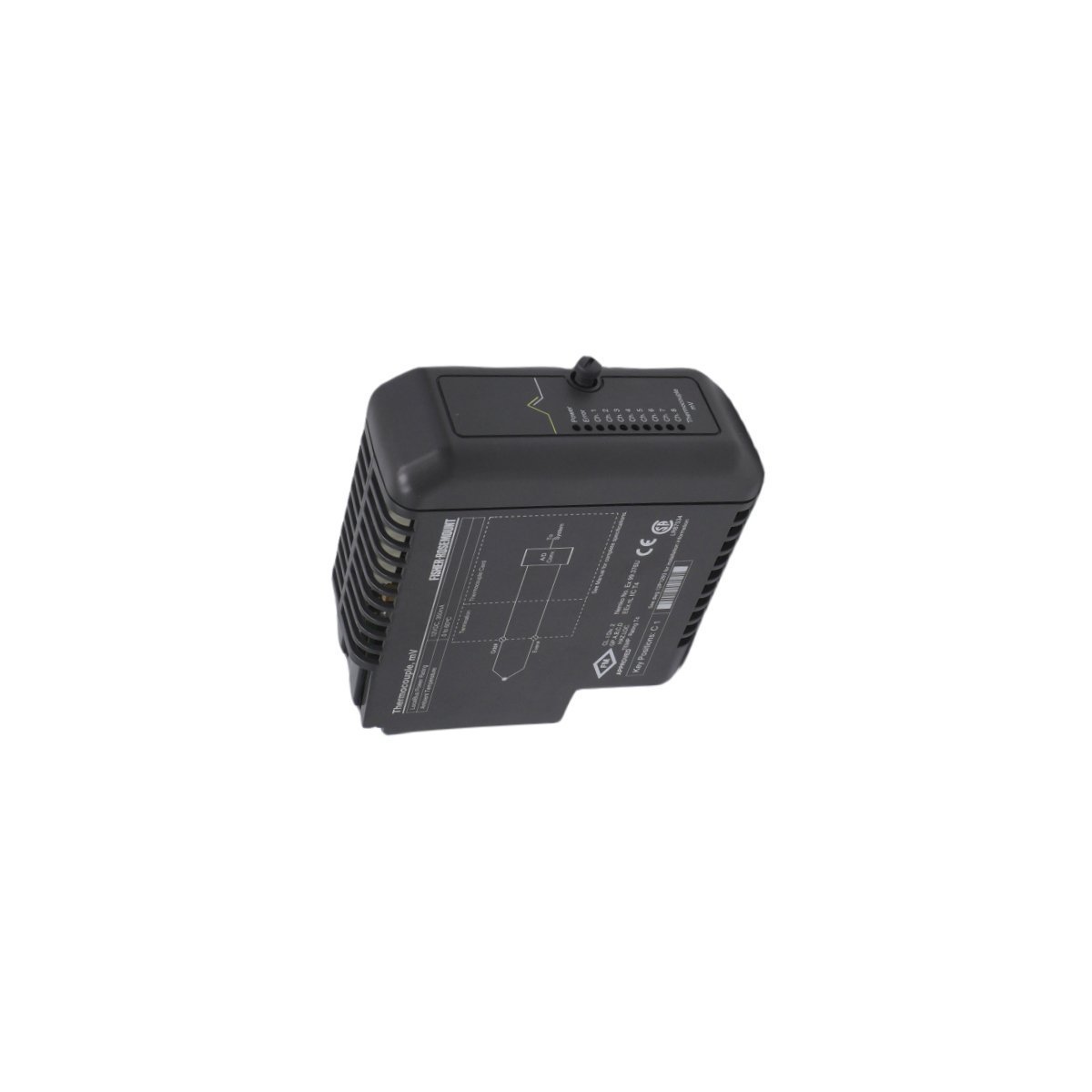

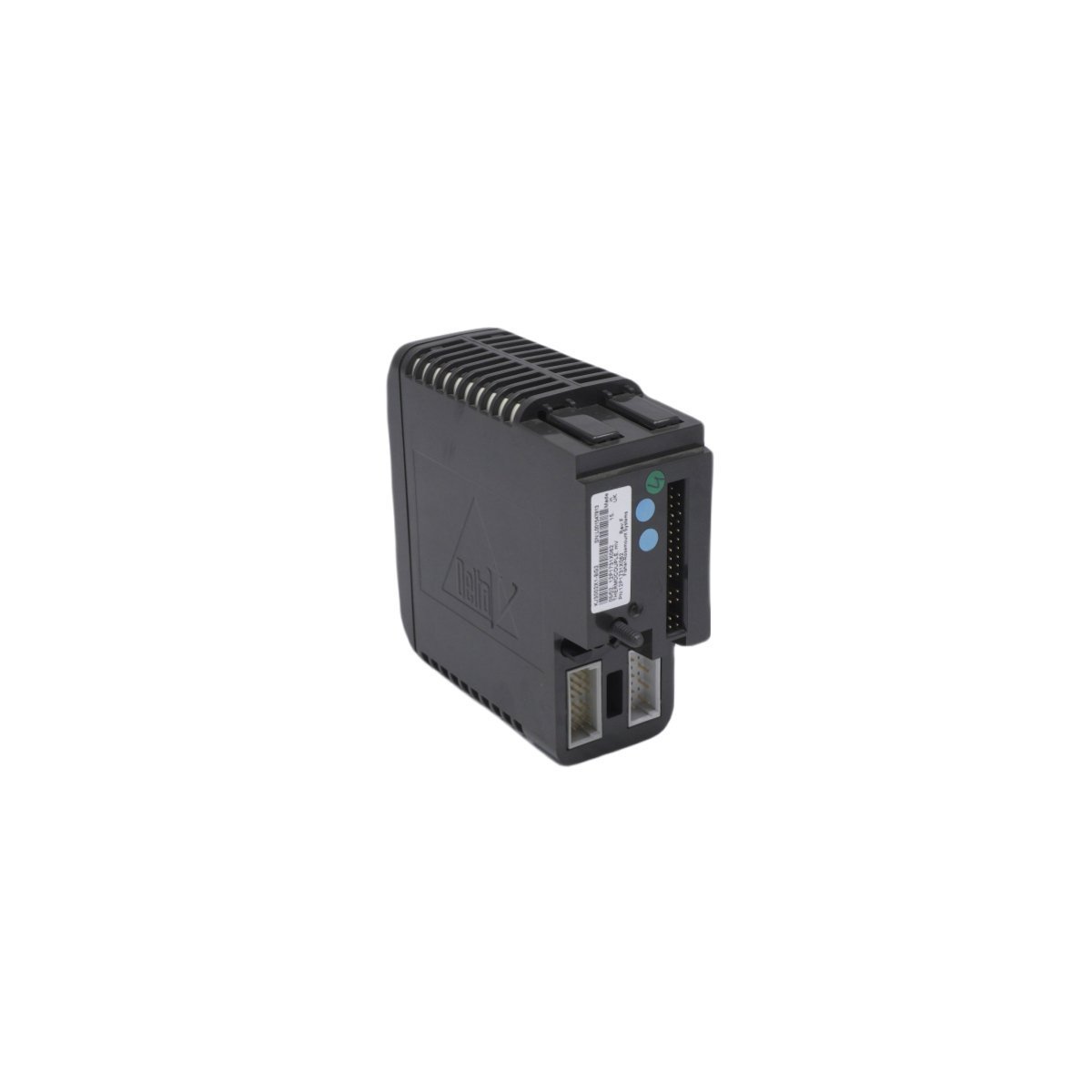

Emerson KJ3002X1-BG2 12P1731X032 VE4003S5B1 DeltaV Analog Input Card

The Emerson KJ3002X1-BG2 serves as an 8-channel thermocouple input card for the DeltaV M-series distributed control system. This module precisely measures low-voltage signals from various thermocouple types used in industrial processing. Furthermore, it converts these raw thermal signals into high-resolution digital data for the controller. The card utilizes advanced isolation technology to ensure signal integrity across all eight channels. Consequently, plant operators gain accurate temperature visibility, which remains critical for maintaining process stability. This module supports diverse industrial applications ranging from petrochemical refining to power generation.

Technical Integrity and Robustness

Emerson designed this I/O module to operate reliably in harsh, high-interference industrial environments. It features built-in noise rejection circuitry to filter out electromagnetic disturbances from nearby electrical equipment. Additionally, the module supports redundant configurations, which significantly increases system uptime during hardware failures. The hardware also provides open-circuit detection to alert maintenance personnel of faulty field sensors immediately. This proactive diagnostic capability minimizes troubleshooting time and prevents loss of critical process control. Furthermore, the compact design allows for dense cabinet mounting, saving valuable rack space within control rooms.

System Integration and Scalability

Installation of the KJ3002X1-BG2 requires minimal effort due to the modular design of the DeltaV M-series system. Technicians mount the card into the standard I/O carrier and connect field wiring through the associated terminal block. Moreover, the DeltaV system automatically recognizes the module, simplifying the software configuration process. The card integrates perfectly with existing automation strategies, allowing for easy expansion as facility requirements grow. By providing reliable, real-time thermal data, this module enhances the precision of automated control loops. It remains a essential component for facilities requiring long-term durability and consistent measurement accuracy.

Industrial Asset Performance

Deploying this thermocouple input card ensures precise control over temperature-sensitive chemical and thermal processes. Its robust design minimizes long-term maintenance costs by providing stable performance over years of service. Furthermore, the inclusion of redundant communication pathways protects against data loss in mission-critical environments. Facilities optimize their operational efficiency and safety by leveraging these proven Emerson components. This module delivers the high-fidelity data needed to meet modern industrial production standards.

Technical Specifications Summary
