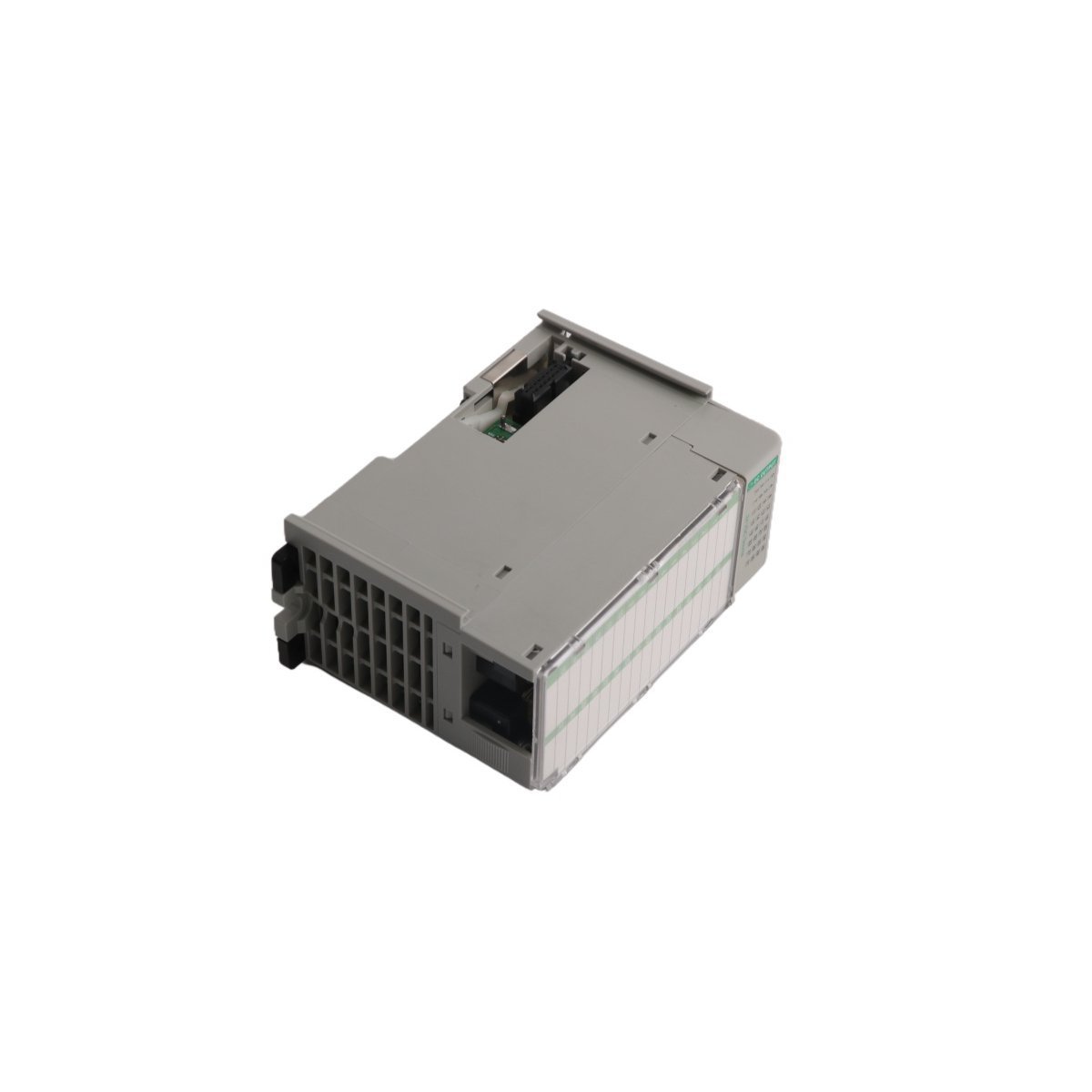

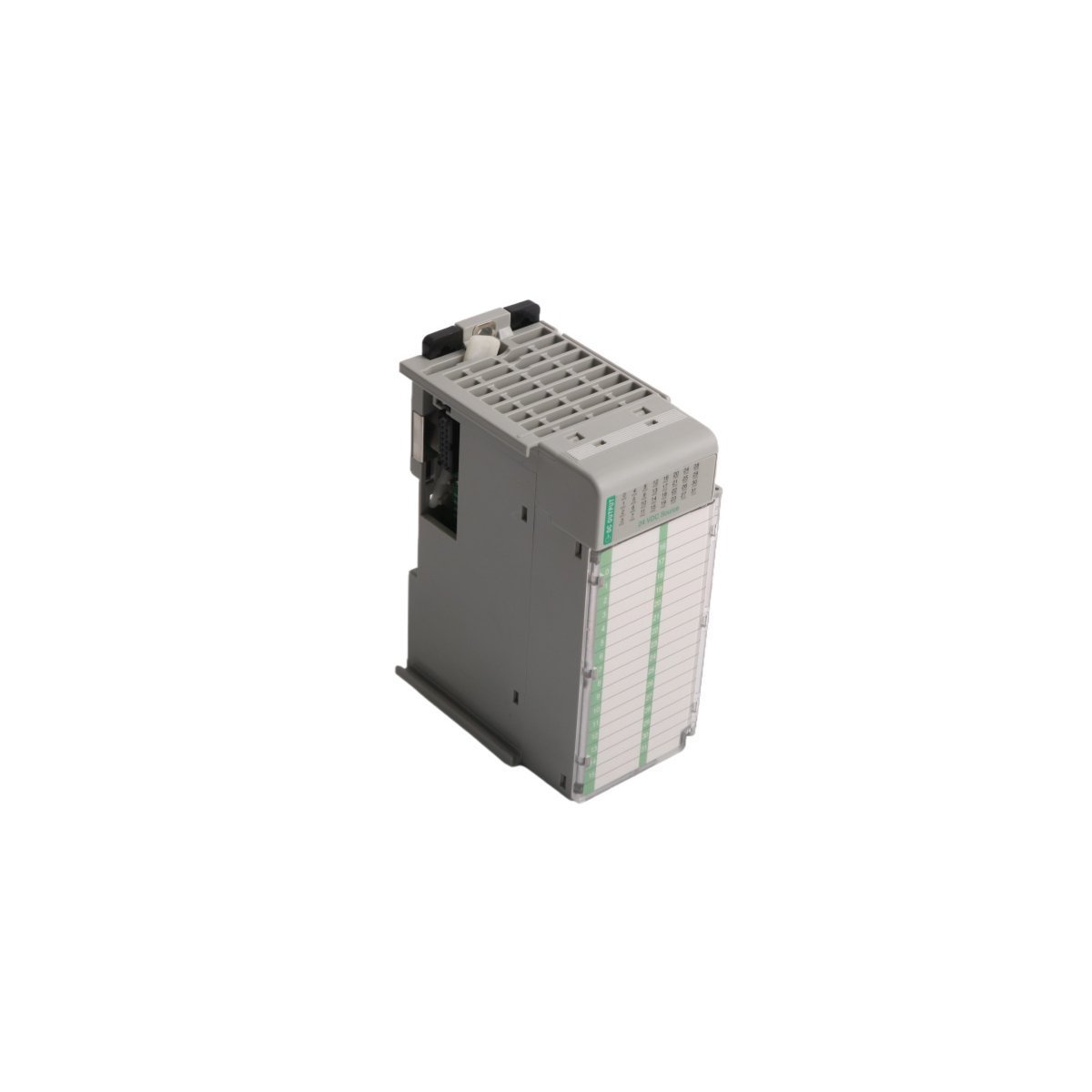

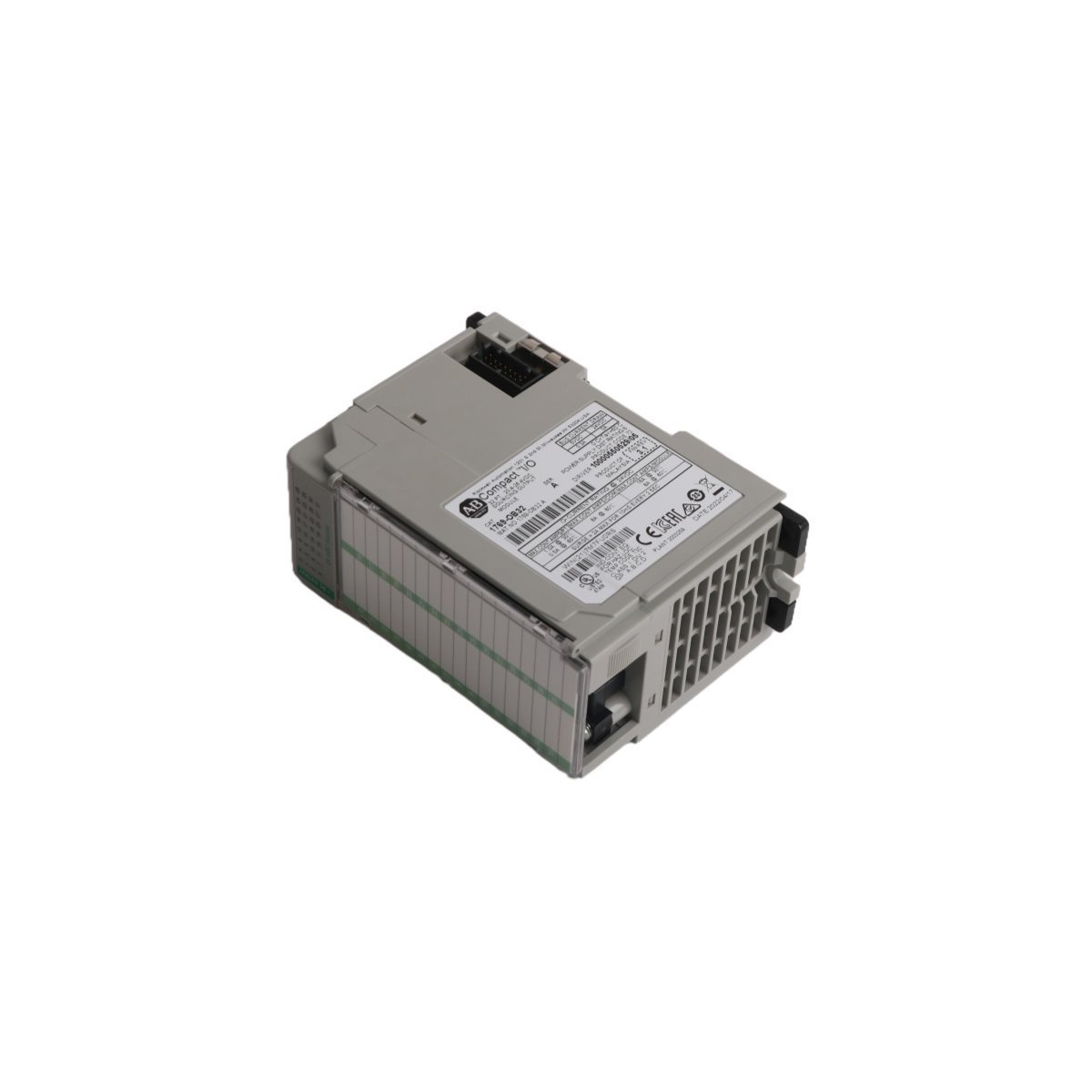

Allen-Bradley 1769-OB32 Machine Control

The Allen-Bradley 1769-OB32 is a high-density digital output module designed for the CompactLogix and MicroLogix 1500 platforms. It provides 32 sourcing outputs, which allow the controller to drive a large number of DC field devices from a single slot. By organizing these outputs into two isolated groups of 16, the module offers better electrical separation and wiring flexibility. This design is particularly effective for space-constrained cabinets where maximizing I/O count per inch is a priority. Furthermore, the sourcing configuration ensures that the module provides power directly to the load when an output is energized.

Electrical Performance and Integration

This module operates on a standard 24V DC nominal voltage with an acceptable range of 20.4V to 26.4V DC. Each individual channel supports a maximum current of 0.5A, though users must manage the total module current to prevent overheating. Specifically, the module features rapid signal processing with an ON-state delay of 0.1ms and an OFF-state delay of 1.0ms. Because the 1769-OB32 has a power supply distance rating of eight, it must reside within eight slots of a compatible power supply. This requirement ensures that the internal backplane receives sufficient current for stable switching operations.

Technical Specifications

Wiring and Industrial Durability

To maintain reliable connections in high-vibration environments, the 1769-OB32 uses a removable terminal block (RTB). This component supports both solid and stranded copper wiring between 16 and 22 AWG. Additionally, the module includes reinforced insulation to protect the sensitive internal logic from field-side electrical surges. Status LEDs located on the front panel provide immediate visual feedback for each of the 32 points. These indicators simplify troubleshooting by showing the state of every output at a glance. The rugged construction makes it suitable for diverse sectors, including material handling, packaging, and general factory automation.
