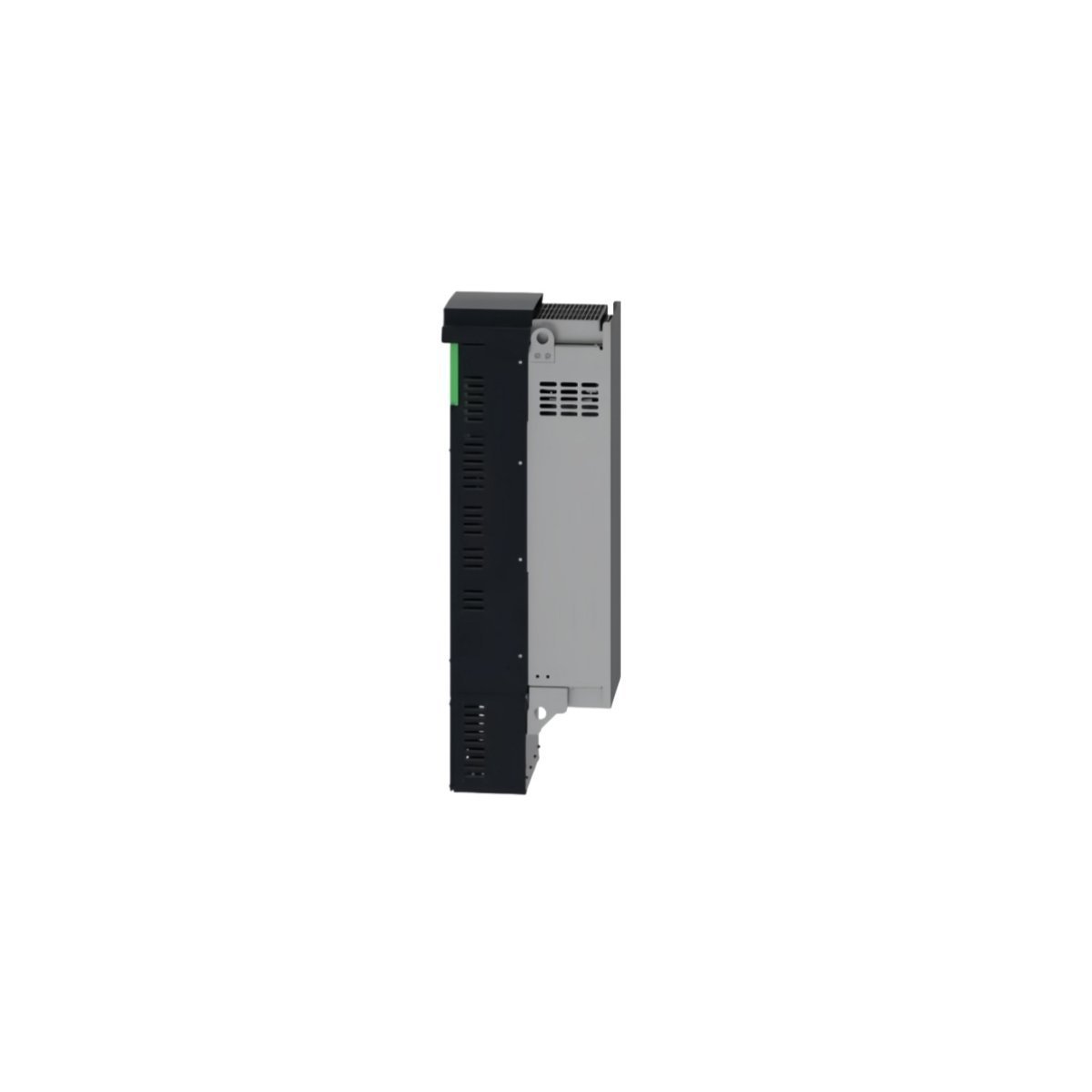

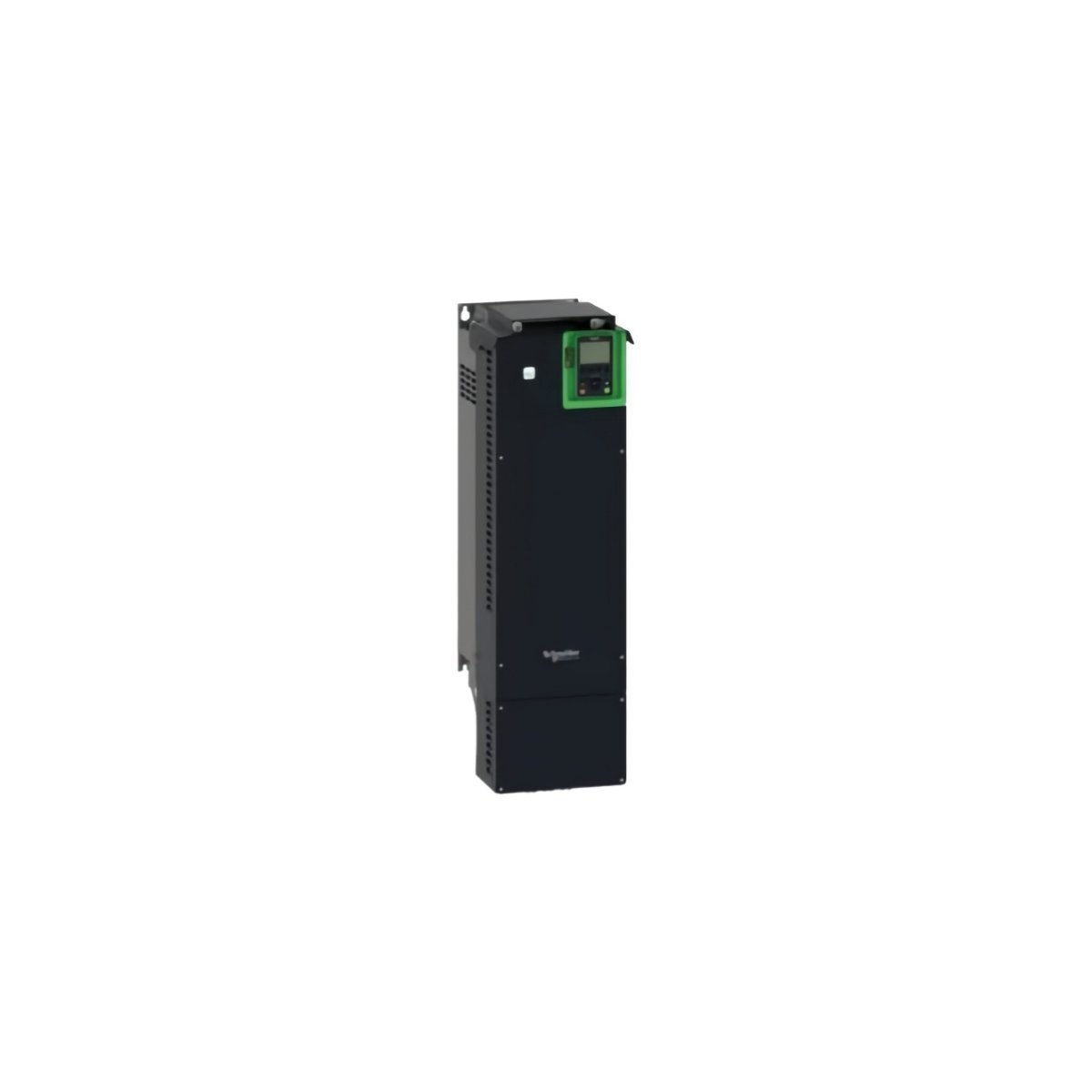

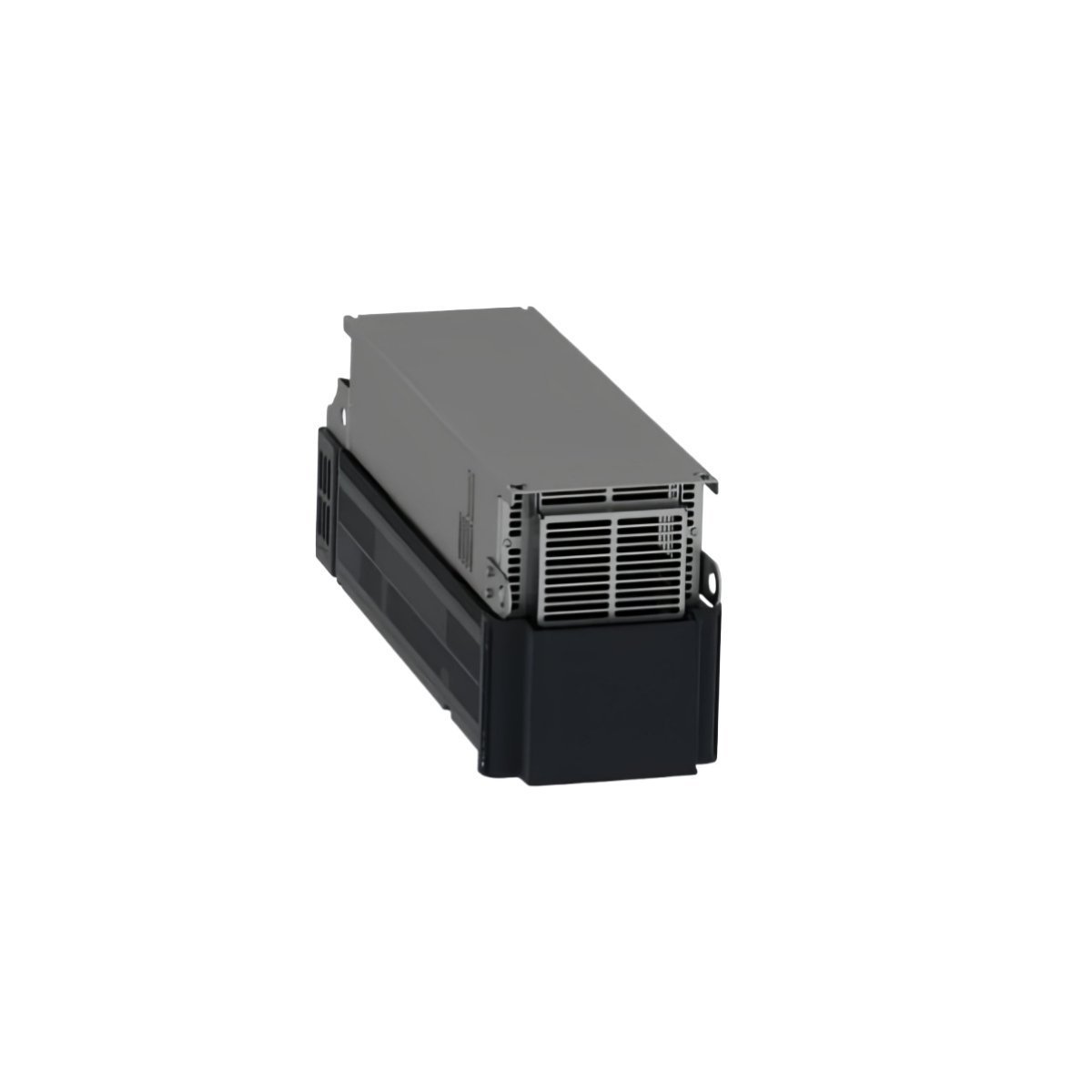

ATV630D90N4 Schneider Electric Altivar ATV600 Variable Speed Drive

Schneider ATV630D90N4 ATV600 Variable Speed Drive

The Schneider ATV630D90N4, also cataloged as the ATV630D90N4 Variable Speed Drive, operates as a dedicated hardware component for 3-phase motor torque and speed regulation within Modbus TCP and Ethernet/IP industrial networks.

Suffix Breakdown & Model Matrix

Hardware Specifications

Dynamic Motor Control & Network Synchronization

Engineers integrate deterministic Ethernet protocols directly into the main control board, which ensures real-time packet delivery across process automation networks. Internal logic algorithms maintain microsecond-level synchronization between the pulse-width modulation (PWM) switching frequencies and the motor shaft velocity. The onboard processor monitors field bus traffic while executing field-oriented vector algorithms, which prevents firmware communication timeouts during high-load transient events.

Frequently Asked Questions

Q: How does the internal controller handle high-level Ethernet bus traffic without causing motor velocity jitter?

A: The system routes motor control vectors through a dedicated embedded processor, while a separate communication coprocessor handles Ethernet stack processing. This hardware separation isolates critical pulse-width modulation timing loops from fieldbus network latency.

Q: What physical mounting orientation constraints apply to maintain proper thermal heat sink dissipation?

A: Technicians must mount the enclosure vertically within a tolerance of plus or minus 10 deg C from vertical. Mounting the unit at steeper angles impedes vertical convection currents across the rear heatsink fins, which leads to premature thermal throttling.

Q: Can engineers execute a hot-swap operation on the removable graphic display terminal while the drive powers an active motor load?

A: Yes, operators can safely remove or plug in the keypad terminal during live inverter operation. The core power processing board maintains its last running velocity setpoint via non-volatile internal registers, so the unplugging action never disrupts the active drive state.

Field Installation Guidelines

Mount the drive vertically on a flat, non-combustible surface to promote unhindered thermal convection across the rear cooling fins. Installers must maintain a minimum free clearance of 100 mm above and below the unit. Secure all main AC supply and motor power leads to the power terminals using calibrated torque tools, while dressing power conductors separately from control wiring to eliminate electromagnetic interference.

Run all analog signal lines and Ethernet fieldbus cables through dedicated metal conduits. Ground the metallic cable shields at a single ground bus point near the enclosure entry plate to prevent ground loops. Technicians must verify that the protective earth (PE) ground bond presents a low-resistance path to the main facility earth grid before applying 380-480 V AC power to the line terminals.
