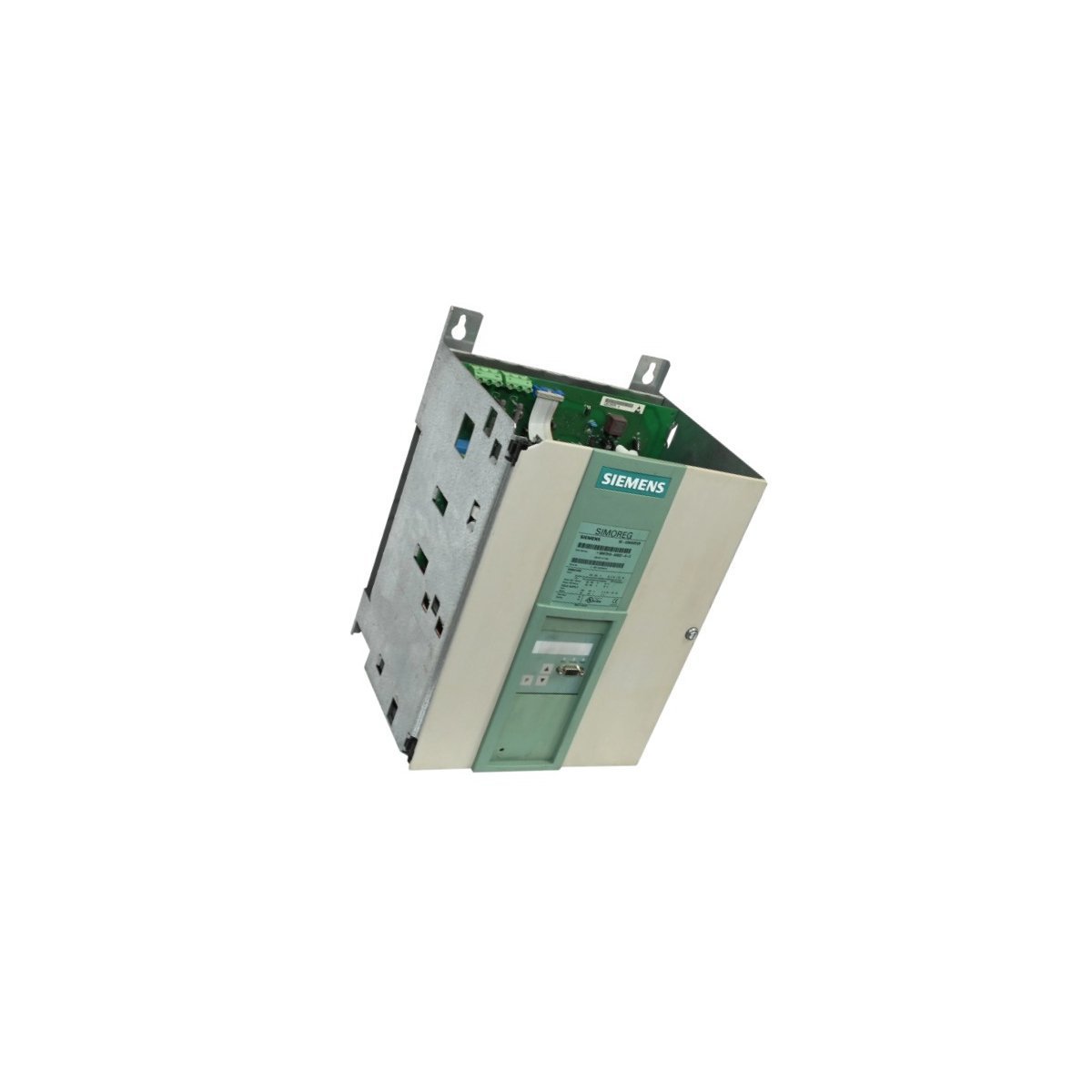

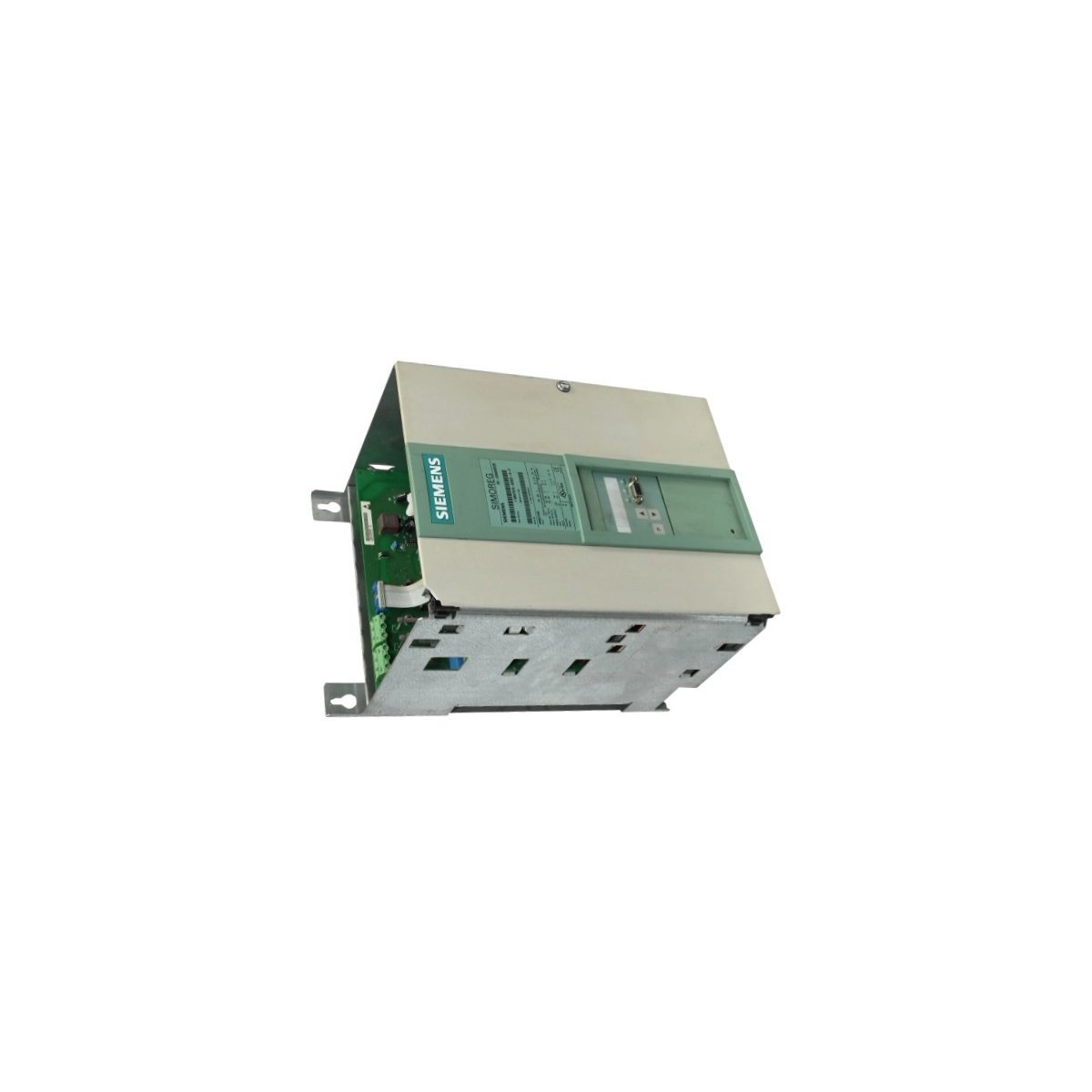

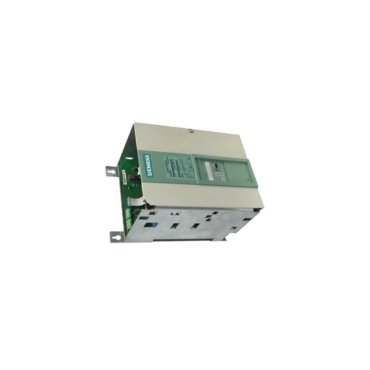

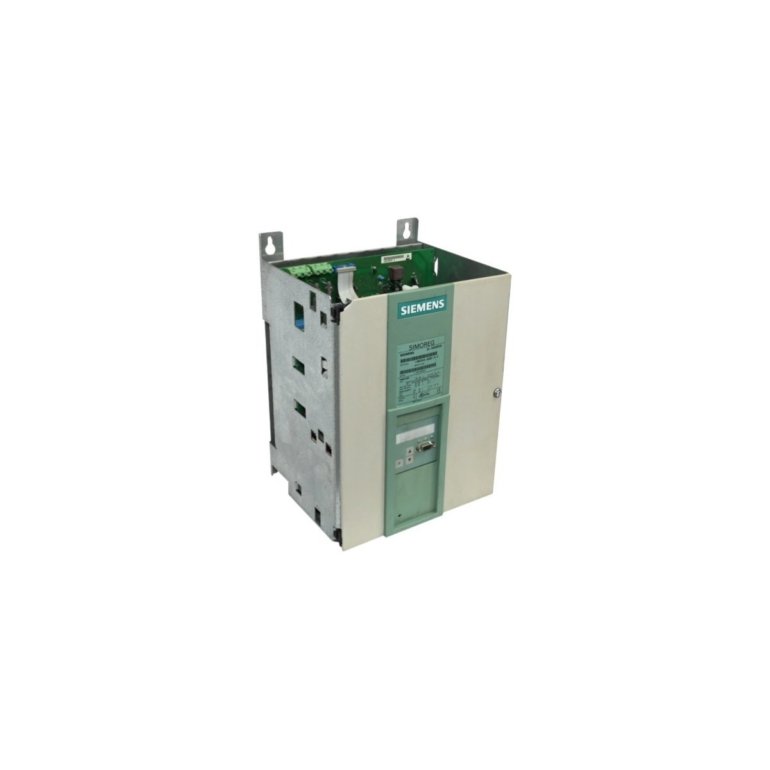

Name: Siemens 6RA7091-6FS22-0 Drive
Brand: Siemens
SKU: 6RA7091-6FS22-0
Availability: InStock

The Siemens 6RA7091-6FS22-0 operates as a specialized Converter Commutation Protector (CCP) within the SIMOREG series. This module specifically targets the vulnerabilities of four-quadrant DC drive applications. It provides a vital safety layer by preventing commutation failures during regenerative braking modes. Consequently, this unit safeguards power semiconductors from damage during sudden line voltage dips. The hardware effectively manages high-energy states to ensure continuous industrial production. Its integration significantly reduces the risk of expensive fuse trips and thyristor failures.

Technical Functionality and Integration

This protection module supports high-capacity systems with current ratings reaching 1200A. It handles line voltages up to 550V and remains compatible with global 50/60 Hz frequencies. The internal circuitry actively monitors the armature circuit to dissipate excess energy safely. Furthermore, users can configure the protection behavior through internal drive parameters like p51578. This flexibility allows the device to match specific motor characteristics and load profiles. The compact design facilitates straightforward installation within standard control cabinets.

Industrial Reliability and Maintenance

The 6RA7091-6FS22-0 excels in heavy-duty sectors like metal processing and mining. It maintains system stability during rapid torque reversals or emergency stops. Because it prevents hardware stress, the module extends the service life of the entire drive train. The unit features robust construction to endure typical industrial vibration and heat. Regular parameter audits ensure the protector maintains peak efficiency throughout its operational life. This component represents an essential investment for high-power DC infrastructure.
