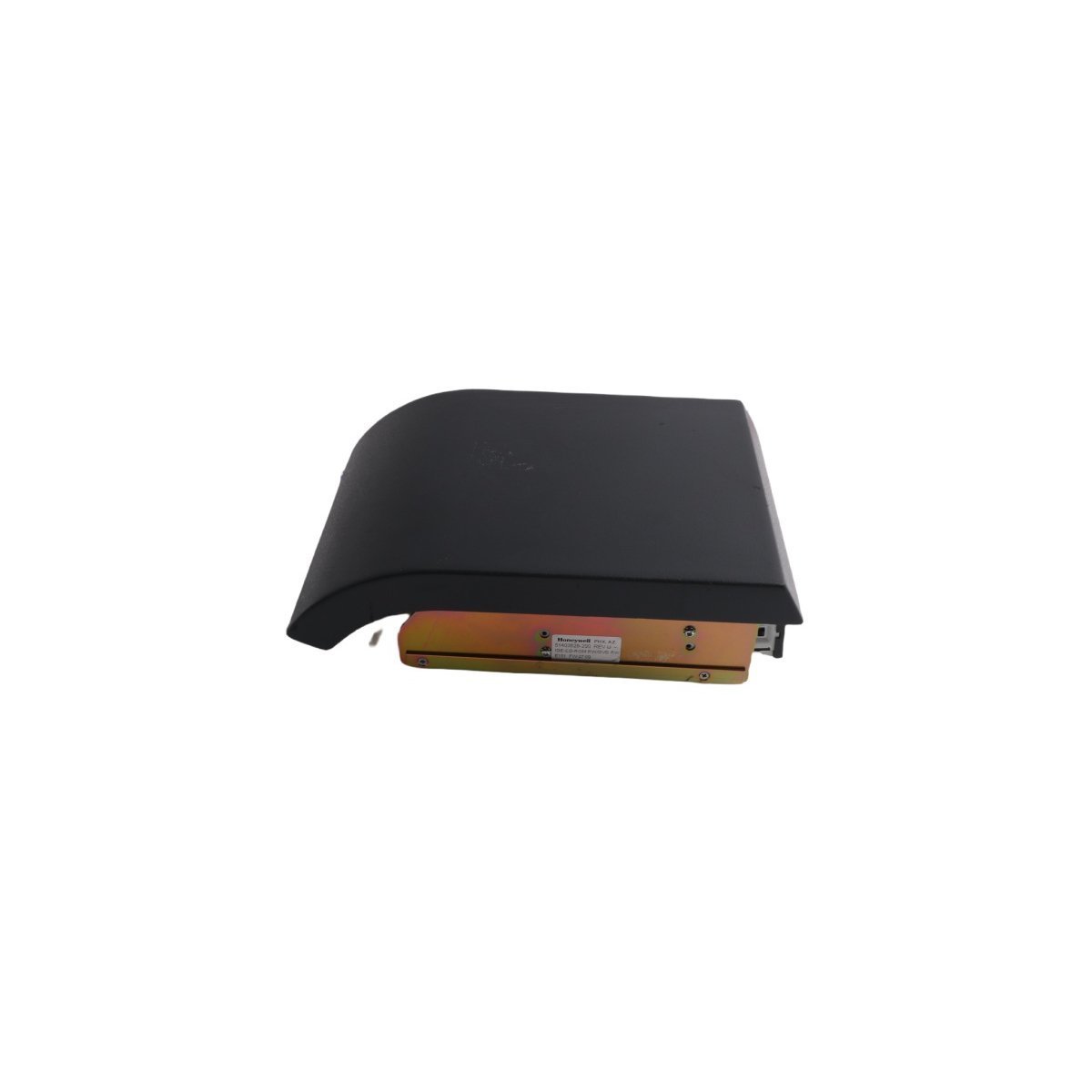

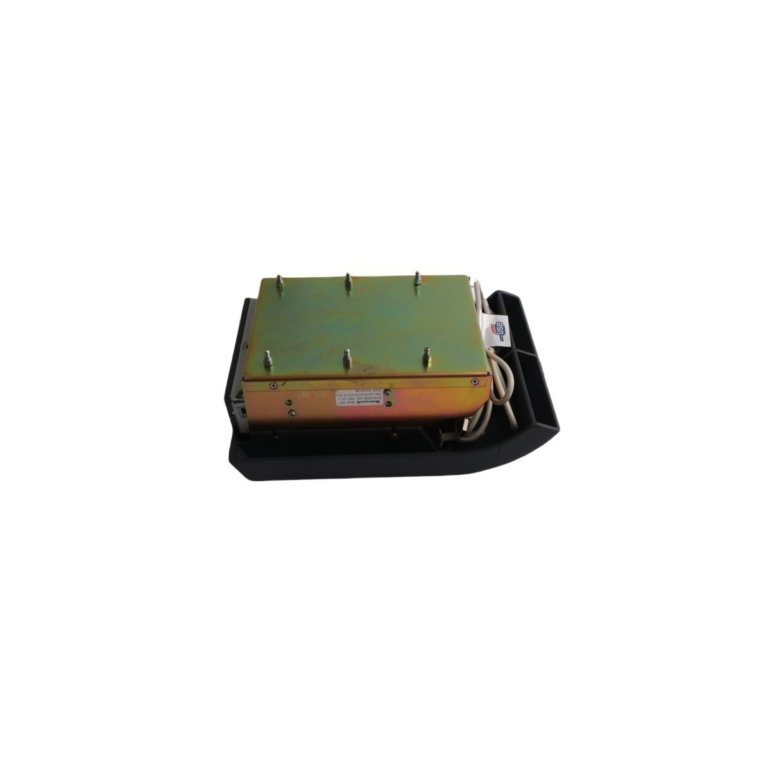

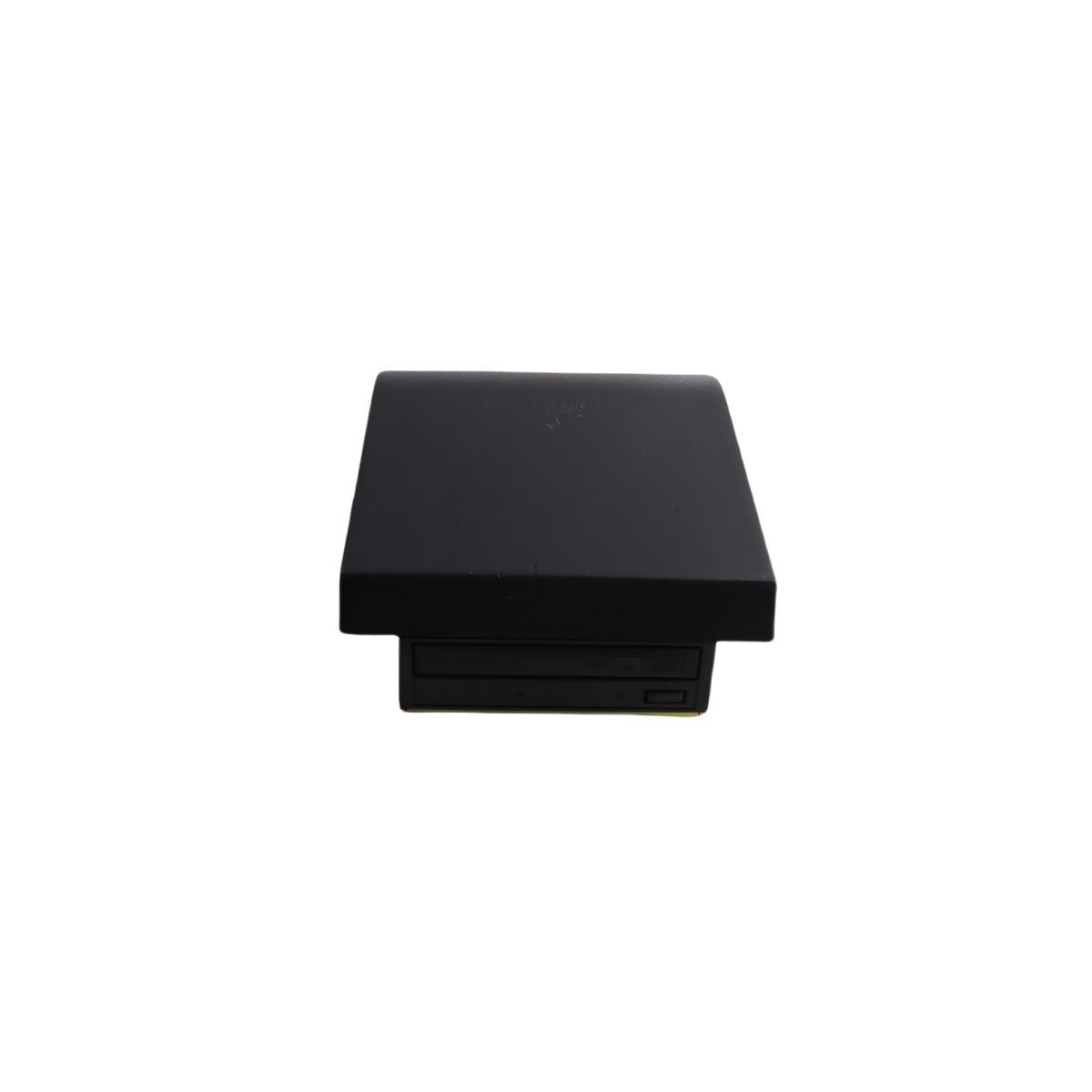

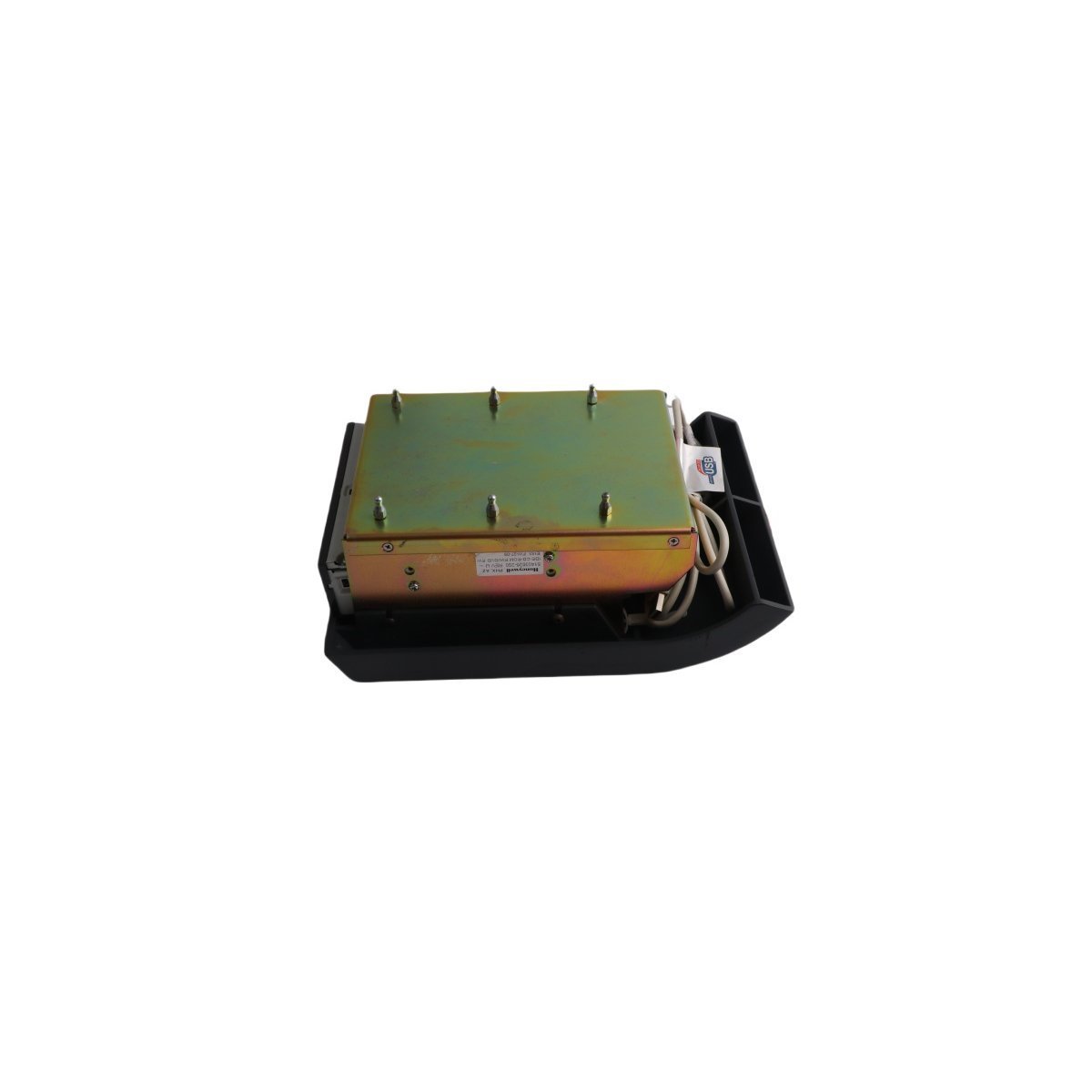

Honeywell 51403626-200 Series 8 DCS Module

The Honeywell 51403626-200, also cataloged as the 51403626-200 DCS Module, operates as a dedicated hardware component for high-availability process control and system redundancy management within Honeywell Experion PKS Series 8 platforms.

Hardware Specifications

Process Control & Channel Isolation

Engineers install the 51403626-200 module to establish deterministic data flow and redundancy switching across Experion PKS Series 8 racks. The onboard processing architecture executes high-speed communication routing while maintaining channel-to-channel isolation between internal controller logic and external I/O loops. Consequently, the internal isolation barriers block ground loop currents and prevent common-mode voltage spikes from corrupting analog 4-20 mA HART signal lines during rapid process transients.

Frequently Asked Questions

Q: Can maintenance personnel hot-swap the 51403626-200 module during live control operations?

A: Engineers can safely perform hot-swapping if the module operates within an active redundant dual-controller pair, because the secondary unit assumes system control instantly without disturbing field output states.

Q: How does the 51403626-200 module mitigate high electromagnetic noise inside industrial control cabinets?

A: The module relies on a heavy-duty metallic enclosure combined with multi-layer PCB ground planes and onboard LC filtering circuits, which together shield internal processing nodes against industrial EMI and RF interference.

Q: What power bus connections does the unit require upon chassis insertion?

A: The backplane bus supplies dual 24 VDC power lines directly through the rear header connector, which allows internal diodes to execute power rail auctioning for continuous redundant power delivery.

Field Installation Guidelines

1. Technicians must wear a grounded ESD wrist strap before handling the 51403626-200 module to shield internal microprocessors from static damage.

2. Align the module bottom channels with the chassis guide rails, then push the assembly inward firmly until the locking levers snap into the backplane housing completely.

3. Torque all chassis retaining screws to 0.8 Nm to secure the earth ground bonding pathway between the module housing and the enclosure rack.

4. Maintain at least 50 mm of vertical ventilation space above and below the module carrier so that natural convection dissipates operational thermal loads effectively.
