BMXFTB2000 Schneider Electric Modicon X80 Terminal Blocks

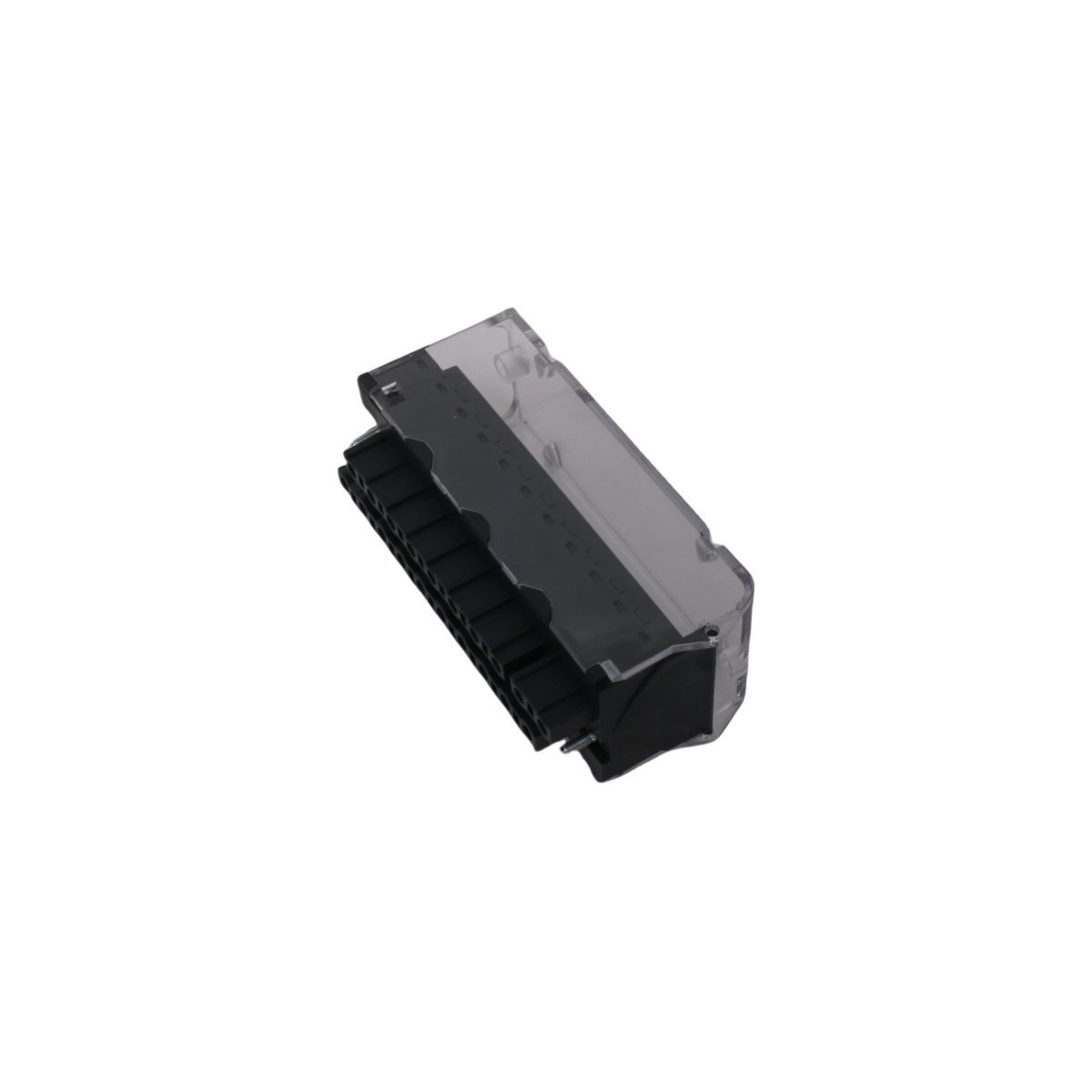

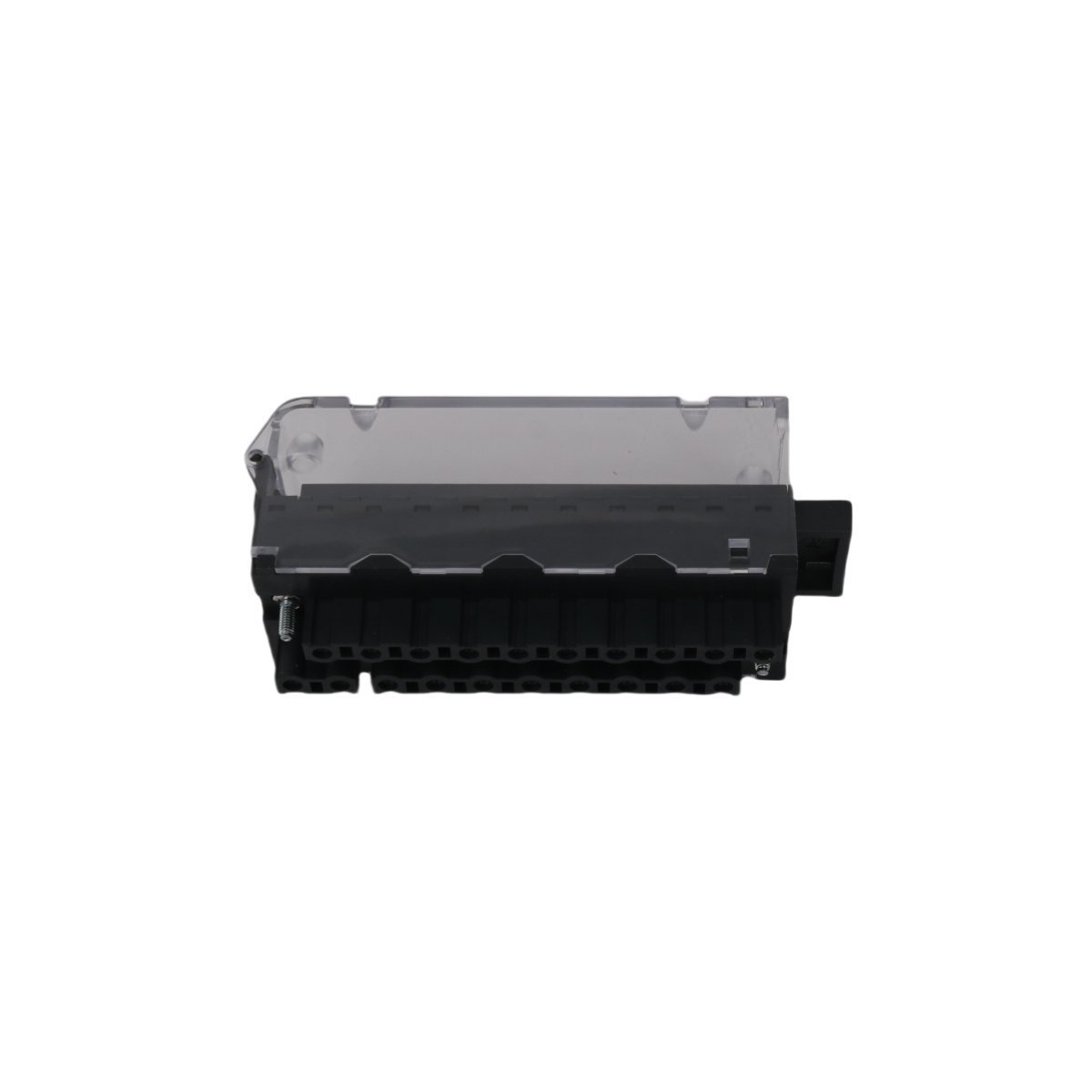

Schneider Electric BMXFTB2000 Terminal Block

The Schneider Electric BMXFTB2000, also cataloged as the BMXFTB2000 Terminal Block, operates as a dedicated hardware component for field wiring termination within Modicon X80 I/O and PLC platforms.

Hardware Specifications

Fieldbus Communications and Backplane Integration

Engineers connect field sensors directly to the terminal points, while the caged clamp contacts route electrical signals to the front connector of the Modicon X80 module. Standardized pin allocations ensure rapid channel mapping, which minimizes signal attenuation across analog and discrete loops. High contact retention forces maintain electrical continuity during severe panel vibration, whereas integrated mechanical keys prevent mismatched module wiring during hot-swap operations.

Frequently Asked Questions

Q: How do technicians secure wires into the cage clamp terminals without damaging the internal tension springs?

A: Operators insert a flathead screwdriver into the upper actuation slot, which opens the clamp cage. After inserting the stripped conductor, technicians remove the tool, causing the spring mechanism to exert constant mechanical pressure against the wire core.

Q: Does the removable terminal block support live removal while the parent I/O module processes signals?

A: Yes, technicians can unlock the mechanical retaining screws and remove the block under power. However, removing the terminal block breaks the physical field signal loops instantly, so operators must disable the corresponding PLC software channels first to avoid fieldbus fault alarms.

Q: What wire gauge range does the terminal block accommodate for standard panel wiring?

A: The cage clamp mechanism accepts solid or stranded copper conductors ranging from 0.2 mm2 to 2.5 mm2 (AWG 24 to AWG 14). Technicians should apply crimped ferrules to stranded wires to ensure low-resistance contact inside the terminal cage.

Field Installation Guidelines

Mount the parent Modicon X80 module firmly onto the rack backplane before attaching the terminal block. Technicians must strip 9 mm of insulation from each signal wire to expose clean conductor metal. Insert each wire completely into its designated clamp point while depressing the locking tab, then release the spring to clamp the conductor securely.

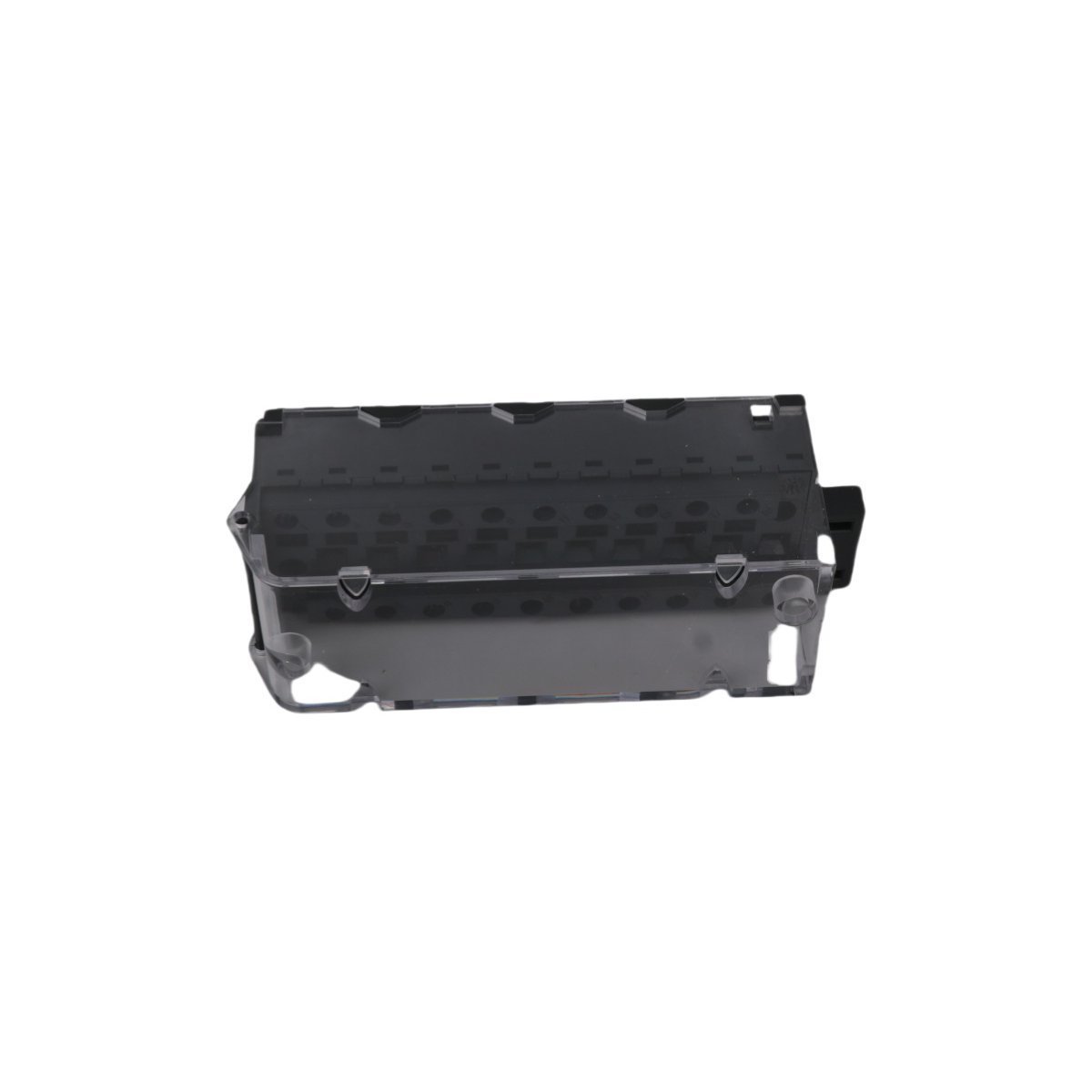

Align the hinged protective cover over the wired terminal face, then snap it shut to protect the bare connection points from dust accumulation. Secure the top and bottom captive mounting screws onto the module frame using a torque screwdriver set to 0.4 N-m. Route all incoming signal bundles through panel cable trays, ensuring adequate strain relief near the connector entry to prevent wire stress.
