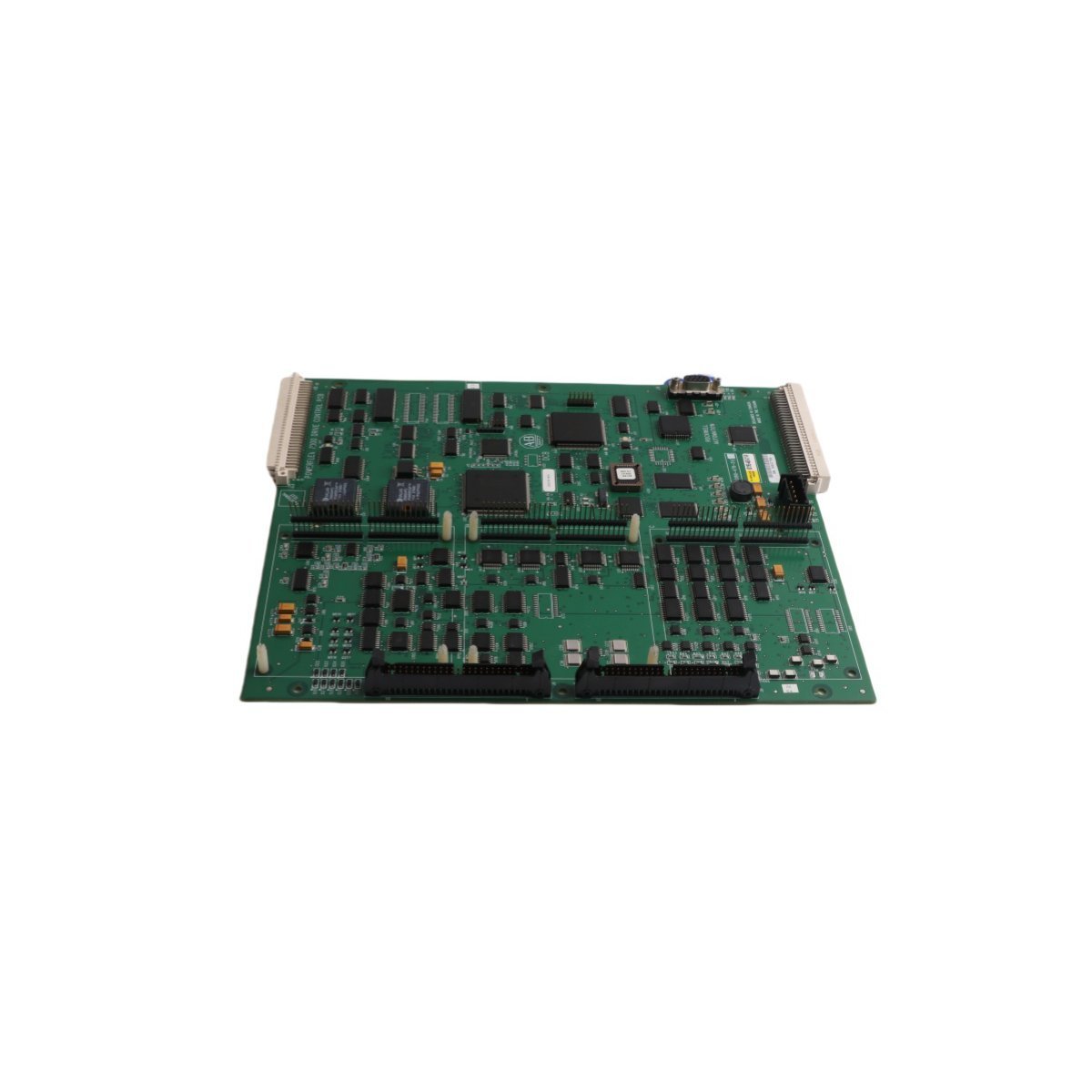

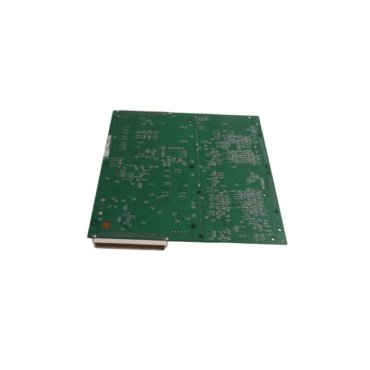

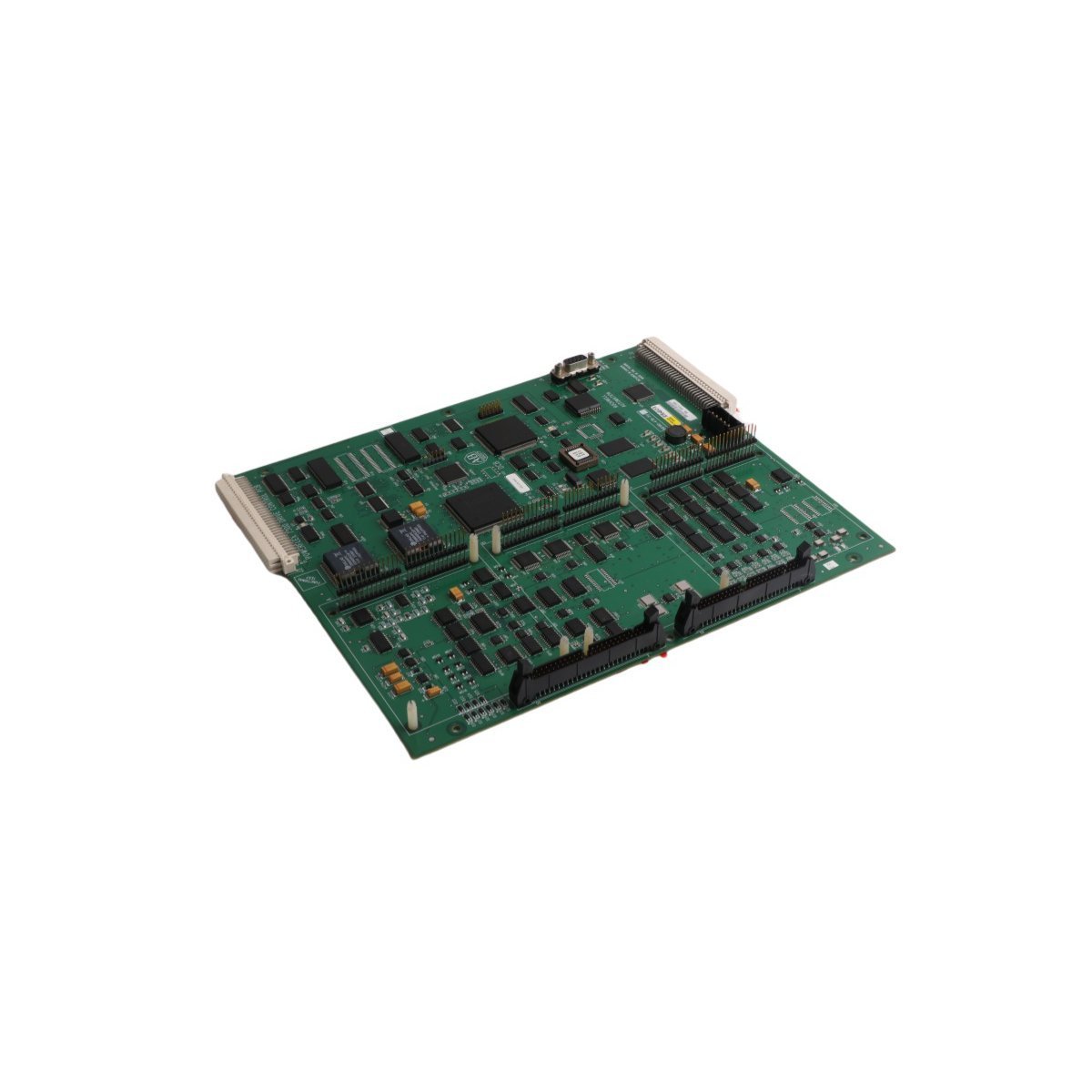

Allen Bradley 80190-480-01-R Drive Control Board

The Allen Bradley 80190-480-01-R is a high-performance drive control board engineered for sophisticated industrial motor management. This module specializes in regulating power and logic for PowerFlex drive systems. It operates with a nominal 480V AC input and supports the simultaneous control of up to four motors. With a substantial 7.2kW power handling capacity and a 15A current rating, the board provides the necessary stability for medium-duty manufacturing applications. Engineers rely on this component to maintain precise speed and torque across multiple drive axes.

Integrated I/O and System Versatility

Functionality extends beyond basic motor regulation through an extensive array of digital interfaces. The 80190-480-01-R includes 16 digital inputs and 16 digital outputs. This configuration allows for complex logic integration and seamless communication with external sensors or actuators. Because the board features a compact, low-profile design, it fits easily into standard drive enclosures without obstructing airflow. The module serves as the primary logic interface, translating PLC commands into actionable motor movements while monitoring real-time performance data.

Technical Specifications

Industrial Applications

The versatile nature of the PowerFlex drive control board makes it ideal for several sectors:

• Automated Assembly: Coordinating synchronized conveyor and robotic movements.
• Material Handling: Managing multi-axis sorting systems in logistics centers.
• Food and Beverage: Controlling high-speed mixers and packaging lines.
• Metal Processing: Regulating heavy-duty motor loads in milling or extrusion.
