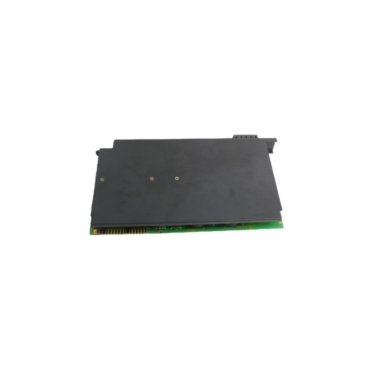

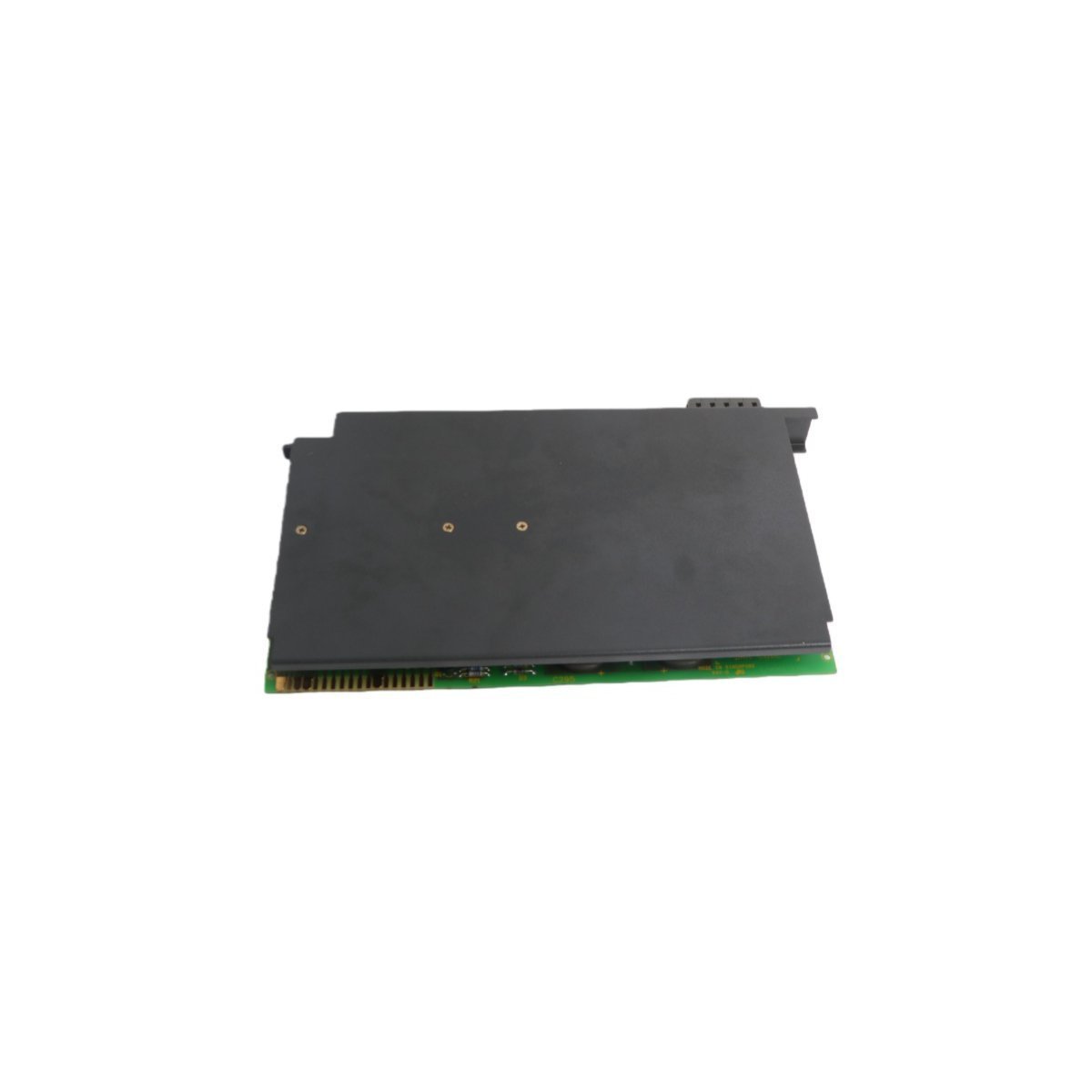

Allen-Bradley 1771-P6S/B Power Supply Module

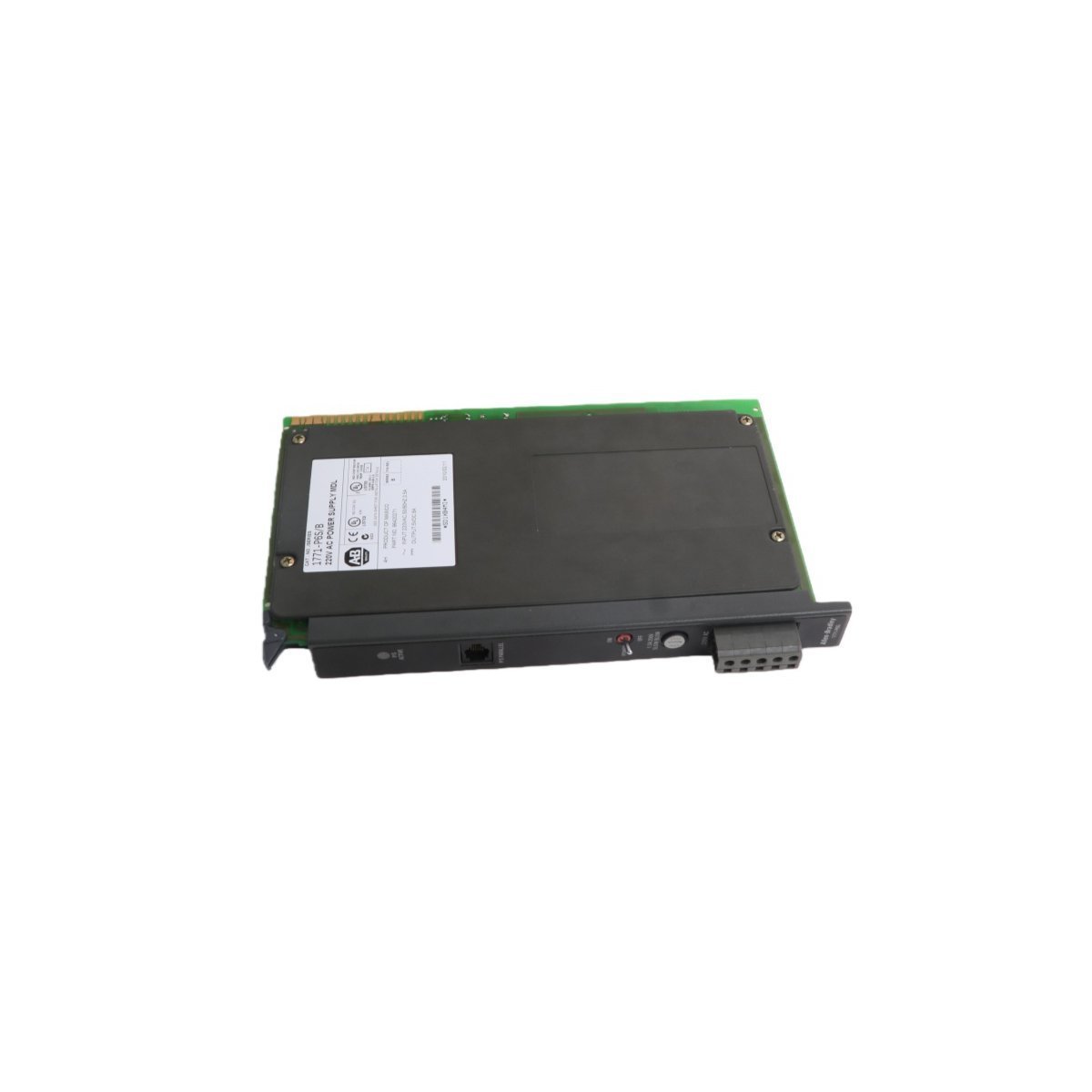

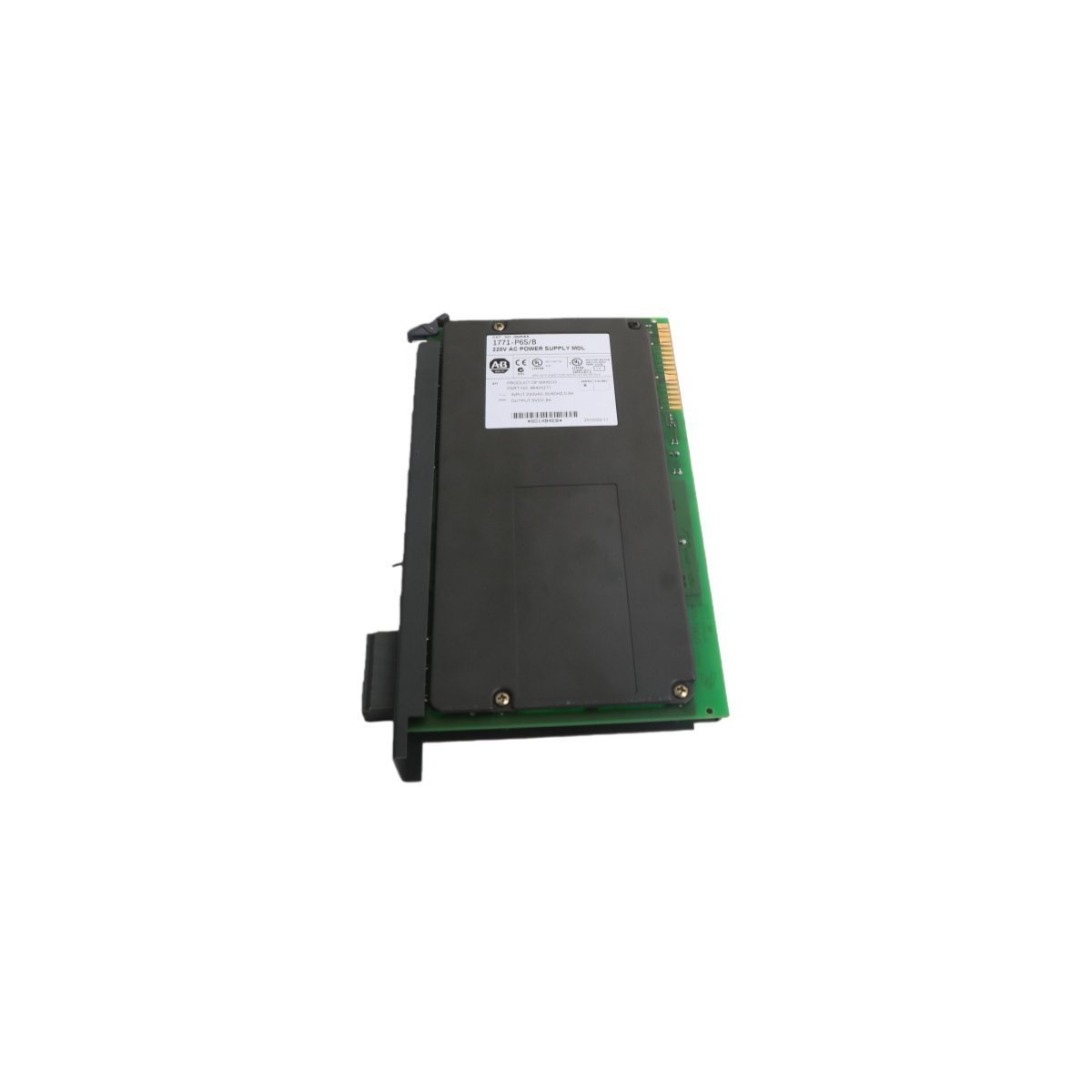

The Allen-Bradley 1771-P6S/B serves as a high-performance power source for the 1771 Universal I/O chassis. This module occupies a single slot within the rack and converts 220V AC input into the stable 5V DC current required by the backplane. Because it installs directly into the chassis, it eliminates the need for external mounting space.The 1771-P6S/B primarily supports PLC-5 control systems by providing a consistent energy flow to all connected I/O modules. This integrated design ensures efficient power distribution across the entire industrial automation assembly.

Advanced Protection and Monitoring Features

Reliability remains a central feature of the 1771-P6S/B architecture. The unit includes an intelligent voltage monitoring circuit that constantly tracks the AC line status. If the input voltage falls below 194V RMS, the module immediately sends a shutdown signal to the processor.This rapid response prevents data corruption and protects critical system memory during brownouts. Furthermore, the front panel features visible output-power indicators. These LEDs allow maintenance personnel to verify the operational status of the power supply at a single glance.

Technical Performance Specifications

Scalability and Redundancy Options

The 1771-P6S/B offers significant flexibility for high-demand industrial applications. For instance, users can parallel two modules using a 1771-CT cable to increase the total current capacity to 16A. This configuration effectively doubles the power available to the chassis while providing a level of hardware redundancy. Additionally, the module features gold-plated connectors and jumper-selectable settings for local or remote sensing. These options allow engineers to compensate for voltage drops and ensure that I/O modules receive precise power levels regardless of their position in the rack.
