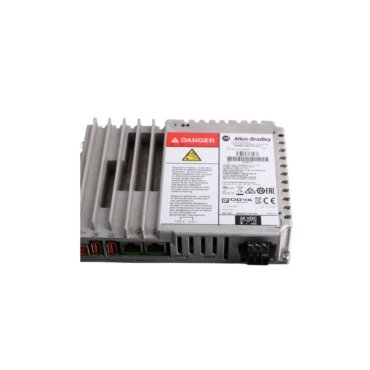

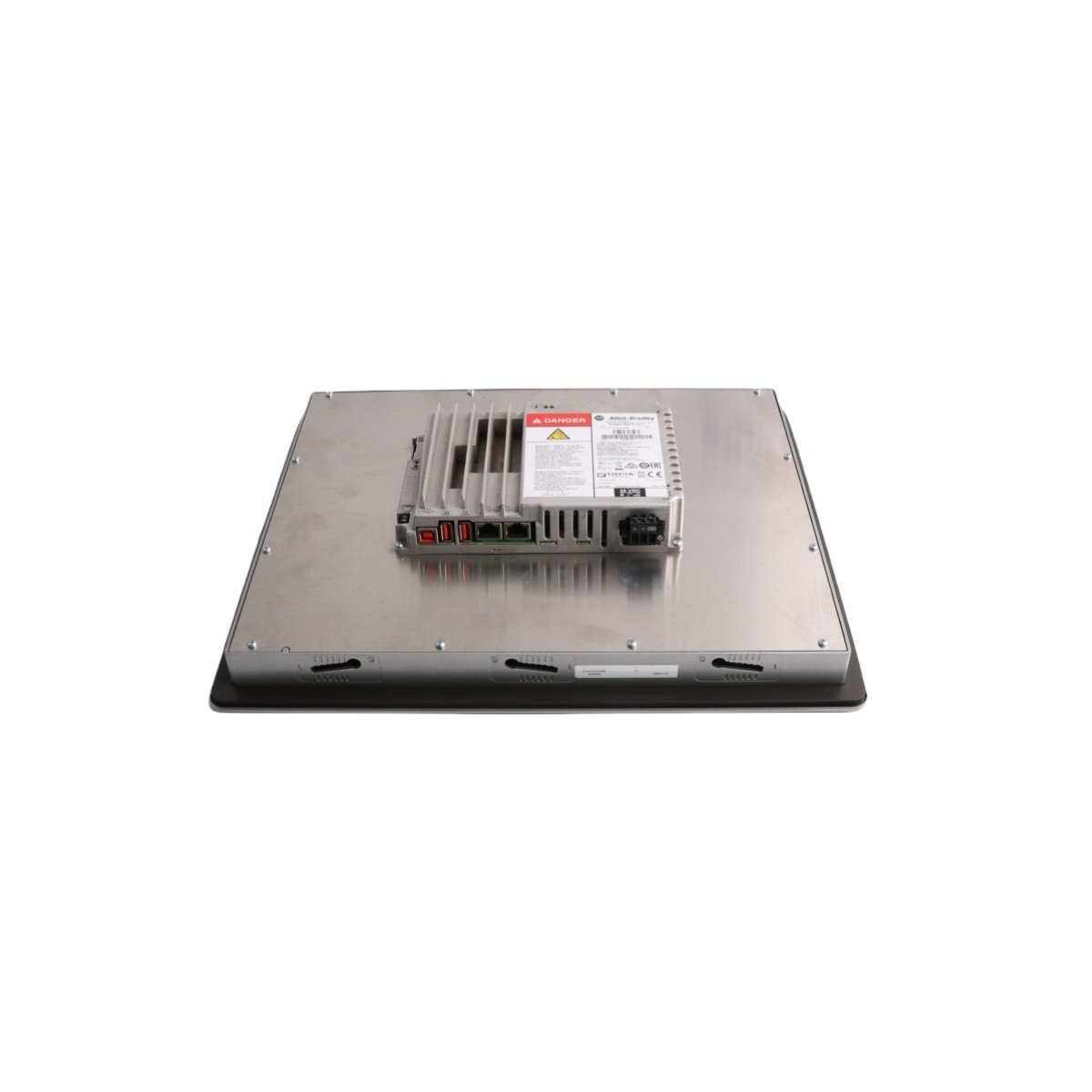

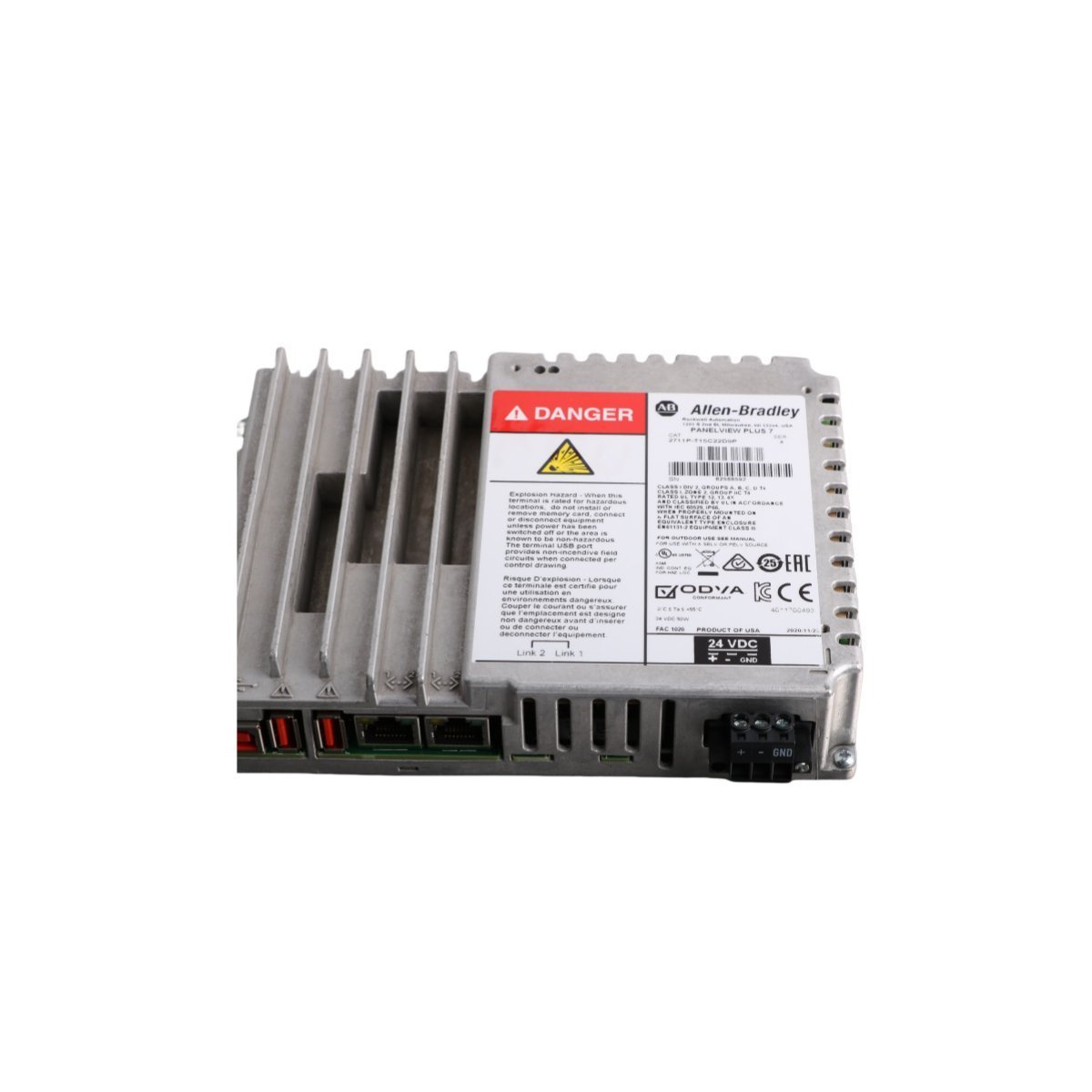

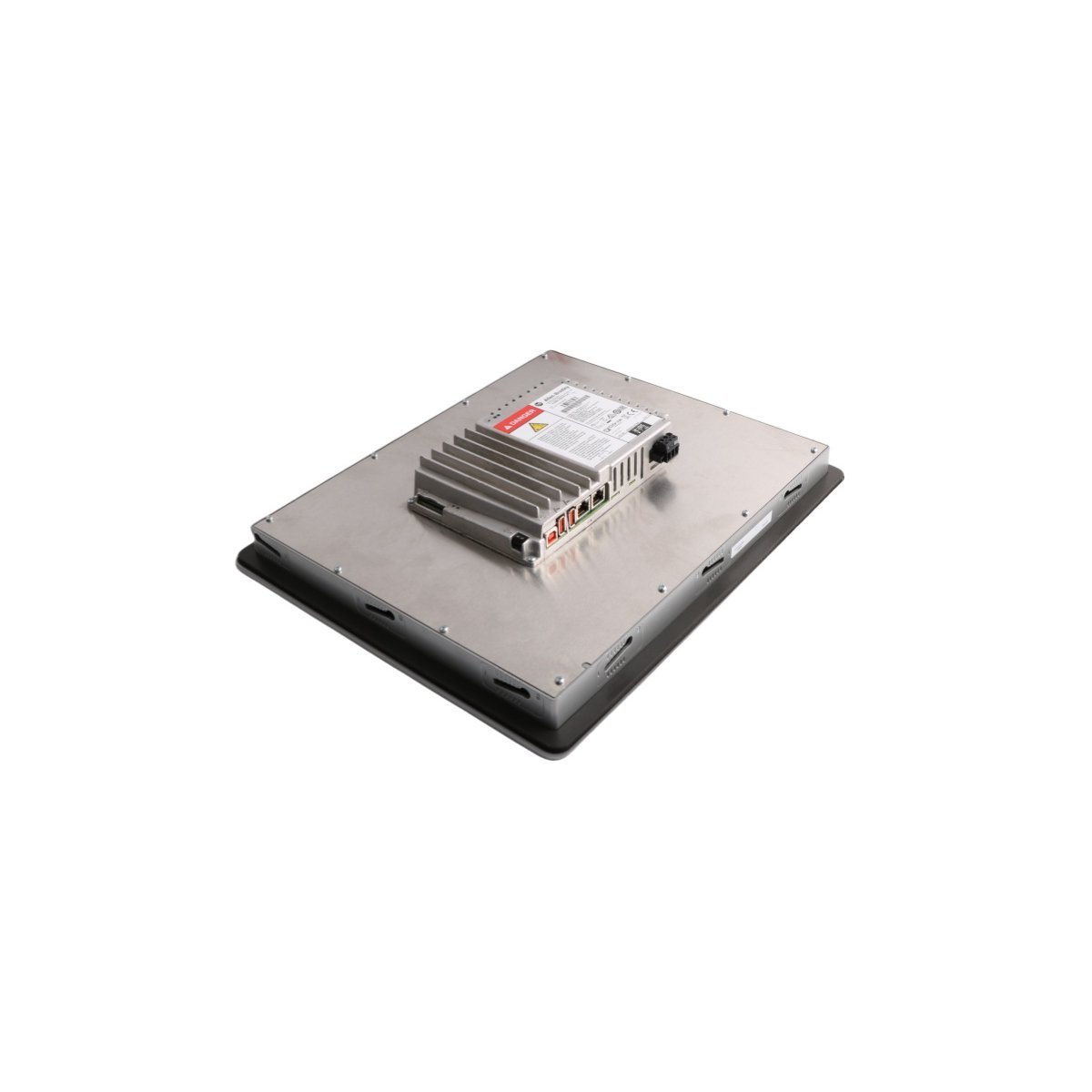

Allen-Bradley 2711P-T15C22D9P PanelView Plus 7 Performance 15-inch Touch HMI

Product Description

The Allen-Bradley 2711P-T15C22D9P acts as a high-tier operator interface within the PanelView Plus 7 Performance series, specifically engineered for large-scale industrial visualization. This 100% Brand New original 15-inch terminal facilitates real-time data monitoring and control for complex automation systems by integrating natively with Logix-based controllers. It utilizes a high-resolution color touchscreen to render detailed process graphics, alarm histories, and diagnostic information, ensuring operators maintain precise control over critical production parameters.

Technical Specifications

Engineering Advantages

• High-Performance Processing Architecture: The terminal employs a robust processor capable of handling data-intensive FactoryTalk View Machine Edition (ME) applications. This ensures rapid screen transitions and fluid animations even when managing thousands of individual I/O tags.

• Redundant Network Connectivity: The dual Ethernet ports support Device Level Ring (DLR) topologies. This feature maintains system communication even if a single cable break occurs, significantly increasing the reliability of mission-critical control networks.

• Ruggedized Environmental Protection: An IP66-rated front panel prevents the ingress of dust and high-pressure water jets. Consequently, the hardware excels in wash-down environments, such as food and beverage processing or pharmaceutical manufacturing.

• Versatile Data Management: The inclusion of an SD card slot and multiple USB ports allows for rapid application transfers, log file storage, and peripheral connectivity. These interfaces streamline the backup of recipe data and historical alarm logs for auditing purposes.

• Advanced Operating System Features: Running on a Windows 10 IoT Core foundation, the terminal supports extended functionality including web browser access and PDF viewing. This allows operators to access equipment manuals or remote web-based dashboards directly from the factory floor.

FAQs

• Does the 2711P-T15C22D9P support remote access monitoring?

  • Yes. The terminal supports VNC (Virtual Network Computing) connectivity, allowing authorized personnel to monitor and control the HMI screens from a remote PC or tablet via a secure network link.

• Can this HMI connect to multiple PLCs simultaneously?

  • The Performance series hardware allows connections to multiple ControlLogix or CompactLogix controllers across an EtherNet/IP network, making it an ideal central interface for multi-rack automation cells.

• Is the touchscreen usable while wearing industrial safety gloves?

  • The analog resistive touch technology responds to physical pressure. Therefore, it maintains accurate input detection whether the operator uses a bare finger, a gloved hand, or a specialized stylus.

• What software is required to program this terminal?

  • You must use FactoryTalk View Studio for Machine Edition (ME) to develop, test, and deploy visualization applications to the 2711P-T15C22D9P.
