2711R-T7T Allen-Bradley PV800 7-Inch WVGA Color TFT Graphic Terminal
Sale!The Allen-Bradley 2711R-T7T is a PanelView 800 graphic operator interface featuring a 7-inch color widescreen display. It provides flexible touchscreen navigation and multiprotocol communication ports for micro-controller applications.
99 in stock
- Compact Packaging Machines: Displays cycle rates and manages seal temperatures on automated wrapping lines.
- Material Conveyor Control: Monitors variable frequency drive speeds across distribution center sorter networks.
- Water Treatment Skids: Visualizes tank fill levels and valve positions at municipal filtration plants.
- HVAC Air Handling Units: Coordinates fan scheduling and logs operational faults inside factory ventilation systems.
- Pumping Stations: Provides localized control overrides for high-pressure fluid pumps in remote areas.
- Connected Components Workbench Software
- Micro850 Programmable Logic Controllers
- MicroLogix 1400 Serial Interface Cable Assemblies
- Industrial Grade High-Endurance MicroSD Cards
Product Overview

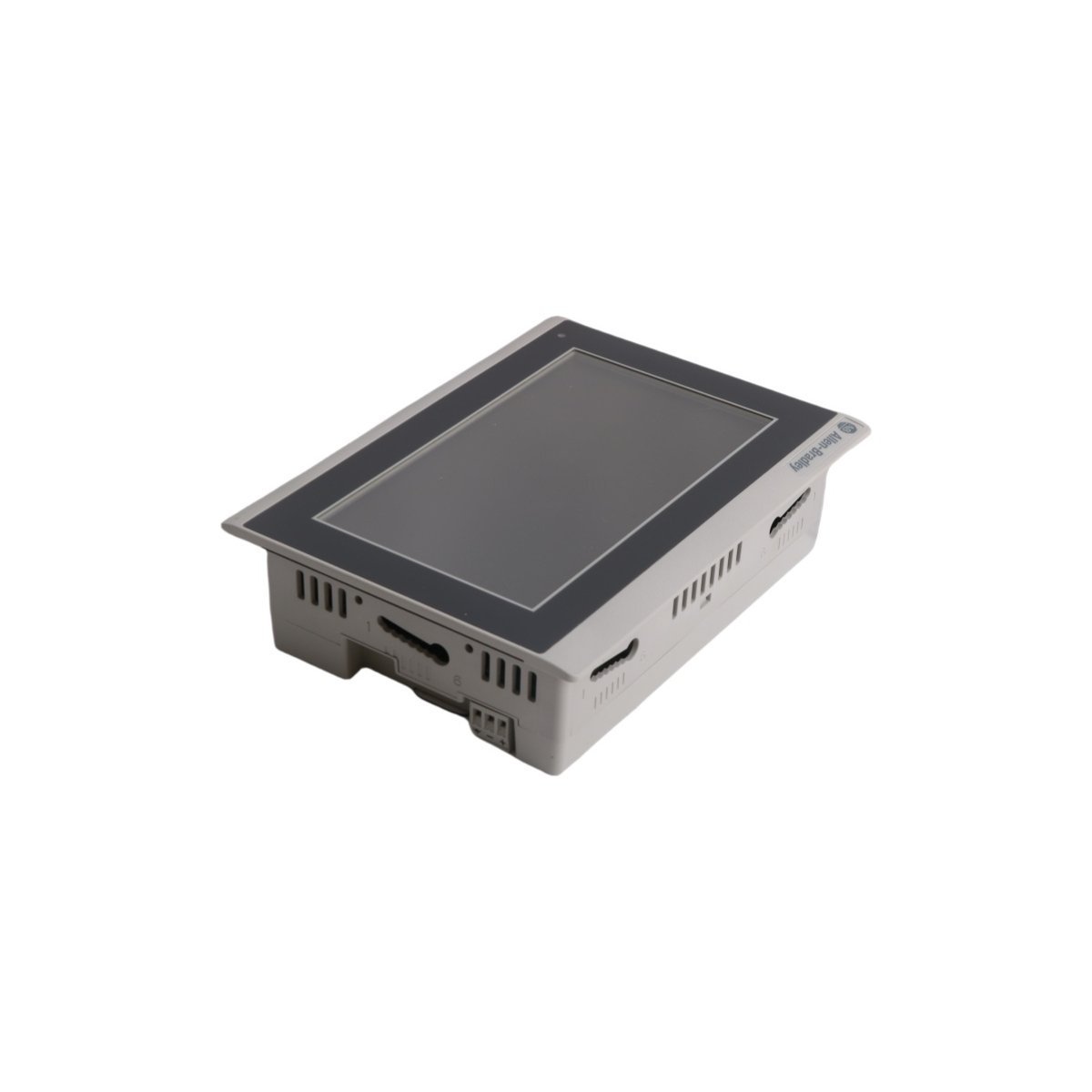

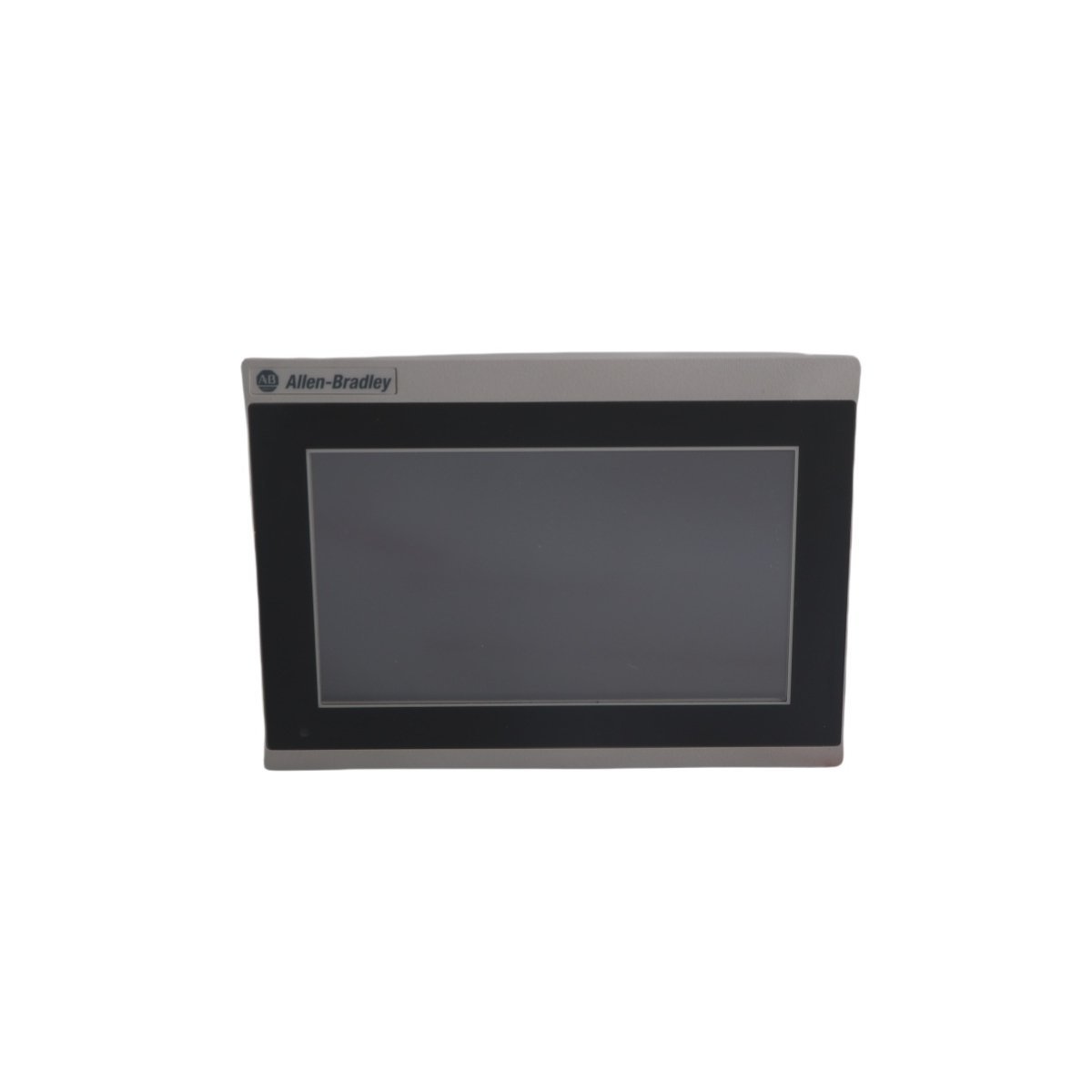

The Allen-Bradley 2711R-T7T is a compact operator interface designed for automated industrial machinery. This device connects directly to micro-scale programmable controllers to display live machine metrics and process animations.
Technical Specifications
The table below describes the physical hardware attributes and performance capabilities of the 2711R-T7T interface assembly:
| Hardware Component | Specification Metric |
|---|---|
| Manufacturer Brand | Allen-Bradley / Rockwell Automation |
| Catalog Model Number | 2711R-T7T |
| Display Panel Size | 7 Inches (Diagonal Widescreen) |
| Display Native Resolution | 800 x 480 WVGA |
| Display Color Depth | 65,536 Colors (TFT Active Matrix) |
| Input Interface Mechanics | Analog Resistive Touchscreen |
| Onboard Processing Memory | 256 MB Flash and 256 MB DDR RAM |
| External Memory Expansion | MicroSD Slot (Supports Up to 32 GB Cards) |
| DC System Power Requirement | 18 to 32V DC (24V DC Nominal) |
| Maximum Power Consumption | 11 Watts |

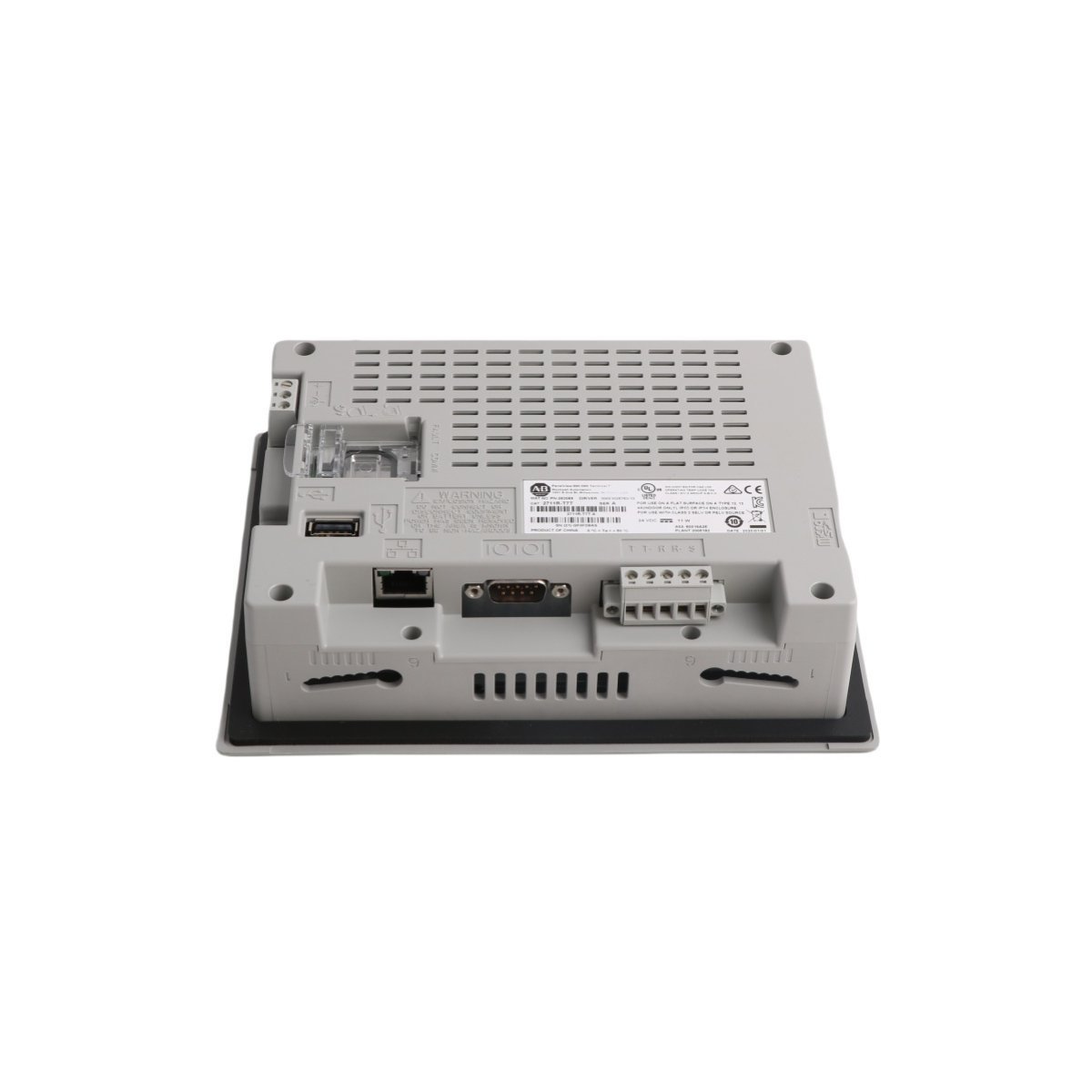

| Integrated Communication Interfaces | 10/100 Mbps Ethernet, RS232, RS422/RS485, USB 2.0 |
| Front Panel Ingress Protection | IP65 / NEMA Type 4X (Indoor Use Only) |
| Total Hardware Unit Weight | 0.65 kg (1.44 lbs) |
Functional Capability and Architecture
The 2711R-T7T panel executes real-time visualization scripts through its high-frequency internal processor. This terminal supports both horizontal and vertical installation options to optimize limited operator desk footprints.
Consequently, plant floor engineers can configure screens for diverse equipment layouts. The unit communicates via specialized industrial automation standards, including EtherNet/IP, Modbus TCP, and serial DF1 protocols.
Furthermore, this native network integration lets the terminal talk directly to Micro800, MicroLogix, and CompactLogix controller systems. Built-in recipe management tools store up to 50 individual batch parameter files for quick production changeovers.
The onboard real-time clock timestamps system alarms to simplify diagnostic tracking during unforeseen line stoppages. Additionally, the resistive touchscreen membrane handles millions of operations to resist early wear in dirty environments.
Industrial Environment Applications
Hardware Installation Guidelines
Panel technicians mount this terminal through standard rectangular enclosure cutouts by using the included mounting clips. The front bezel maintains an airtight seal against dust and sprayed water when properly torqued into place.
To maintain proper cooling performance, the chassis requires adequate clearance spacing around all rear ventilation slots. Engineers must route the 24V DC power lines away from heavy motor cabling to avoid electrical noise disruption.
Related System Components
| Weight | 1.16 kg |
|---|---|
| Country of Origin | USA |
| Dimension | 39 x 24.5 x 8 cm |
