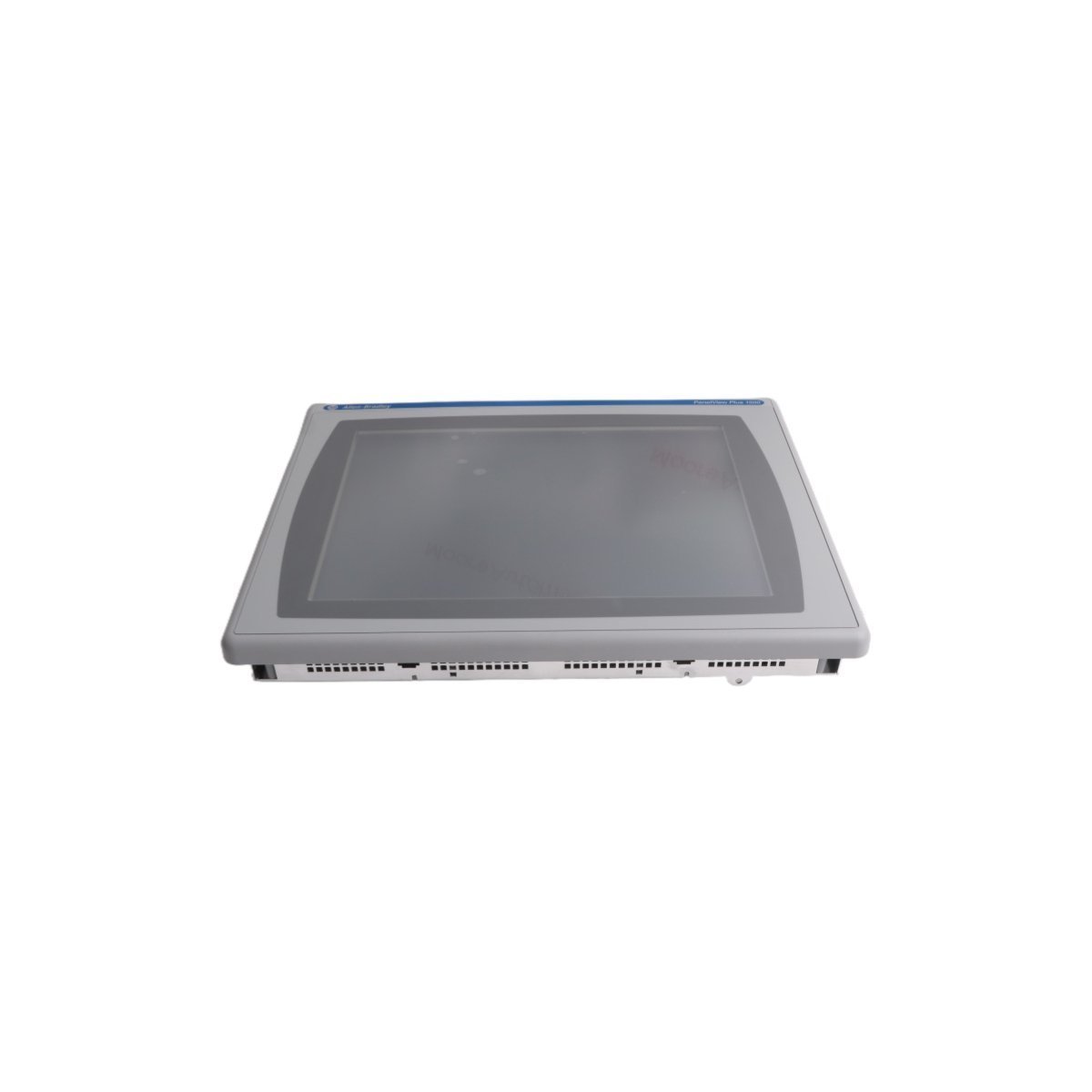

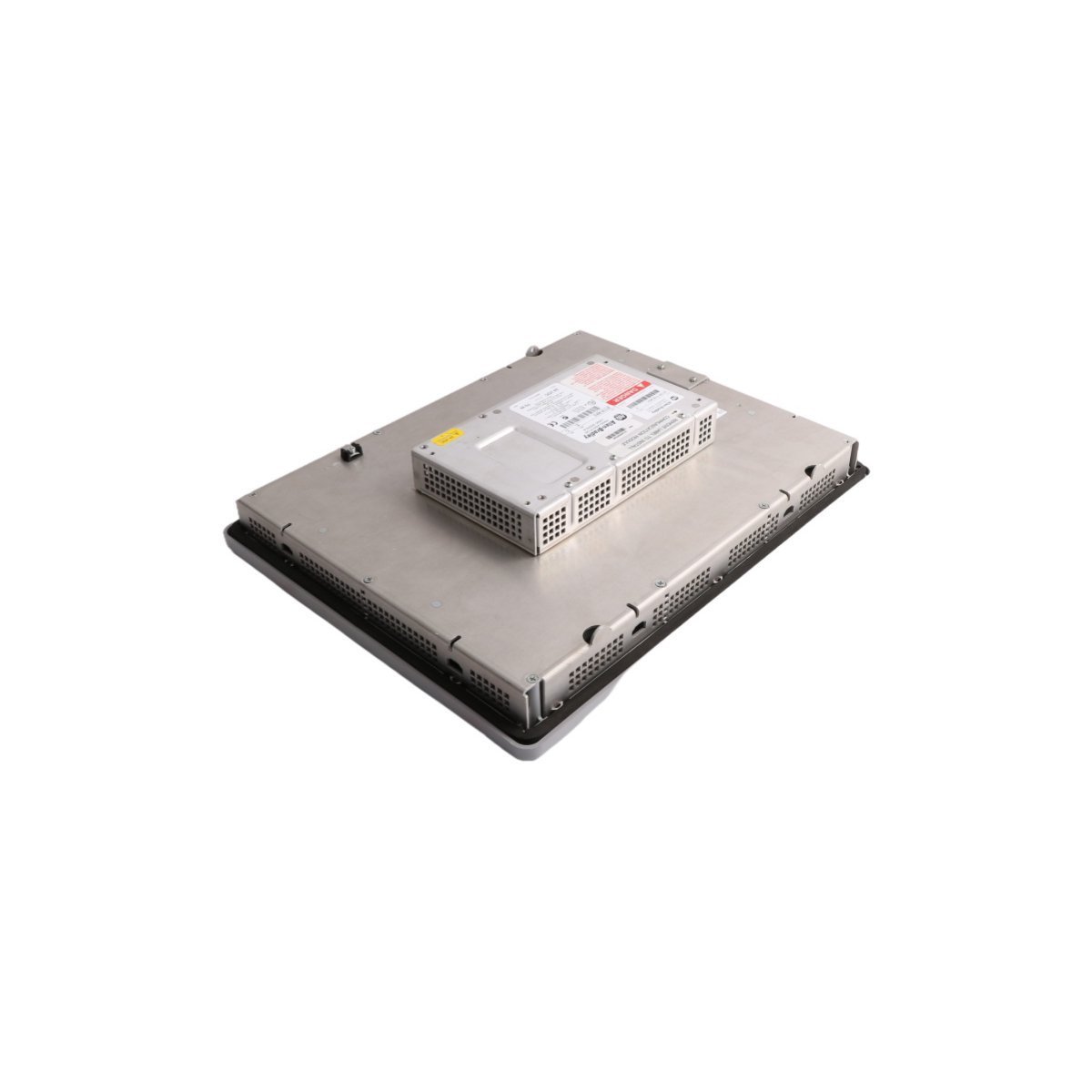

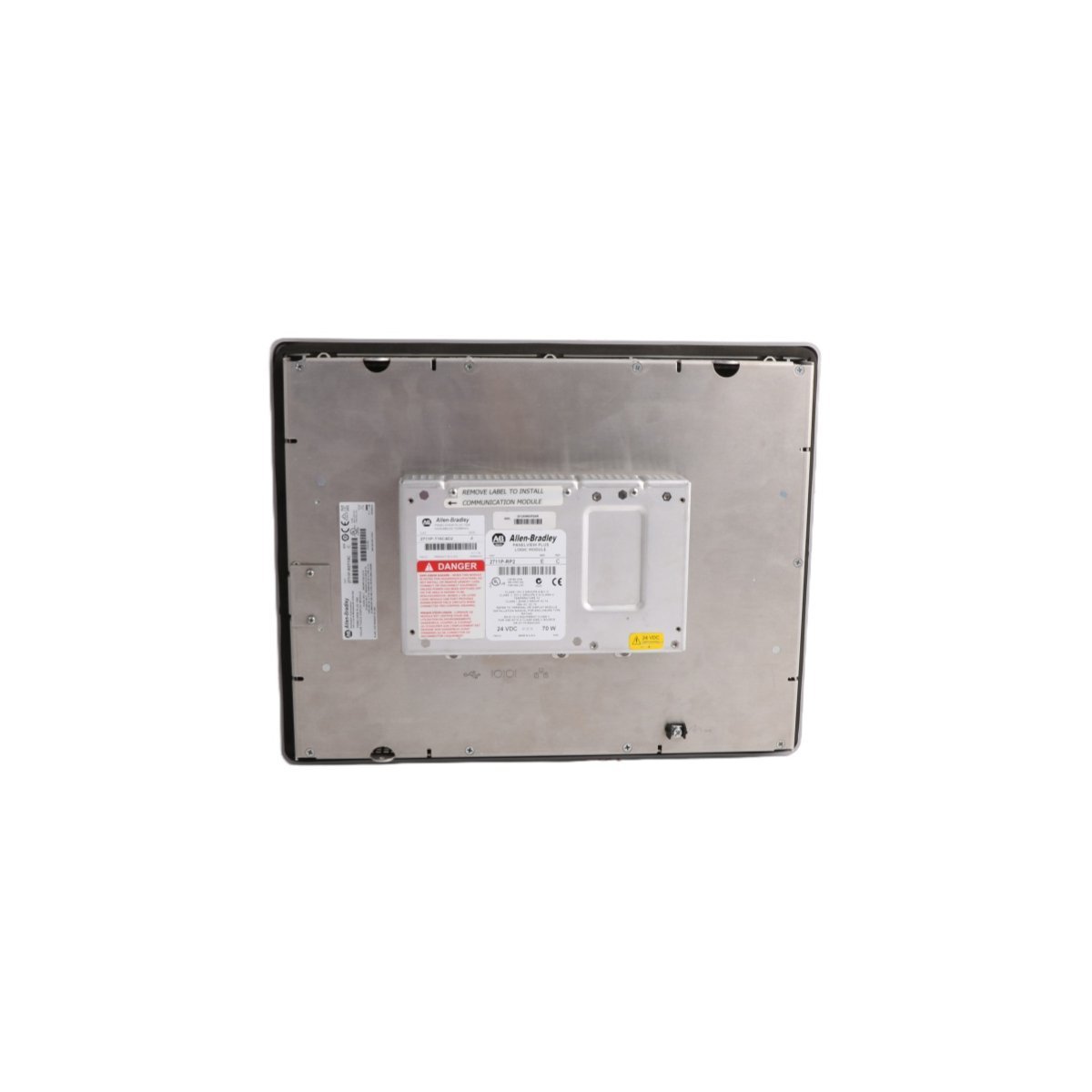

2711P-T15C4A2 Rockwell Automation 15-Inch Color Operator Terminal

Product Description

The Allen-Bradley 2711P-T15C4A2 functions as a high-tier human-machine interface (HMI) that streamlines monitoring and control within sophisticated industrial automation networks. This 100% brand-new, original terminal utilizes a 15-inch active-matrix color display to convert intricate process data into clear, actionable visual insights. Consequently, operators can manage machine states with significantly higher precision.

Technical Specifications

The 2711P-T15C4A2 relies on a high-response analog resistive touchscreen for all user inputs. This design removes the need for physical keys, which maximizes the screen area available for complex process graphics.

• Display Type: Active-matrix TFT Color Display
• Screen Size: 15-inch Diagonal
• Input Method: Analog Resistive Touchscreen
• Processor Memory: 128 MB RAM (Internal Logic Module)
• Storage Capacity: Expandable via dedicated CompactFlash slot
• Communication Ports: Integrated Ethernet, RS-232, and Dual USB 2.0 ports
• Input Voltage: 85V AC to 264V AC (Universal Power Compatibility)
• Protection Rating: NEMA 4X and IP66 (achieved via proper panel mounting)
• Operating Temperature: 0 °C to +55 °C (32 °F to +131 °F)

Engineering Advantages

The 2711P-T15C4A2 offers several mechanical and operational benefits that empower engineers to optimize distributed control systems:

• Accelerated Data Processing: The internal 128 MB logic module calculates complex mathematical functions and manages data exchanges locally. Therefore, the HMI reduces the overall computational strain on the primary PLC, which enhances system-wide response times.
• Unified Network Integration: Integrated Ethernet and serial ports allow the terminal to bridge the gap between modern networked infrastructure and legacy serial hardware. As a result, engineers can integrate this HMI into mixed-generation control platforms without adding expensive converters.
• Resilience in Harsh Zones: Rockwell Automation specifically built this terminal to withstand aggressive industrial environments. Furthermore, the unit includes conformal coating options that actively repel moisture, dust, and corrosive airborne particulates.
• Superior Diagnostic Handling: The software architecture drives dynamic elements like real-time trending and alarm logging. Because the system presents these details clearly, maintenance teams can identify anomalies faster, which effectively reduces the Mean Time to Repair (MTTR).

FAQs

• How do I expand the memory on the 2711P-T15C4A2?You can increase storage capacity by inserting an industrial-grade memory card into the external CompactFlash slot. This allows you to store larger manuals, extensive data logs, and project backups directly on the device.
• Does the touchscreen function correctly in oily or wet conditions?Yes, the analog resistive technology ensures that the terminal registers touch commands accurately even if the operator wears gloves or if the screen surface contains moisture or contaminants.
• Can I migrate my older PanelView projects to this terminal?While the 2711P-T15C4A2 represents the modern PanelView Plus 1500 generation, you can import FactoryTalk View ME projects from legacy units. However, you must follow the software’s migration path to ensure all graphical elements scale correctly.
• What power source does this HMI require?The terminal accepts a wide universal input range of 85V to 264V AC. Consequently, the hardware operates on global power grids without requiring specialized transformers or power conditioning units.
