Allen-Bradley 2711R-T4T PanelView 800 4.3-inch Color Touch HMI Terminal

Product Description

The Allen-Bradley 2711R-T4T serves as a high-efficiency human-machine interface (HMI) optimized for small-scale standalone machine control. This 100% Brand New original terminal features a 4.3-inch widescreen TFT color display that combines analog resistive touch capabilities with dedicated physical function keys for precise operator input. Driven by an 800 MHz high-speed processor, the unit manages complex graphics and real-time data monitoring within the Micro800 and MicroLogix controller ecosystems. Its compact footprint and flexible mounting options make it an essential component for space-constrained industrial applications.

Technical Specifications

Engineering Advantages

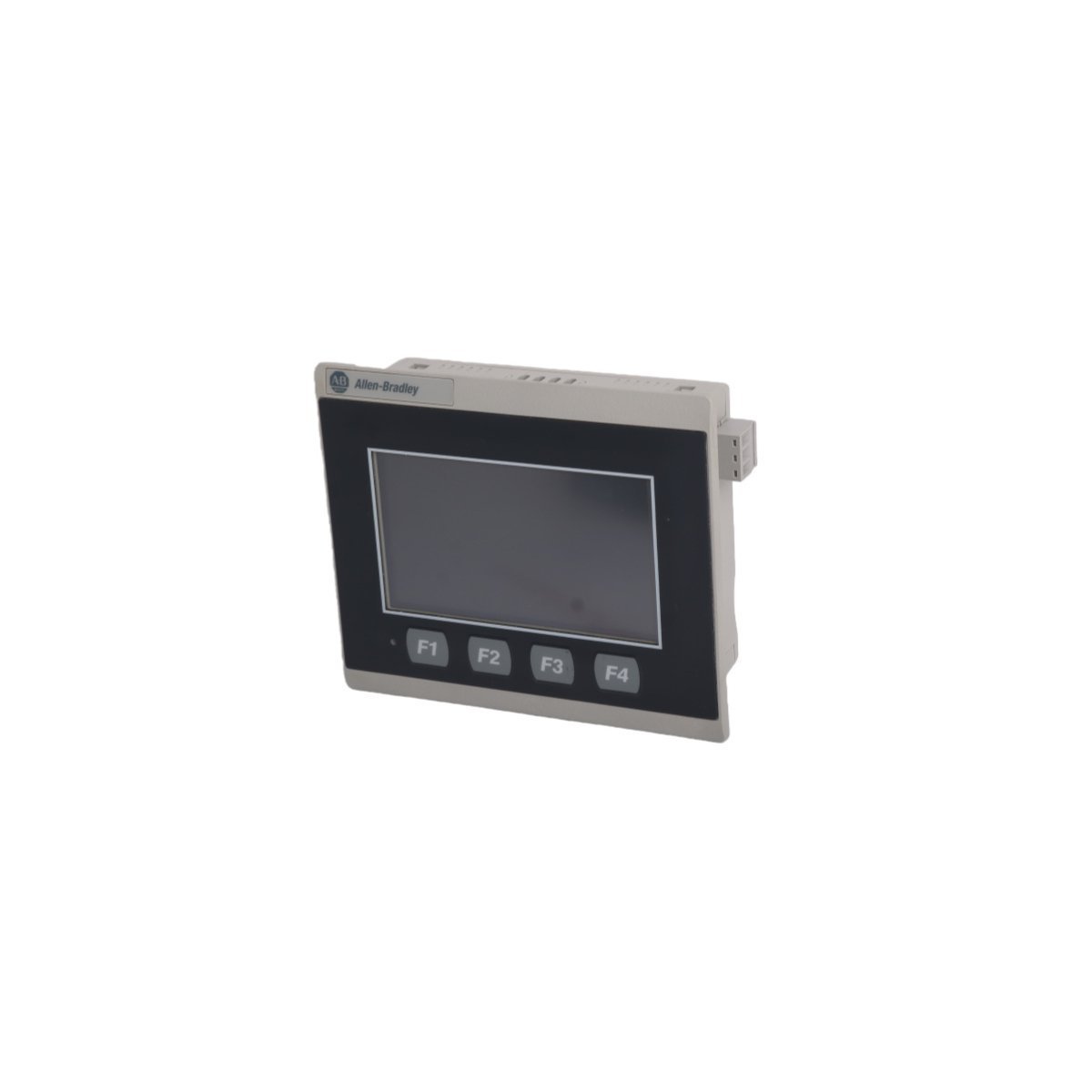

• Integrated Hybrid Input: The terminal utilizes both a responsive touchscreen and four programmable function keys. This configuration ensures that operators can execute critical commands quickly even while wearing heavy industrial gloves or working in environments with screen surface contaminants.
• Versatile Orientation Support: The hardware supports both landscape and portrait installation modes. This flexibility allows engineers to optimize panel layouts for narrow enclosures without compromising the clarity of the process visualization.
• Enhanced Data Management: Advanced recipe and alarm handling capabilities allow for the efficient storage and transfer of production parameters. Operators can easily upload or download parameter sets via the onboard USB or microSD ports to reduce machine changeover times.
• Robust Connectivity Options: With built-in Ethernet and multi-protocol serial ports (RS-232/422/485), the 2711R-T4T maintains stable communication with a variety of controllers. It natively supports the Allen-Bradley Micro800 and MicroLogix families, facilitating rapid system integration.
• Optimized for Rugged Environments: The IP65-rated front panel prevents the ingress of dust and moisture. Furthermore, the solid-state design and 40,000-hour LED backlight ensure long-term reliability in manufacturing, packaging, and environmental control systems.

FAQs

• Which software do I use to program the 2711R-T4T?
  • You must use Connected Components Workbench (CCW) software to develop and download applications. This unified software environment simplifies the configuration of both the HMI and the associated Micro800 controllers.
• Does this terminal support third-party PLCs?
  • While primarily optimized for Allen-Bradley controllers, the 2711R-T4T supports Modbus TCP and Modbus RTU protocols, allowing it to communicate with a wide range of industrial devices from other manufacturers.
• Is an external power supply required?
  • Yes. The module requires a stable 24V DC power source. We recommend an industrial-grade power supply to maintain the 18–32V DC input range necessary for consistent performance.
• Can I expand the internal storage for data logging?
  • Absolutely. The terminal includes a microSD card slot and a USB host port, which you can use to expand memory for historical data logging, recipe storage, and application backups.
