0042-6841 Allen-Bradley HMI Interface Membrane Switch Assembly

Product Description

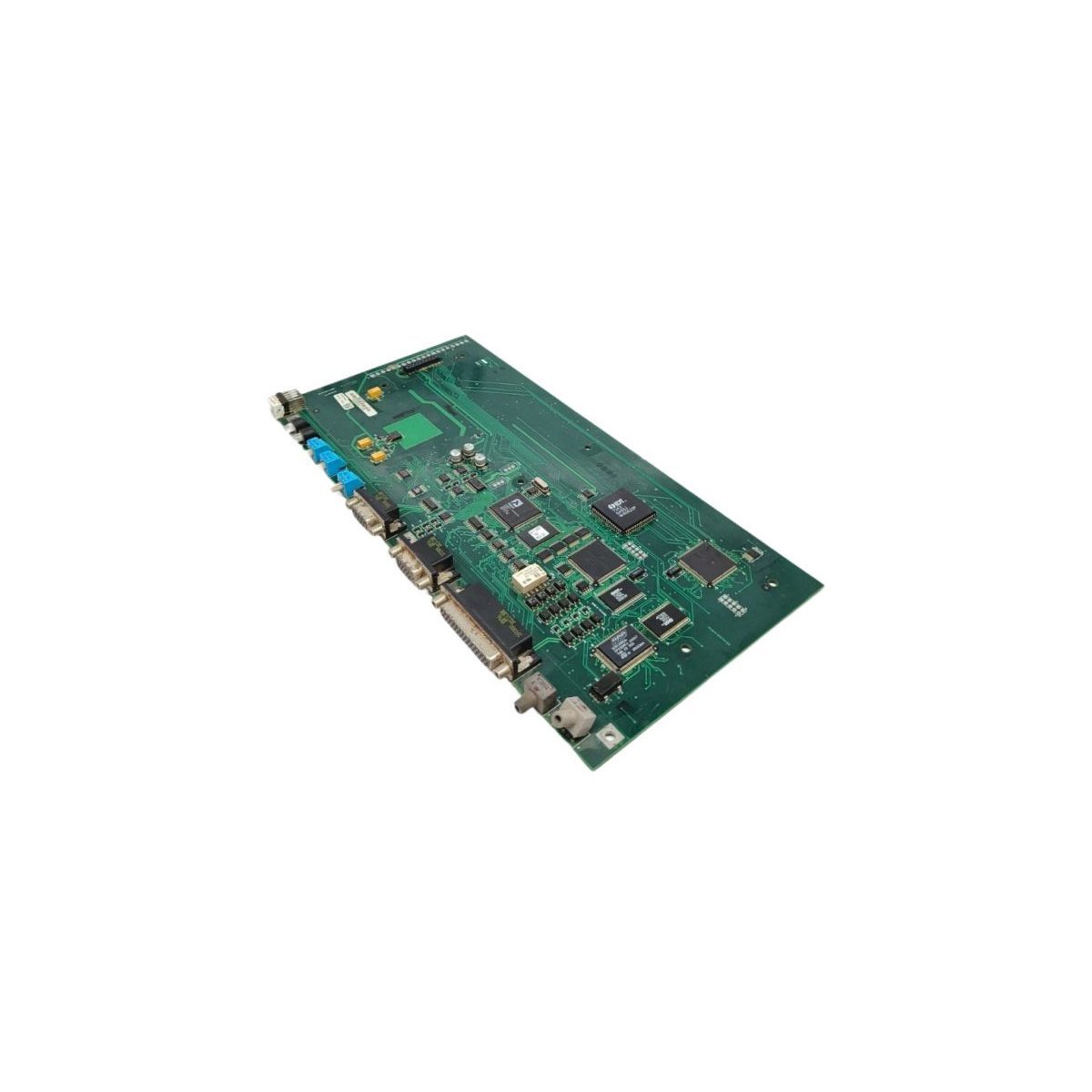

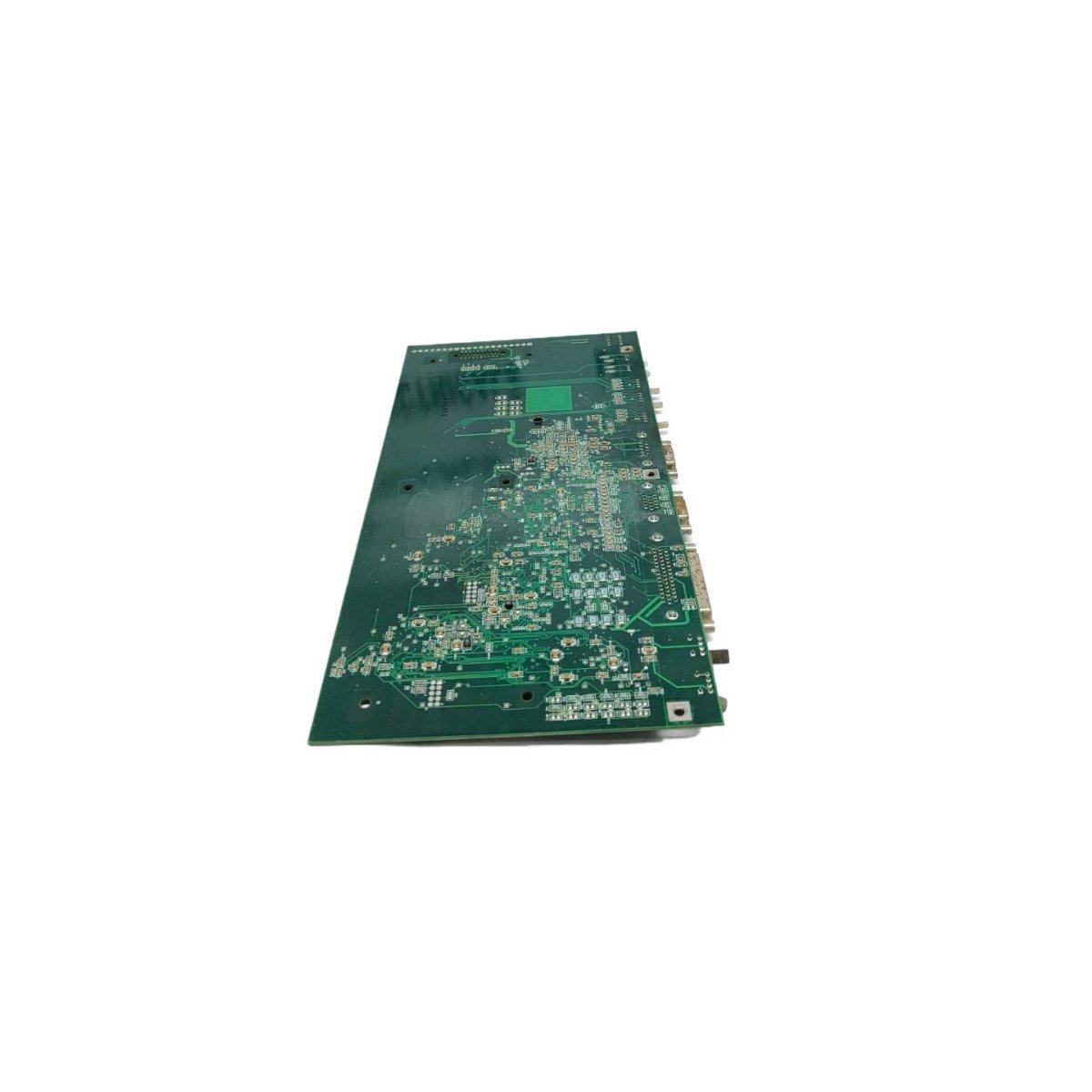

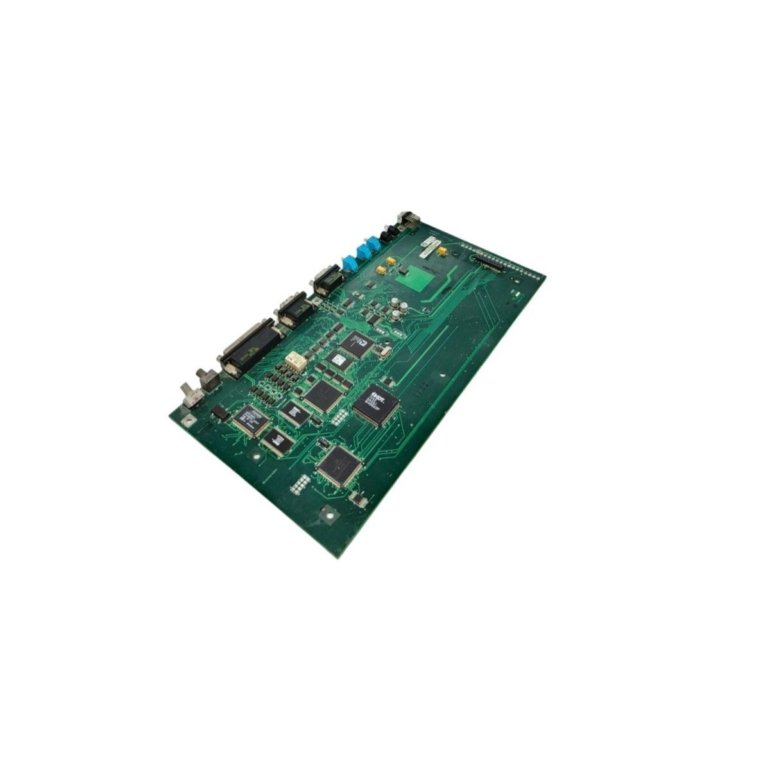

The Allen-Bradley 0042-6841 serves as a critical maintenance component for legacy PanelView Standard human-machine interface (HMI) terminals. This specialized PC board assembly integrates membrane switch technology to facilitate precise operator inputs and machine control commands.

Technical Specifications

Functional Description

This module acts as the primary physical interface between the operator and the industrial control system. It converts physical button presses into electronic signals that the HMI logic interprets to trigger machine actions or navigate system menus. While Rockwell Automation officially discontinued this series on June 30, 2016, the 0042-6841 remains a vital spare part for facilities that continue to operate reliable legacy hardware. Furthermore, the board utilizes high-grade contact materials to ensure consistent electrical conductivity over millions of switching cycles.

Engineering Advantages

• Environmental Sealing: The industrial-grade membrane overlay protects internal circuitry against dust, moisture, and chemical splashes common in manufacturing environments.
• Tactile Response: High-quality dome switches provide clear tactile feedback to the user, which ensures accurate data entry even when operators wear industrial gloves.
• Direct Drop-in Replacement: The PC board aligns perfectly with original PanelView mounting points and ribbon cable connectors, which significantly reduces downtime during component swaps.
• Extended Asset Life: Utilizing this original replacement board allows plant managers to avoid the high costs and complex re-programming associated with upgrading to entirely new HMI platforms.
• Robust Signal Integrity: The board layout minimizes electromagnetic interference, which maintains stable communication between the keypad interface and the internal terminal logic.

FAQs

• Does this board support touch-screen models?

  No, the 0042-6841 specifically supports keypad-only or dual-mode PanelView Standard terminals. It replaces the physical button matrix rather than the touch-sensitive glass overlay.

• Is any specialized software required for installation?

  Installation requires no software changes. Since this is a hardware-level replacement, the HMI firmware will recognize the inputs immediately upon reconnection of the interface cables.

• How do I clean the keypad surface after installation?

  Technicians should use mild, non-abrasive industrial cleaners. The sealed membrane prevents fluid ingress, but harsh solvents can degrade the graphic overlay over time.

• Are these units refurbished or new?

  We supply only 100% brand new, original Allen-Bradley stock to ensure maximum operational lifespan and reliability compared to used or repaired alternatives.
