Allen-Bradley 1763-L16BBB MicroLogix 1100 PLC Controller Module

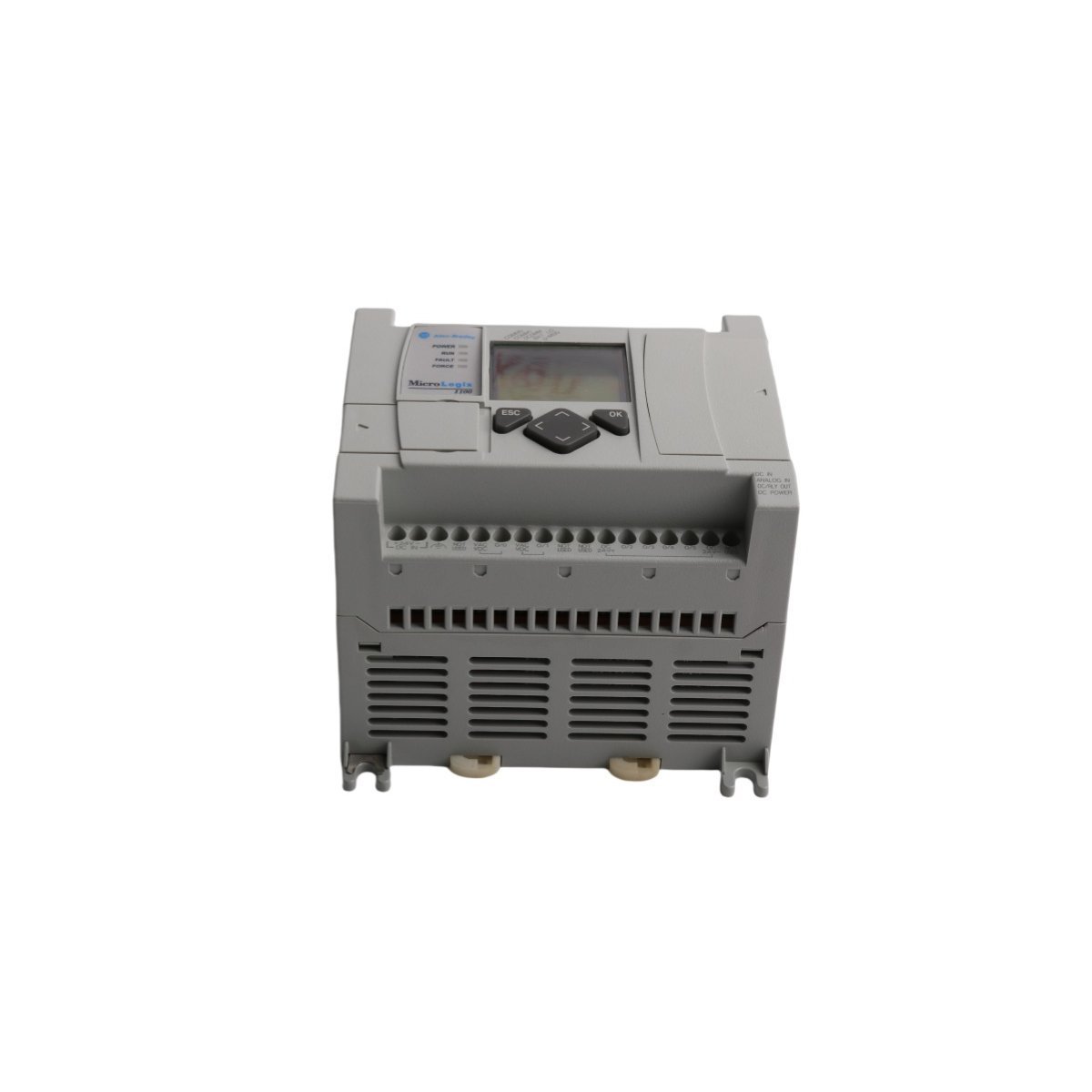

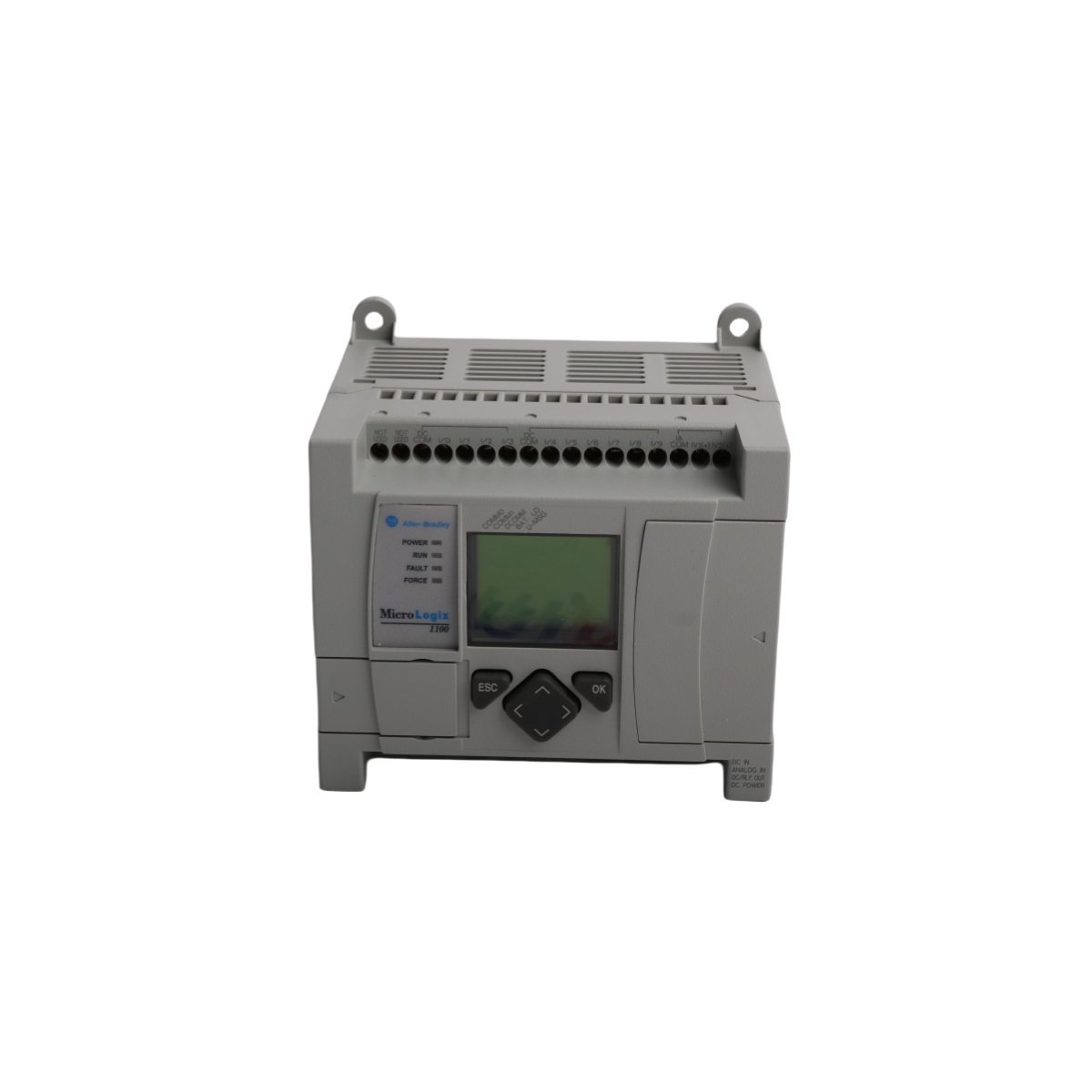

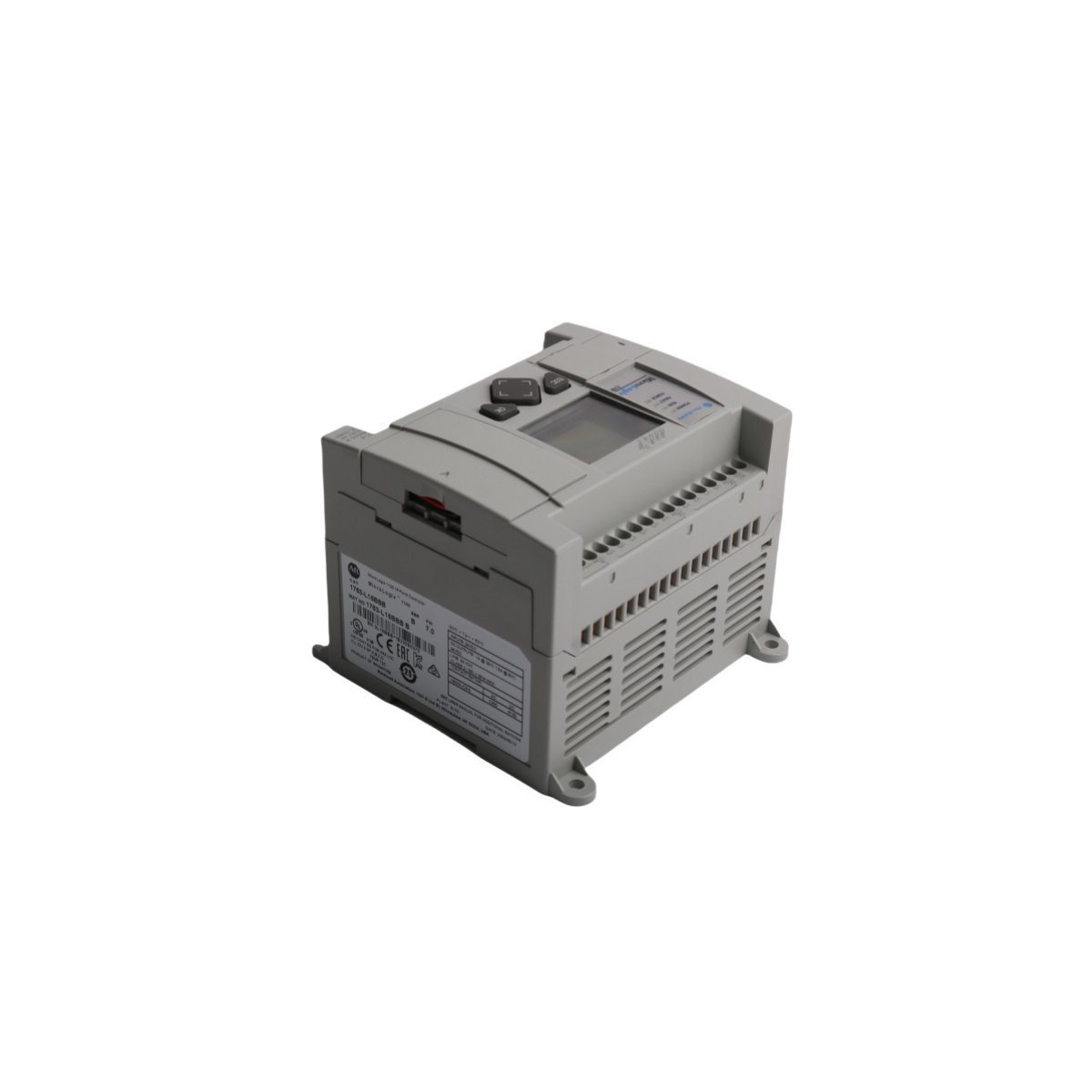

Allen-Bradley 1763-L16BBB MicroLogix 1100 Controller

Configured for logic execution and process monitoring in small-scale automation, the Allen-Bradley 1763-L16BBB (1763-L16BBB MicroLogix 1100 Controller) provides direct physical/electrical control via integrated digital and analog I/O circuits.

Hardware Specifications

Profinet / EtherNet/IP Deterministic Networks

The 1763-L16BBB utilizes an integrated 10/100 Mbps Ethernet port to facilitate deterministic data exchange. This interface supports twisted-pair (10/100Base-T) connectivity, allowing the controller to function as a node within larger industrial networks. While the hardware maintains high-speed communication capability, actual network throughput remains subject to variables such as message packet size, frequency of requests, and total network load. Users implement this interface to link the controller with remote HMIs or SCADA platforms, ensuring that the control logic effectively manages external data traffic without introducing excessive latency into the primary scan cycle.

Frequently Asked Questions (FAQ)

Q: What are the memory expansion limitations for the 1763-L16BBB?

A: The controller supports expansion via the 1763-MM1 memory module. Users install this module to increase non-volatile storage capacity for programs, data files, and recipe configurations, which permits the execution of more complex automation routines than the internal base memory allows.

Q: How does the LCD display assist in hardware diagnostics?

A: The integrated LCD interface provides real-time access to controller status, fault codes, and I/O values. Engineers use this panel to perform field diagnostics and parameter adjustments without requiring a connected programming terminal, which streamlines maintenance tasks during commissioning.

Field Installation Guidelines

1. Mounting: Secure the controller on a standard DIN-rail or via panel-mount screw holes. Maintain adequate clearance (minimum 5 cm) around all sides to ensure proper thermal dissipation during operation.
2. Power Wiring: Connect a regulated 24 VDC Class 2 SELV power supply to the designated input terminals. Verify the polarity before energizing to prevent internal circuit damage.
3. I/O Termination: Connect field devices to the I/O terminal blocks. Use ferrules for stranded wires to ensure a secure, low-resistance connection at the screw terminals.
4. Network Shielding: When connecting the Ethernet port, ensure that the cable runs remain separated from high-voltage AC cabling to mitigate electromagnetic interference (EMI).
5. Grounding: Establish a solid ground connection from the controller chassis to the main equipment grounding bus. Proper grounding suppresses common-mode noise and protects the internal FET output circuits from voltage surges.
