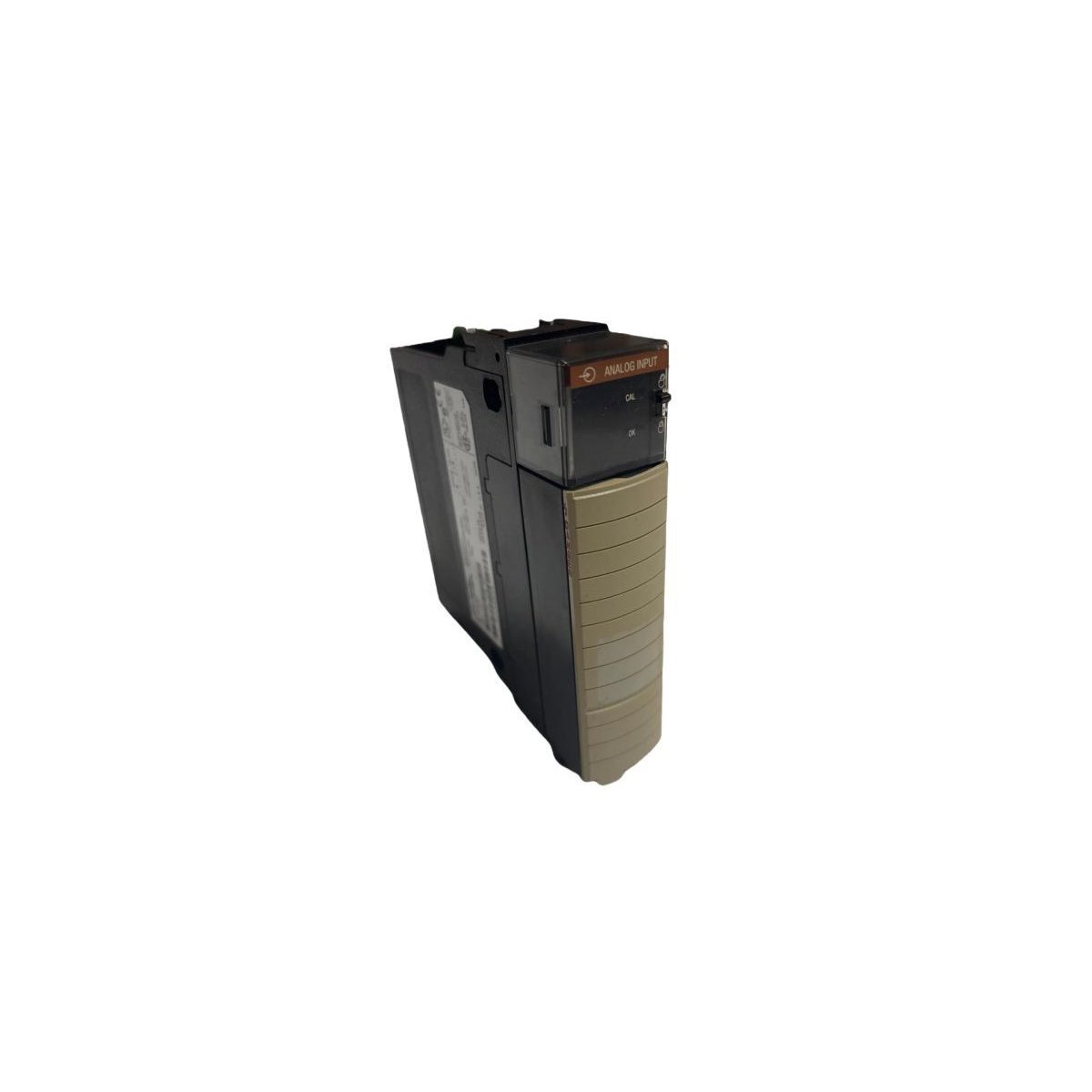

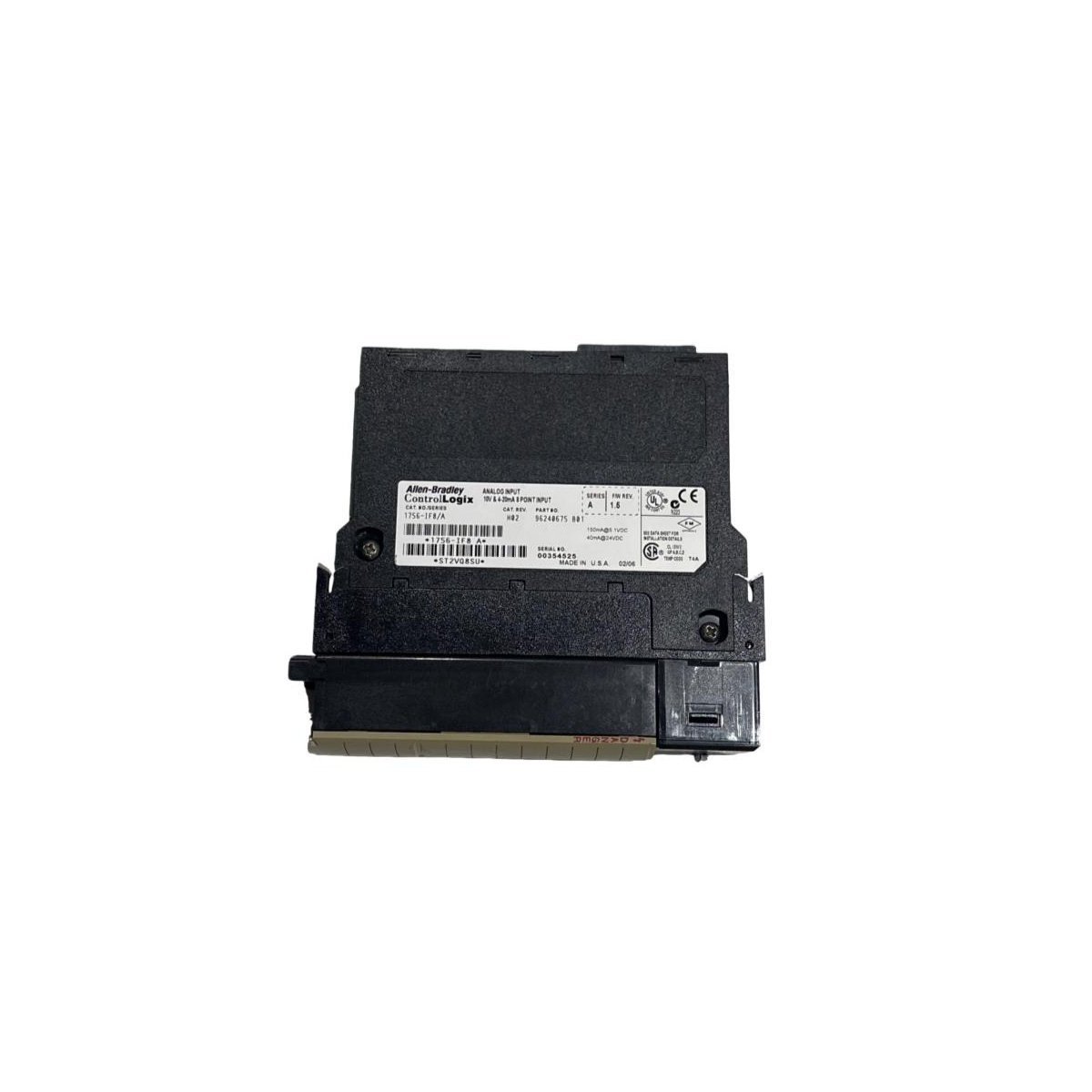

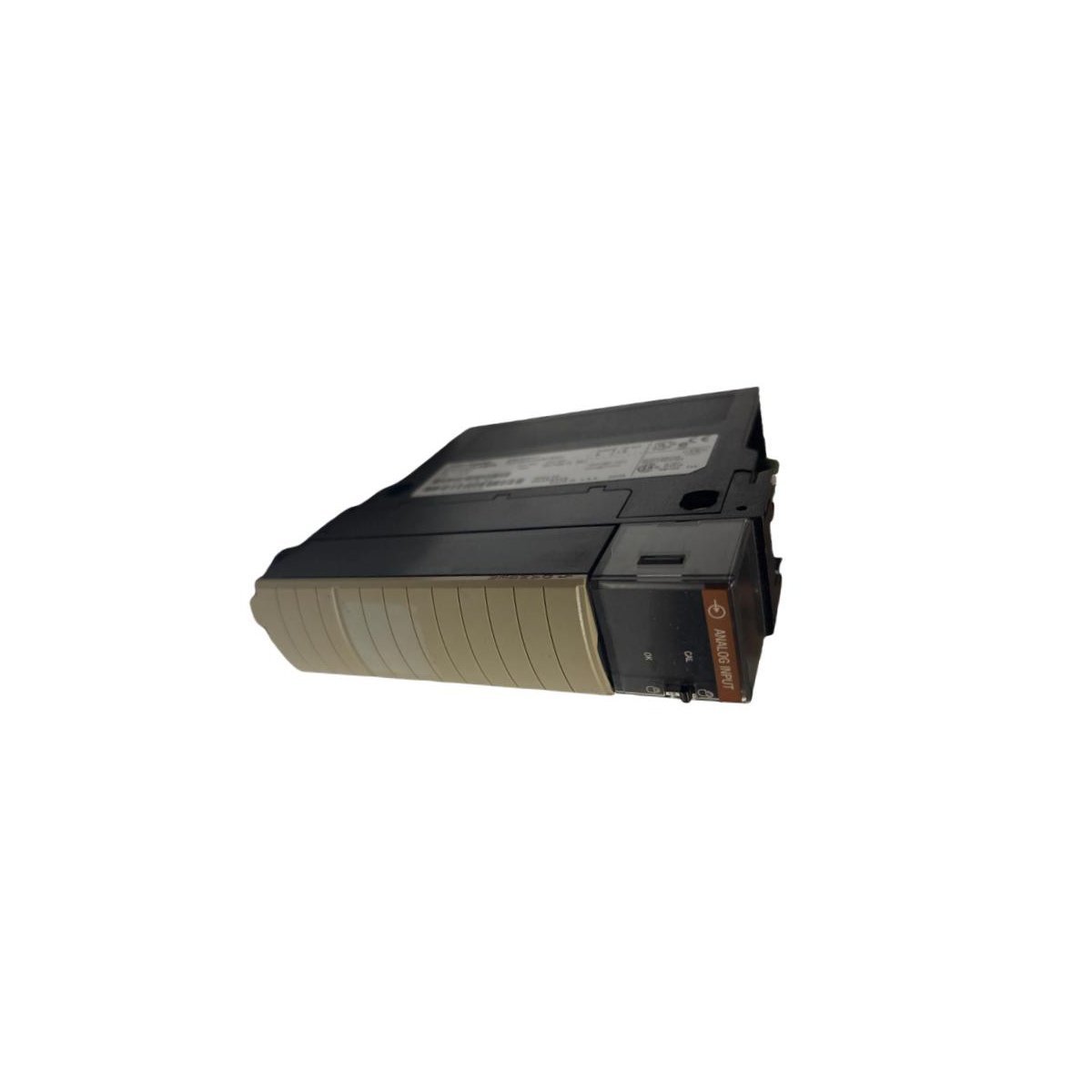

Allen-Bradley 1756-IF8 I/O module

The Allen-Bradley 1756-IF8 serves as a high-performance bridge between field sensors and ControlLogix processors. This module converts continuous analog signals into precise digital data for industrial logic execution. It features eight non-isolated channels that support both voltage and current inputs. Consequently, it excels in monitoring critical variables like pressure, flow, and temperature. The hardware integrates seamlessly into any standard 1756 chassis to enhance automation system density.

Advanced Producer/Consumer Architecture

This analog module utilizes unique Producer/Consumer technology to optimize data distribution. This architecture allows multiple controllers to access input data simultaneously over the backplane. This capability eliminates the need for redundant wiring or complex messaging between processors. Furthermore, the 1756-IF8 communicates health status to its owner-controller in real-time. This constant feedback ensures rapid fault detection and minimizes system downtime during critical operations.

Key Technical Specifications

• Number of Inputs: 8 points (single-ended) or 4 points (differential)
• Input Ranges: ±10V, 0-10V, 0-5V, 0-20mA, and 4-20mA
• Resolution: 16-bit to 21-bit (user-configurable)
• Backplane Current (5.1V): 150 mA
• Backplane Current (24V): 40 mA
• Input Impedance (Voltage): > 10 Megohms
• Input Impedance (Current): 249 Ohms
• Module Location: Any slot in the ControlLogix chassis

Industrial Versatility and Connectivity

The 1756-IF8 handles diverse applications ranging from discrete manufacturing to continuous chemical processing. It requires a Removable Terminal Block (RTB) for all field-side wiring connections. For instance, the 1756-TBNH or 1756-TBSH provide secure interfaces for sensor leads. Moreover, the unit provides digital filter settings to reduce electrical noise interference. These features maintain signal integrity in electrically noisy factory environments. This combination of speed and accuracy makes it a standard for complex process control.
