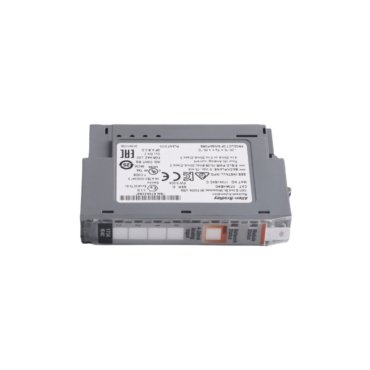

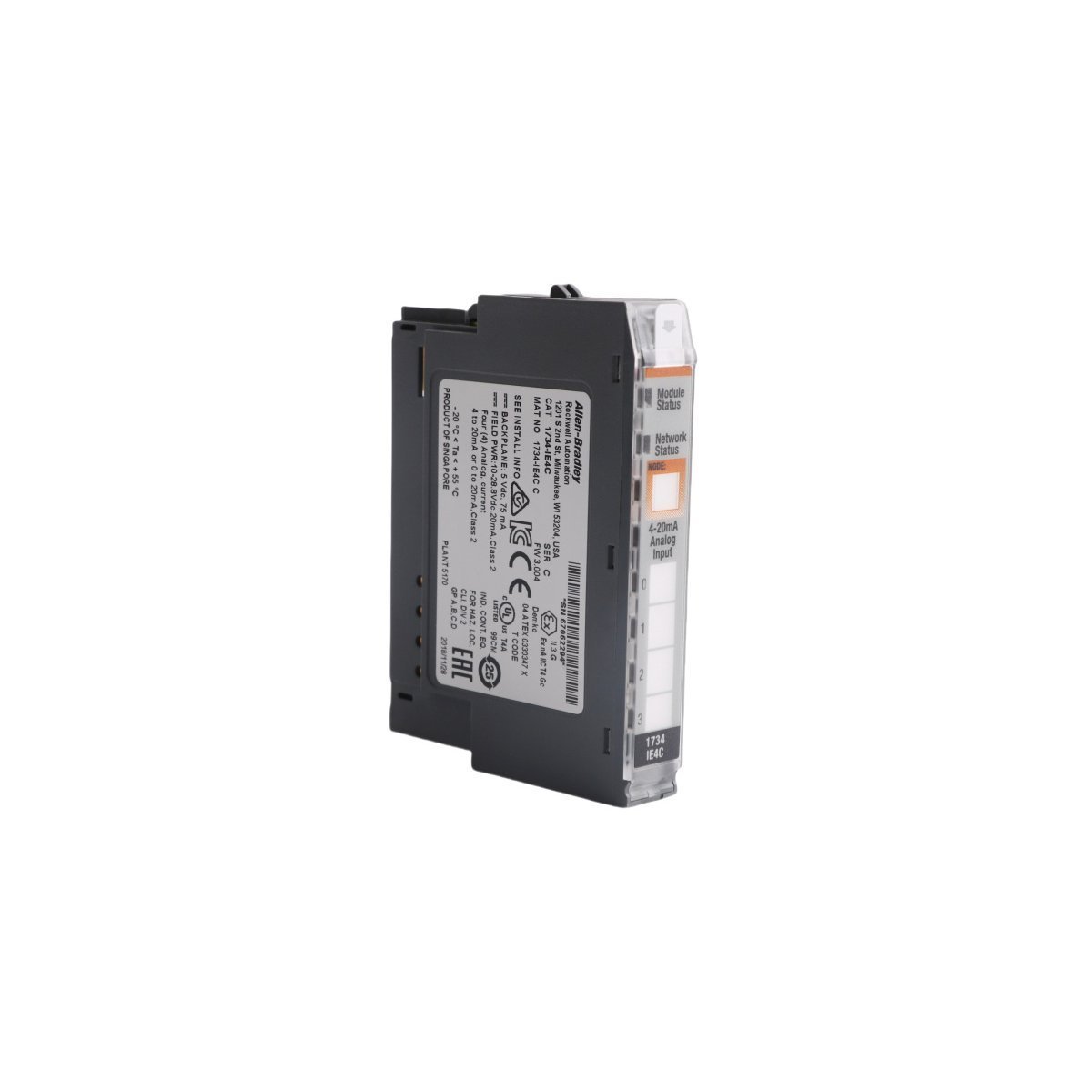

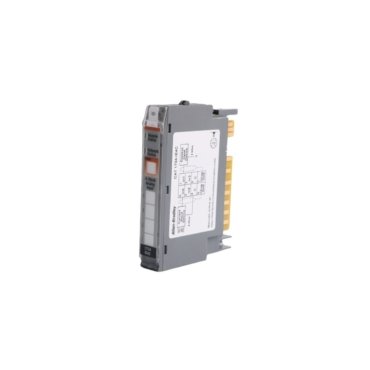

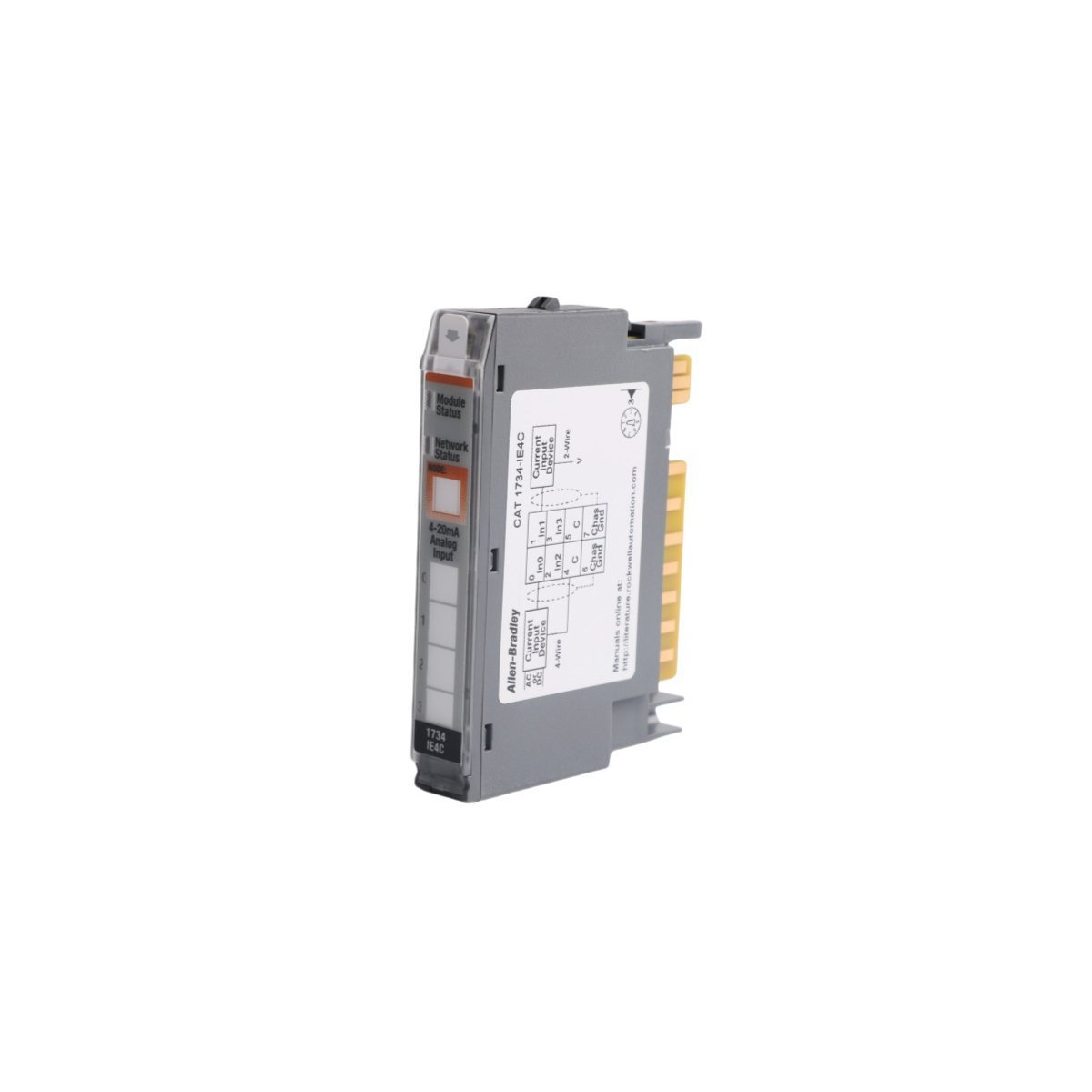

The Allen-Bradley 1734-IE4C provides four channels of high-resolution analog current sensing. This POINT I/O module specializes in capturing precise signals for complex process control. It converts field current signals into 16-bit digital values for the controller. Consequently, this hardware allows for extremely accurate monitoring of industrial variables. The compact design ensures that users can maximize I/O density on the DIN rail. This makes it an ideal choice for panels with limited mounting space.
Versatile Signal Integration and Maintenance
This module supports the standard industrial current ranges of 0-20mA and 4-20mA. Each of the four inputs features individual signal conditioning to ensure data integrity. Furthermore, the unit utilizes a modular architecture with removable terminal blocks. This feature allows technicians to replace modules without disturbing existing field wiring. Engineers can integrate the 1734-IE4C into various distributed networks through POINT I/O adapters. This flexibility simplifies system expansion across different machine sections.
Technical Specifications and Environmental Ratings
- Input Channels: 4 Single-ended Current Inputs
- Input Range: 0 to 20 mA or 4 to 20 mA
- Conversion Resolution: 16 Bits
- Data Format: Signed Integer
- Step Response: 70ms to 99% of final value
- POINTBUS Current: 75 mA at 5V DC
- Power Dissipation: 0.6 Watts maximum
- Thermal Rating: 0°C to 55°C (32°F to 131°F) operating range
Operational Reliability in Demanding Sectors
The 1734-IE4C excels in industries like water treatment, chemical processing, and discrete manufacturing. It carries Class 1 Division 2 certifications for use in hazardous locations. Additionally, the module offers high vibration resistance and electrical noise immunity. Built-in LED indicators provide instant diagnostic data regarding channel status and module health. These visual cues significantly reduce troubleshooting time during unexpected system downtime. Users can also select the conformal-coated 1734-IE4CK version for environments with high humidity.
