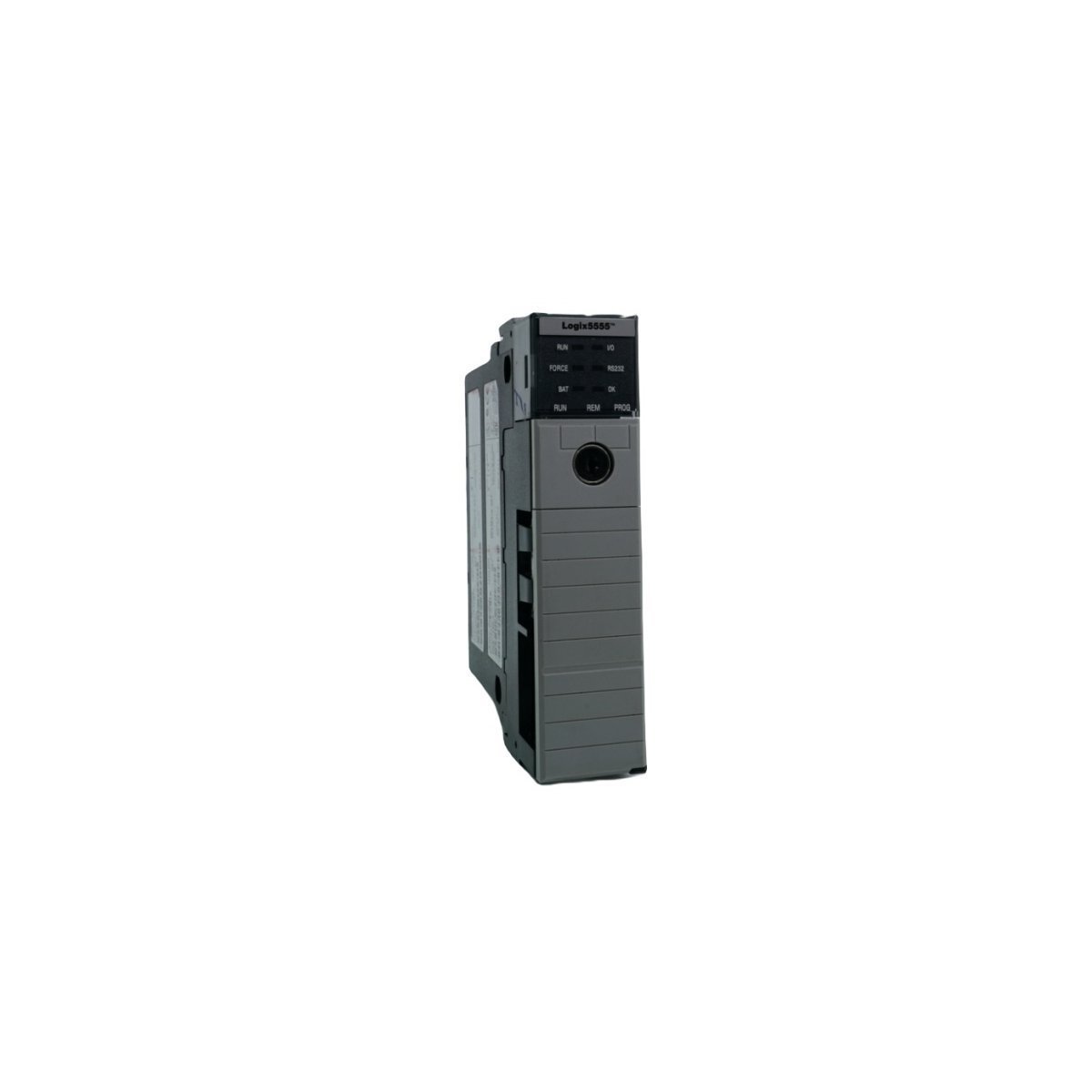

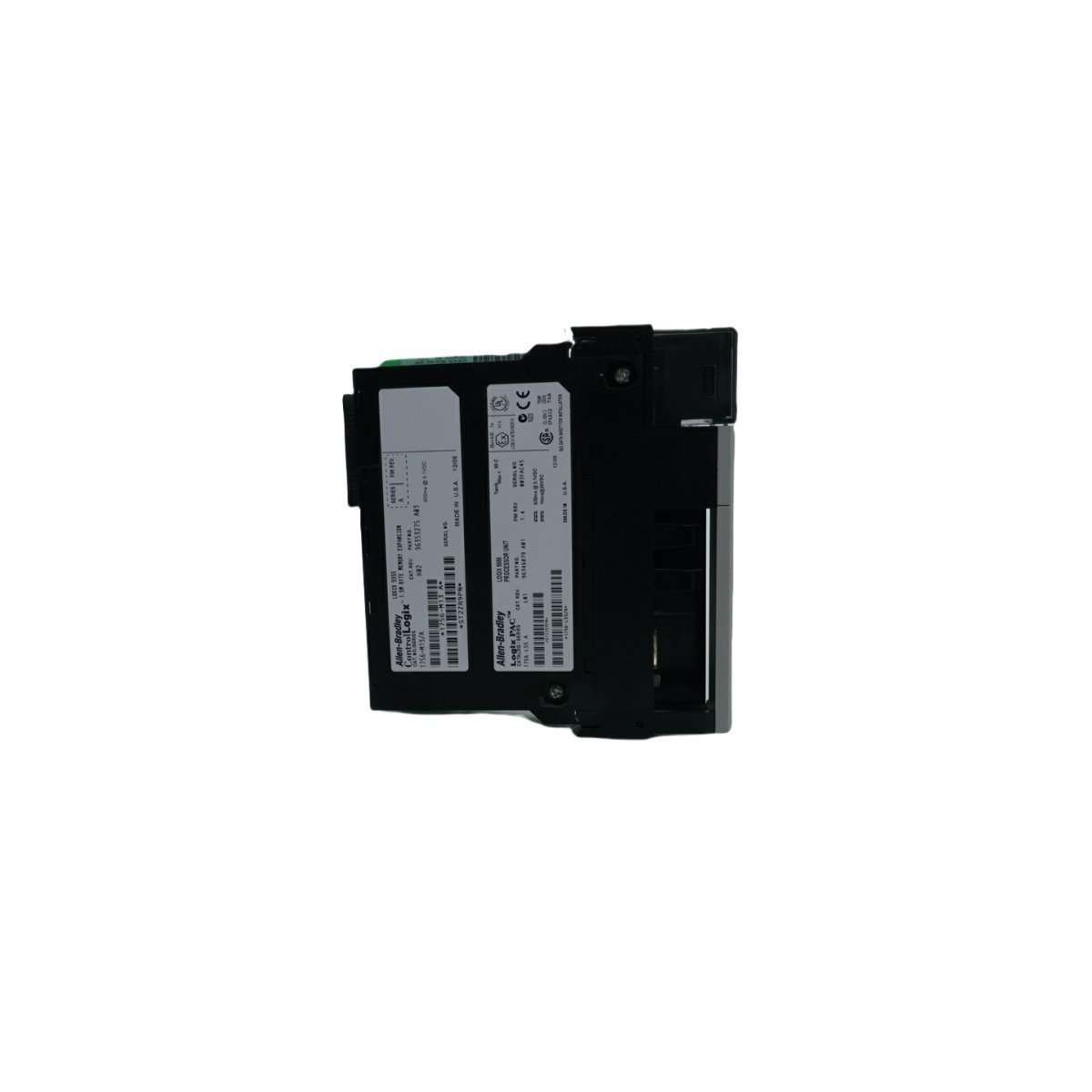

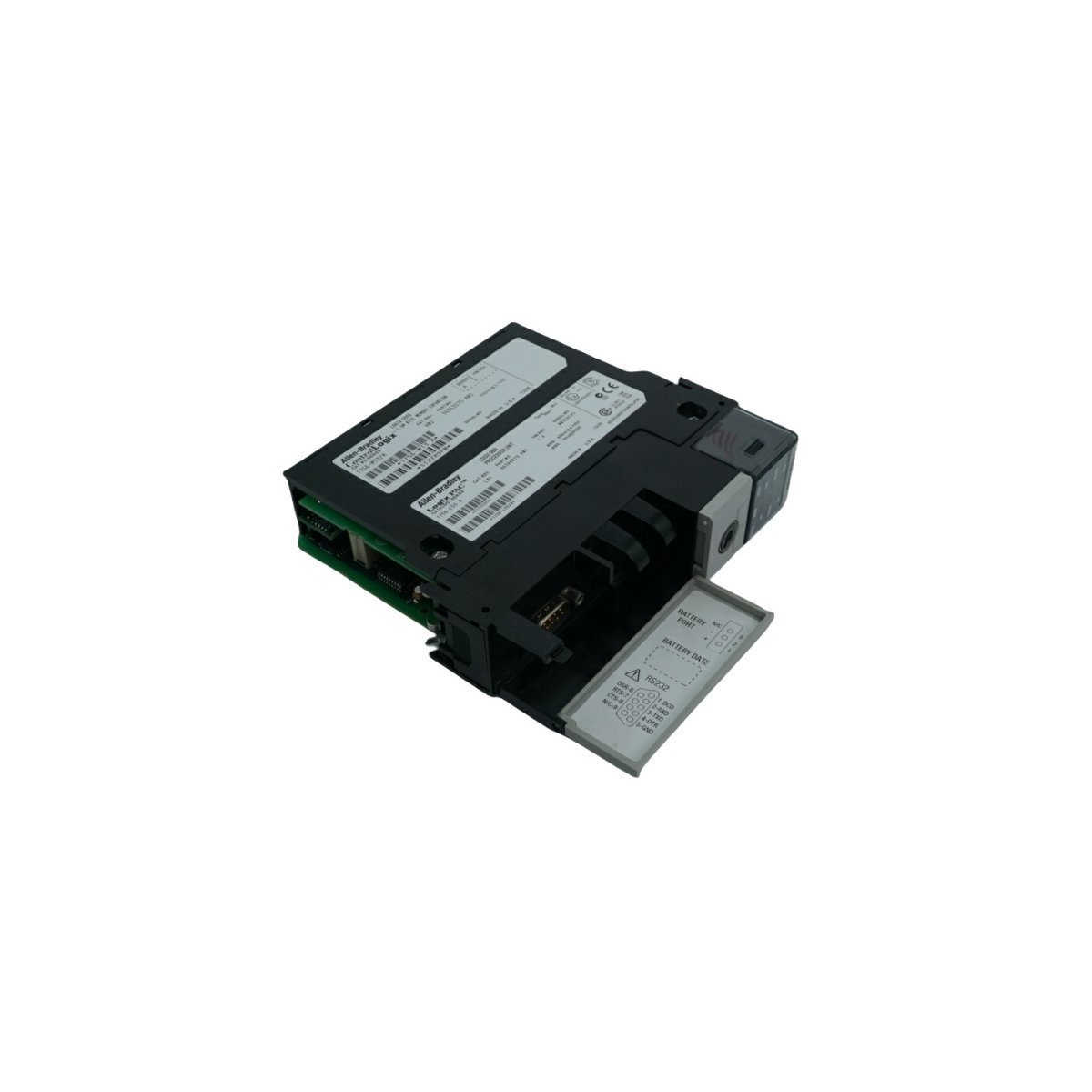

Allen-Bradley 1756-L55M22 ControlLogix Controller

The Allen-Bradley 1756-L55M22 utilizes a unique dual-CPU design to optimize industrial automation tasks. One dedicated Logix processor executes application code with high precision. Meanwhile, a second backplane processor manages all data traffic and I/O communication. This separation of duties prevents communication overhead from slowing down logic execution. Consequently, the controller maintains consistent scan times even during heavy network activity.

Memory Allocation and Data Integrity

Multi-Protocol Network Integration

The 1756-L55M22 provides versatile connectivity options for modern plant floors. It features an integrated RS-232 serial port for direct workstation links. Additionally, the module interfaces with Ethernet/IP, ControlNet, and DeviceNet bridge modules. This hardware supports the “Produced/Consumed” tag technology for cross-platform data sharing. Such networking flexibility allows the controller to function as a central hub in large architectures.

Advanced Multitasking Capabilities

This processor excels in environments requiring the simultaneous management of diverse processes. It supports up to 32 separate tasks to prioritize critical operations. One of these tasks can function as a high-priority periodic loop. Therefore, engineers can allocate specific processing slices to different machine functions. This prioritization ensures that time-sensitive safety or motion logic always receives immediate attention.

Diagnostic Monitoring and Maintenance

The front panel includes a comprehensive LED display for immediate status verification. A dedicated I/O light flashes green to alert operators of potential connection issues. Furthermore, the 1756-L55M22 fits into any standard ControlLogix chassis without special tools. The 0.36 kg lightweight design facilitates easy handling during system assembly. This module continues to serve as a reliable solution for high-speed manufacturing and process control.
