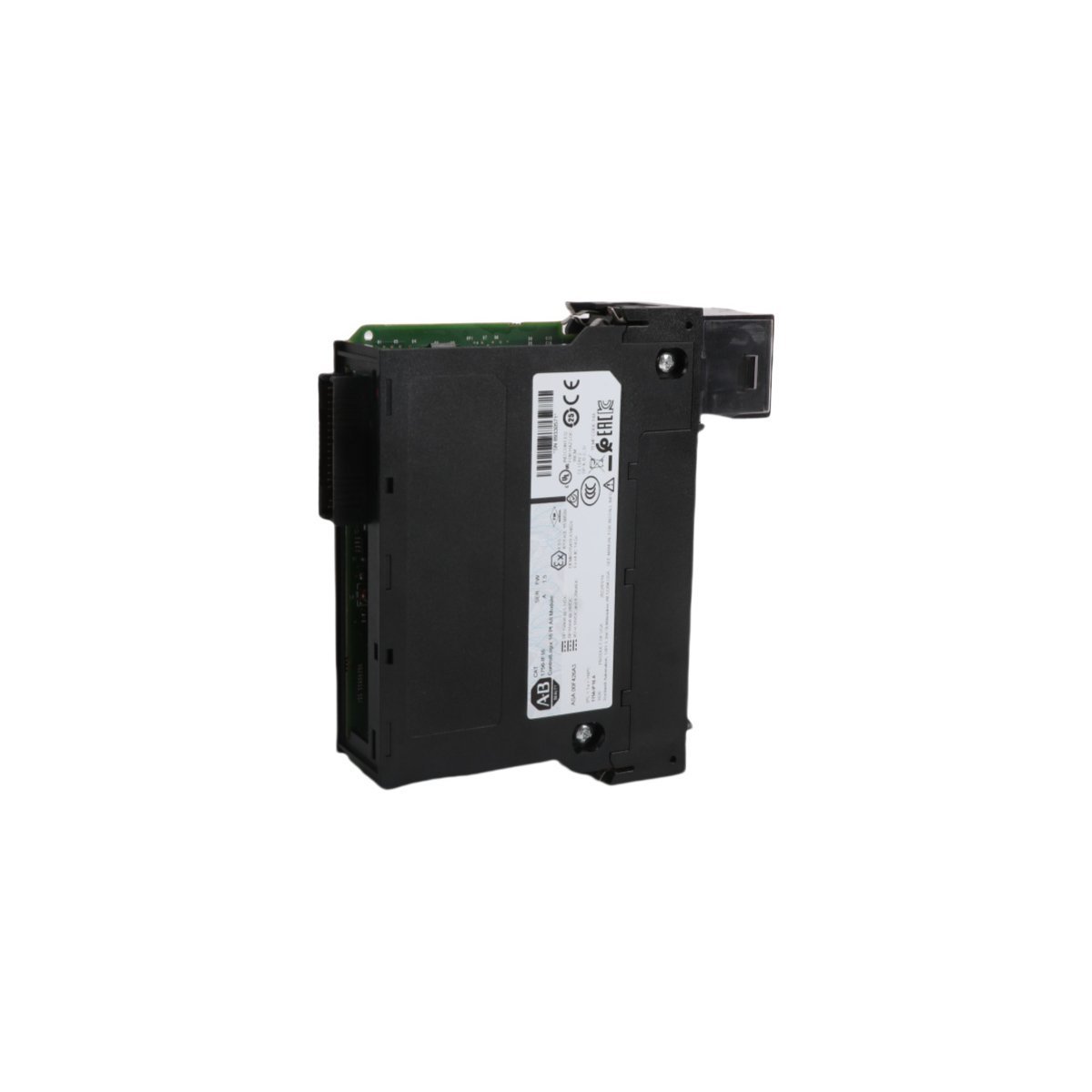

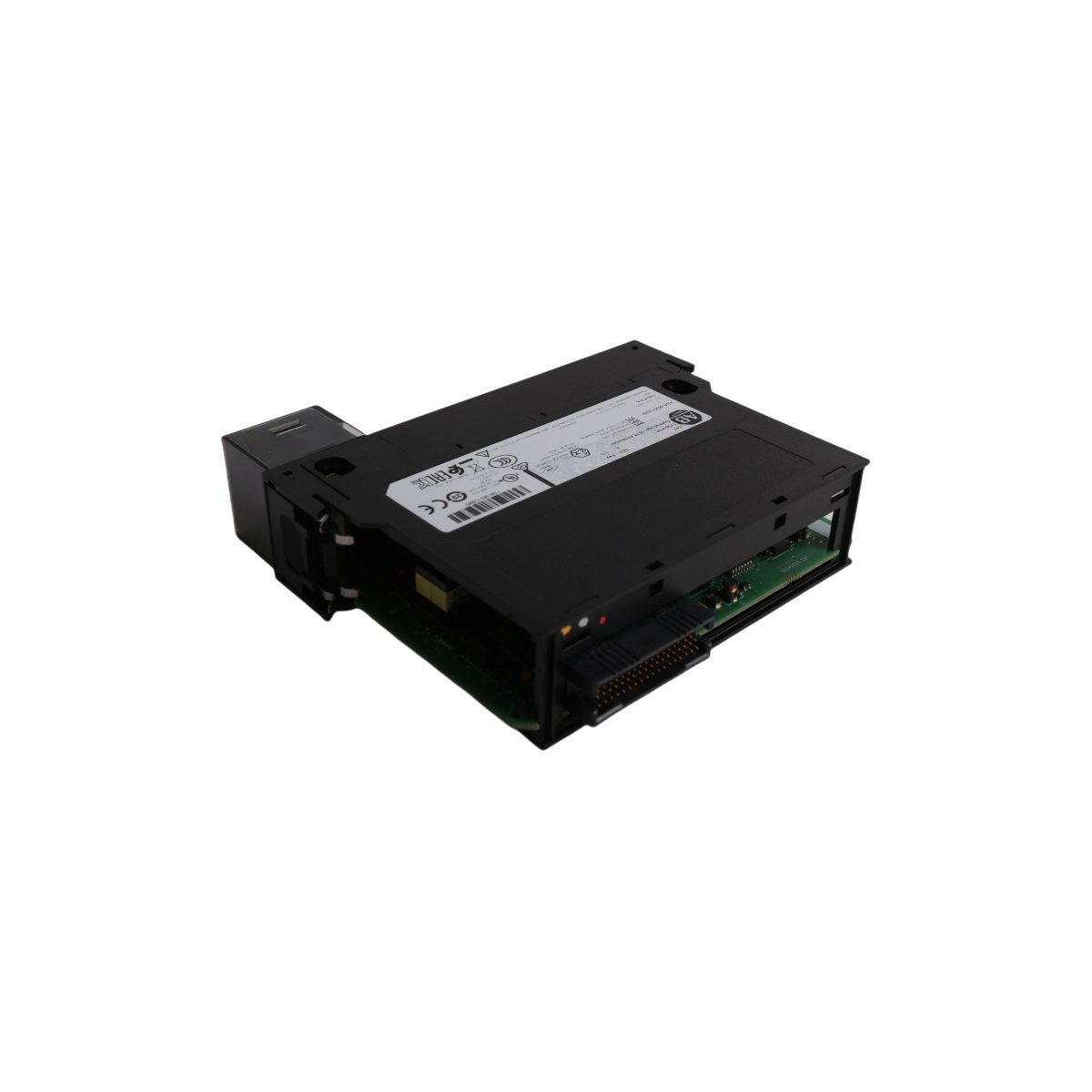

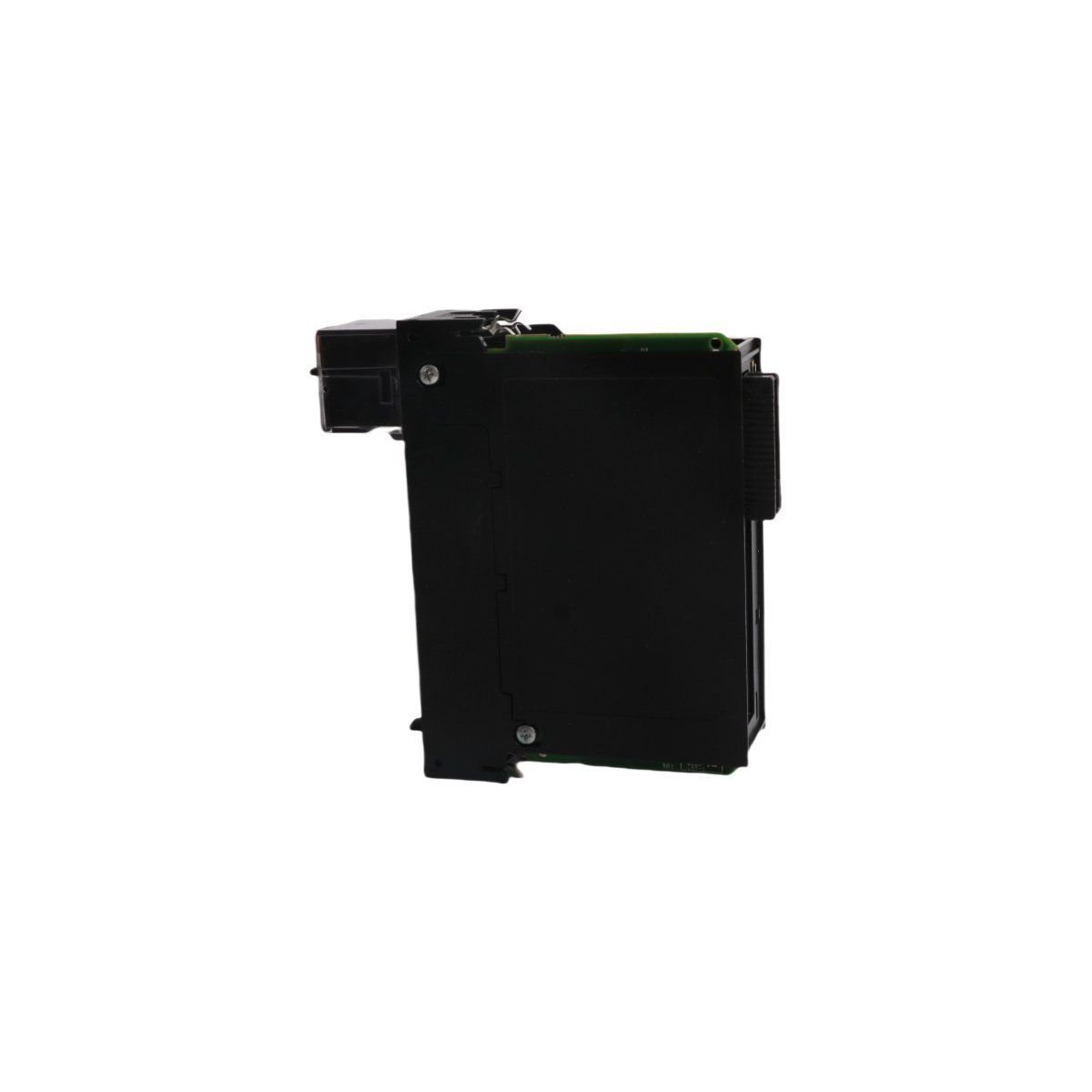

The Allen-Bradley 1756-IF16K functions as a high-density interface for the ControlLogix platform, specifically engineered to transform raw sensor data into actionable digital intelligence. This “K” variant distinguishes itself through a factory-applied conformal coating, which guards internal circuitry against corrosive atmospheres, moisture, and airborne contaminants. Consequently, this module ensures long-term hardware reliability in demanding locations such as chemical processing plants and offshore facilities.
Comprehensive Technical Capabilities
To accommodate diverse industrial requirements, the module provides a flexible architecture for signal management. Users can configure the hardware to support either 16 single-ended or 8 differential inputs, depending on the specific electrical needs of the field instrumentation.
- Signal Resolution: High-accuracy 16-bit conversion
- Voltage Input Ranges: ±10.25V, 0–5.125V, and 0–10.25V
- Current Input Ranges: 0–20 mA and 4–20 mA
- Energy Consumption: Low-draw design with 150mA at 5V DC and 65mA at 24V DC
- Thermal Management: Dissipates 2.3W in voltage mode and 3.9W in current mode
- Form Factor: Occupies a single chassis slot
- Wiring Compatibility: Interfaces with 1756-TBCH or 1756-TBS6H terminal blocks
Advanced Operational Features
Beyond simple data collection, the 1756-IF16K incorporates sophisticated onboard processing to streamline system performance. For instance, the module allows for independent channel configuration, enabling engineers to set custom digital filters and real-time alarm thresholds directly within the Studio 5000 environment. Furthermore, the Removal and Insertion Under Power (RIUP) capability permits technicians to replace modules without de-energizing the system, thereby significantly reducing potential downtime during maintenance cycles.
