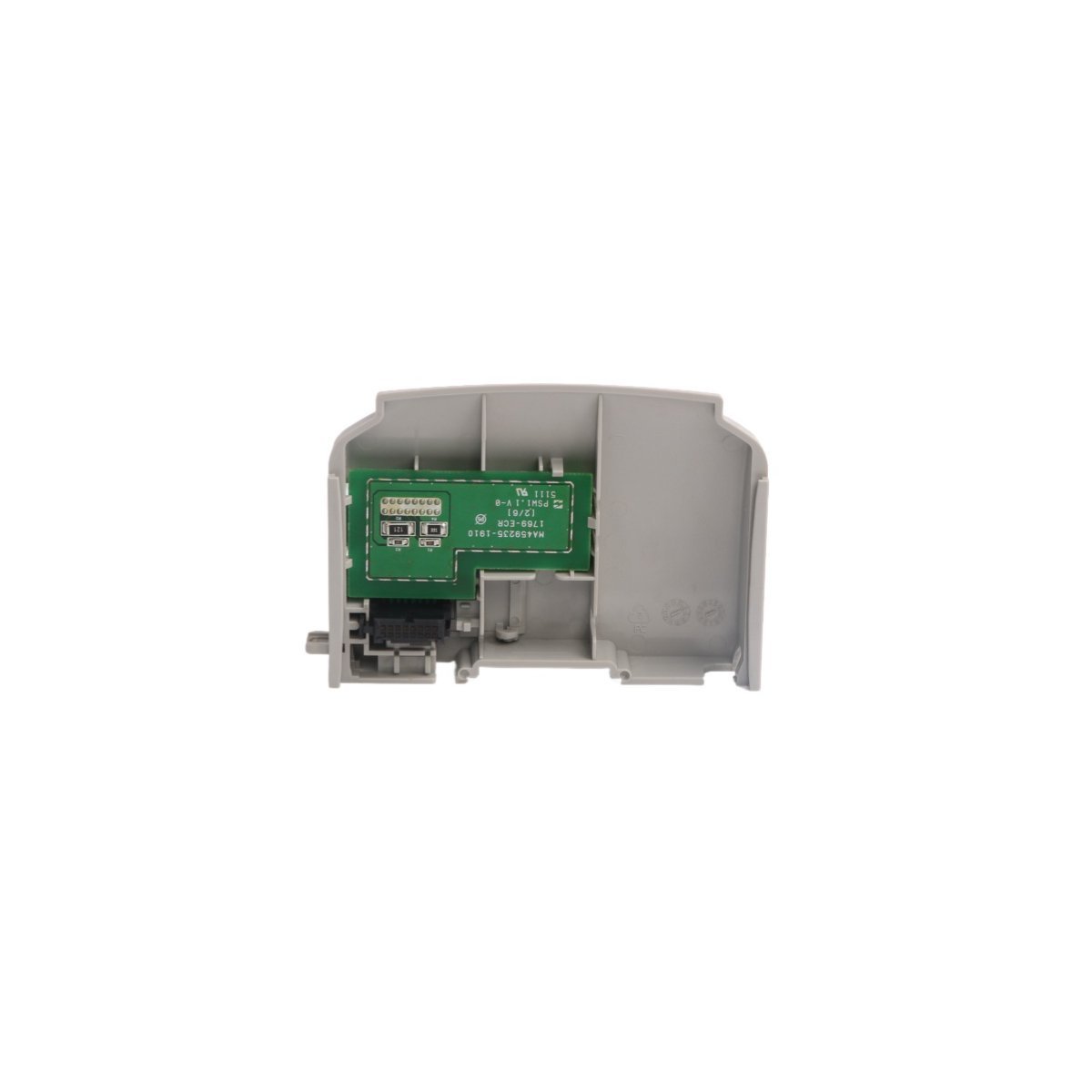

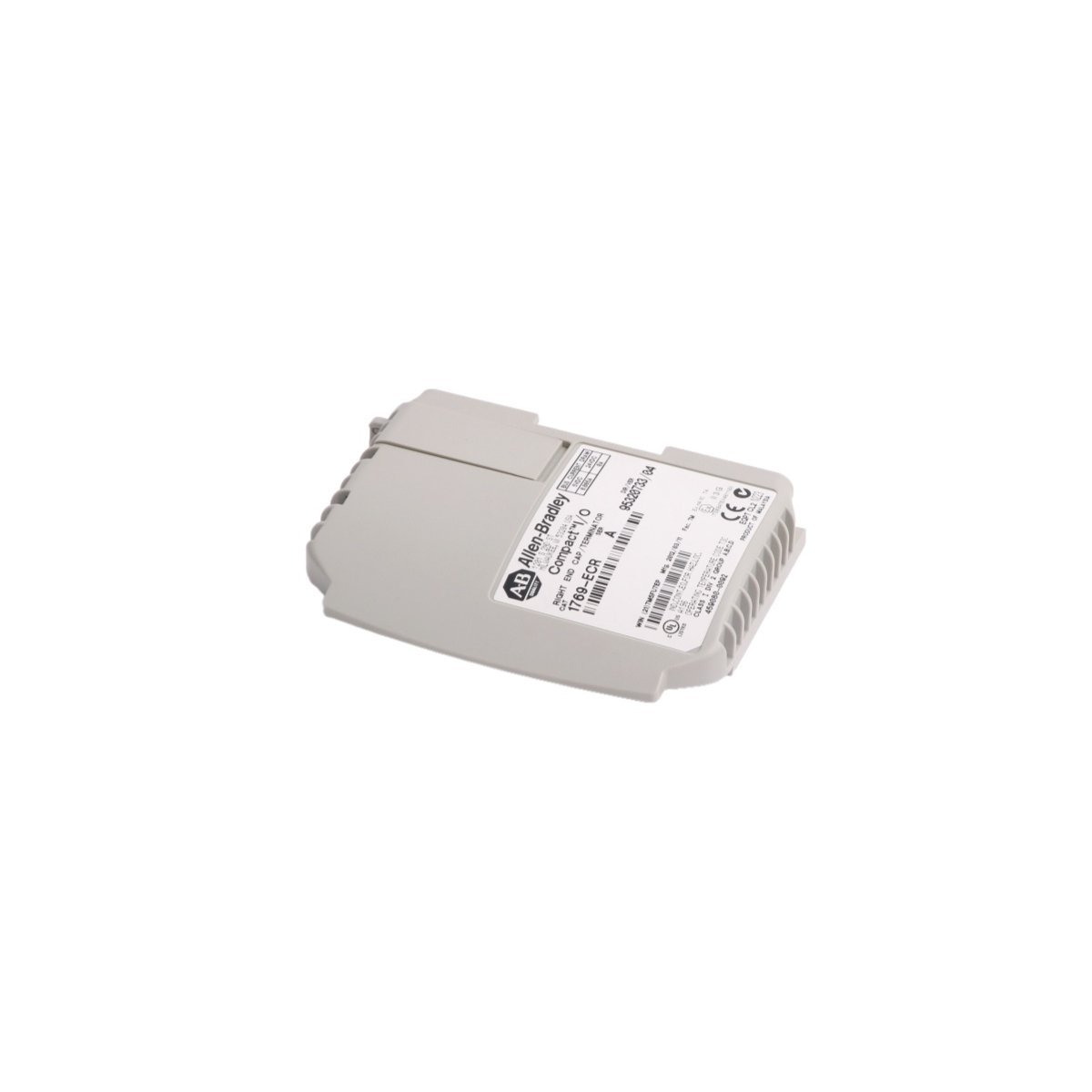

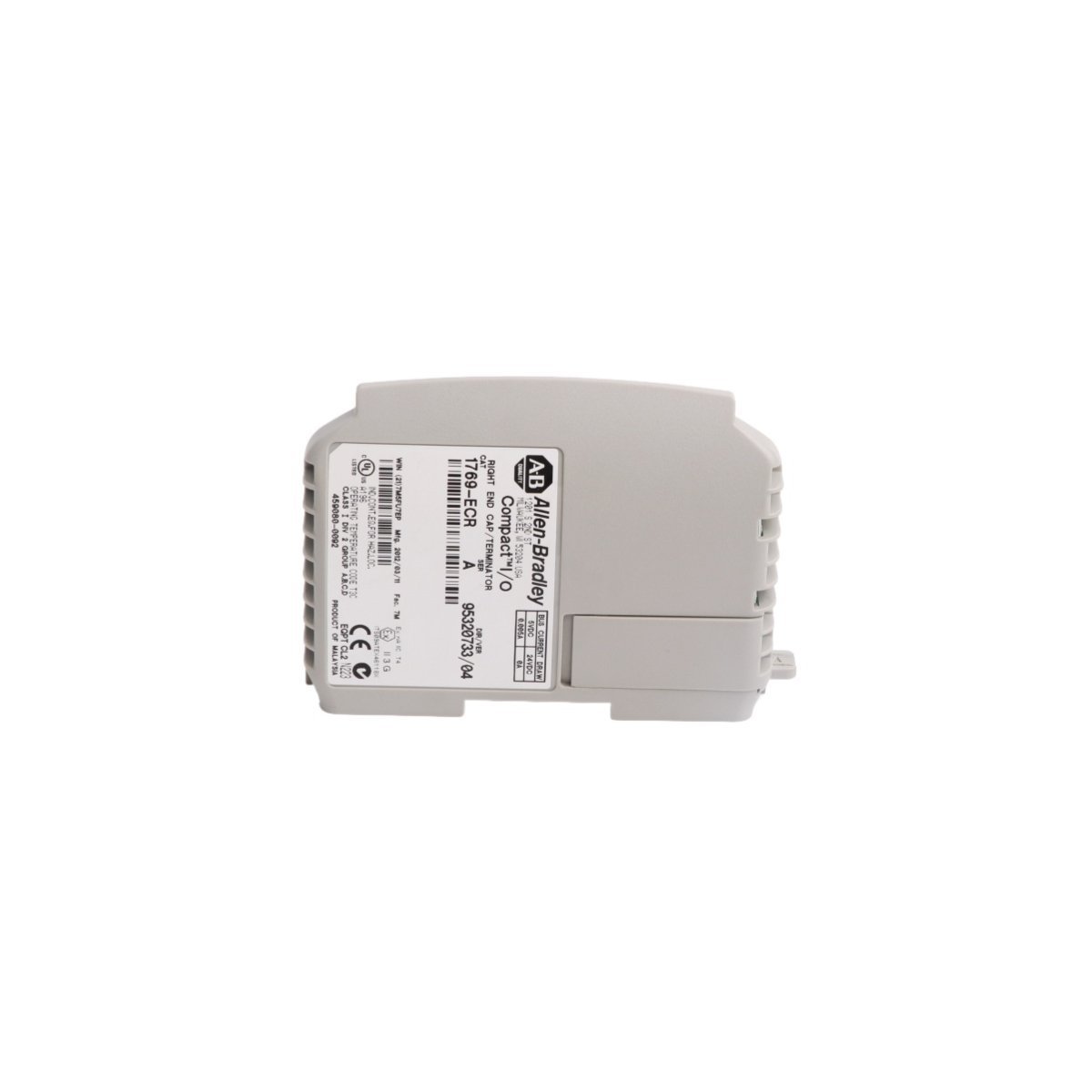

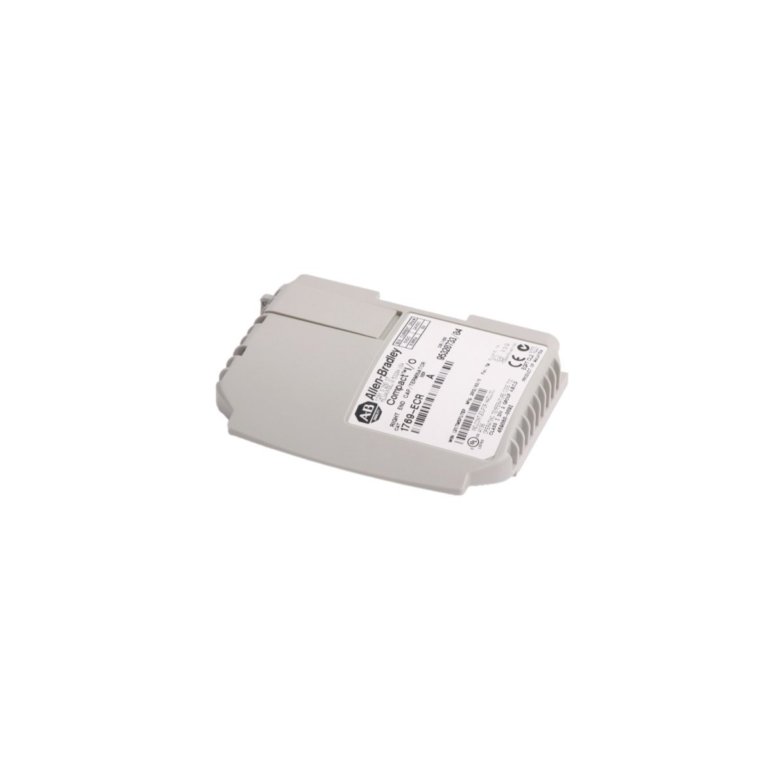

1769-ECR Rockwell Automation Right Bank Terminator for Compact I/O

Brief Product Description

The 1769-ECR serves as the definitive electrical and mechanical termination point for the right-hand side of a 1769 I/O bank. Every valid CompactLogix system requires this module to close the internal communication loop and prevent signal reflections that could lead to system faults.

Technical Overview and Backplane Integration

The 1769-ECR plays a fundamental role in the architecture of Rockwell Automation’s Compact I/O systems. While it does not process data or provide I/O points, the module acts as a passive bus terminator that signifies the end of the physical FlexBus. Without this component, the communication signals across the backplane would encounter impedance mismatches, resulting in data corruption and controller errors. Therefore, the 1769-ECR is a functional necessity rather than an optional accessory.

This module integrates seamlessly with CompactLogix 5370 L1, L2, and L3 controllers, as well as standalone 1769 expansion banks. It consumes a negligible amount of current from the backplane—specifically 5 mA at 5.1V DC—ensuring that it does not place a significant load on the system power supply. To ensure a successful installation, users must align the module using the built-in guide slots and engage the bus lever firmly to lock the connection.

Core Technical Specifications

• Brand: Allen-Bradley / Rockwell Automation
• Model Number: 1769-ECR
• Component Type: Right-Side Bus Terminator (End Cap)
• Compatibility: CompactLogix and MicroLogix 1500 Systems
• Current Draw: 5 mA @ 5.1V DC
• Operating Temperature: 0°C to 60°C (32°F to 140°F)
• Operating Altitude: Up to 2000 meters (6562 feet)
• Vibration Resistance: 5g at 10–500 Hz
• Operational Shock: 20g (DIN Rail) / 30g (Panel Mount)
• Enclosure Type: Open Style (IP20 equivalent)
• Relative Humidity: 5% to 95% non-condensing

Installation Standards and Environmental Resilience

Safety protocols dictate that the 1769-ECR must be installed or removed only when the system power is completely isolated. Since the module completes the electrical circuit of the backplane, attempting to modify the configuration while the system is energized can trigger immediate processor faults or hardware damage. Once secured, the module provides a rugged mechanical shield that protects the exposed pins of the final I/O module from dust, debris, and physical impact.

The module demonstrates significant resilience in demanding industrial settings. It carries high shock and vibration ratings, ensuring that the backplane connection remains secure even on machinery prone to constant movement. Furthermore, its broad storage and operational temperature ranges allow the 1769-ECR to function reliably in unconditioned control cabinets across various manufacturing sectors.

Primary Industrial Applications

• Finalizing CompactLogix 1769 I/O expansion racks
• MicroLogix 1500 controller system termination
• Distributed I/O banks in automotive and packaging lines
• Securing backplane integrity in high-vibration material handling environments
• Completing safety and standard I/O configurations for process control cabinets
