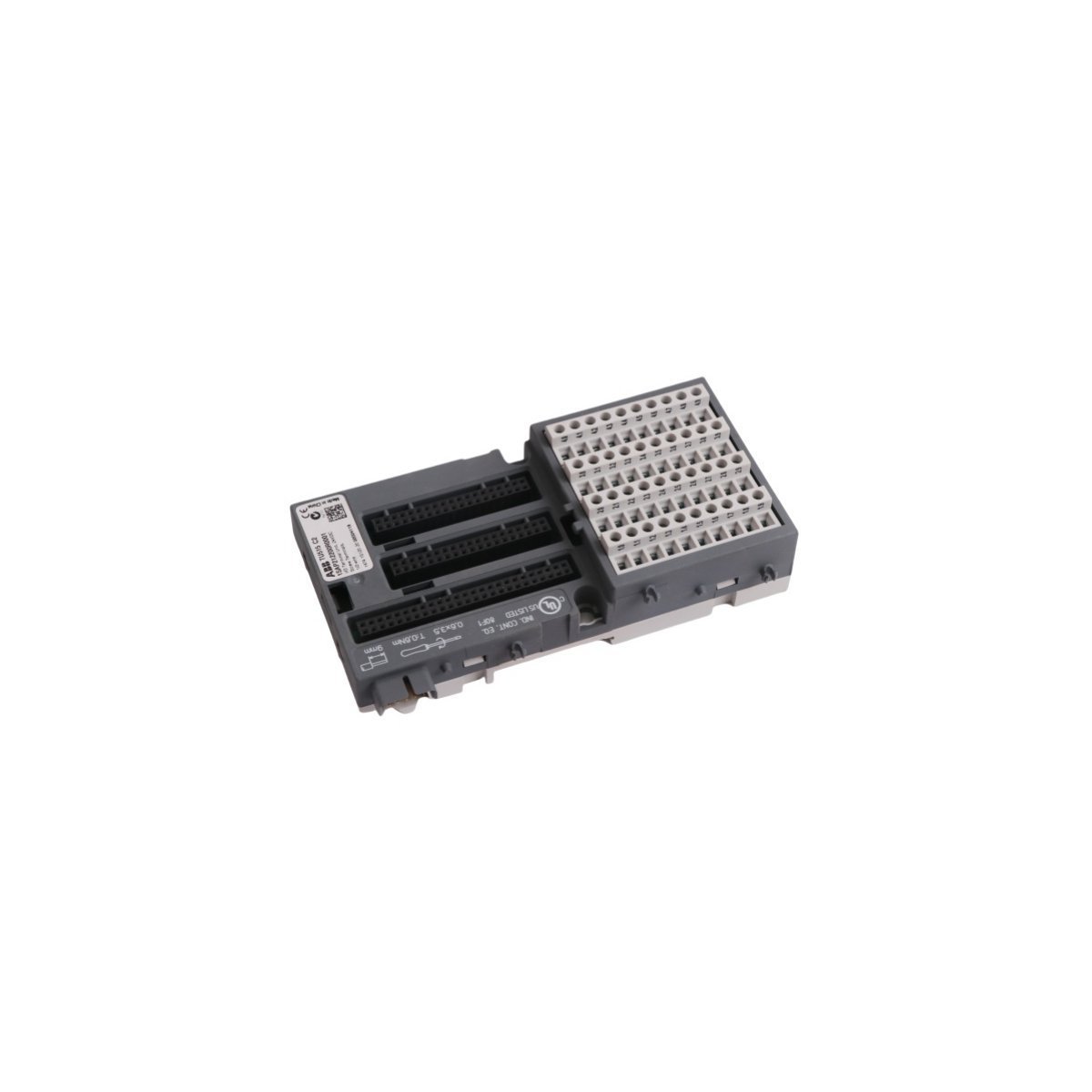

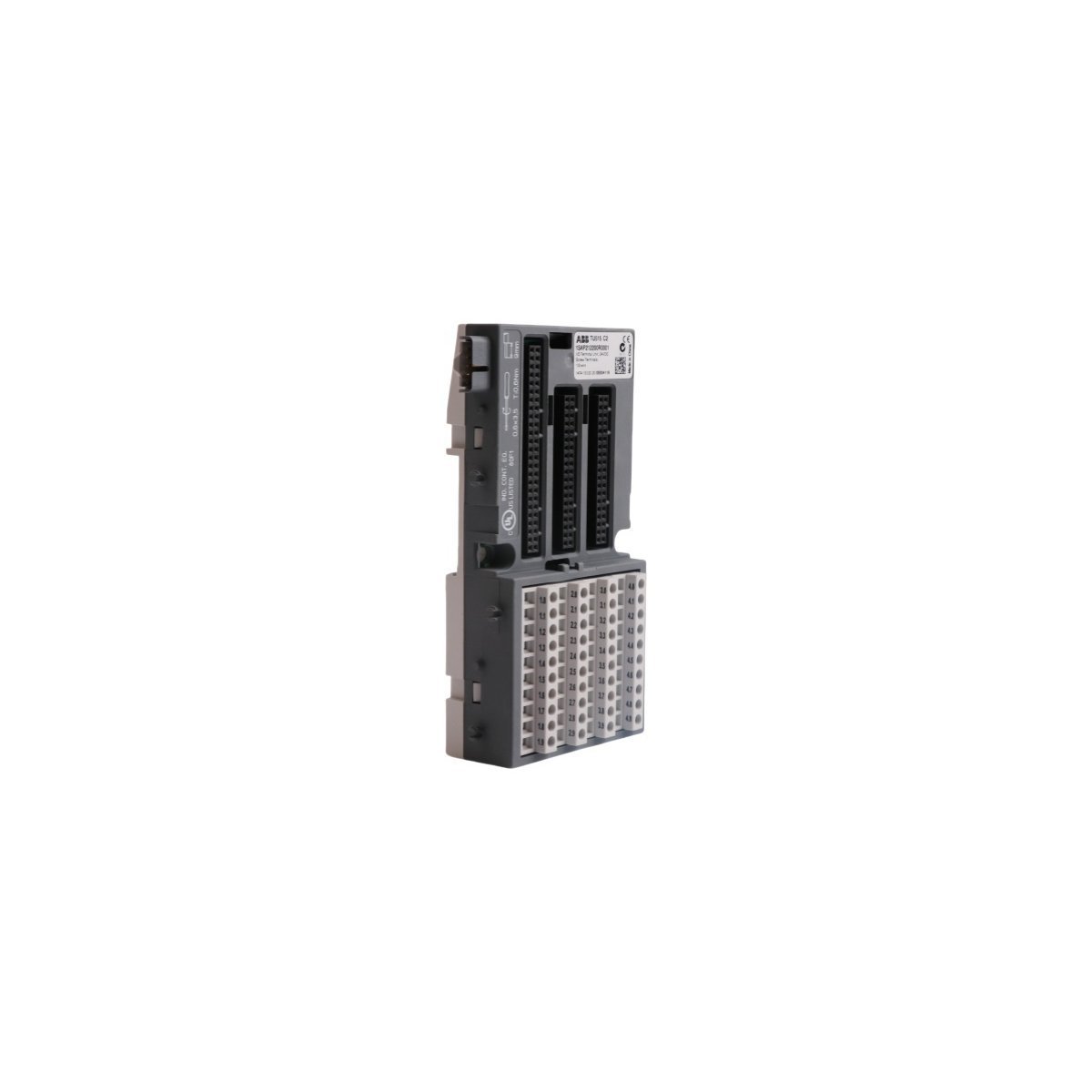

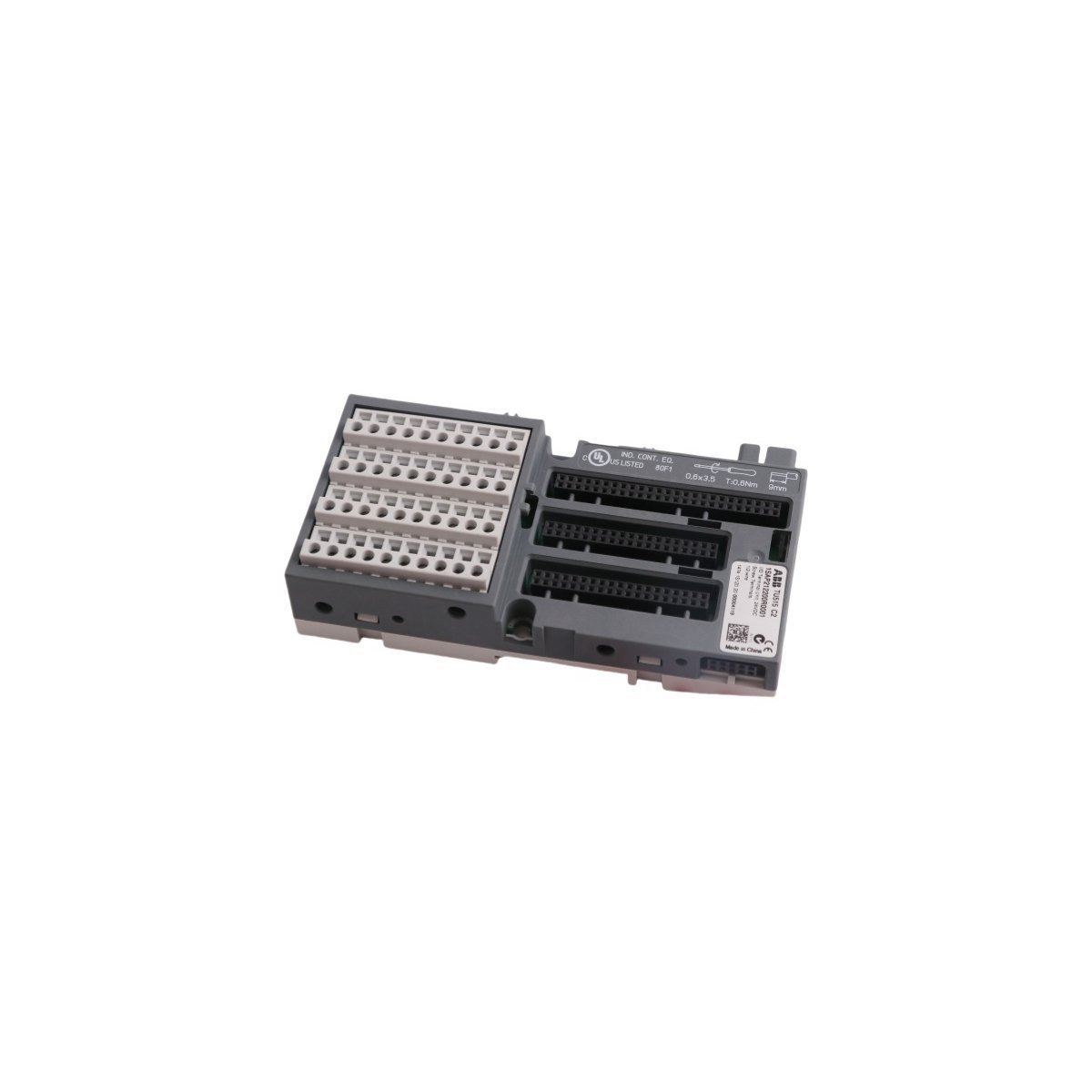

ABB TU515 1SAP212200R0001 AC500 S500 I/O Terminal Unit Module

ABB TU515 S500 I/O Terminal Unit

Configured for signal distribution in AC500 platform architectures, the ABB TU515 1SAP212200R0001 (TU515 I/O Terminal Unit) provides direct electrical connection points for I/O modules. The unit facilitates field wiring termination, whereby external sensors and actuators interface with the control system bus. Consequently, the terminal unit maintains consistent signal paths across the entire S500 I/O station.

Hardware Specifications

Backplane Bus Communication and Firmware Compatibility

The TU515 serves as a passive mechanical base for I/O modules, which connect directly to the internal AC500 backplane bus. Although the terminal unit itself contains no firmware, it must support the communication speed of the attached I/O modules. Engineers should verify that the backplane bus configuration matches the module requirements, as improper seating often triggers communication faults. Furthermore, the unit supports I/O density scaling within the AC500 cabinet, which allows you to expand the station according to specific application needs.

Frequently Asked Questions

Q: Does the TU515 terminal unit support hot-swapping for the mounted I/O modules?

A: Yes. You may remove or insert I/O modules while the system remains powered, provided the specific module type supports hot-swap functionality. However, you must always exercise caution to ensure that you do not disturb the adjacent signal wiring.

Q: How does the unit maintain electrical contact integrity?

A: The TU515 utilizes high-tension spring-clamp terminals to ensure vibration-resistant connections. Furthermore, the base design incorporates a mechanical locking latch, which secures each module firmly against the backplane connector.

Field Installation Guidelines

• Mechanical Mounting: You must snap the terminal unit onto a standard 35 mm DIN-rail. Ensure that you push the unit firmly until the locking mechanism engages, because stable mechanical mounting prevents signal intermittency.
• Grounding Requirements: The unit features a dedicated functional earth connection. You must bond this terminal to the cabinet’s main grounding bus using a low-impedance conductor, which effectively diverts electromagnetic interference.
• Wiring Protocols: You should strip field wires to the specified length to prevent exposed copper. Furthermore, insert each wire fully into the terminal clamp and pull gently to verify that the connection holds securely.
• Cable Management: You must organize signal cables in separate ducts from high-voltage power lines. This spatial separation mitigates inductive noise coupling, which otherwise degrades the precision of the connected I/O channels.
