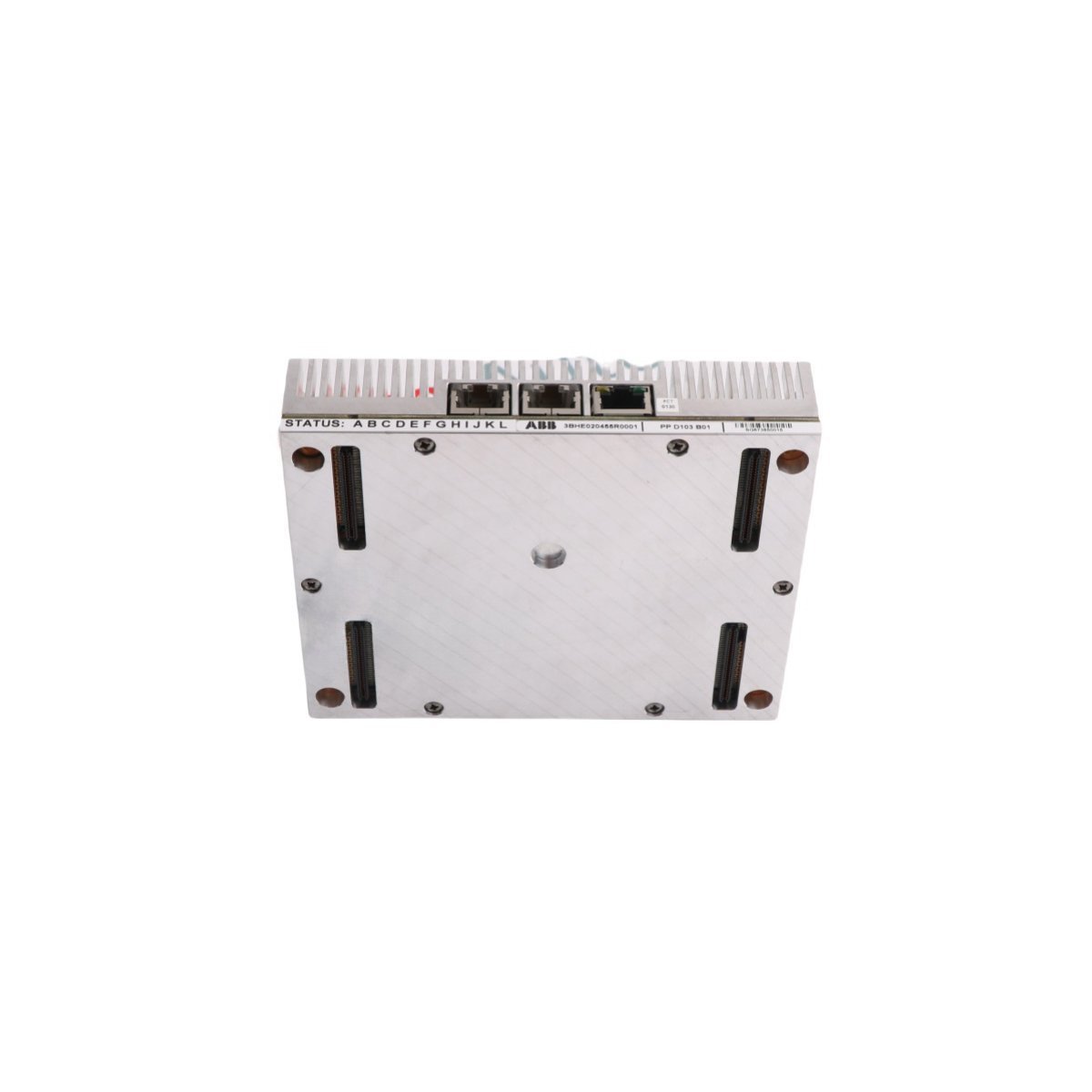

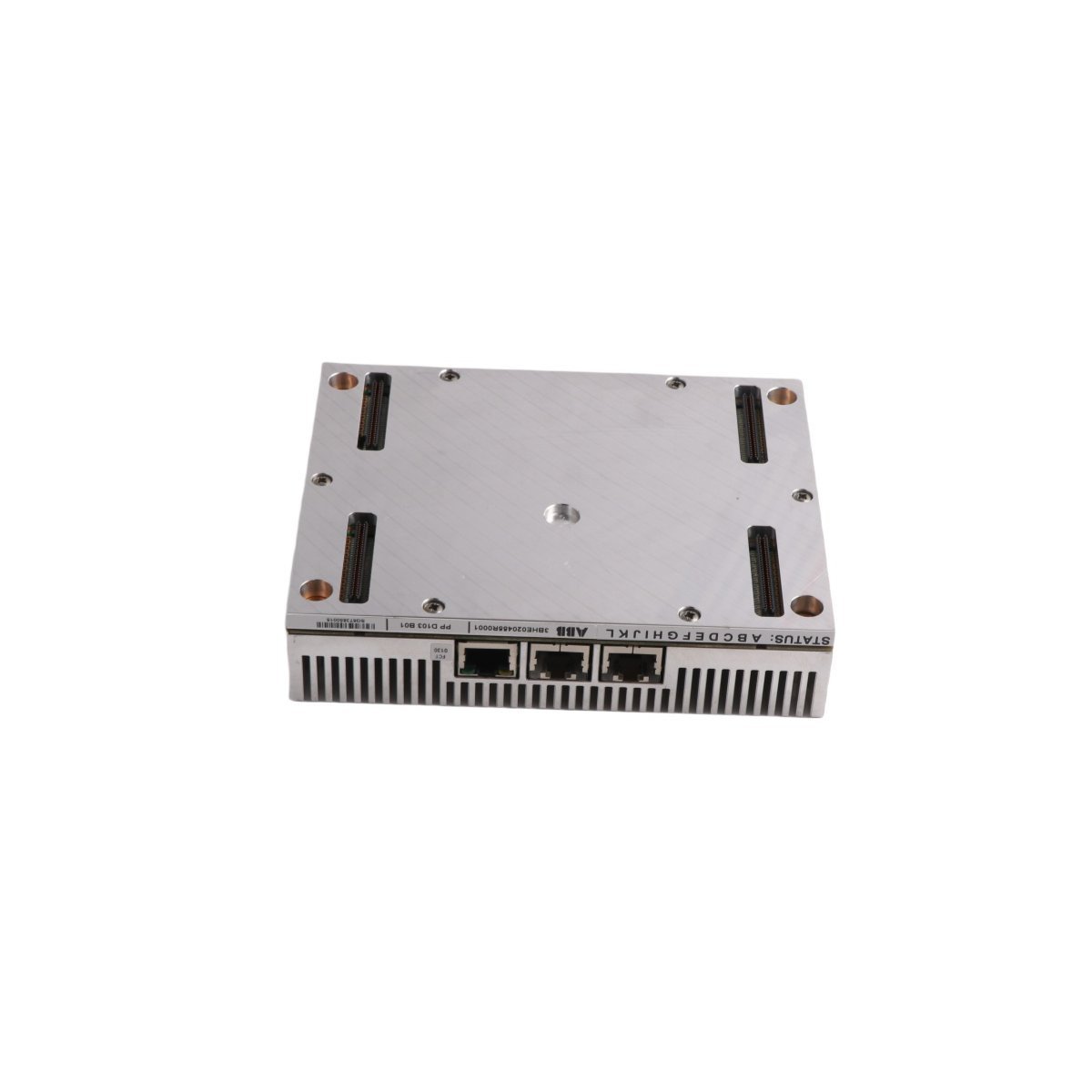

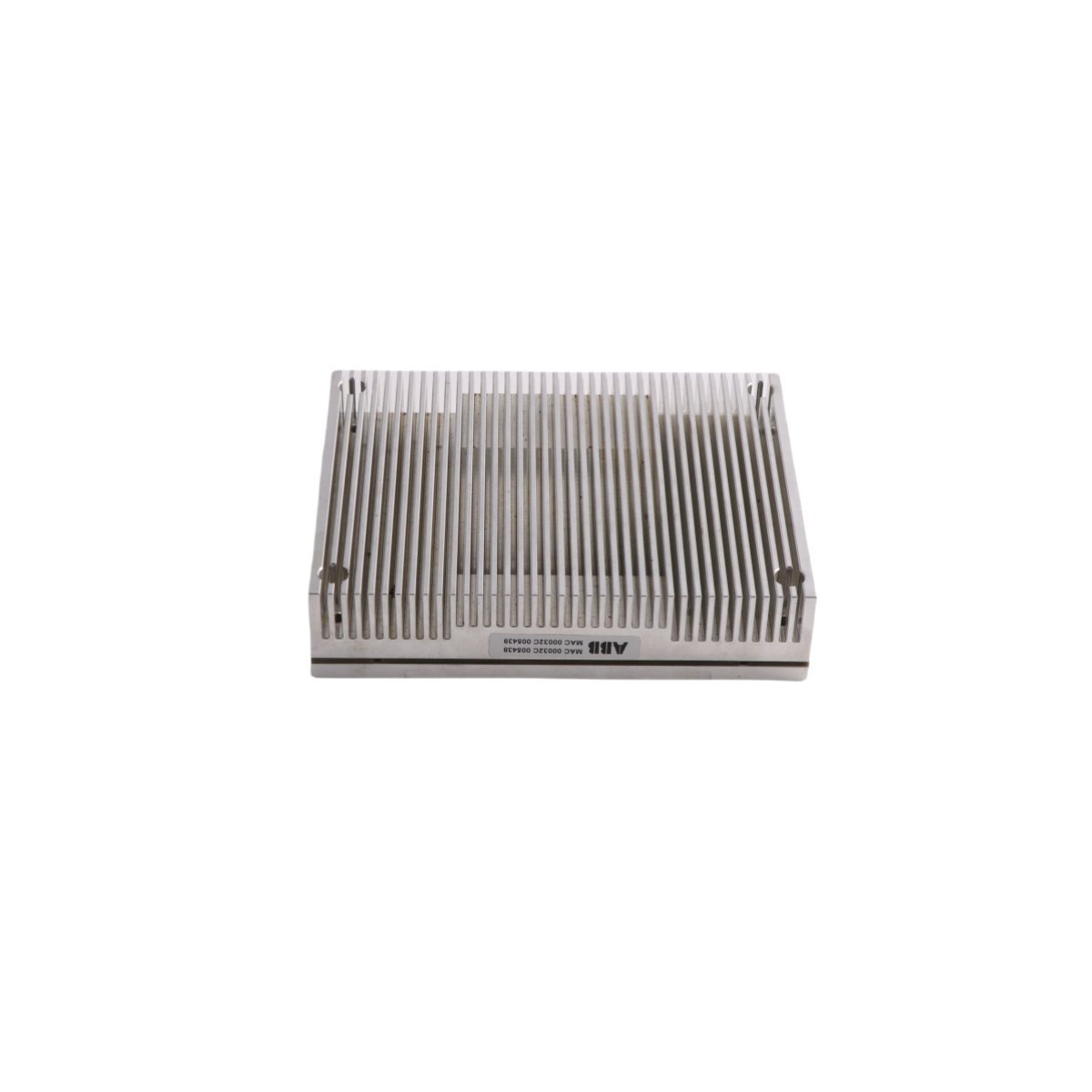

ABB 3BHE020455R0001 PPD103 B01 AC 800PEC Controller Board

Configured for high-speed signal management in AC 800PEC platforms, the ABB 3BHE020455R0001 (PPD103 B01 Controller Board) executes complex control algorithms at the hardware level. The module processes real-time data from field sensors, by which the system controls external actuators. Consequently, the controller maintains high-precision regulation within demanding industrial loops.

Hardware Specifications

Firmware Flash Compatibility and Bus Integration

The PPD103 B01 board utilizes the AC 800PEC backplane bus to facilitate deterministic data exchange. Although the controller auto-detects the board, technicians must verify that the installed firmware revision aligns with the host controller’s software matrix. If the versions mismatch, the system may trigger communication timeouts. Therefore, you should perform firmware flash operations through the ABB engineering toolset. Furthermore, you must verify the checksum of the loaded binary to confirm that the board maintains operational integrity after the update process finishes.

Frequently Asked Questions

Q: Does the PPD103 B01 support hot-swapping within an active control rack?

A: No. The system does not support hot-swapping for this controller board. You must isolate the rack power supply before you extract or insert the module, as this prevents permanent damage to the backplane pins and protects against transient voltage surges.

Q: How does the module handle high-speed communication with external devices?

A: The board employs dedicated hardware-level serial and Ethernet interfaces to manage traffic. By prioritizing high-speed control packets, the module maintains deterministic timing, which allows for stable operation in fast-response applications.

Field Installation Guidelines

• Mechanical Mounting: You must slide the module into the designated slot within the AC 800PEC controller rack. Ensure that you lock the retention levers, because a loose mechanical fit often results in intermittent backplane contact.
• Grounding Requirements: The module chassis bonds to the rack frame upon full insertion. Furthermore, you should connect the rack frame to the cabinet’s common ground bus using a low-impedance copper conductor to mitigate electromagnetic interference.
• Wiring Protocols: Use shielded twisted-pair cables for all communication links. Moreover, you must terminate the shields at the designated cabinet entry points to create a continuous path to earth.
• Visual Inspection: Before you apply power, inspect the pin-headers for debris or oxidation. Finally, verify that no loose wire strands bridge across the terminal blocks, as these can cause short circuits during system startup.
