PU515 3BSE013063R1 ABB System 800xA Real-Time Accelerator RTA Board

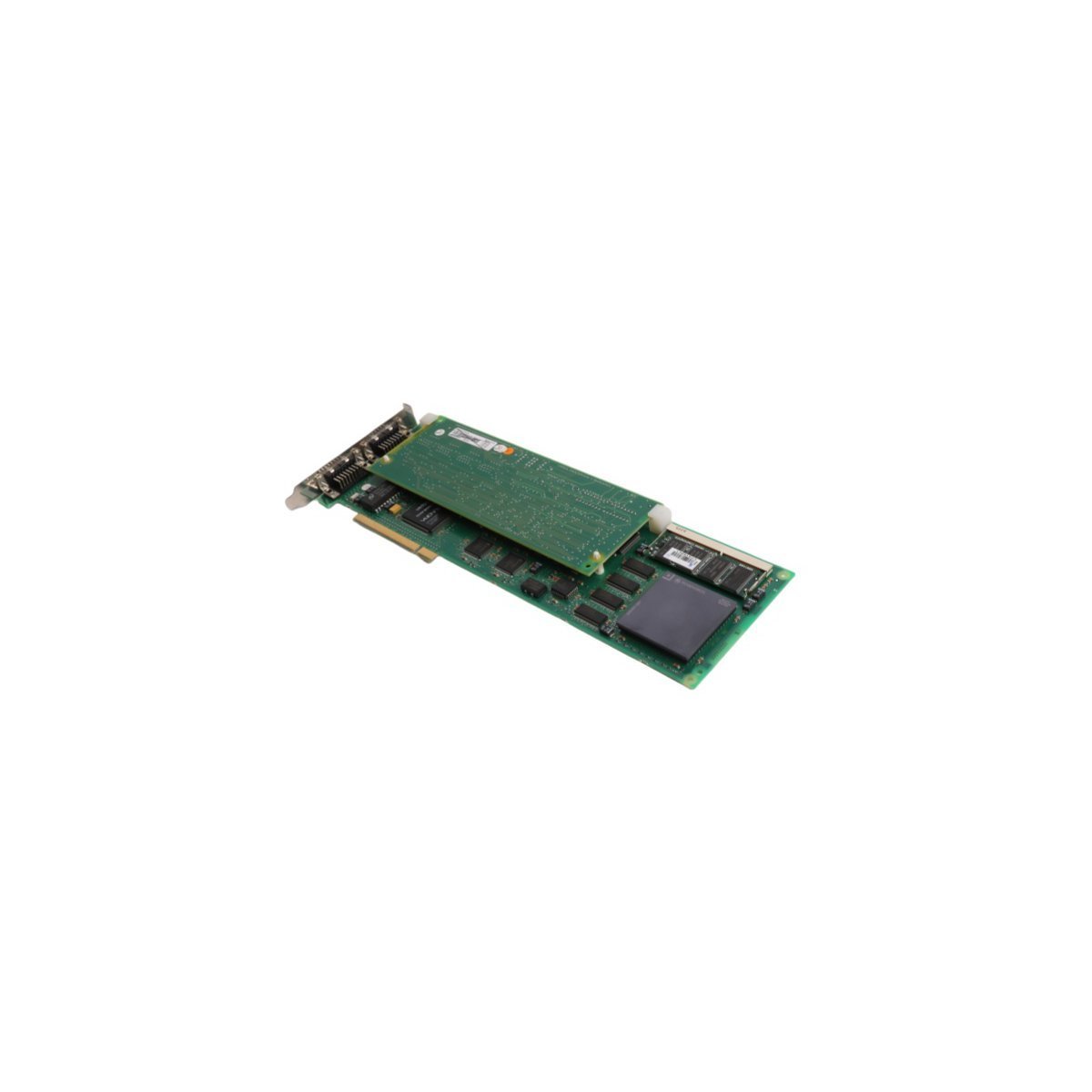

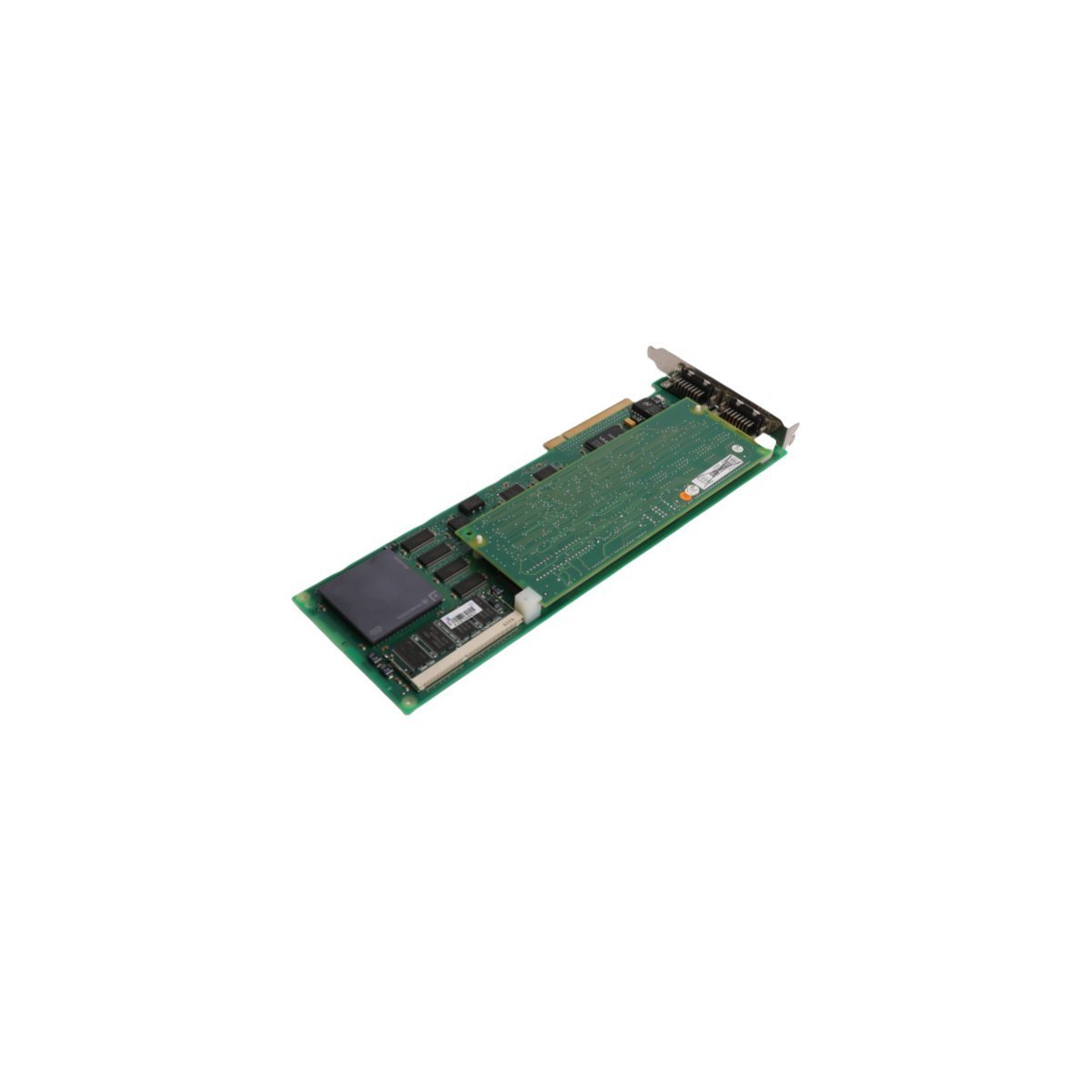

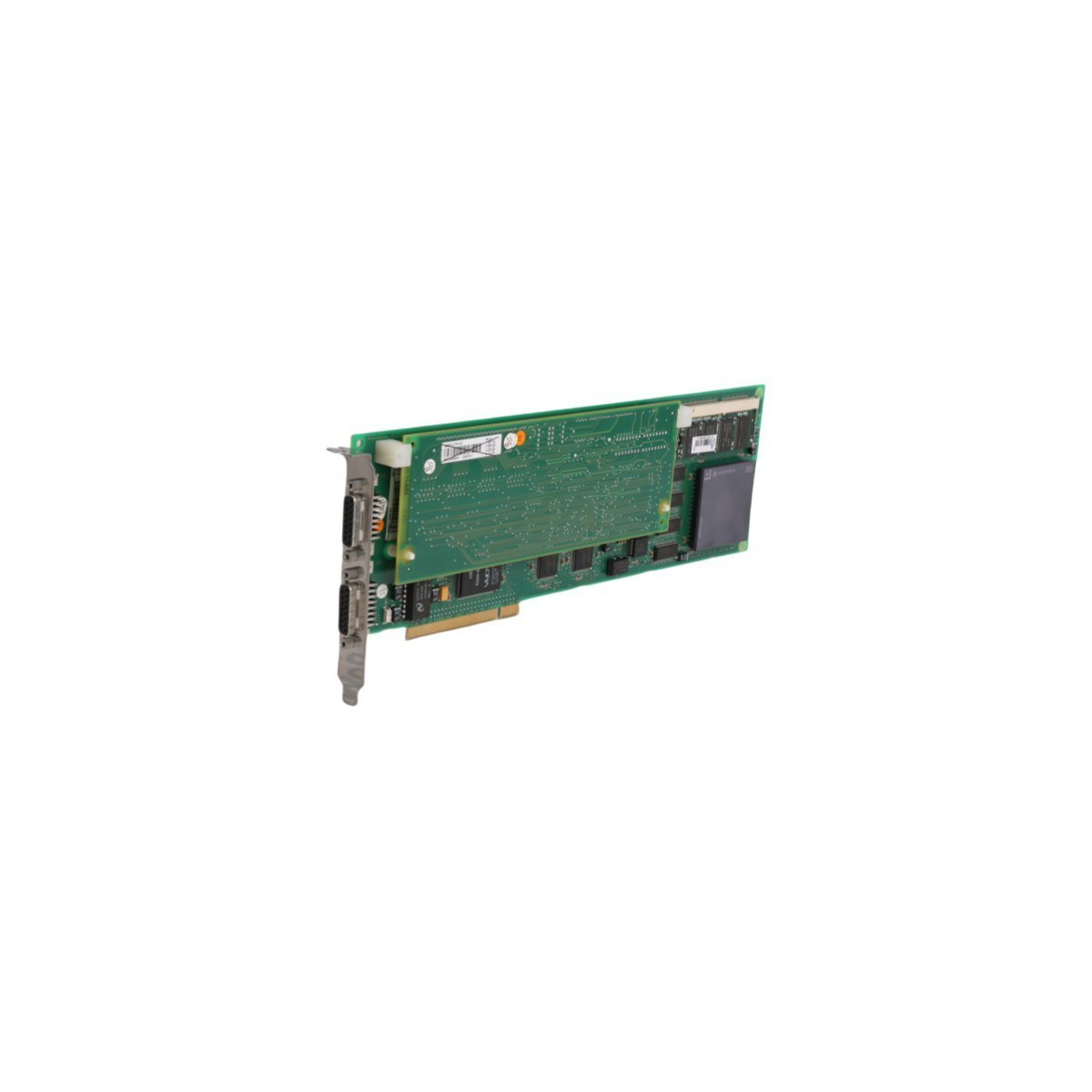

ABB PU515 Real-Time Accelerator Board

Configured for high-speed deterministic signal processing in System 800xA environments, the ABB PU515 3BSE013063R1 (PU515 Real-Time Accelerator Board) executes control tasks at the hardware level. The module manages real-time data flow, which allows the system processor to offload complex computational cycles. Consequently, the control loop timing remains stable under varying loads.

Hardware Specifications

Backplane Bus Communication and Firmware Compatibility

The PU515 board integrates with the System 800xA backplane to facilitate deterministic network traffic. Although the controller detects the board via the system bus, engineers must verify that the installed firmware revision aligns with the current System 800xA software version. Discrepancies between the board firmware and the host controller configuration frequently trigger communication timeouts. Therefore, technicians should execute firmware flash updates through the central engineering workstation. Furthermore, they must verify the checksum of the loaded binary to confirm that the real-time processing stack maintains its operational integrity.

Frequently Asked Questions

Q: Does the PU515 support hot-swapping within an active System 800xA rack?

A: No. The system does not support hot-swapping for this module. You must de-energize the specific rack or isolate the control segment before you extract or insert the board, as this prevents permanent damage to the backplane interface pins.

Q: How does the module handle real-time data prioritization?

A: The RTA board employs hardware-level interrupt handling to prioritize critical control tasks. When the system workload increases, the accelerator preserves the scan cycle integrity by offloading I/O processing from the primary CPU.

Field Installation Guidelines

• Mechanical Mounting: You must slide the module into the designated AC 800M controller rack. Ensure that the module is fully seated, because incomplete engagement of the backplane connector often causes intermittent bus faults.
• Grounding Requirements: The module chassis connects to the system ground through the rack assembly. You should verify that the rack itself bonds to the common cabinet earth bus; this action minimizes electromagnetic interference.
• Cable Termination: Use shielded twisted-pair cabling for all Ethernet-based service connections. Furthermore, you must ensure that you properly clamp the cable shields at the entry point of the control cabinet to establish a low-impedance path to ground.
• System Commissioning: After you install the hardware, you must perform a power-on self-test (POST). Finally, verify that the module status indicators show a steady operating state before you initiate the control software load.
