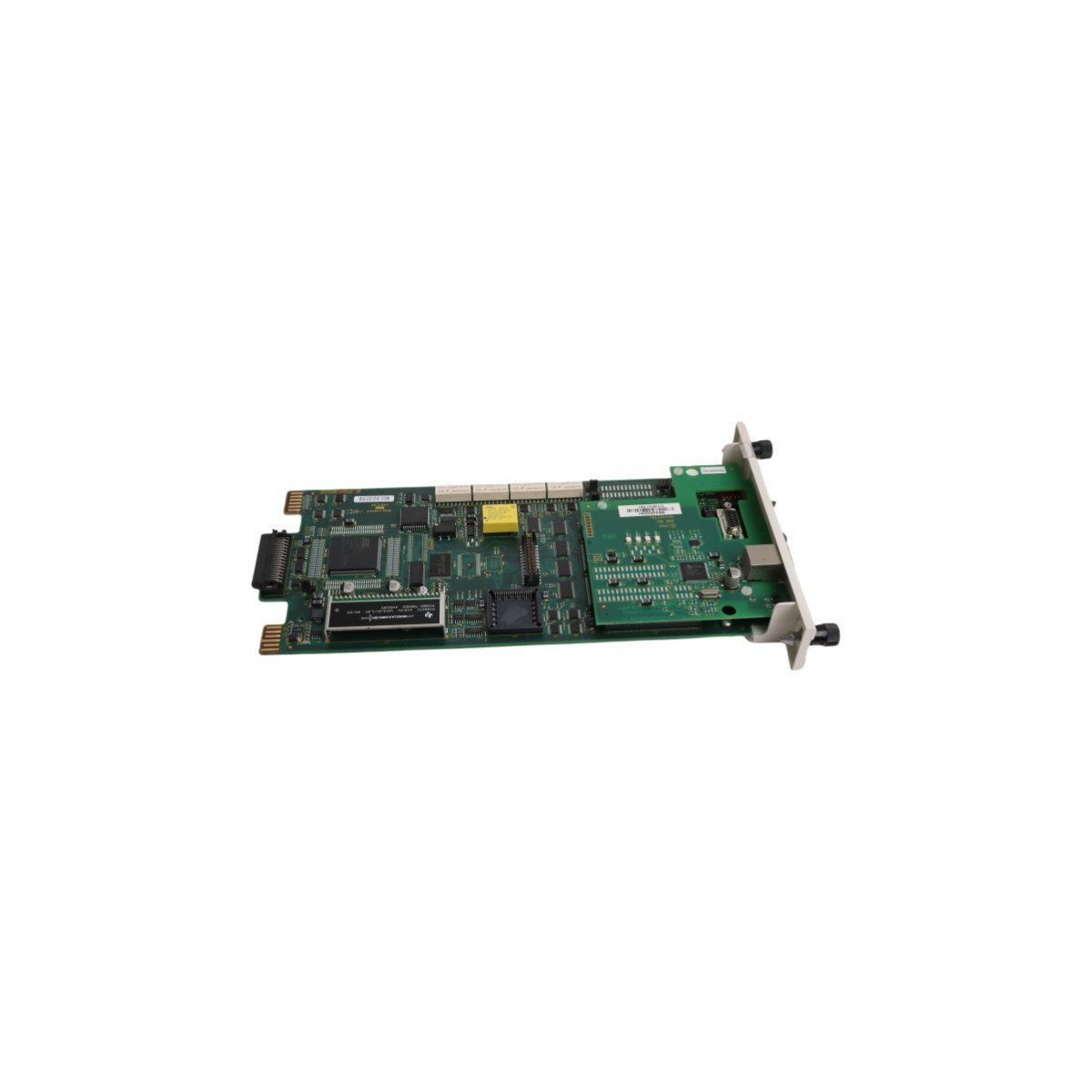

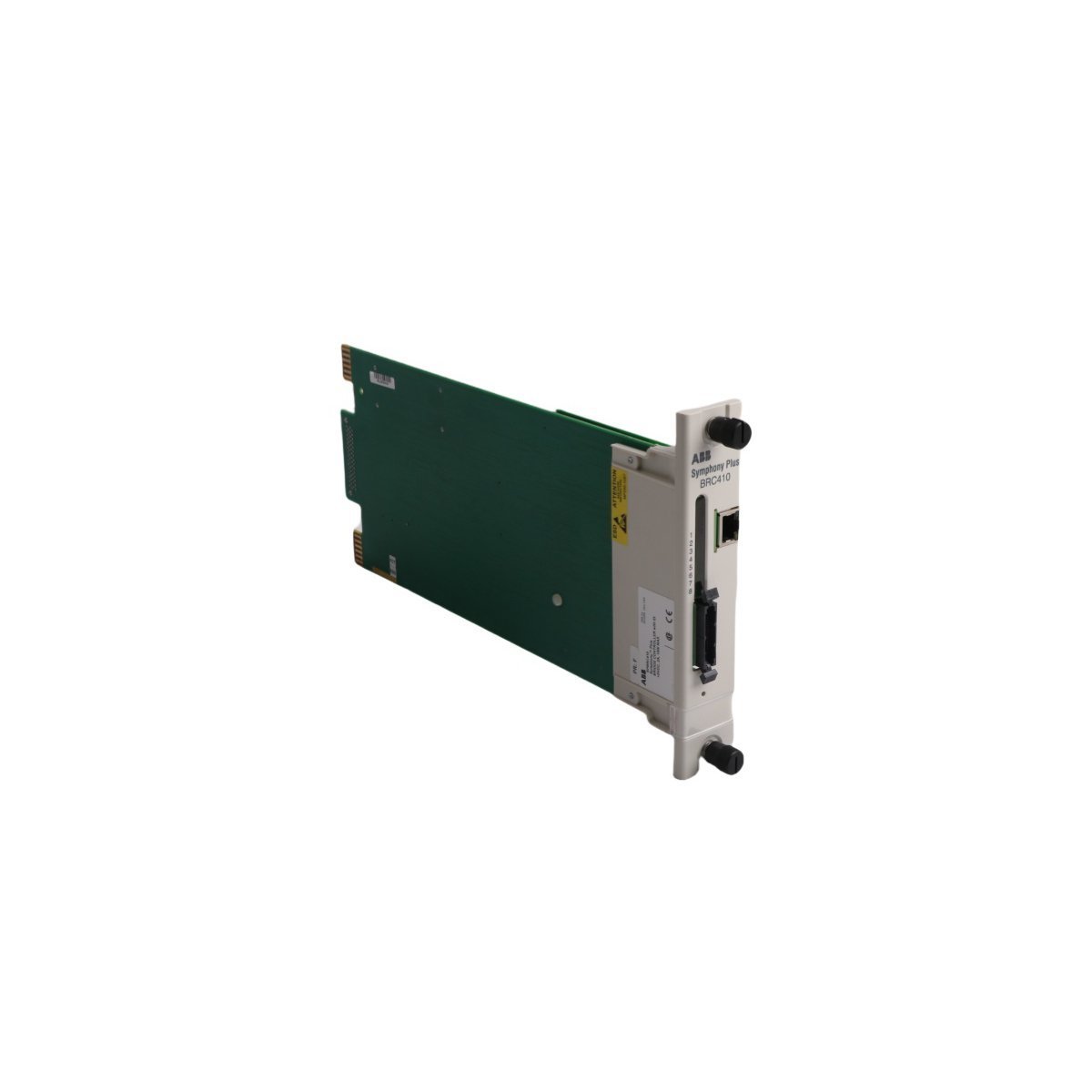

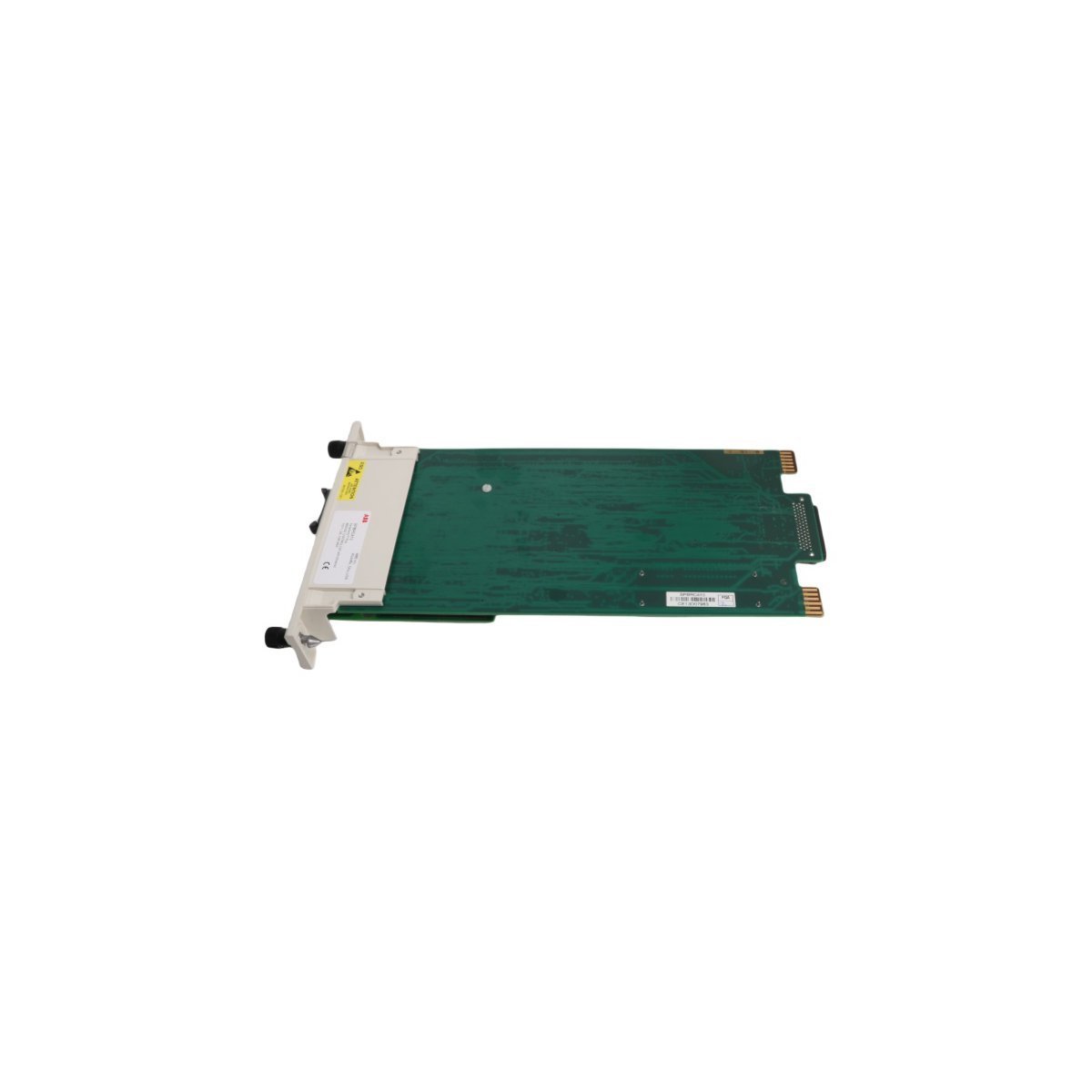

ABB SPBRC410 Symphony Plus DCS Bridge Controller Module

ABB SPBRC410 Bridge Controller

Configured for high-speed process control and network integration within Symphony Plus DCS platforms, the ABB SPBRC410 (SPBRC410 Bridge Controller) provides direct physical/electrical execution of deterministic control logic and Modbus TCP communication routing.

Hardware Specifications

Industrial Control & Communication Attributes

The SPBRC410 manages process loops by executing complex control algorithms at the controller level while maintaining high-speed backplane bus communication velocity. The module functions as an Ethernet router, which allows the controller to bridge legacy Symphony Plus field data with modern Modbus TCP/IP networks. Engineers utilize this module to consolidate discrete I/O density scaling across the rack, as the hardware processes simultaneous data streams without compromising deterministic scan times. Furthermore, the internal firmware flash compatibility supports seamless field updates, which ensures the module maintains synchronization with evolving plant communication architectures.

Frequently Asked Questions

Q: Does the SPBRC410 support hot-swapping during active process control?

A: The module architecture supports hot-swapping, provided that the system configuration utilizes redundant controller pairs. Personnel must verify that the secondary controller has assumed the master process state before extracting the primary module.

Q: How does the controller handle Modbus TCP communication latencies?

A: The onboard processor optimizes data packet prioritization to minimize protocol conversion latencies. It functions as a native Modbus server, which permits external devices to poll the controller memory map without interrupting the internal DCS control task execution.

Q: Is external configuration software required for the Modbus TCP interface?

A: Yes, technicians configure the Modbus TCP register mapping and IP settings through the Symphony Plus engineering station software. The module stores these settings in non-volatile memory to guarantee persistent communication upon system power-up.

Field Installation Guidelines

• Mounting: Secure the SPBRC410 into the designated Symphony Plus controller rack slot. Tighten the captive fasteners to ensure the backplane pins make solid electrical contact, as this connection grounds the module chassis to the system earth bus.
• Network Wiring: Connect the Ethernet interface using shielded Cat5e or Cat6 cabling. Technicians should ensure the cable shields terminate at the panel entry point to prevent external high-frequency noise from coupling into the controller’s communication circuits.
• Thermal Management: Install the module in a location that allows for vertical convection airflow. The controller generates heat during operation; therefore, maintain at least 50 mm of vertical clearance from other high-density modules to prevent localized thermal accumulation.
• Addressing: Assign a static IP address for the Modbus TCP interface before integrating the controller into the plant network. Avoid dynamic IP allocation, as it causes communication disruptions during controller reboots or power cycles.
