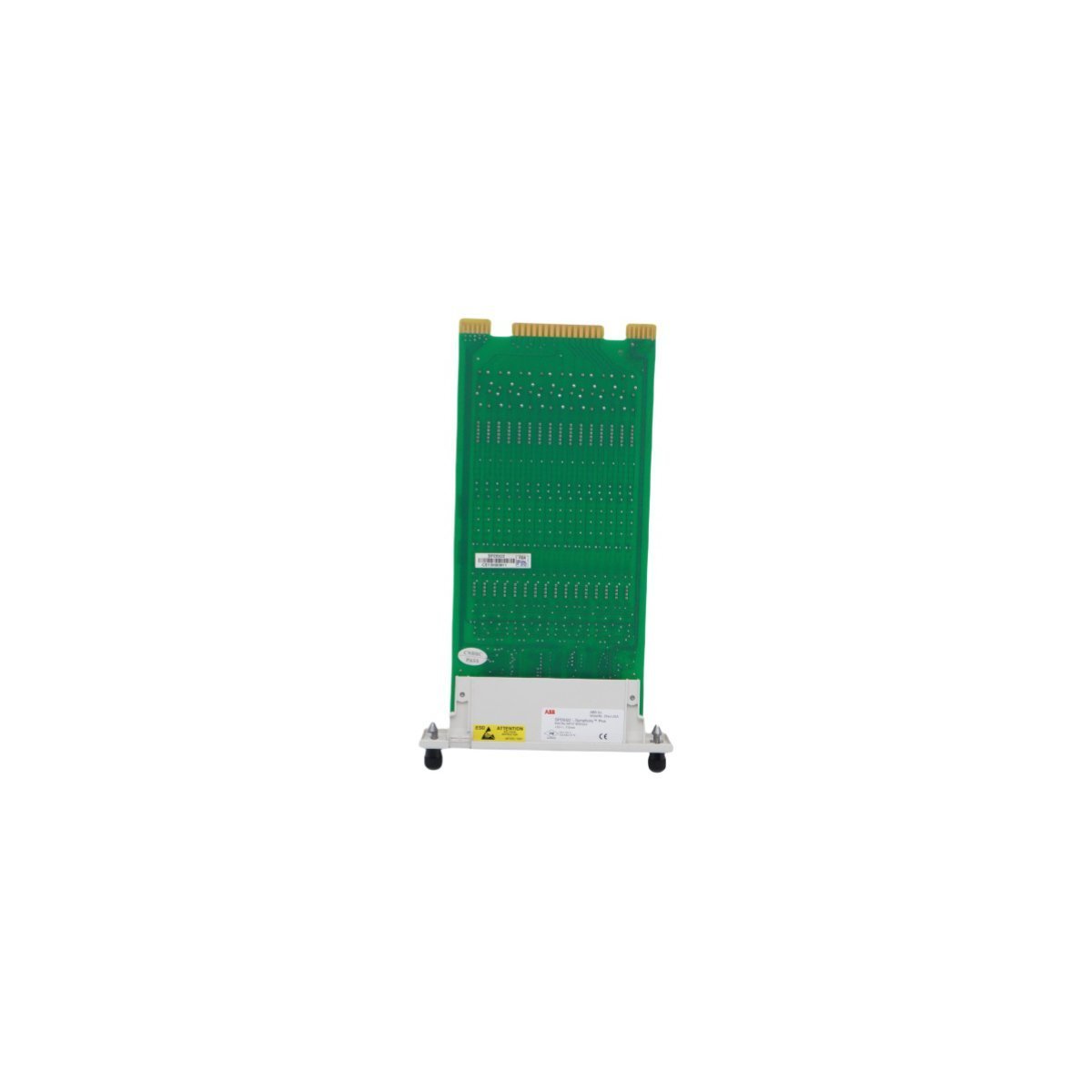

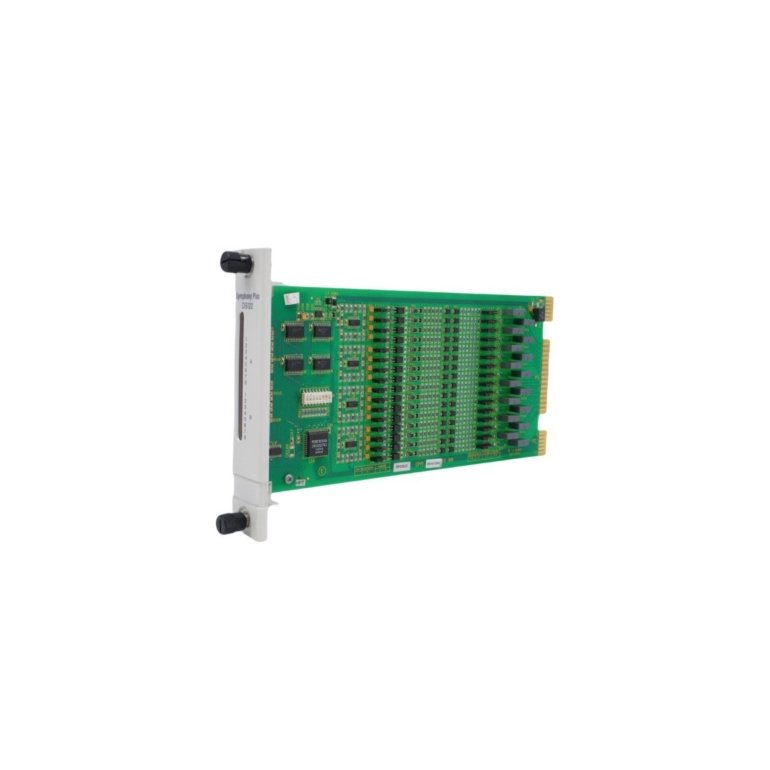

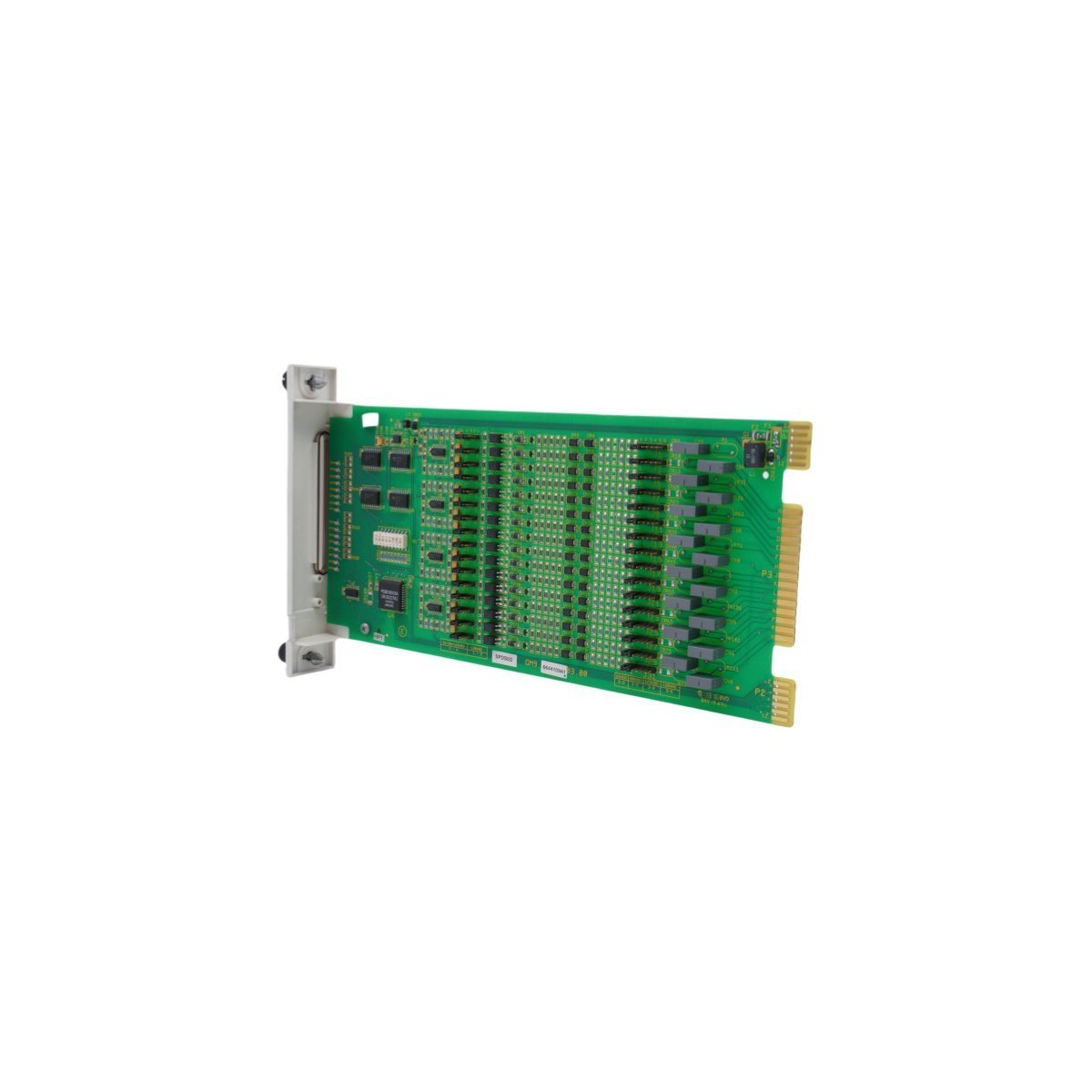

The ABB SPDSI22 serves as a high-density digital input interface for the Symphony Plus and INFI 90 Distributed Control Systems. This module accurately monitors the status of field devices such as switches, contacts, and sensors. It converts incoming discrete signals into logic levels that the system controller can process.
Furthermore, the SPDSI22 features 16 universal input channels designed for maximum architectural flexibility. Each channel handles binary state detection with high speed and precision. This capability ensures that the control system responds immediately to changing field conditions.
Operational Capabilities
The SPDSI22 utilizes robust signal filtering to eliminate electrical noise from the input lines. This filtering prevents false triggering caused by electromagnetic interference in heavy industrial environments. Consequently, the module provides reliable data even when located near high-voltage equipment.
Additionally, the hardware includes comprehensive self-diagnostic routines. These internal checks continuously monitor the health of the module circuitry. If a fault occurs, the system identifies the issue quickly to minimize troubleshooting time.
Primary Technical Specifications
- Product Family: Symphony Plus / INFI 90
- Model Number: SPDSI22
- Input Configuration: 16-Channel Universal Discrete Input
- Hardware Customization: 32 on-board jumpers for channel configuration
- Physical Mass: 0.24 kg
- Dimensions: 3.7 x 31.3 x 17.7 cm
- Manufacturing Origin: Sweden
- System Interface: Compatible with standard Harmony Rack communication buses
