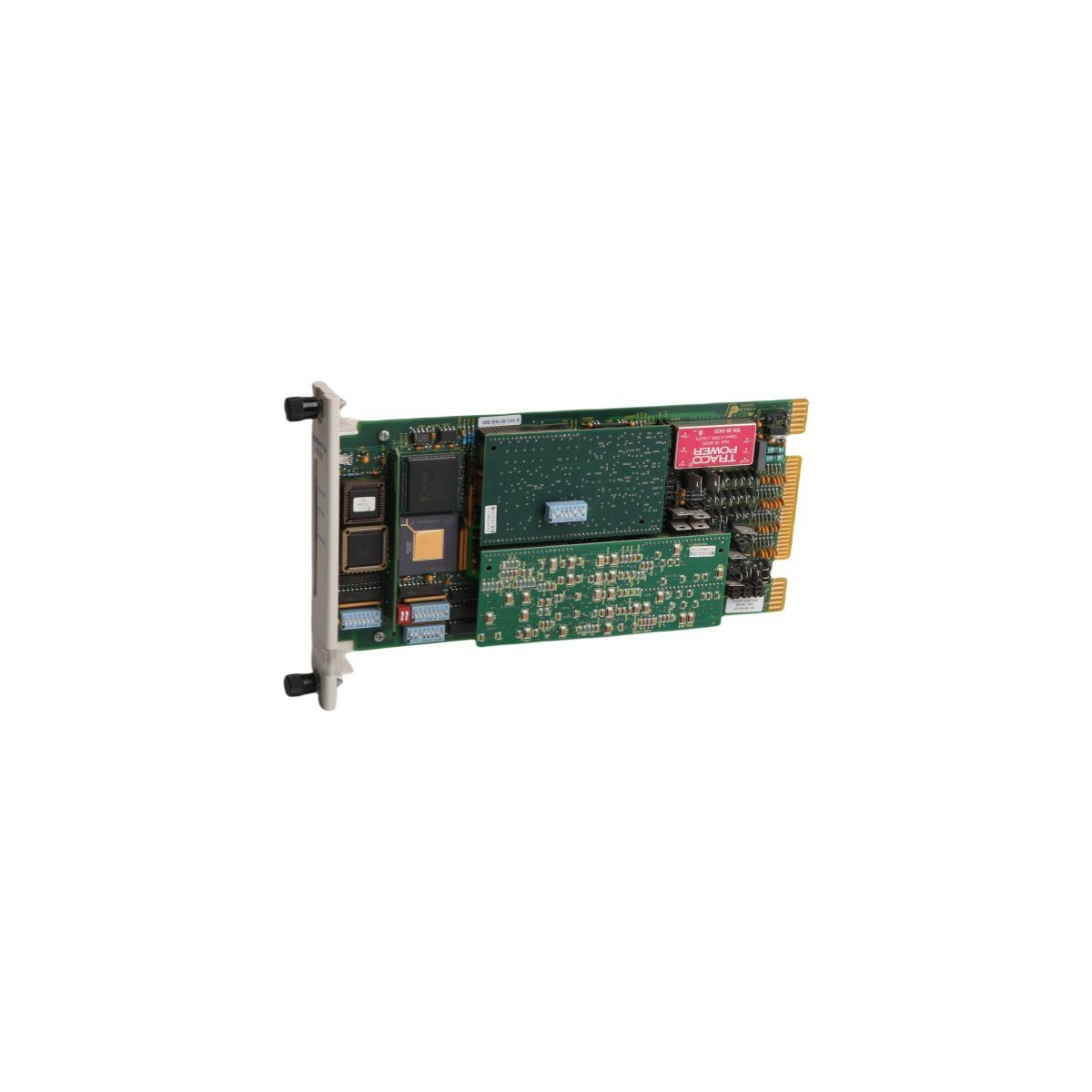

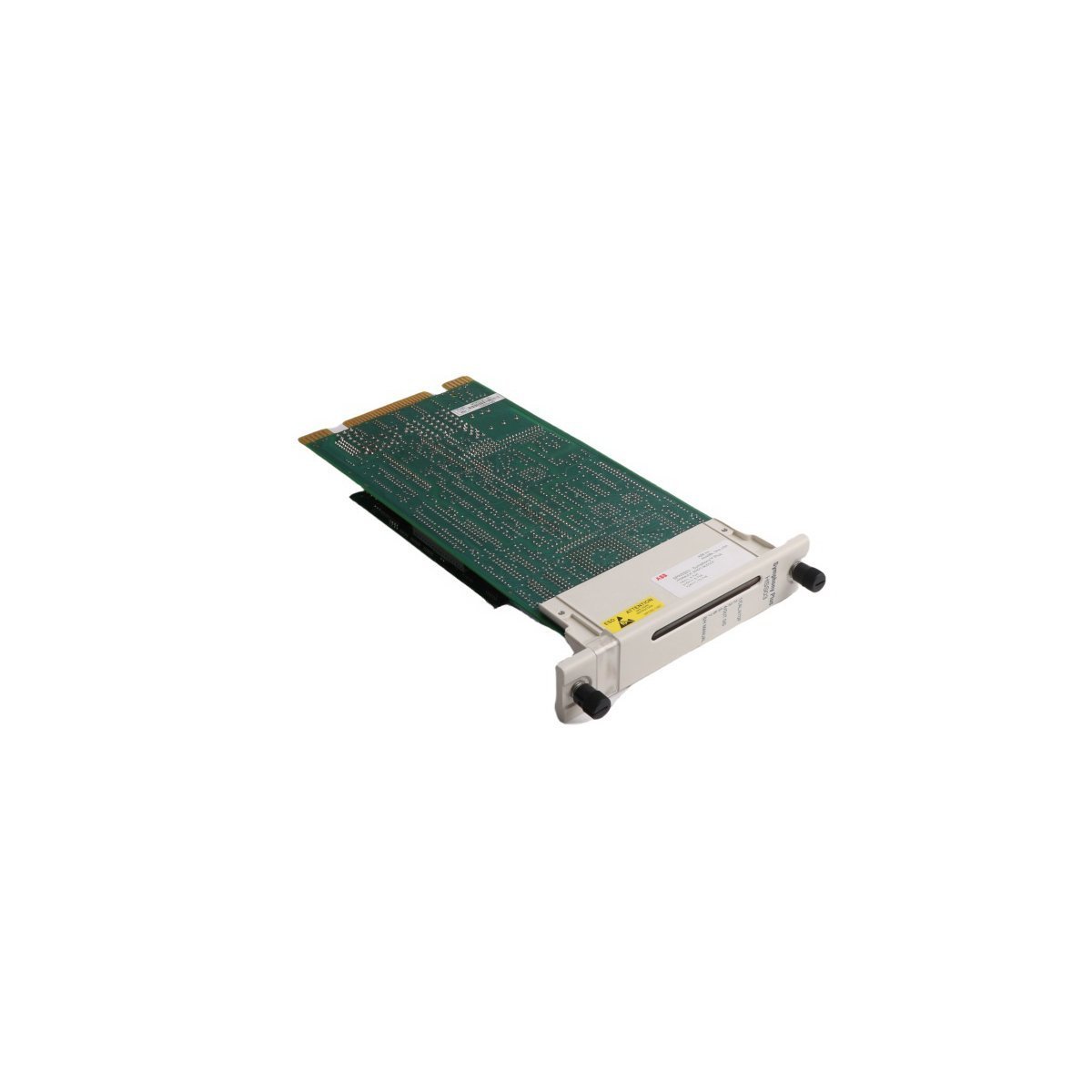

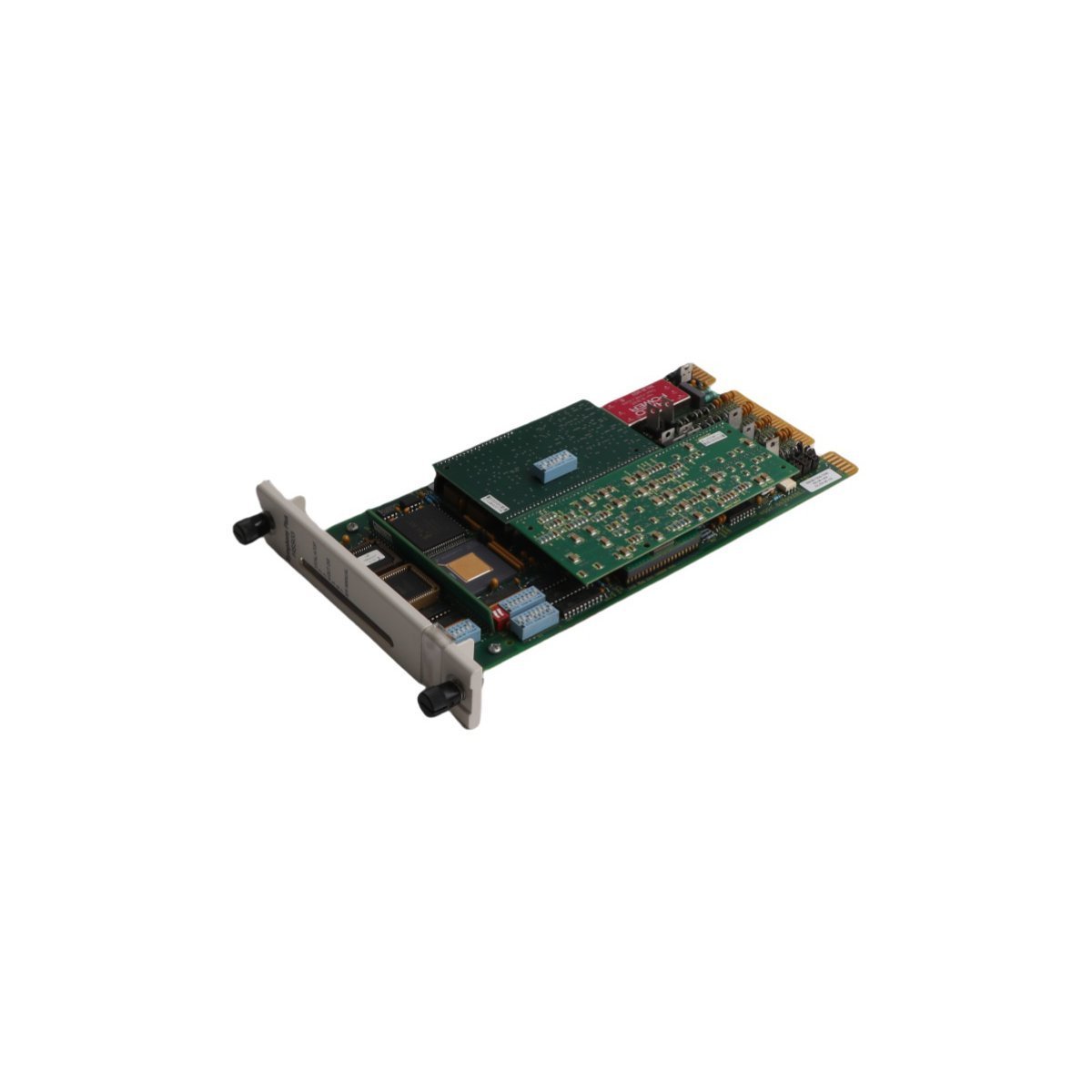

SPHSS03 ABB DCS Hydraulic Servo Loop Position Interface Module

Brief Product Description

The ABB SPHSS03 is a high-performance hydraulic servo module built for the Symphony Plus distributed control system platform. This unit interfaces with electro-hydraulic servo valves to deliver accurate positioning control for critical industrial turbine valves and heavy actuators.

Technical Overview and Function

The SPHSS03 functions as a dedicated position control interface within the ABB Symphony Plus Distributed Control System (DCS) architecture. Operators deploy this card to manage closed-loop positioning of electro-hydraulic actuators and process equipment. By reading feedback signals from linear variable differential transformers (LVDTs), the module calculates exact position deviations.

Furthermore, the unit translates control algorithms into precise current outputs to drive servo valves. This electronic regulation maintains target valve positions despite severe hydraulic pressure changes. Consequently, the high-speed processing loop enables rapid response times that are vital for turbine speed control and critical process throttling.

Core Characteristics and Integration

Precise Closed-Loop Control

The specialized onboard processing core executes real-time position control loops independently from the main controller. This independent execution prevents latency, which stabilizes complex hydraulic systems during transient states.

Advanced I/O Connectivity

The module features three dedicated signal input channels paired with two command outputs. This hardware layout supports redundant positioning sensors, which significantly elevates overall loop reliability and system fault tolerance.

Compact Hardware Form Factor

Engineered for tight control cabinet configurations, the slim profile optimizes rail real estate. The modular design simplifies backplane installation, which drastically decreases time requirements during emergency system maintenance.

Robust Electronic Architecture

Built with heavy-duty industrial components, the module operates smoothly under significant thermal variation. Internal filtering mechanisms protect sensitive analog measurement traces against high-frequency electromagnetic field interference.

Technical Specifications

• Manufacturer: ABB
• Part Number: SPHSS03
• Range of Product: Symphony Plus / Symphony DCI
• Module Type: Hydraulic Servo Control Interface Card
• Core Automation System: Distributed Control System (DCS)
• Control Input Channels: 3 Inputs (Position feedback/LVDT interfaces)
• Control Output Channels: 2 Outputs (Servo valve drive currents)
• Net Product Weight: 0.54 kg
• Physical Dimensions: 3.5 cm x 31.0 cm x 17.6 cm
• Customs Harmonized Code (HS CODE): 8537101190
• Factory Country of Origin: Sweden

Industrial Applications

Power Generation Turbine Control

Power plants use this hardware to govern steam and gas turbine governor valves. Accurate valve modulation optimizes turbine speed and safeguards generation equipment against overspeed hazards.

Petrochemical Process Regulation

Refineries install this module to control large-scale hydraulic choke valves and bypass systems. Consistent actuator positioning helps engineers manage high-pressure fluid transfers safely.

Heavy Industrial Hydraulic Systems

Manufacturing facilities insert this card into high-capacity hydraulic press and damper positioning systems. The precise current drive maintains tight operational tolerances across rugged processing machinery.
