ABB PPD104 3BHE017400R0101 AC 800F Memory Cards

ABB PPD104 3BHE017400R0101 Memory Card

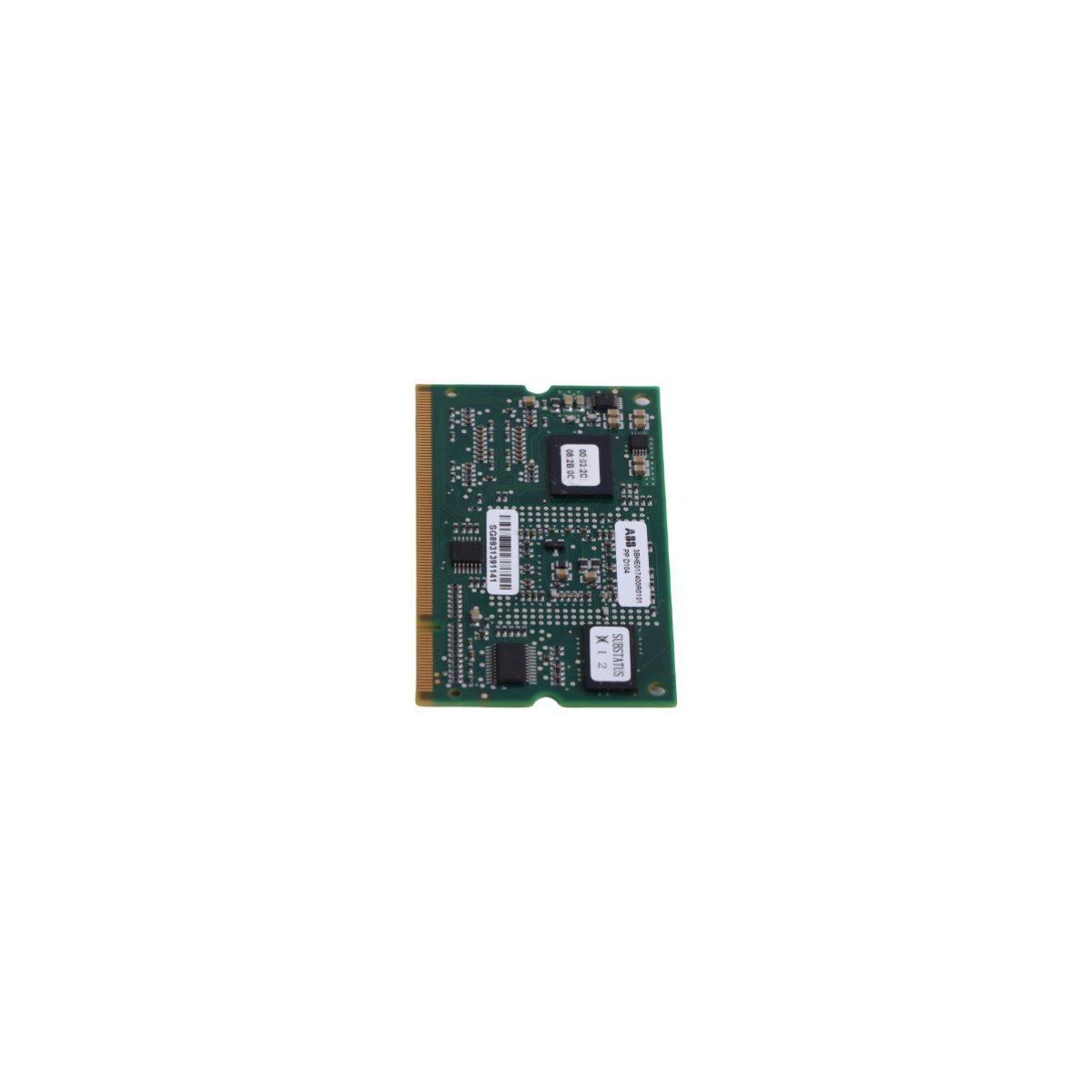

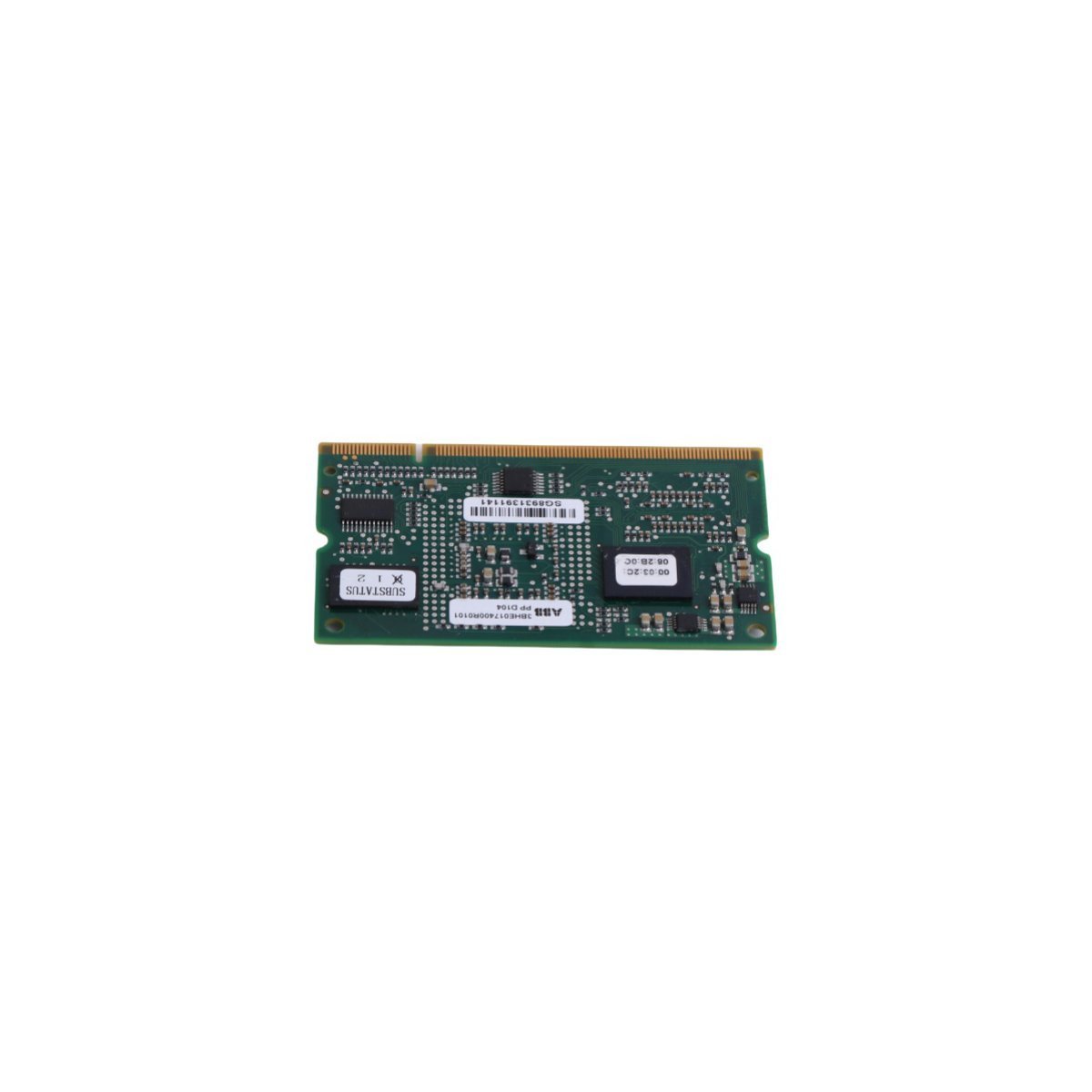

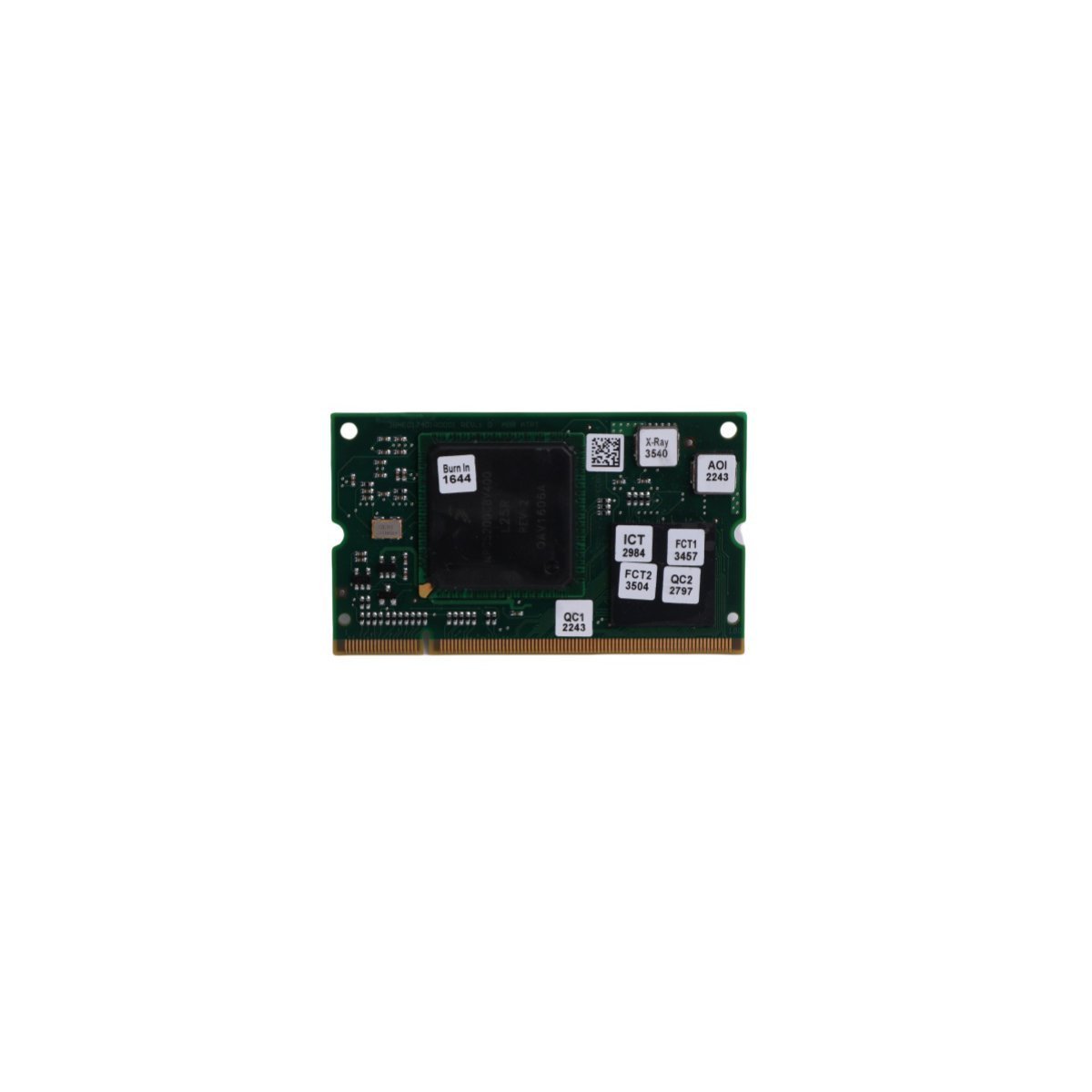

The ABB PPD104 3BHE017400R0101, also cataloged as the PPD104 Memory Card, operates as a dedicated hardware component for high-speed firmware storage and control program buffering within AC 800F DCS platforms. The unit inserts directly into the central processor slot, whereupon internal flash controller circuits execute non-volatile data retain routines during power cycles. Integrated system access buses transmit runtime parameters and execution stacks across the controller backplane, thereby preventing logic execution delays in real-time control loops.

Hardware Specifications

Deterministic Network Routing & Backplane Execution

The memory card logic interfaces directly with the main controller backplane, whereupon internal bus drivers synchronize non-volatile memory cycles with the primary processor clock. The card scales I/O density mapping across Profinet and EtherNet/IP deterministic networks, while hardware flash translation layers manage block erase endurance and data integrity. Firmware flash compatibility checks audit stored control program checksums during boot sequences, whereas active address decoding ensures zero-latency access during high-frequency scan execution.

Frequently Asked Questions

Q: Does the PPD104 3BHE017400R0101 memory card support hot-swapping while the AC 800F controller executes program loops?

A: Technicians must halt controller execution and isolate power before card removal. Removing the card during active CPU cycles disrupts memory bus address lines and forces an immediate processor fault state.

Q: How does the module retain memory contents during an unexpected main power interruption?

A: Onboard solid-state flash technology locks memory sectors automatically upon detecting supply voltage drops below threshold, thereby preserving control software images without requiring auxiliary battery power.

Q: What mechanisms prevent communication corruption across the backplane connection interface?

A: Plated connector terminals establish low-impedance grounding paths against static discharges, while onboard bus termination resistors filter high-frequency signal reflections across the card contacts.

Field Installation Guidelines

1. ESD Handling Protocols: Attach an earthed anti-static wrist strap to the enclosure frame before touching the module. Hold the memory card exclusively by its non-conductive plastic edges, avoiding direct contact with the pin connector array.
2. Mechanical Insertion: Align the card keying guides with the AC 800F processor expansion slot. Push the card firmly into the socket until the locking latch engages, whereupon the mechanical detent holds the card securely against vibration.
3. Connector Inspection: Verify that the socket connector contacts remain free of dust and metallic particles before installation. Clean contaminated pin housings using dry, compressed, instrument-grade air.
4. Thermal Management: Maintain at least 30 mm of free air space around the host CPU housing to permit unhindered convection across the card slot, thereby ensuring ambient operating temperatures remain strictly within -25 to +60 deg C.
