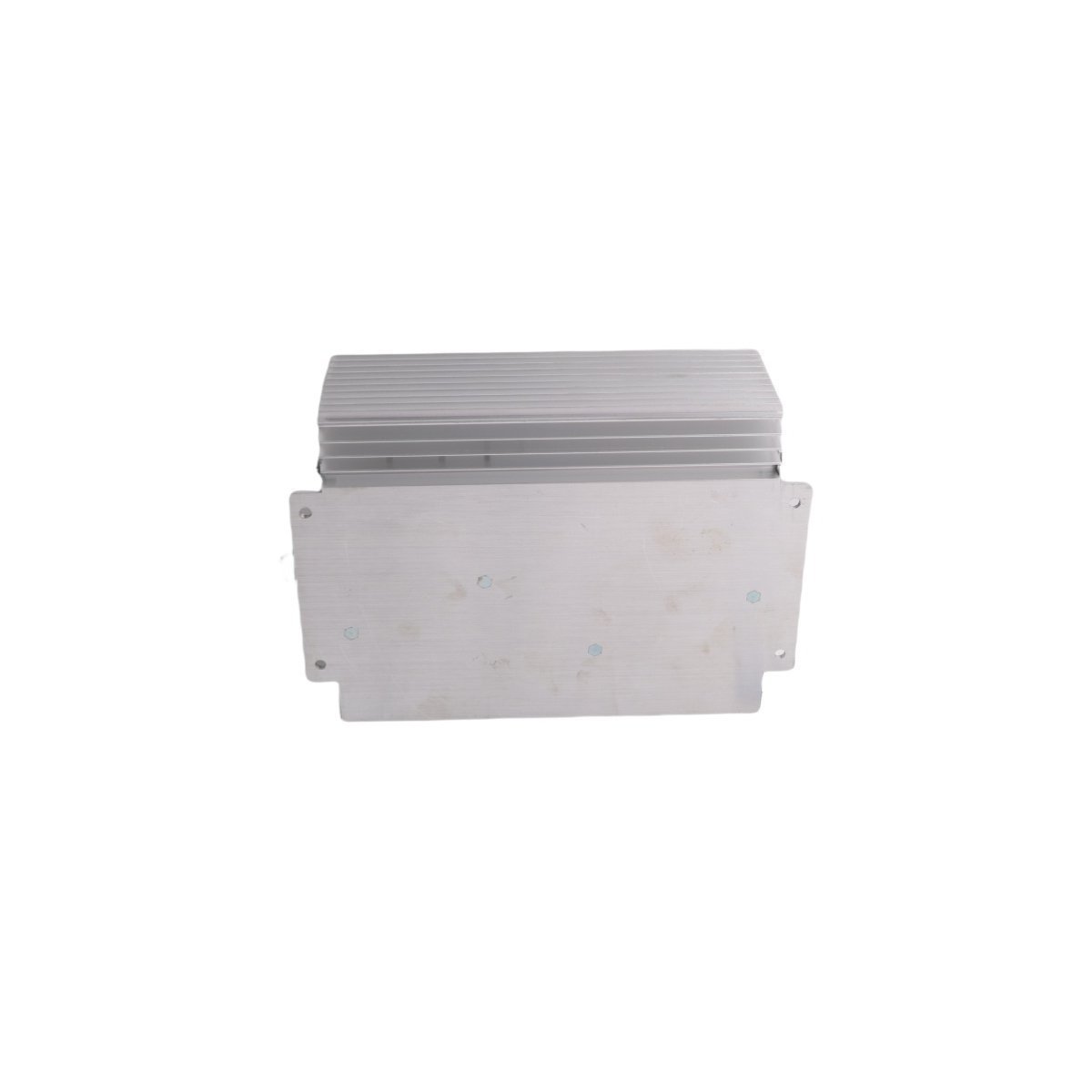

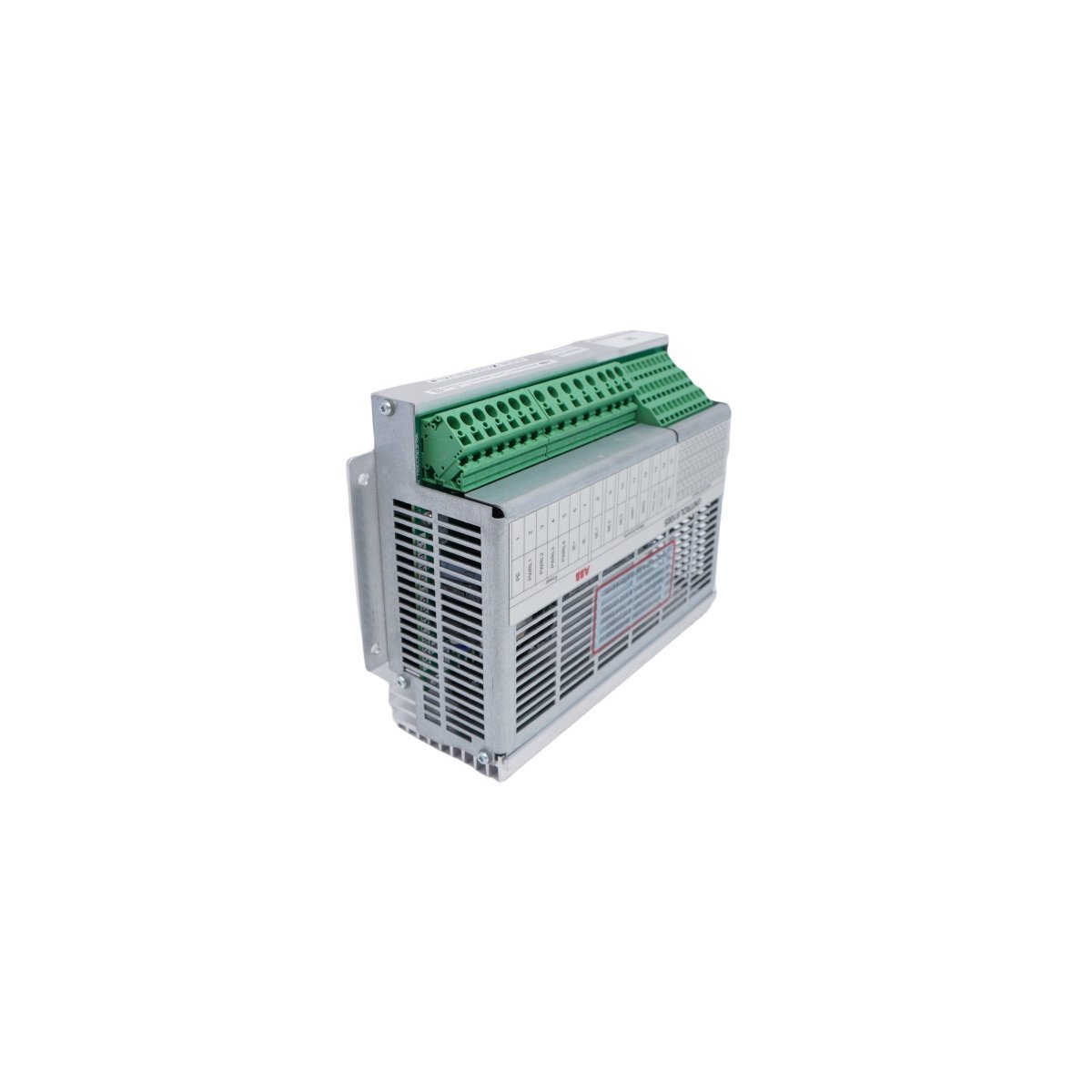

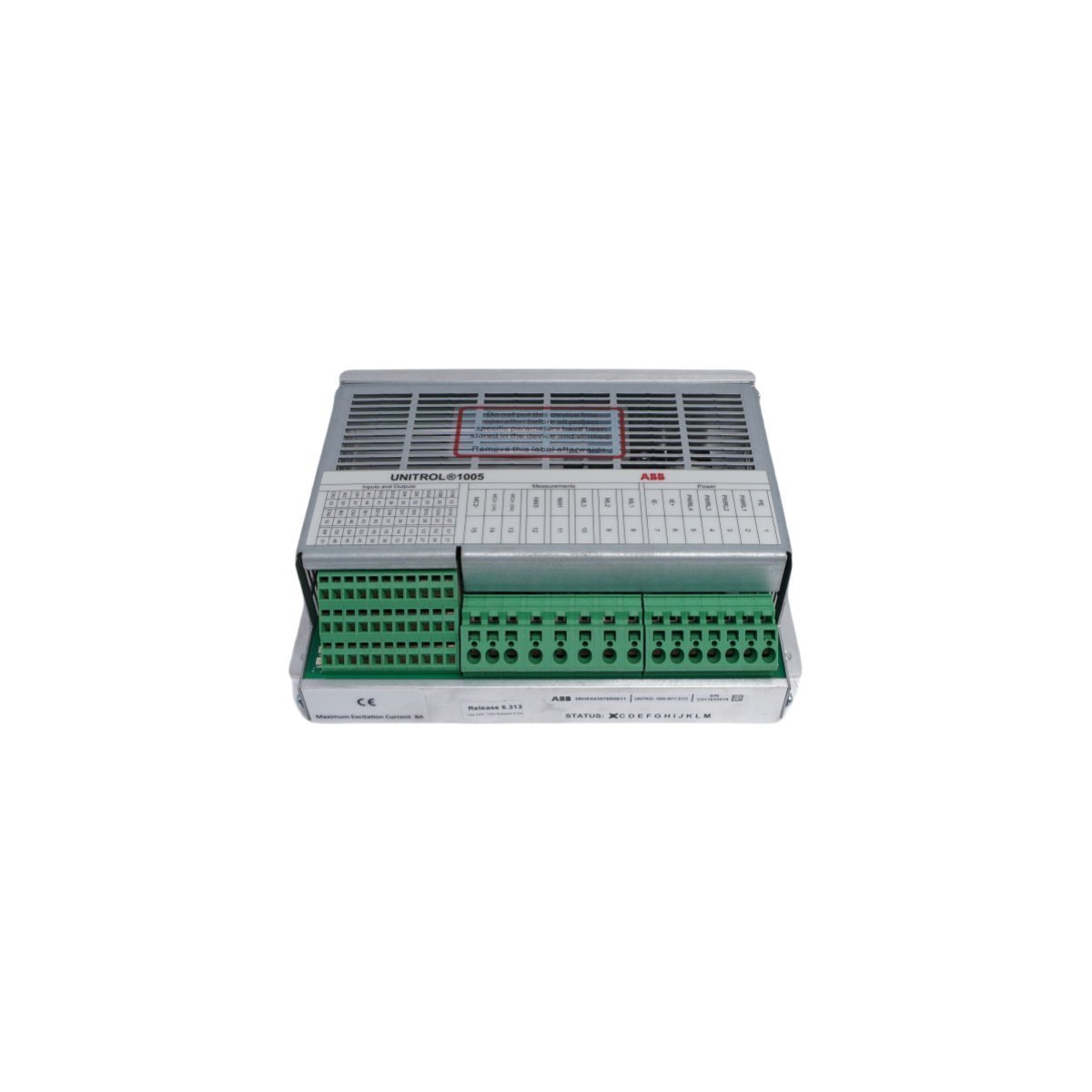

ABB 3BHE043576R0011 UNITROL 1005-0011 DCS Control Card

ABB 3BHE043576R0011 UNITROL 1005-0011 Control Card

The ABB 3BHE043576R0011, also cataloged as the UNITROL 1005-0011 Control Card, operates as a dedicated hardware component for closed-loop voltage regulation and excitation current processing within UNITROL 1000 Series platforms.

Hardware Specifications

Backplane Bus Communication Velocity and Firmware Compatibility

The module processor establishes real-time data exchange across the rack backplane bus to ensure rapid control loop execution. The onboard logic manages backplane bus communication velocity by prioritizing high-speed voltage regulation telegrams over standard background diagnostics. During initialization, system software validates firmware flash compatibility between the control card and system CPU, preventing configuration mismatches before enabling excitation output stages.

Frequently Asked Questions

Q: How does the control card mitigate high-voltage transients on system I/O lines?

A: Integrated galvanic isolation barriers and surge suppressors isolate internal processor logic from field-side voltage spikes, preserving signal integrity across all channel inputs.

Q: Can maintenance crews hot-swap the 3BHE043576R0011 module during live system operation?

A: Engineers must remove power from the excitation rack prior to inserting or extracting the card because removing hardware under live backplane load disrupts system communication and can damage internal components.

Field Installation Guidelines

Mount the control card vertically into the designated system subrack using top and bottom alignment rails inside an IP54 enclosure. Maintain a minimum clearance of 50 mm around ventilation cutouts to facilitate natural convection cooling across power components. Secure grounding connections by fastening a low-impedance bonding strap directly between the card frame and the primary panel earth bar. In addition, route Ethernet and field communication cables in dedicated metal raceways separate from three-phase AC power lines to avoid inductive cross-talk.
