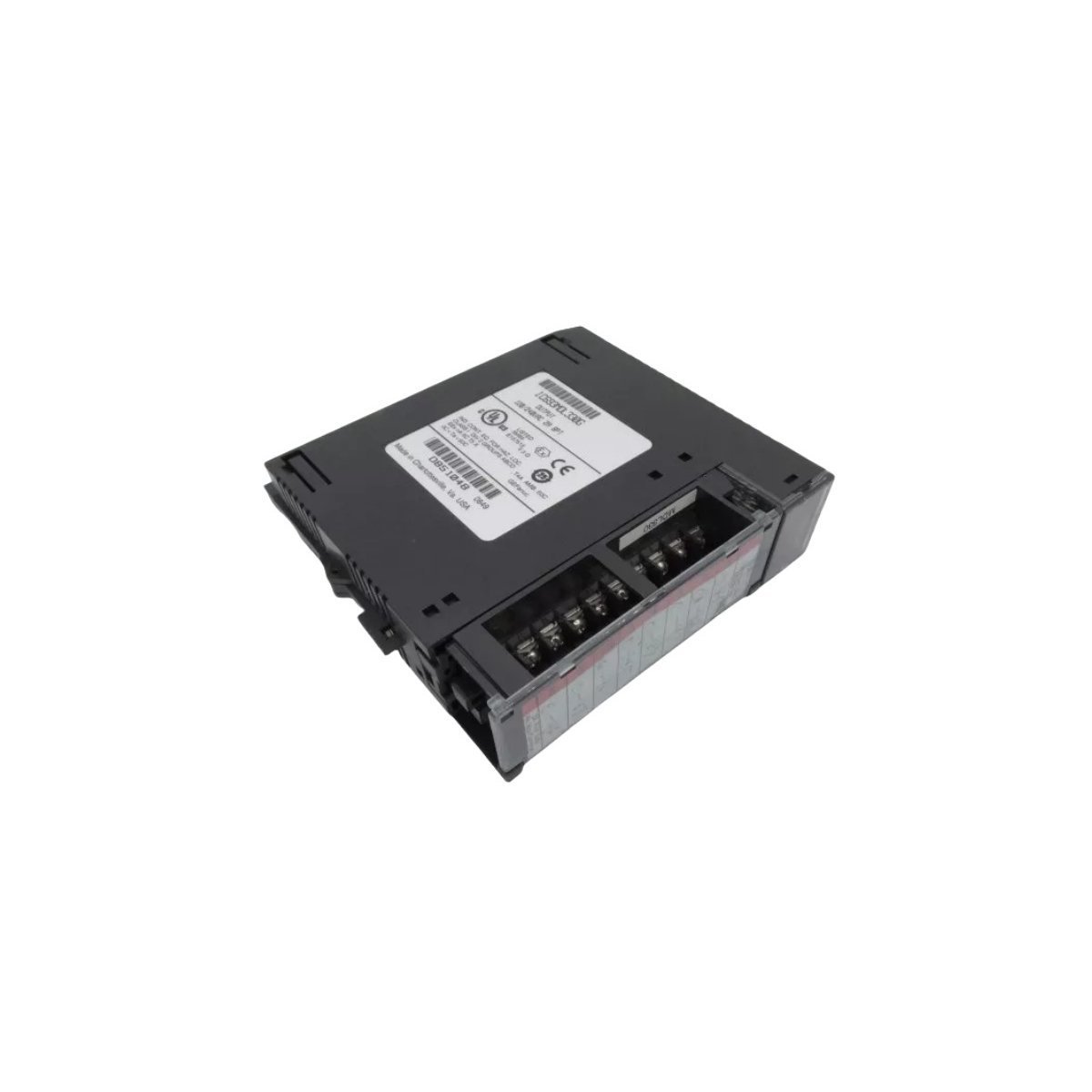

IC693MDL231 GE Automation 240V AC 8-Point Input Card

Product Overview

The GE Fanuc IC693MDL231 is a 240 Volt AC isolated discrete input module engineered for the Series 90-30 programmable logic controller network. This high-voltage card safely converts discrete signals from independent field devices into internal logic levels while maintaining total electrical channel separation.

Technical Specifications

Key Technical Characteristics

The IC693MDL231 card features eight separate input channels to handle high-voltage operations. Each channel operates with its own isolated common return terminal. Consequently, this design permits technicians to connect field devices from different power sources or phases to a single module without cross-interference. The module interfaces effectively with various discrete field instruments. These instruments include industrial pushbuttons, mechanical limit switches, and externally powered proximity sensors.

Because this hardware processes AC voltages directly, the internal circuits run efficiently without an external DC power supply. A top-mounted LED display board contains eight status lights. These indicators display the active logic status of every channel for fast troubleshooting.

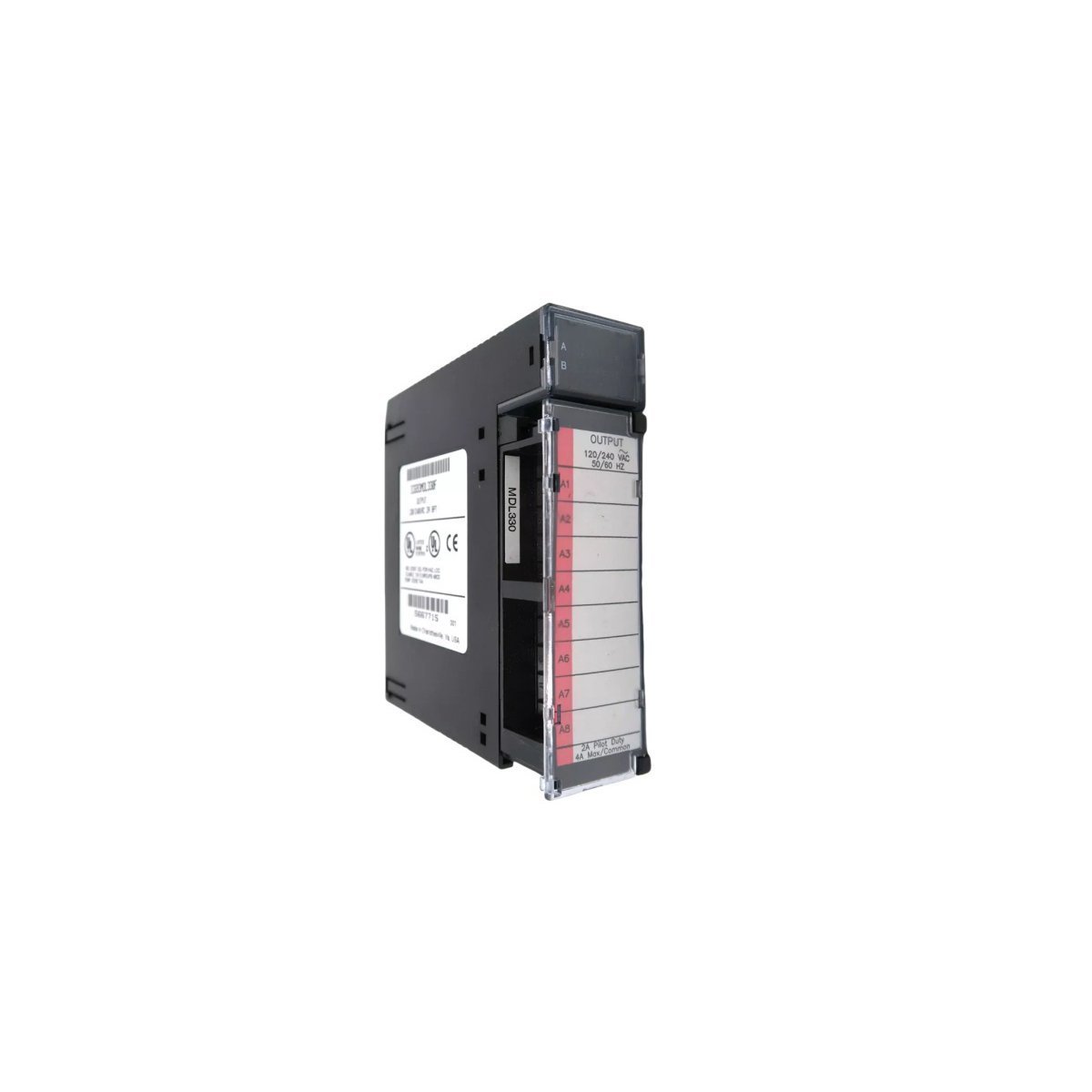

The front terminal faceplate includes a removable door insert card. This component displays circuit path wiring schematics. Additionally, a distinct red border alerts operators that high-voltage circuits reside inside the module frame.

System Integration and Architecture

The module installs directly into standard I/O slots of any 5-slot or 10-slot Series 90-30 baseplate. The card draws 60 mA from the 5 VDC backplane bus to power its internal optical isolators.

The hardware protects the core PLC backplane processors through complete optical isolation. This setup prevents field electrical faults from damaging the main CPU. System engineers configure the digital filtering and memory mapping variables directly within the programming software environment. This software control removes the need for physical switches or jumpers during hardware deployment.
