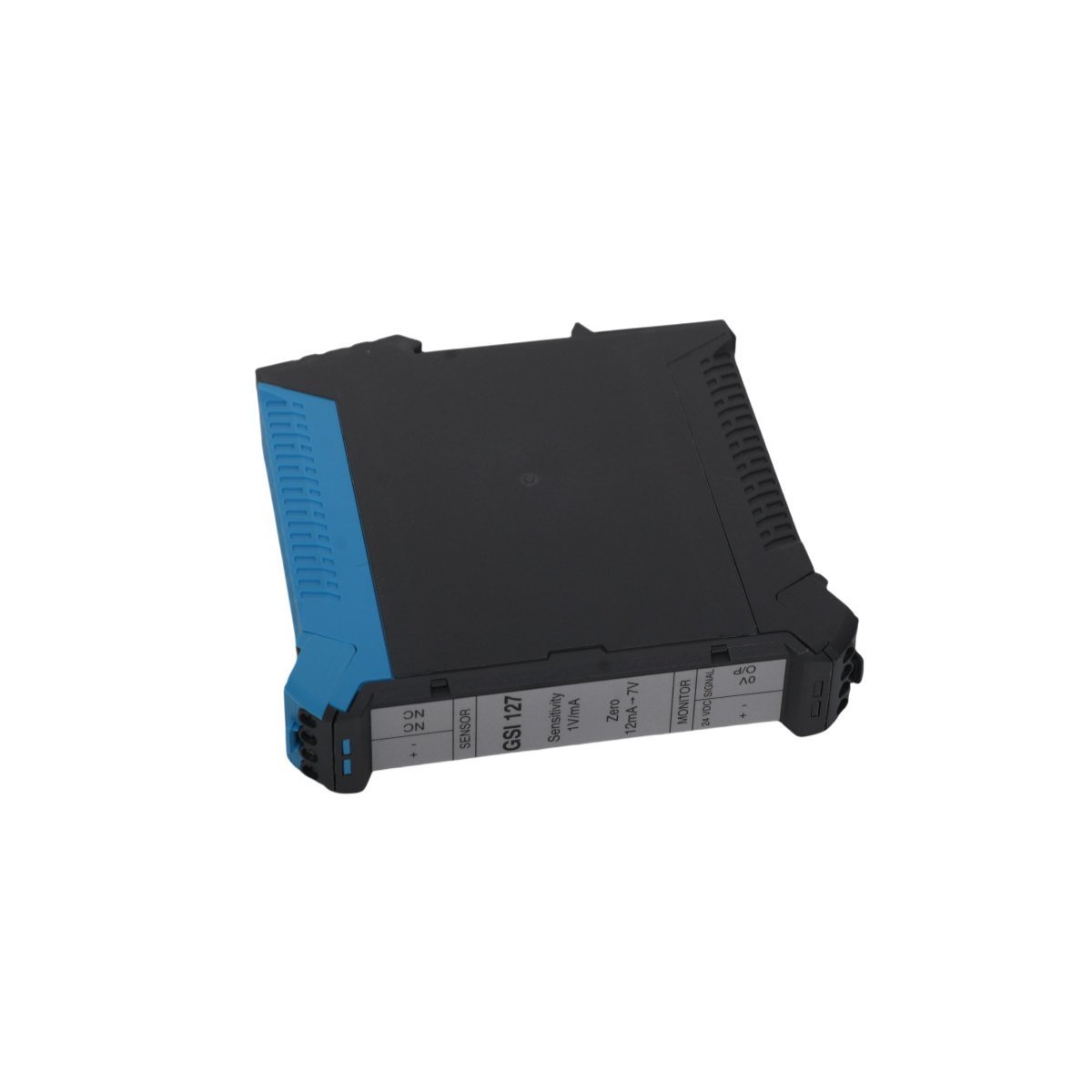

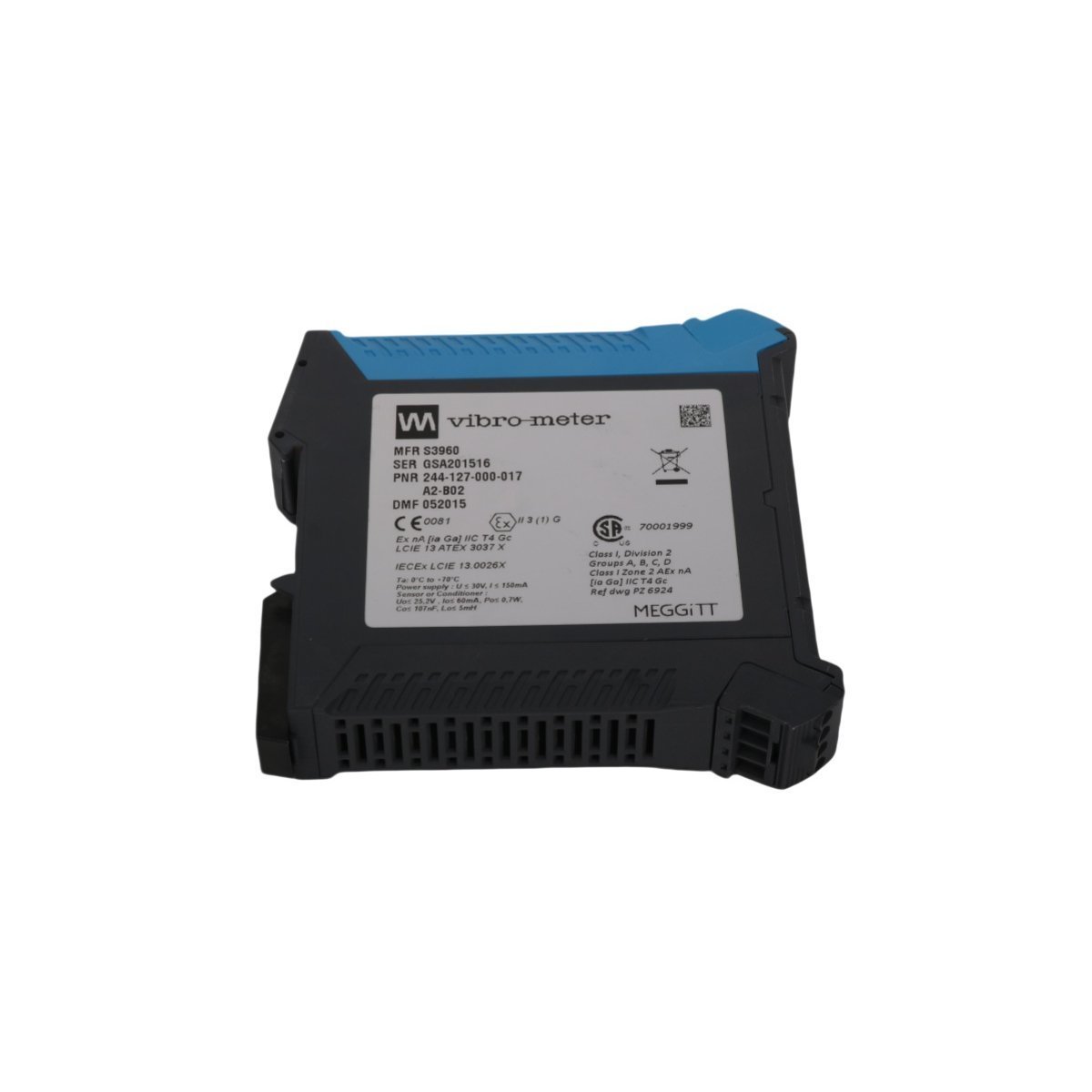

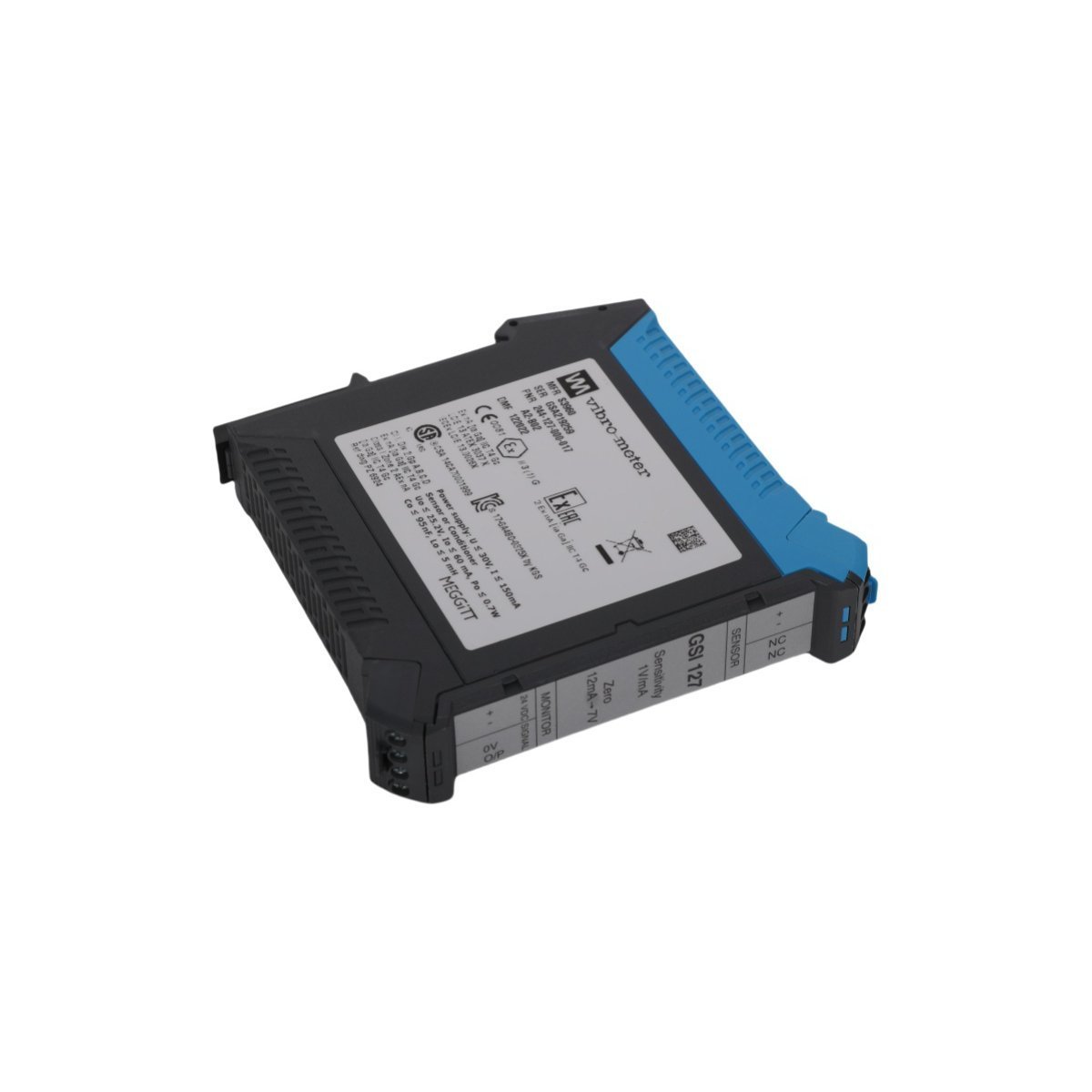

The Vibro-Meter S3960 (Part Number 244-127-000-017) is a high-performance galvanic separation unit. It is specifically engineered for advanced turbomachinery protection systems. This module primarily isolates and transfers measurement signals between hazardous areas and safe zones.
Furthermore, it prevents electrical interference and ground loops from compromising critical vibration data. As a cornerstone of the vibro-meter® line, it provides essential electronic decoupling. This is vital for rotating machinery monitoring in power plants and refineries.
Safety Certifications and Machinery Protection
Critical infrastructure requires fail-safe operation. Because of this, the S3960 carries global ATEX and IECEx certifications. These approvals enable the unit to manage signals from explosive atmospheres.
Moreover, the galvanic isolation design prevents dangerous voltage transients. It ensures monitoring systems receive highly accurate data regarding shaft vibration. This precision is vital for the predictive maintenance of steam and gas turbines.
Technical Capabilities and Environmental Resilience
- Signal Transmission: It delivers a stable 4-20mA floating output signal. This allows for seamless integration with modern PLC and DCS architectures.
- Thermal Range: The unit operates reliably from -40°C to +120°C. Therefore, it is suitable for extreme industrial climates.
- Mechanical Strength: A durable stainless steel casing protects the unit. It withstands 6g peak shock and 1g peak vibration levels.
- EMC Compliance: The device meets rigorous IEC 61000-4 standards. Consequently, it offers high immunity against electromagnetic and radio frequency interference.
- Atmospheric Protection: It functions in high-humidity environments up to 90% non-condensing. This is ideal for offshore and coastal installations.
- Physical Specifications: The module features a compact 3.2 x 10.6 x 13 cm footprint. Additionally, it maintains a light weight of only 0.32 kg.
