DS200PCCAG5ACB GE Power Connect Interface Card for Mark V Systems

Brief Product Description

The GE DS200PCCAG5ACB is a specialized Power Connect Card (PCCA) developed for the Mark V Speedtronic Turbine Control system to bridge drive control circuits and SCR power bridges. This module utilizes advanced pulse transformers to regulate gate drive signals in high-horsepower industrial applications.

Product Description

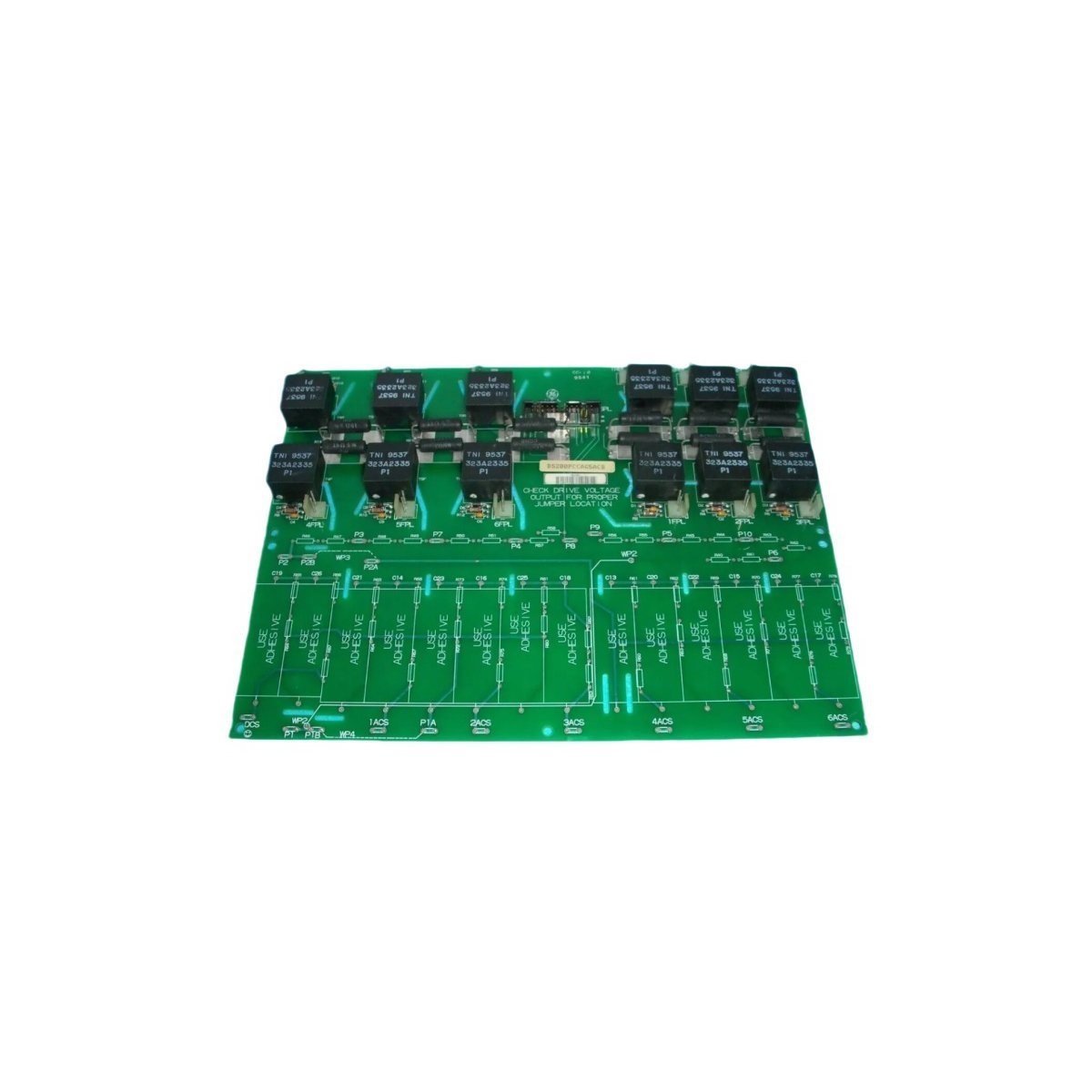

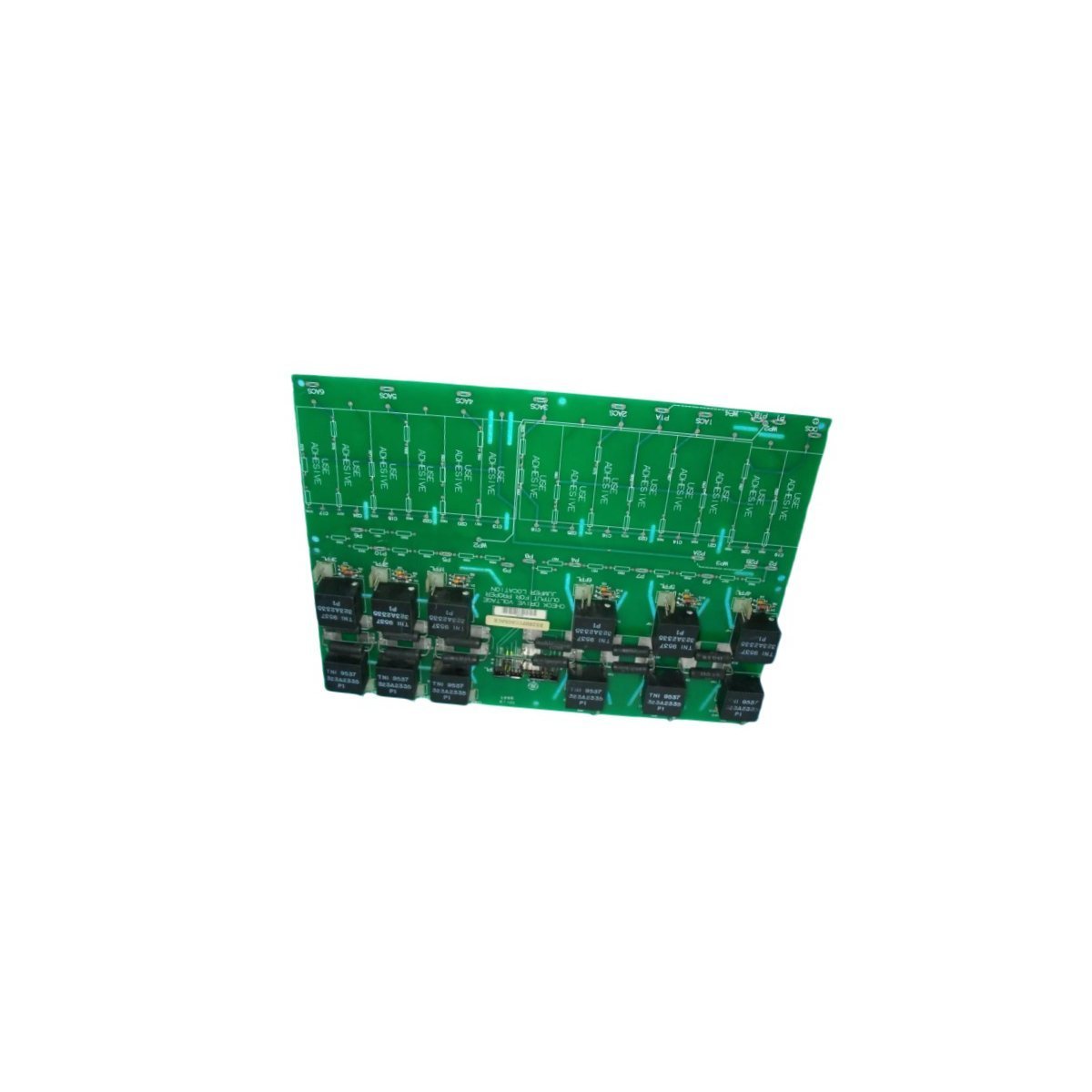

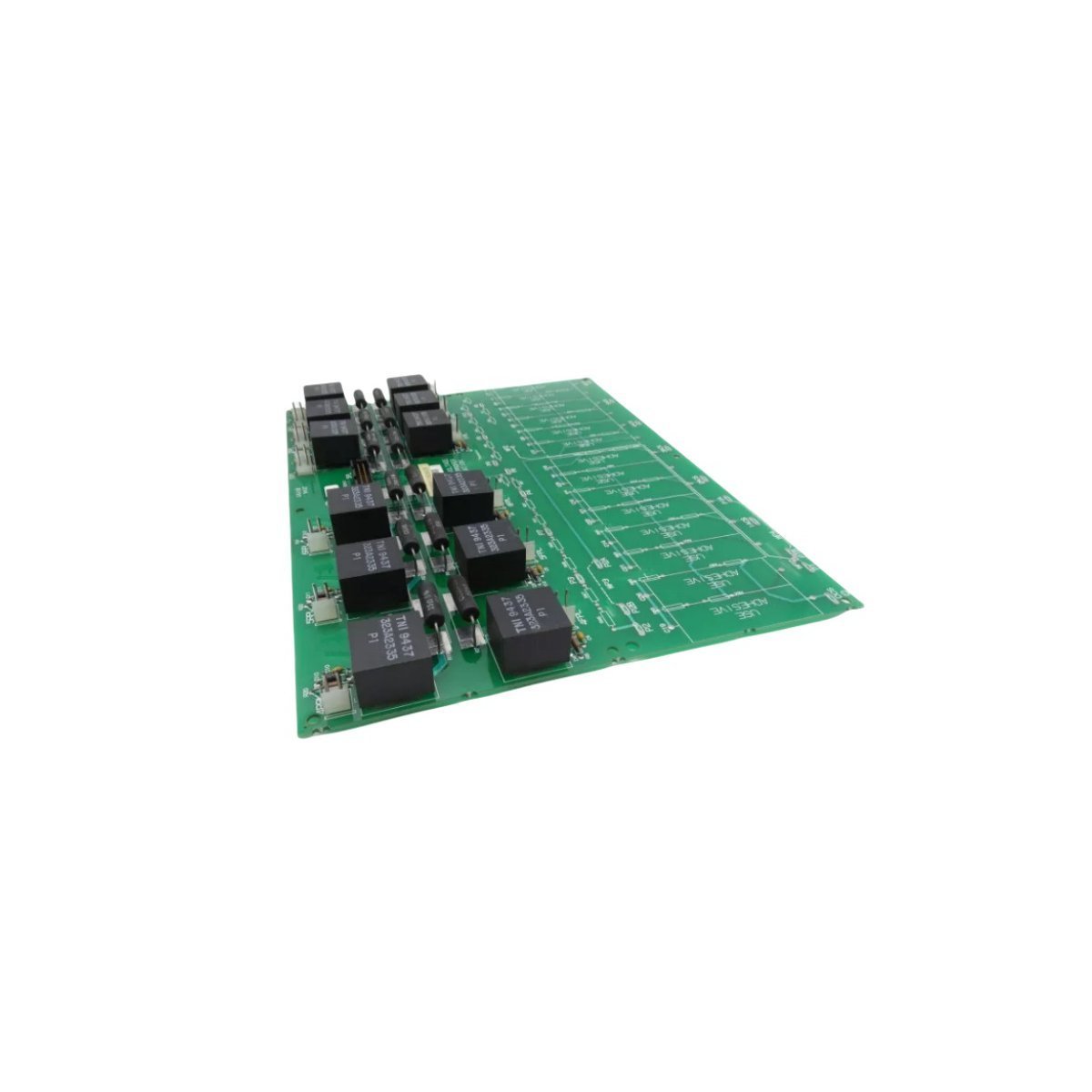

The DS200PCCAG5ACB serves as a critical hardware interface within the General Electric Mark V Speedtronic control ecosystem. Primarily functioning as an exciter bridge interface, this board facilitates the transmission of gate pulse signals between the drive control circuitry and the Silicon Controlled Rectifier (SCR) power bridge. By optimizing signal routing, the card ensures precise regulation of high-power turbine and drive systems.

Advanced Engineering and Revisions

This specific iteration, denoted by the G5ACB suffix, represents a significant evolution over earlier legacy versions. It incorporates three distinct functional upgrades that enhance system stability and compatibility. Unlike older designs, the DS200PCCAG5ACB streamlines the circuit path by removing snubbers and attenuation strings from the board itself, relocating them to the broader drive architecture. This architectural shift reduces heat generation on the PCB and improves overall component longevity.

Integration and Hardware Features

• Signal Management: The board employs integrated pulse transformers to isolate and manage gate drive signals effectively.
• Connectivity: It features 12 dedicated plug connectors designed to interface seamlessly with DCFB-type power supply boards and gate pulse signal lines.
• Frame Compatibility: This module is engineered to support J, K, and M-style frames, making it versatile across various Mark V series configurations.
• Installation Security: The PCB includes factory-drilled, insulated mounting holes and six specialized plastic holders to ensure stable attachment to the board carrier.
• Safety Components: The design integrates leg reactors, fuses, and transformers to protect the circuitry from voltage spikes and operational anomalies.

Technical Specifications
