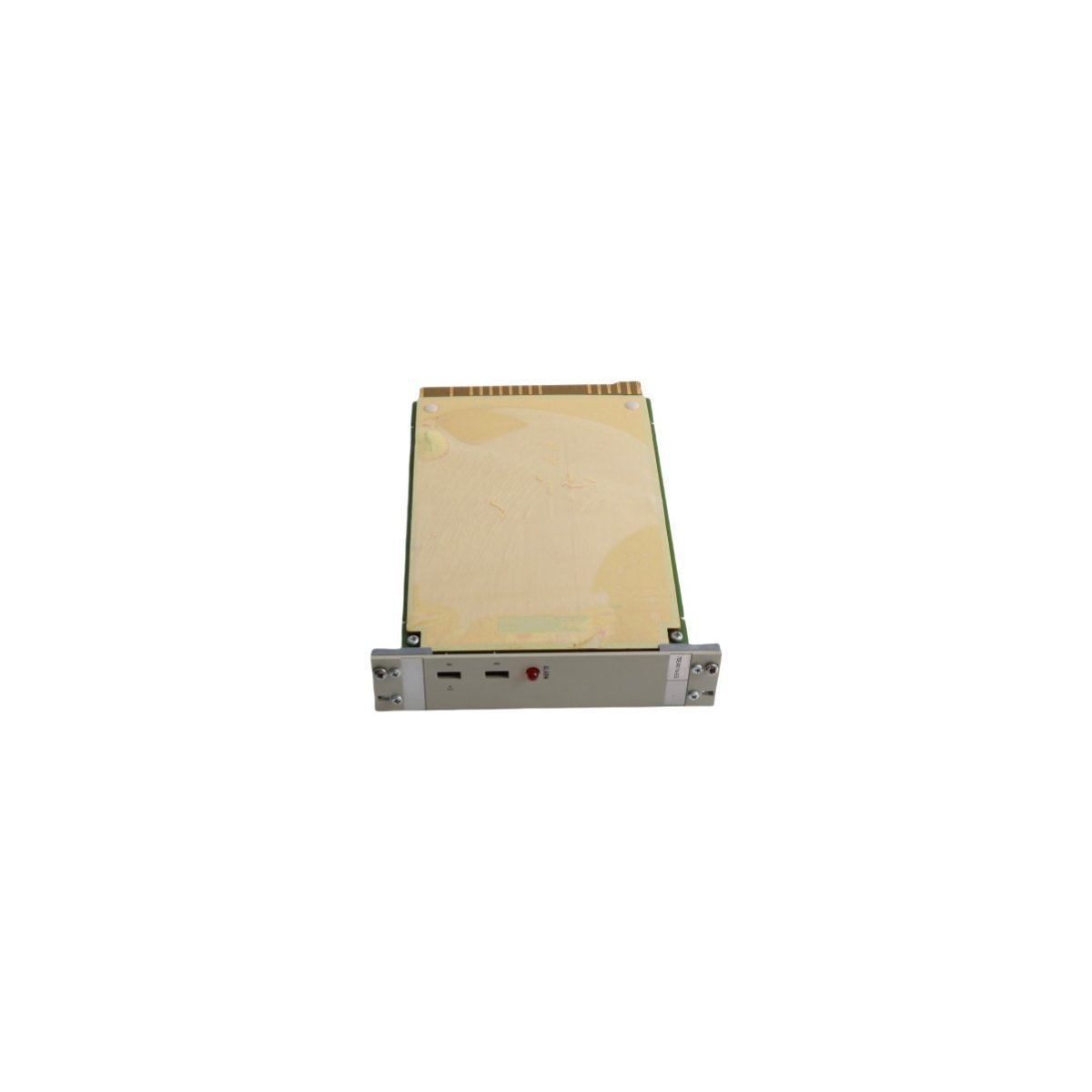

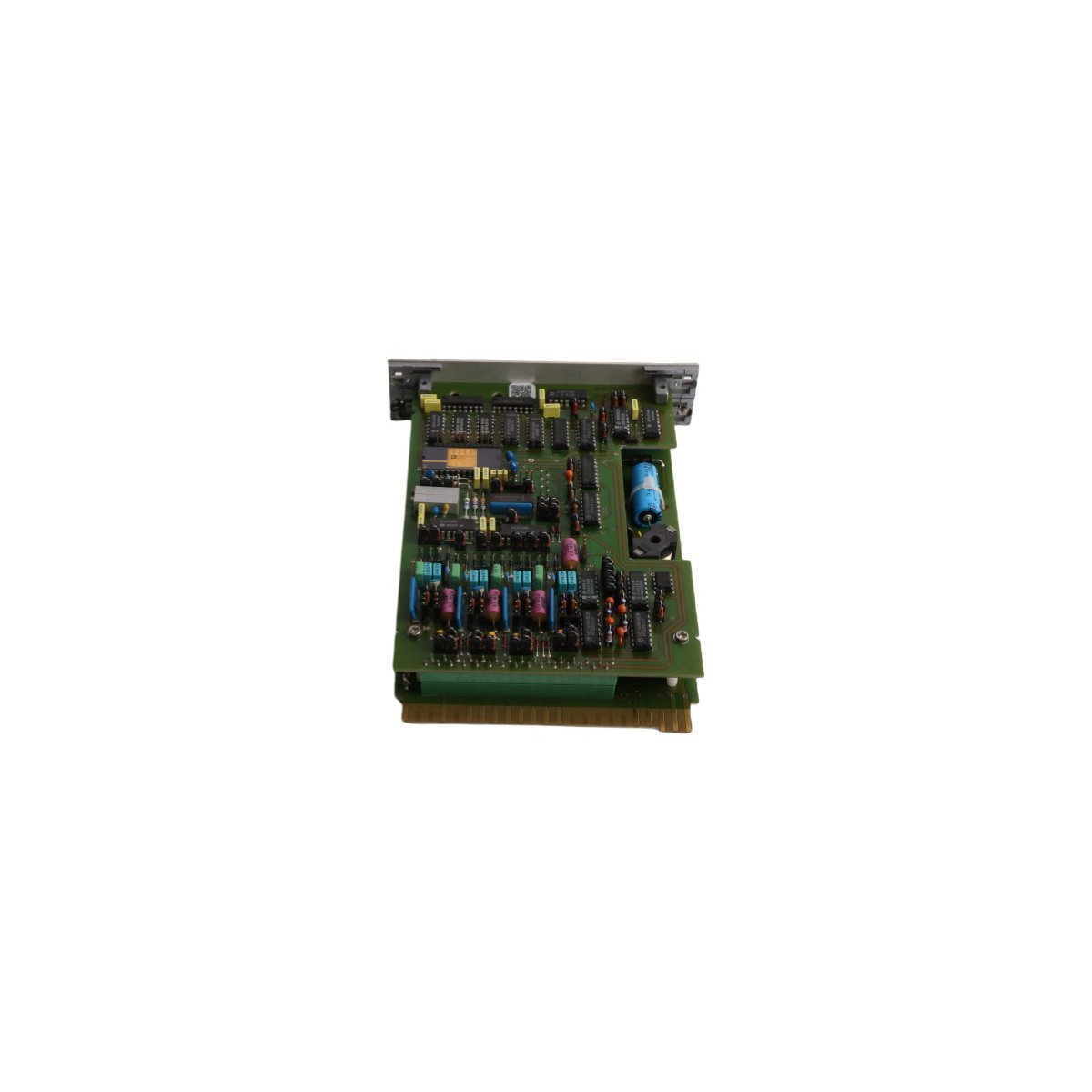

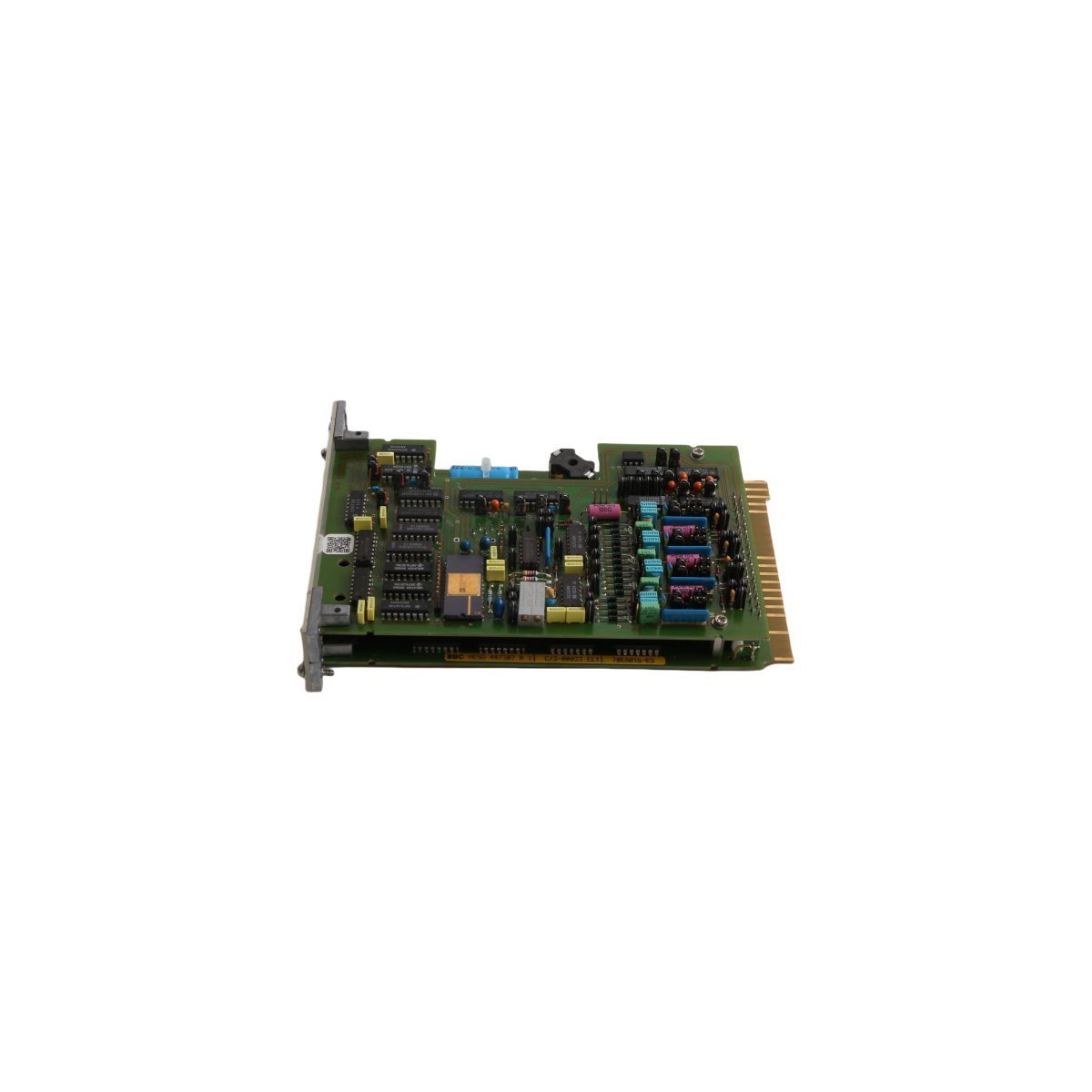

The ABB 70EA01B-ES (HESG447307R1) functions as a specialized analog input module for the Procontrol P13 system. This hardware delivers high-accuracy data acquisition for critical industrial processes. It converts varying electrical signals from field sensors into precise digital values.
Furthermore, the board integrates seamlessly into the Procontrol architecture. It helps maintain the operational integrity of power plants and manufacturing facilities. The robust design ensures stable performance during continuous monitoring tasks.
Core Technical Specifications
- Product Series: Procontrol P13
- Model Designation: 70EA01B-ES
- Order Reference: HESG447307R1
- Resolution: 12-bit analog-to-digital conversion
- Input Signal Range: Supports standard 0-20mA or 4-20mA loops
- Supply Voltage: 24V DC nominal
- Operating Temperature: -25°C to +55°C
- Physical Mass: 0.42 kg
- Module Dimensions: 33 x 200 x 146 mm
Functionality and Integration
This analog input board excels at capturing rapid signal fluctuations. It monitors essential variables such as pressure, temperature, and fluid flow. High-resolution sampling allows the controller to react to minute process changes.
Consequently, the 70EA01B-ES enhances the overall sensitivity of the control loop. The modular form factor supports quick installation into standard rack systems. It utilizes high-grade connectors to ensure long-term signal stability in high-vibration areas.
