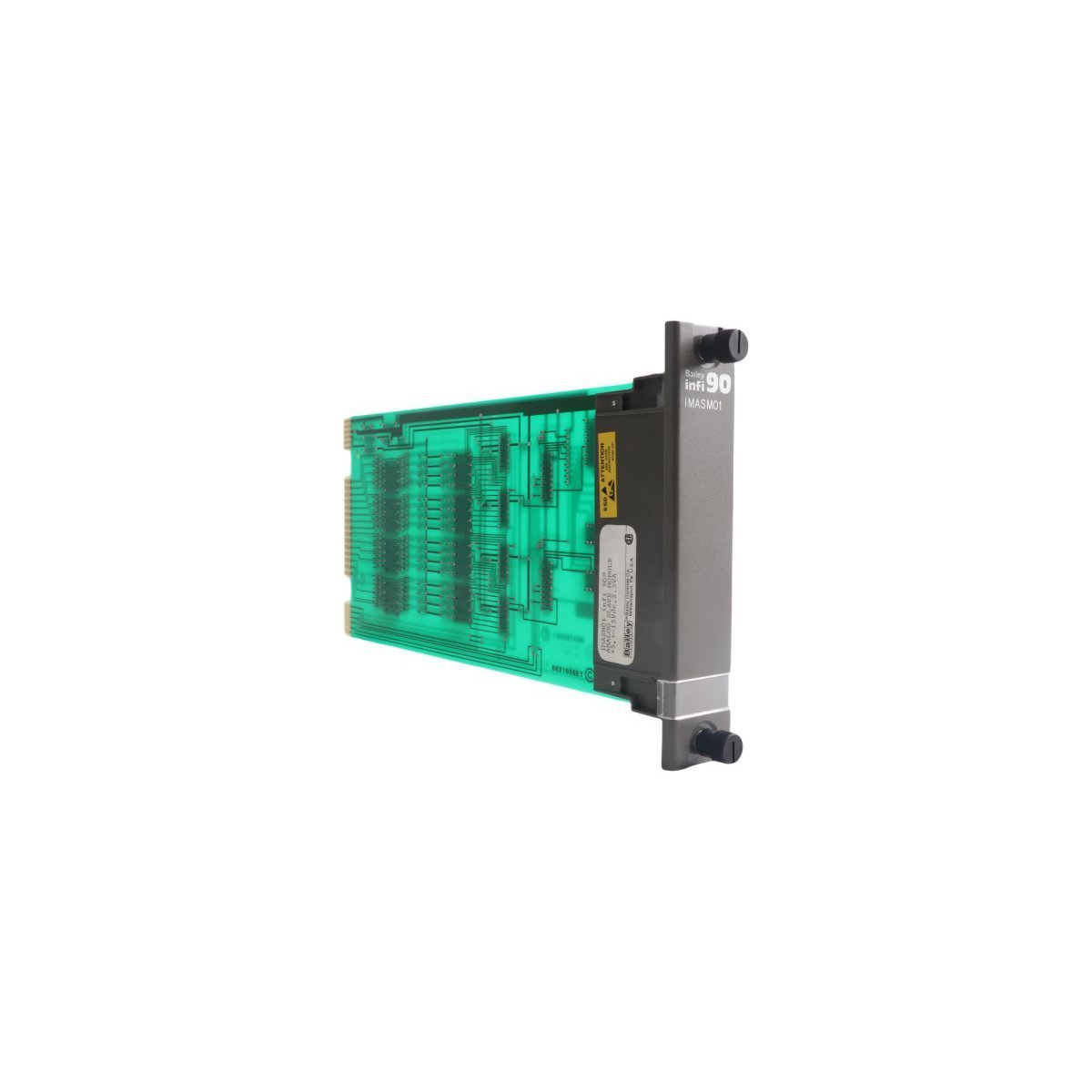

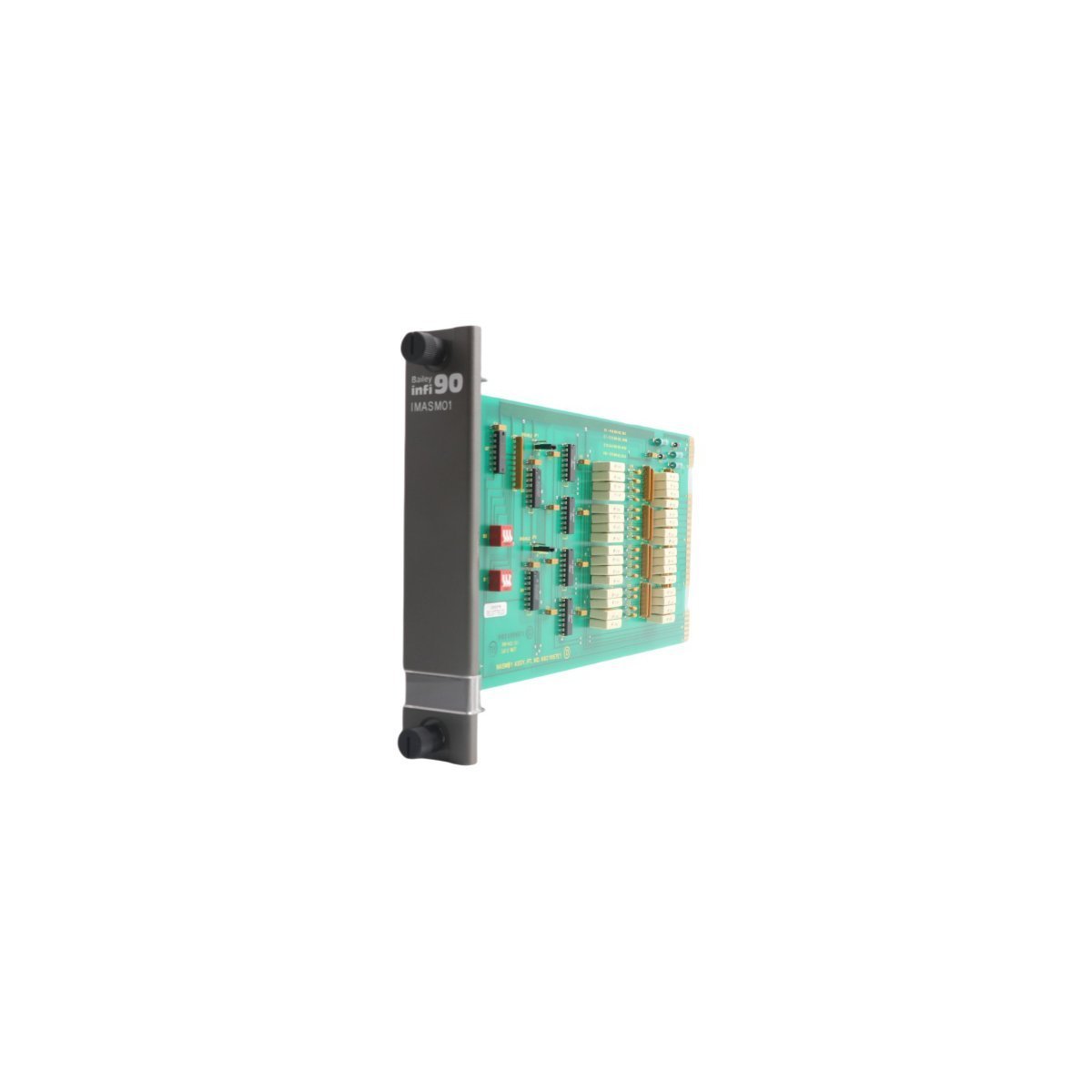

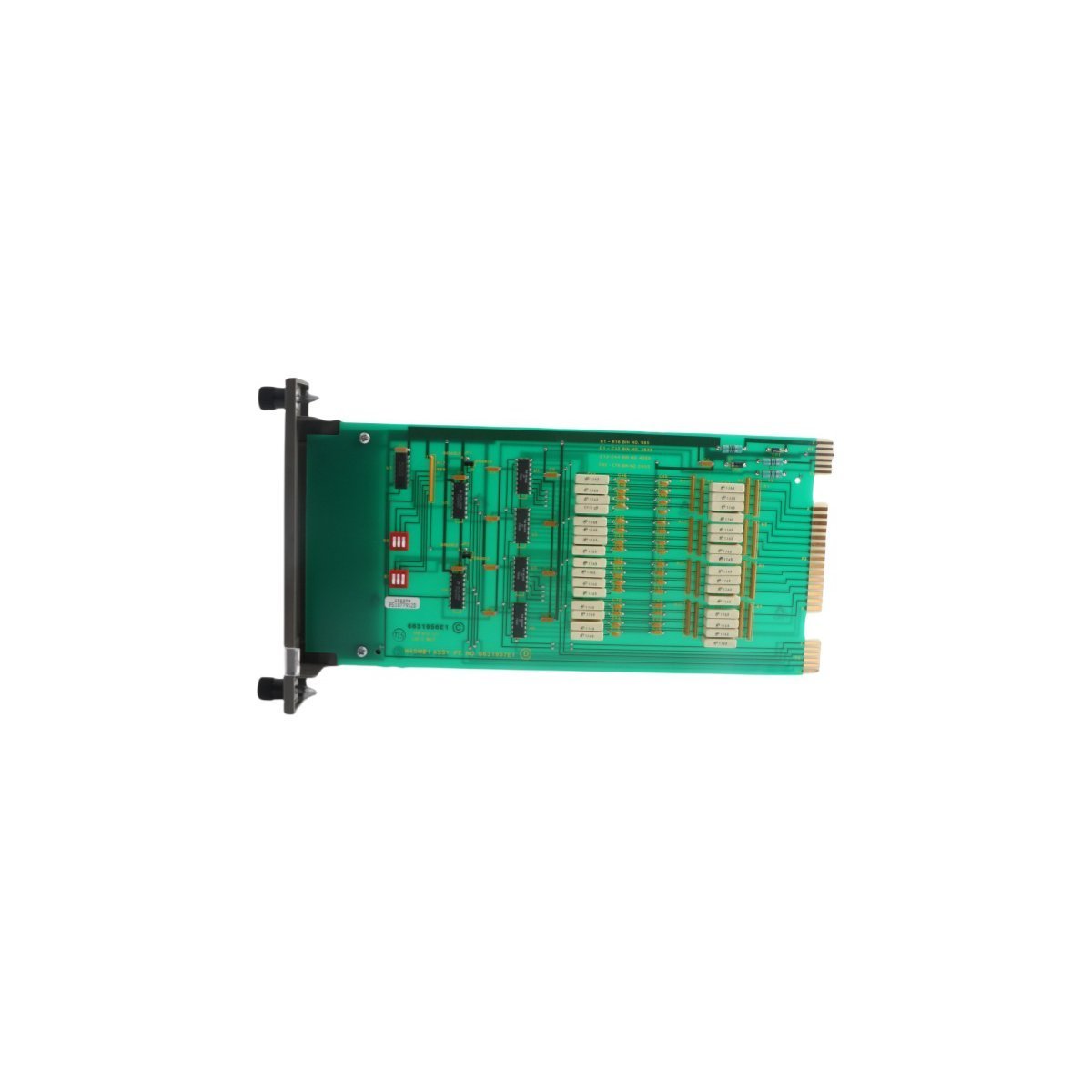

The ABB IMASM01 acts as a high-precision analog input slave module within the Symphony Enterprise Management and Control System. This hardware component interfaces directly with field sensors to convert physical signals into digital data for the controller. It specifically belongs to the Harmony Rack (HR) I/O series.
Engineers utilize this board to monitor critical process variables like temperature, pressure, and flow rates. The module ensures data integrity through advanced signal conditioning. This process eliminates electrical noise before the information reaches the central processing unit.
Core Technical Characteristics
- Product Range: Bailey Infi 90 / Harmony Rack
- Module Identifier: IMASM01
- Input Architecture: Multi-channel analog slave assembly
- System Integration: Compatible with Harmony Area Controllers (HAC)
- Signal Support: Standard industrial analog ranges (e.g., 4-20mA, 1-5VDC)
- Physical Weight: 0.24 kg
- Unit Dimensions: 35 x 310 x 175 mm
- Manufacturing Origin: Sweden
Reliability and Maintenance
ABB manufactures this assembly with industrial-grade components to prevent unexpected system downtime. The circuit board features efficient heat dissipation paths. These paths extend the lifespan of sensitive electronic parts.
Onboard diagnostics provide clear status indications for troubleshooting. This allows technicians to identify channel failures or wiring issues quickly. Consequently, facilities can maintain high availability with minimal manual intervention.
