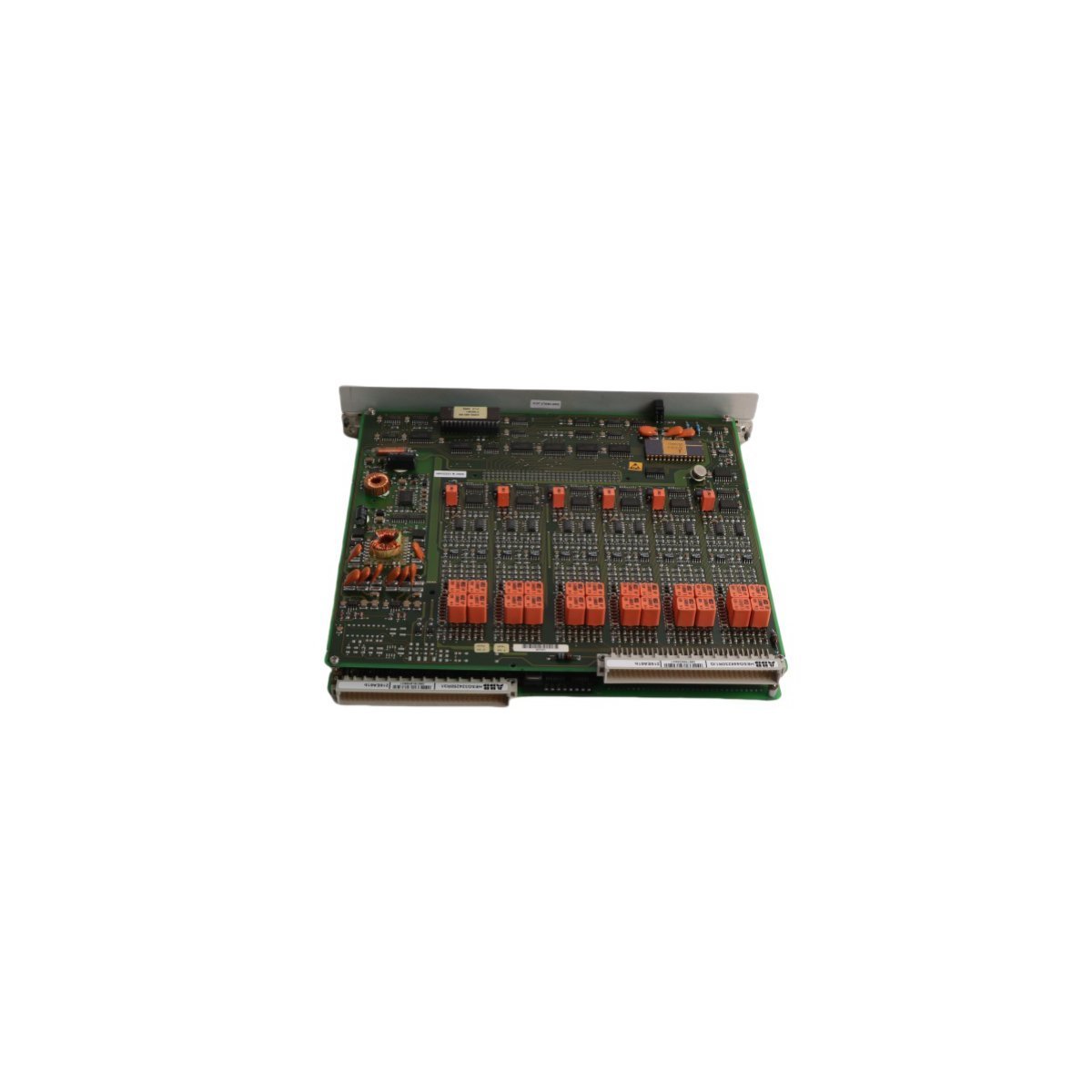

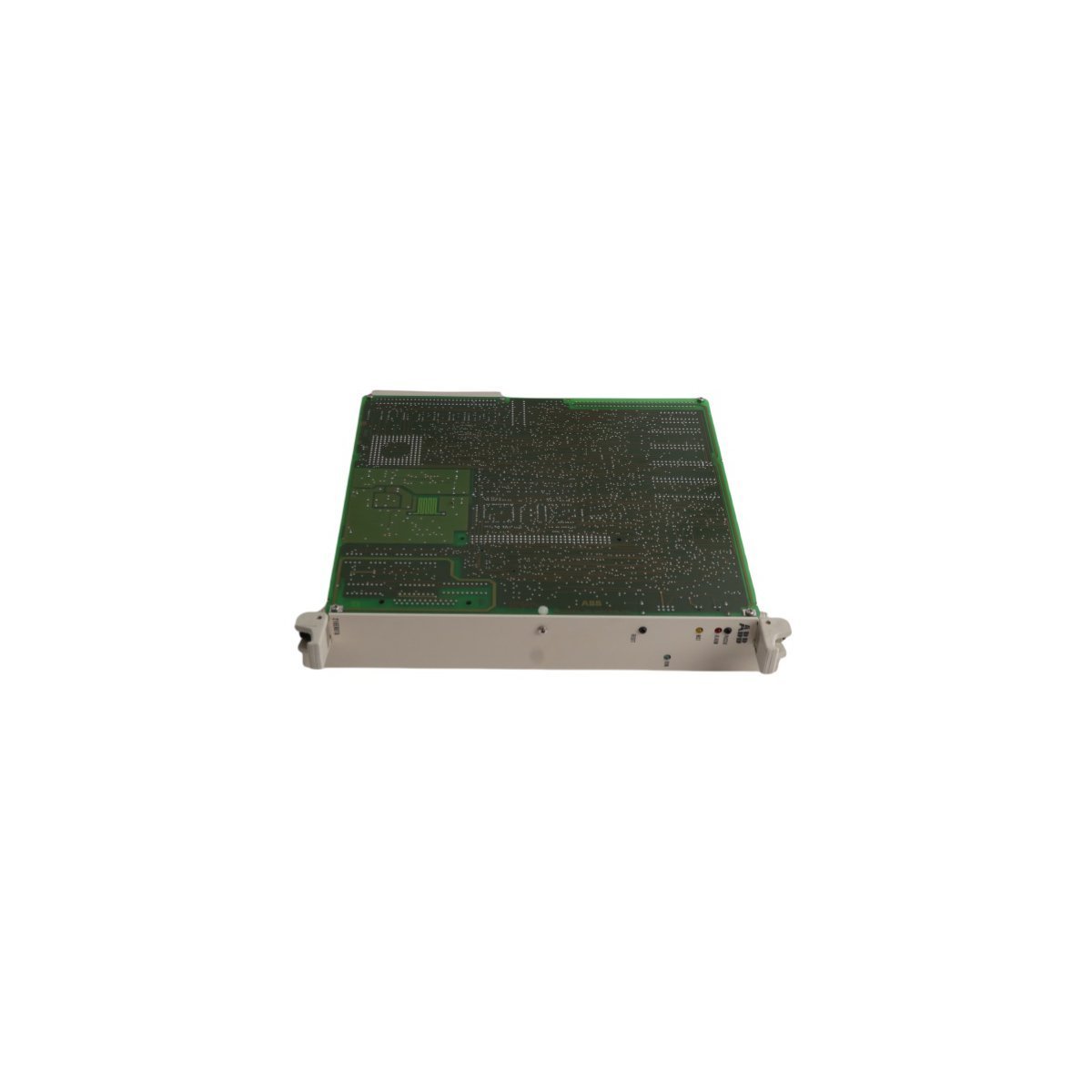

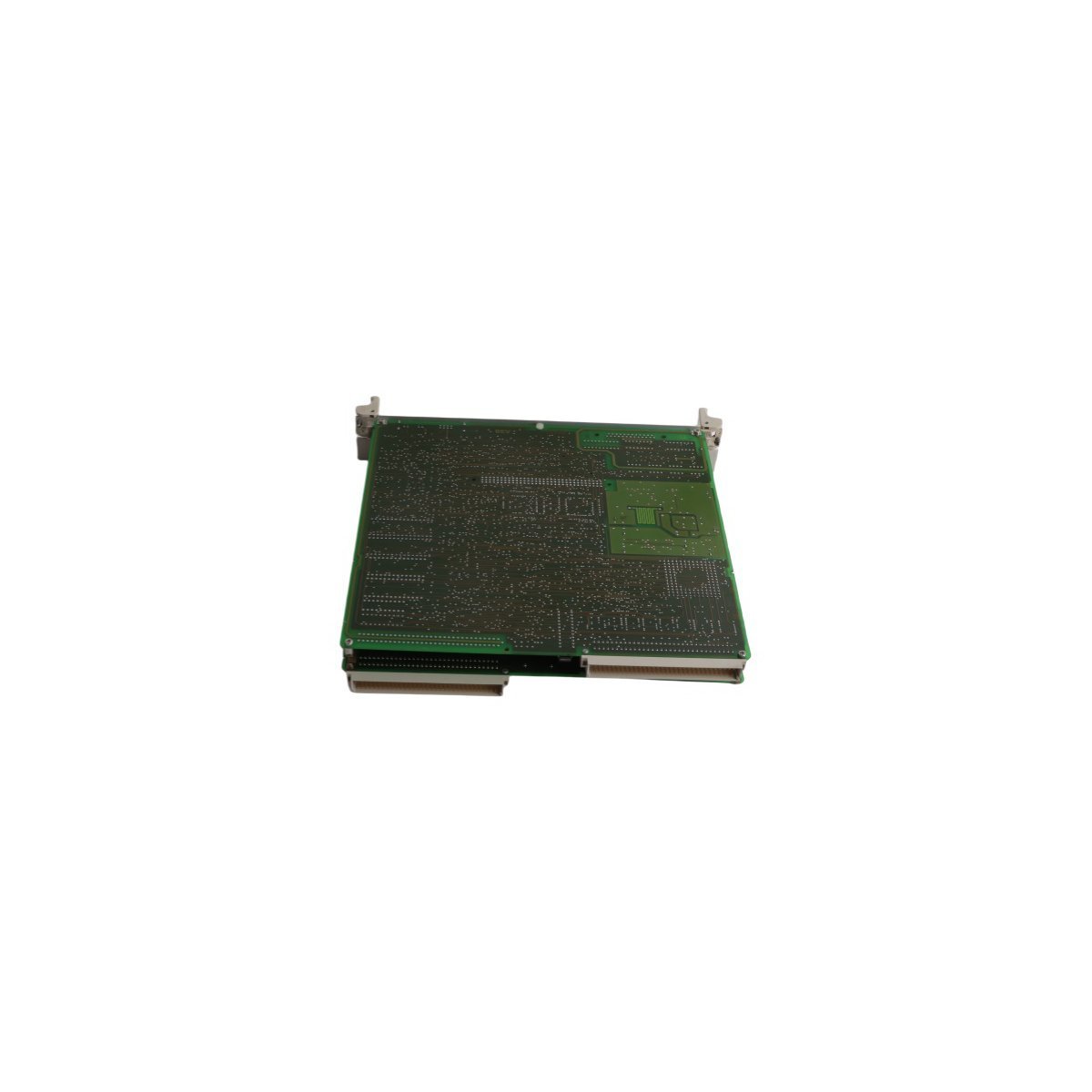

The ABB HESG448230R1/G functions as a specialized analog input interface for UNITROL excitation systems. This board captures continuous field signals to monitor critical generator and motor parameters. It provides the high-fidelity data necessary for precise voltage regulation and excitation control. Consequently, the unit ensures the electrical stability of large-scale power generation assets. Its advanced circuitry translates physical variables into digital data for the main processor.
Advanced Processing and Data Management
Integrated microprocessors allow the 216EA61B board to execute rapid signal sampling. This processing speed ensures real-time responsiveness to fluctuating load conditions. Furthermore, the extensive onboard memory supports efficient buffering for complex data handling tasks. This combination optimizes overall system performance and improves control loop accuracy. Operators rely on this hardware to maintain peak operational efficiency in automated facilities.
Industrial Connectivity and Protocol Support
The HESG448230R1/G supports multiple industrial communication standards for seamless networking. It integrates RS-485 and CANopen protocols to link with various peripheral devices. These interfaces facilitate fast data exchange between the excitation system and broader plant networks. Additionally, the board interfaces with Ethernet routers for modern DCS monitoring. This versatile connectivity enhances process reliability and simplifies system-wide integration.
Technical Specifications
- Brand: ABB
- Model Code: HESG448230R1/G
- Order Reference: 216EA61B
- Product Series: UNITROL Excitation Systems
- Module Category: Analog Input Board
- Supply Voltage: 24V DC
- Net Weight: 0.76 kg
- Chassis Dimensions: 3.8 x 25.5 x 26.1 cm
- Origin: Sweden
