ABB CI532V02 3BSE003827R1 AC500 MODBUS Interface Module

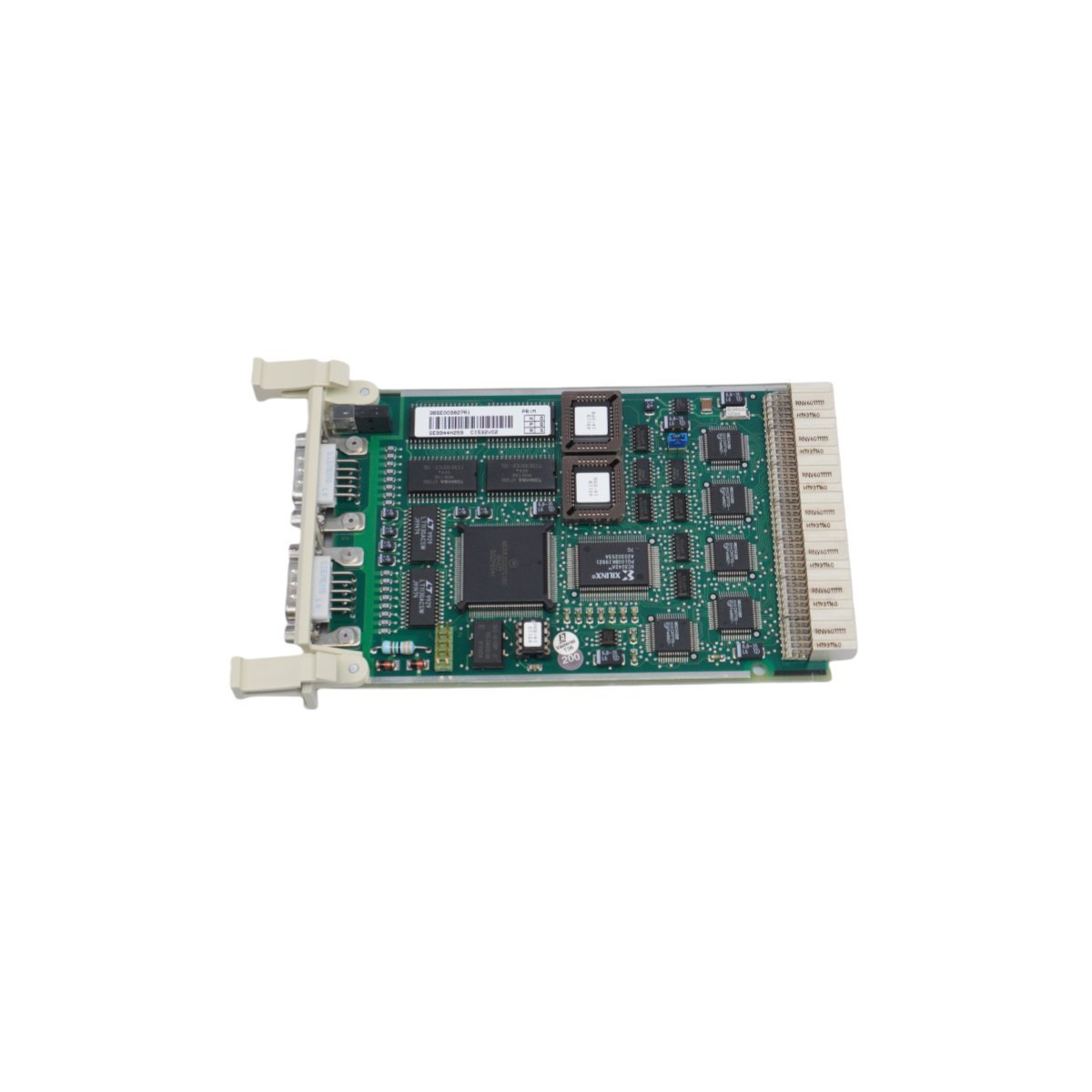

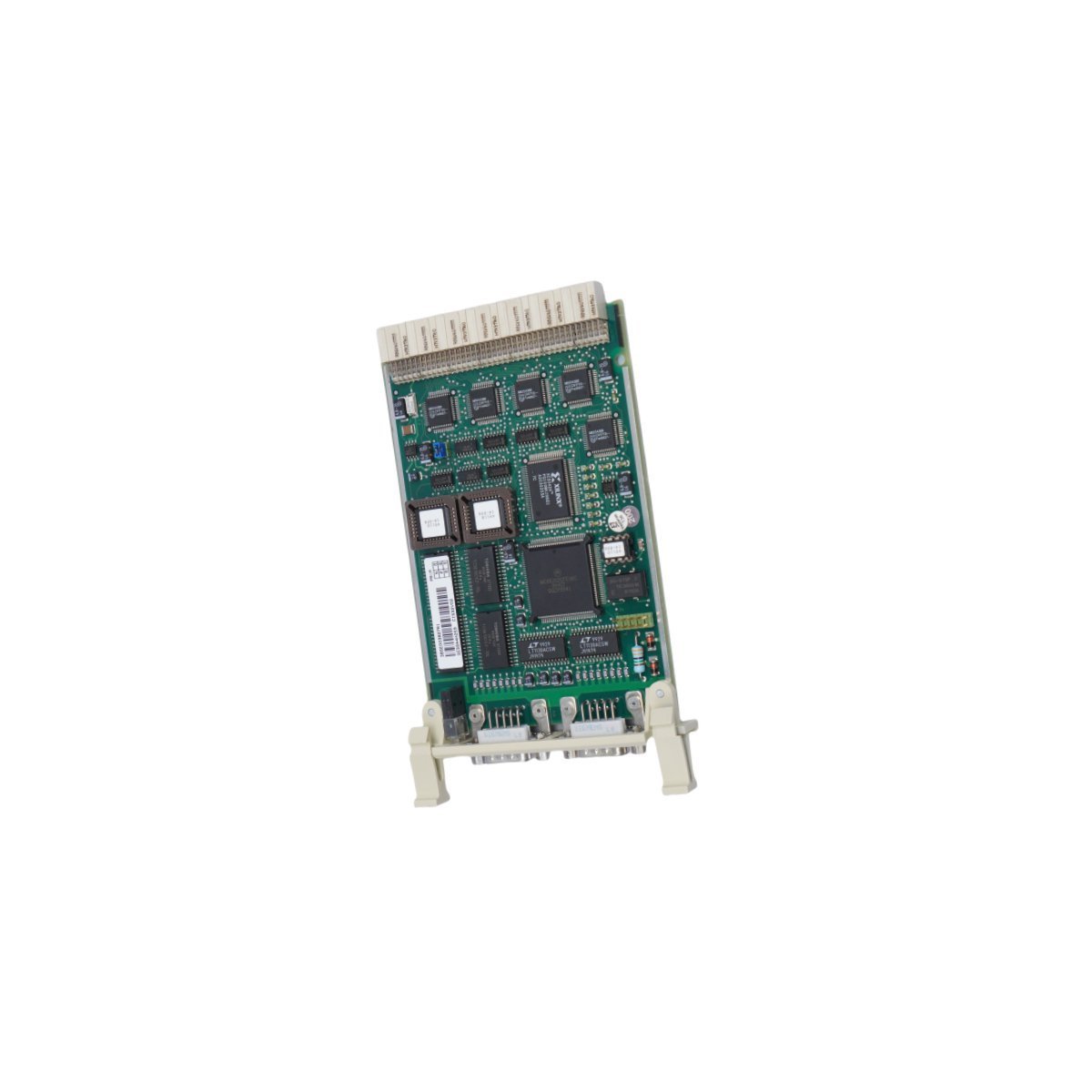

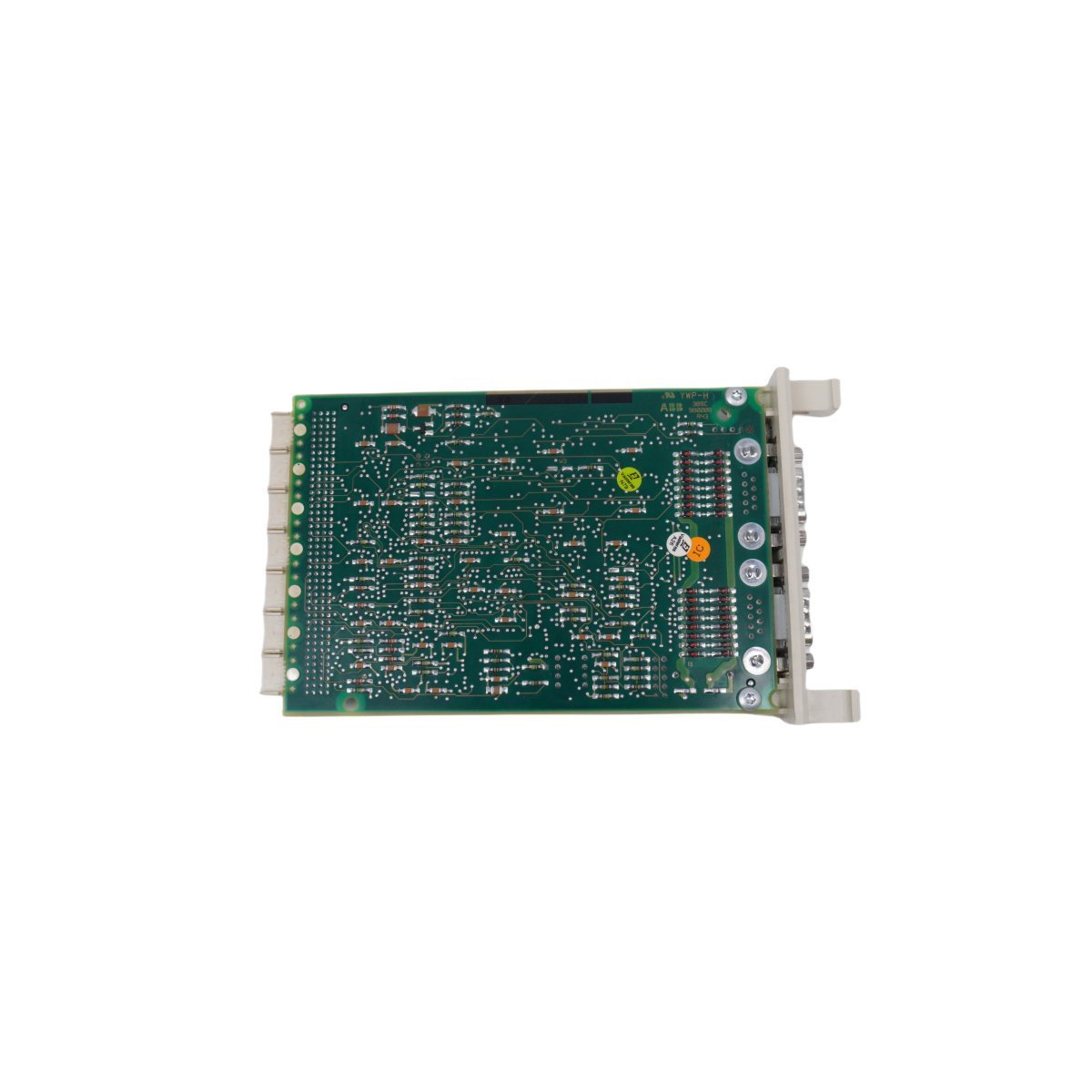

ABB CI532V02 3BSE003827R1 MODBUS Interface Module

Configured for serial bus master/slave communication and protocol conversion in AC500 DCS platforms, the ABB CI532V02 3BSE003827R1 (CI532V02 MODBUS Interface Module) provides direct physical/electrical execution across industrial automation sub-networks.

Hardware Specifications

Backplane Bus Communication Velocity and Deterministic Control

The module integrates directly into the AC500 backplane bus system to execute low-latency data routing between controller CPUs and remote field units. The internal communication ASIC manages backplane bus communication velocity and buffers serial telegrams to eliminate CPU processing bottlenecks. System software handles firmware flash compatibility automatically during startup, verifying hardware revision IDs before initiating active MODBUS master or slave communication cycles over the physical interface layer.

Frequently Asked Questions

Q: What physical network topologies and cable shields does the CI532V02 module support?

A: The module operates over point-to-point RS-232 linkages or multi-drop RS-485 differential bus lines. Technicians must connect low-impedance twisted-pair shielded cables directly to the terminal base ground connection to enforce signal integrity and reject common-mode EMI noise.

Q: Does the module support hot-swapping during active backplane operation?

A: Engineers must de-energize the 24 VDC system power prior to removing or seating the module. Pulling the interface hardware under active backplane bus load triggers an immediate bus fault and disrupts communication across adjacent I/O modules.

Field Installation Guidelines

Position the module onto the standard DIN-rail base within an IP54-rated industrial enclosure. Maintain a minimum clearance of 25 mm around upper and lower ventilation slots to ensure passive convective heat dissipation. Ensure proper earthing by securing the DIN-rail grounded bonding strap directly to the main cabinet earth bar before connecting field serial wiring. Run RS-485 serial cables in segregated wire ducts separate from AC power lines, and apply 120-ohm termination resistors at both physical endpoints of the RS-485 bus segment to prevent signal reflections.
