Product Description

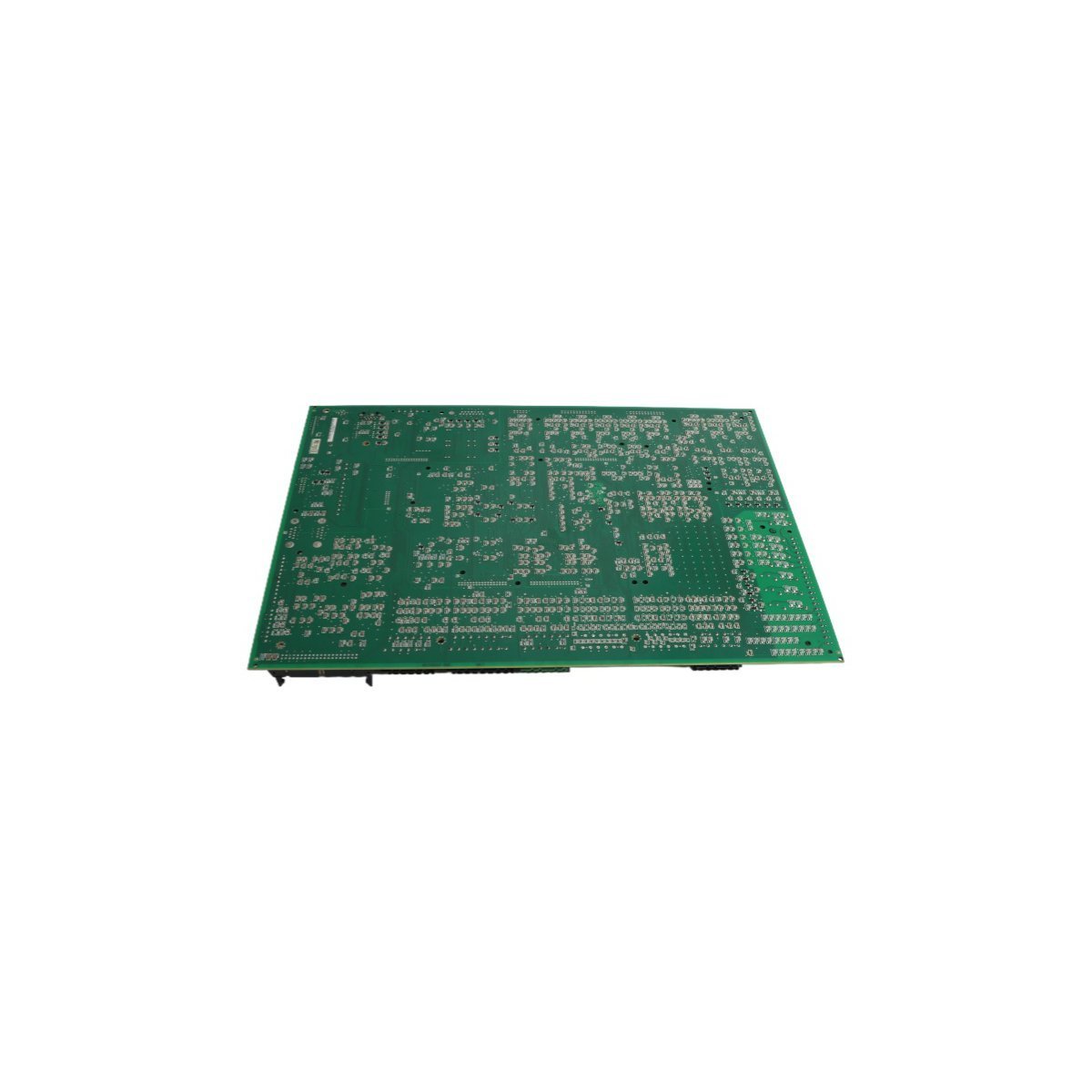

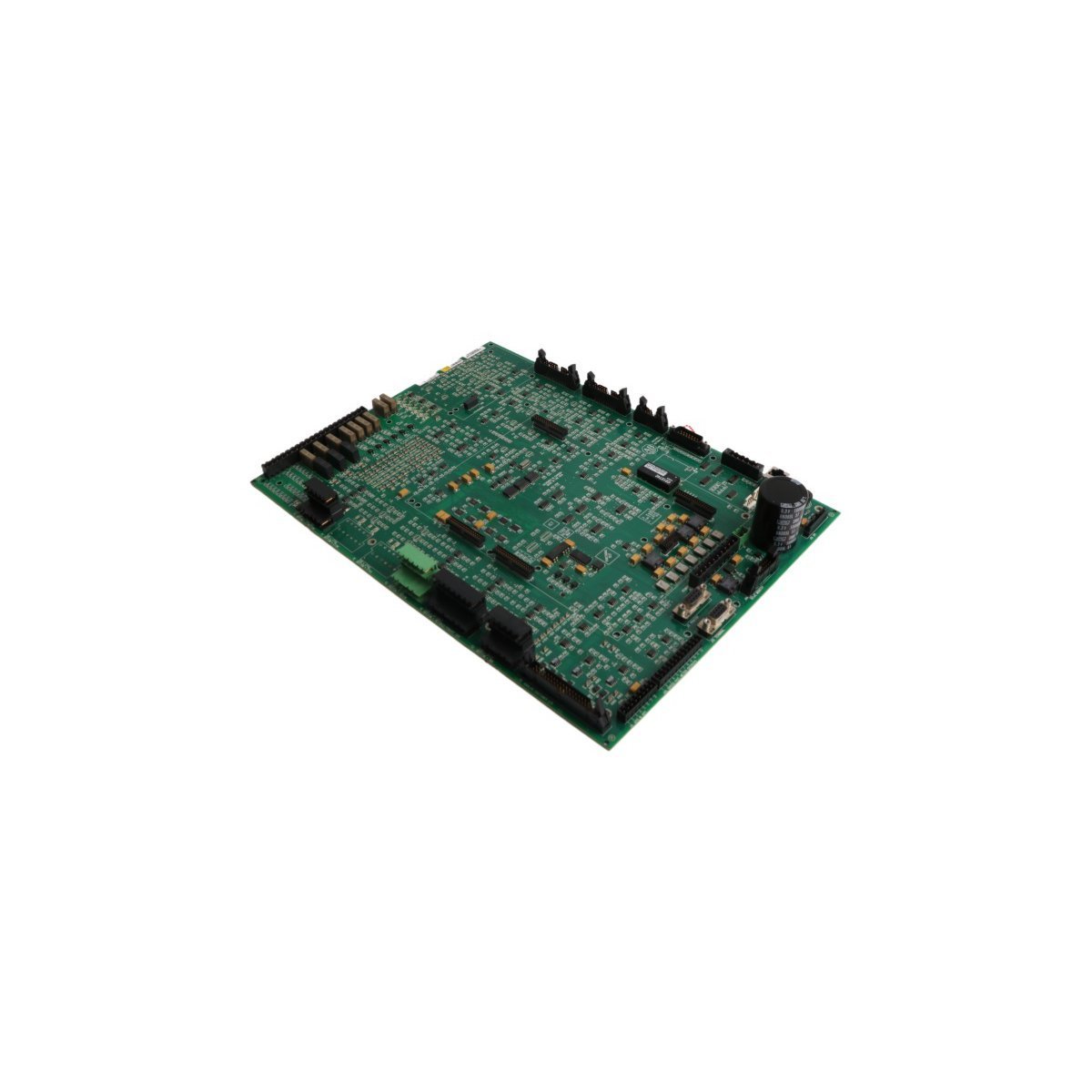

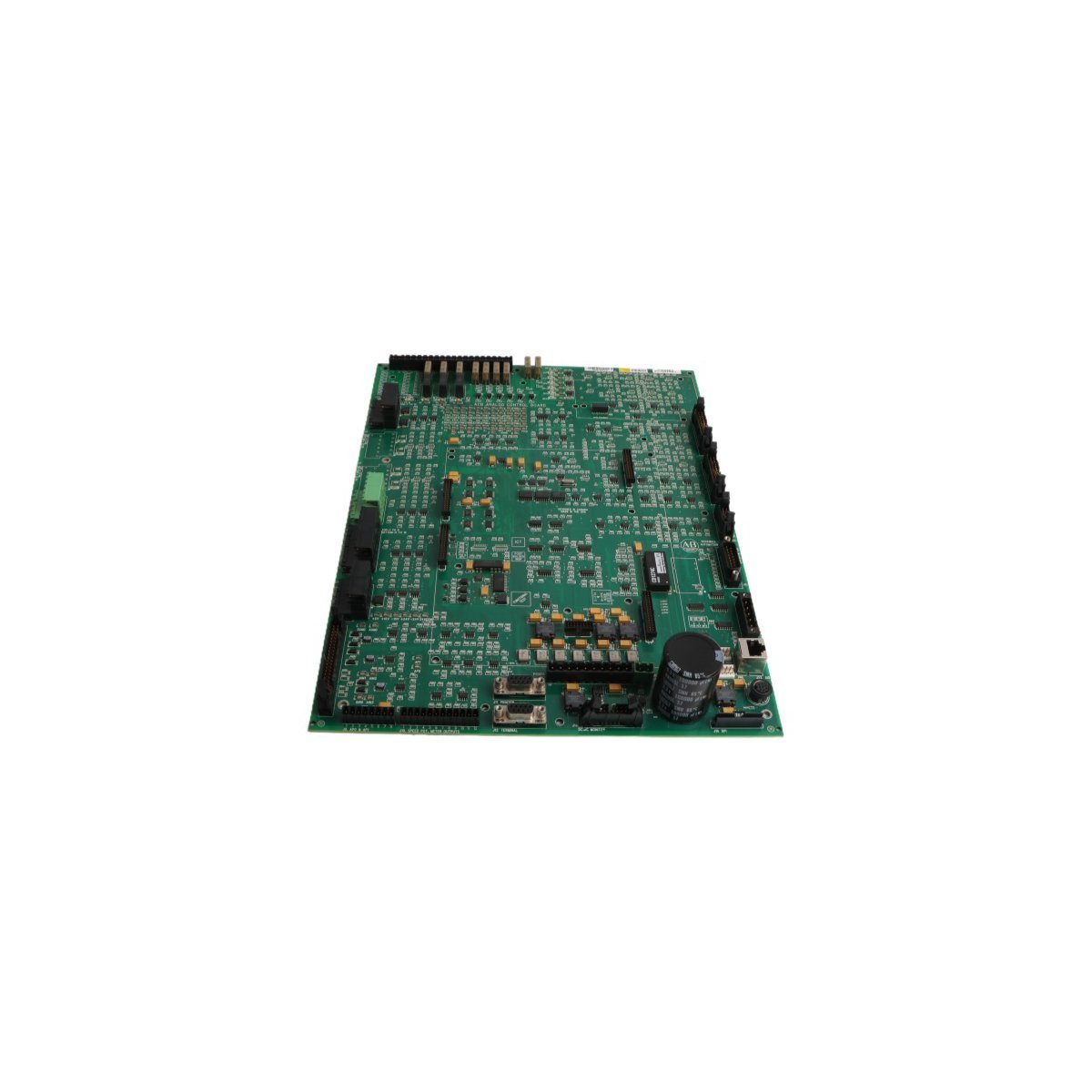

The Allen-Bradley 80190-560-02-R is a specialized analog control board. This circuit card regulates core speed and torque variables within heavy industrial motor systems.
Technical Profile and Specifications
- Product Family: PowerFlex 7000 Medium Voltage Drive Series
- Component Classification: Analog Control Board (ACB) / Printed Circuit Board
- Primary Control Logic: Pulse Width Modulation (PWM) signal processing
- Input/Output Signal Types: Low-level analog voltage and current loops
- Physical Dimension Profile: 3.5 cm x 13.0 cm x 14.5 cm
- Total Net Weight: 0.9 kg (2.0 lbs)
- Customs Tariff HS Code: 8537101190
- Minimum Order Quantity: 1 Unit
- Original Country of Origin: United States of America
Operational Role and Functional Integration
This printed circuit board coordinates analog telemetry for complex motor control loops. Specifically, the card processes velocity and current feedback to modulate pulse width outputs accurately. Because the hardware interfaces directly with high-power drive stages, it maintains critical electrical isolation boundaries. Consequently, this precise signal isolation protects sensitive upstream microprocessor layers from transient voltage spikes.
Furthermore, the board interfaces seamlessly with the primary drive backplane architecture. It utilizes high-grade operational amplifiers and converters to minimize signal attenuation across long internal runs. This design allows the board to sustain optimal linearity, which maximizes motor performance under fluctuating load profiles.
Industrial Application and Maintenance Protocol
Engineers deploy this control board exclusively within PowerFlex 7000 medium voltage AC drives. These drive systems typically run critical infrastructure assets like heavy pumps, large compressors, and ventilation fans. Because the original manufacturer discontinued this series, facilities rely on aftermarket stock to prevent operational downtime.
Servicing this module requires specialized technical knowledge due to the high-voltage risks of the host equipment. Technicians must follow strict lock-out procedures before executing diagnostic tasks on the card. Ultimately, swapping failed legacy boards with certified replacements extends the service life of large capital drive assets.
