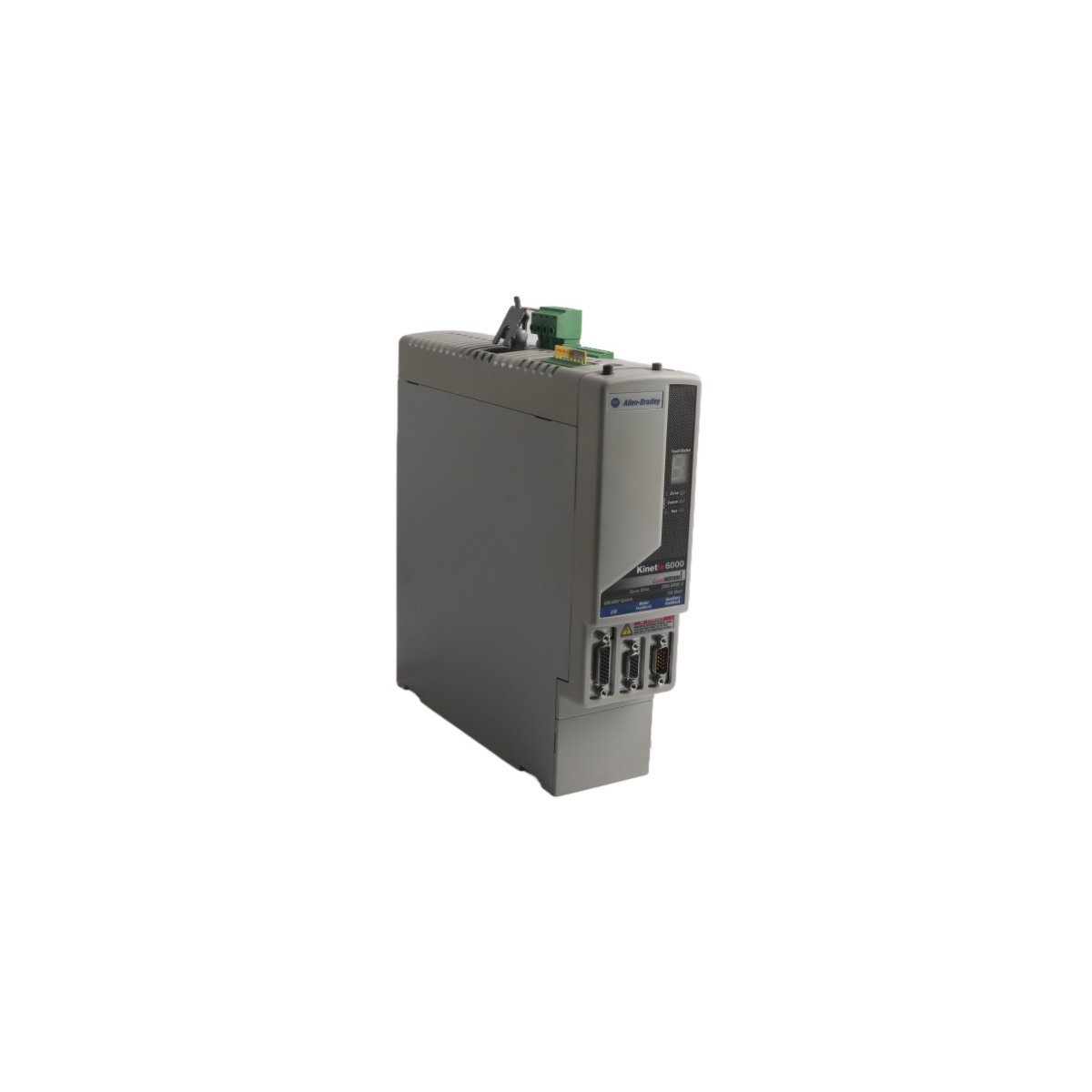

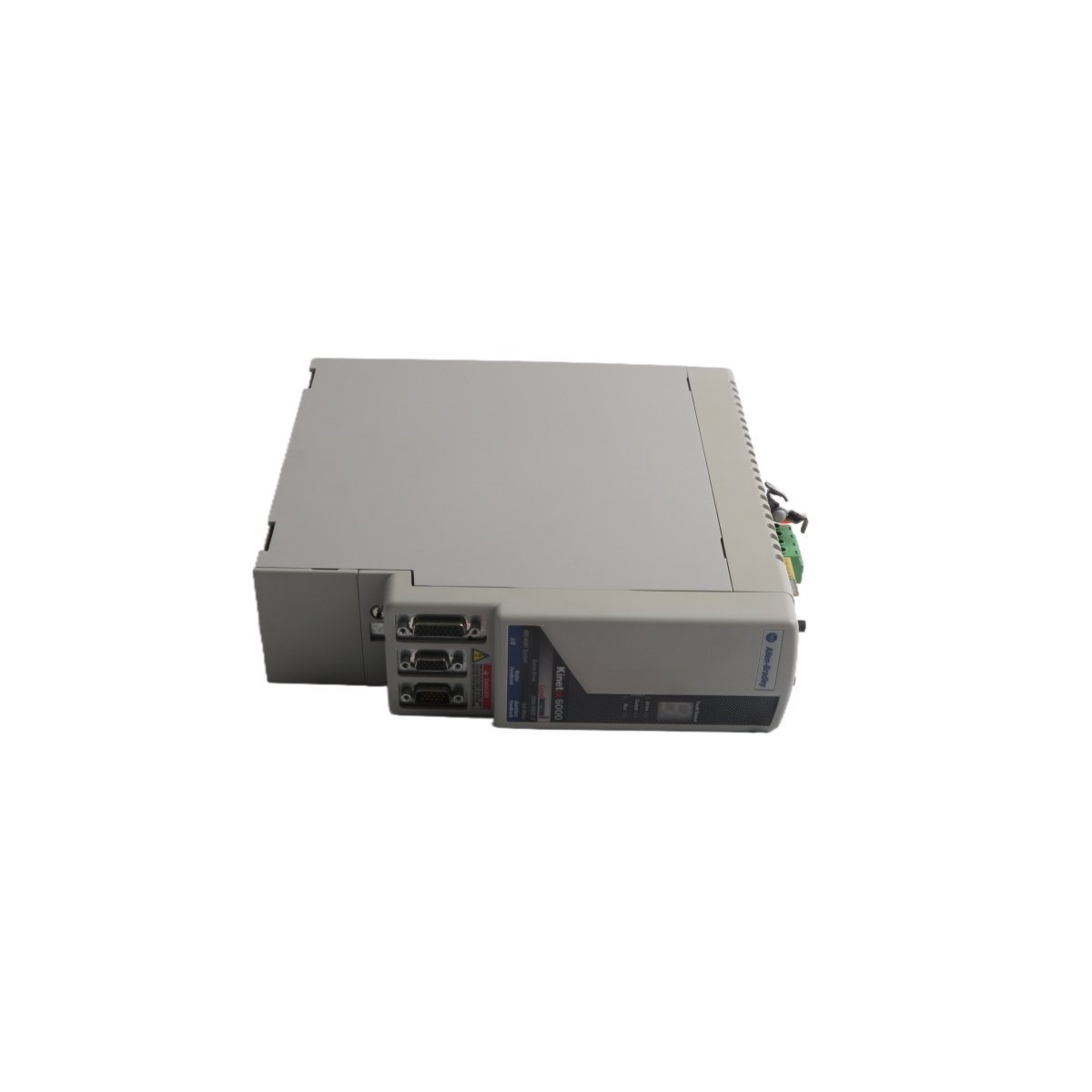

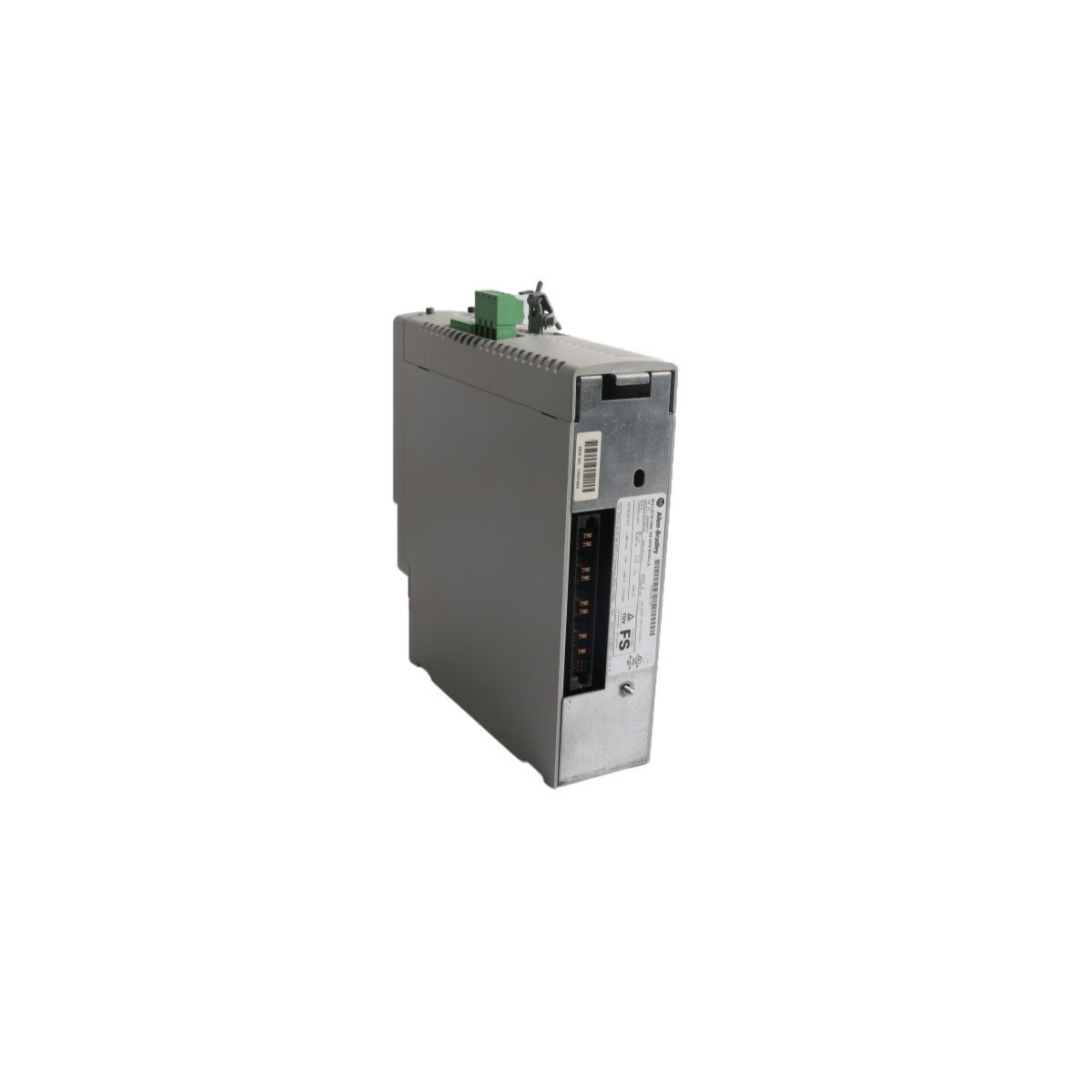

Allen-Bradley 2094-BM02-S Servo Drive

The Allen-Bradley 2094-BM02-S operates as a core component within the Kinetix 6000 multi-axis servo drive system. This axis module delivers precise motor control for demanding industrial automation environments. It integrates seamlessly onto a power rail to coordinate complex motion sequences. Furthermore, the unit features a high velocity loop bandwidth of 500 Hz. This ensures rapid response times and superior accuracy for high-speed machinery. Consequently, manufacturers can achieve tighter tolerances and increased production throughput.

Integrated Safety and Peak Performance

Safety remains a primary focus with the inclusion of Safe Torque-Off (STO) functionality. This feature meets rigorous SIL 3 and PLe safety standards for industrial applications. It disables motor torque during emergency events without removing power from the entire drive. This capability reduces machine wear and shortens restart times significantly. Additionally, the module supports peak enhancement technology. This allows the inverter to increase current capacity from 150% to 250% for short bursts. Such performance is essential for applications involving rapid acceleration or heavy starting loads.

Technical Specifications

• Input Voltage: 650V DC nominal
• Continuous Current (RMS): 10.3 Amperes
• Continuous Current (0-peak): 14.6 Amperes
• Peak Current (RMS): 25.8 Amperes
• Efficiency Rating: 98%
• Internal Shunt Resistance: 115 Ohms
• Current Loop Bandwidth: 1300 Hz
• Safety Certification: Safe Torque-Off (ISO 13849-1 PLe/SIL 3)

Installation Guidelines and Hardware Reliability

Efficient thermal management requires maintaining specific clearances during the installation process. The control cabinet must provide a minimum depth of 10.7 inches for proper fitment. Moreover, technicians should separate power cables from low-voltage signal wires to prevent electrical interference. The 2094-BM02-S uses a modular design to simplify maintenance and reduce spare parts inventory. This structure allows users to replace individual axes without dismantling the entire power rail. Built-in diagnostic tools provide real-time feedback on drive health and fault status.

Strategic Infrastructure Support

The 2094-BM02-S provides a robust foundation for modernizing legacy motion systems. While Rockwell officially moved this series to discontinued status in 2016, it remains widely utilized. It supports diverse industry sectors including packaging, material handling, and automotive assembly. This module ensures that existing Kinetix 6000 systems continue to operate at peak efficiency. Regular testing of the STO circuit guarantees that safety protocols remain compliant with local regulations.
