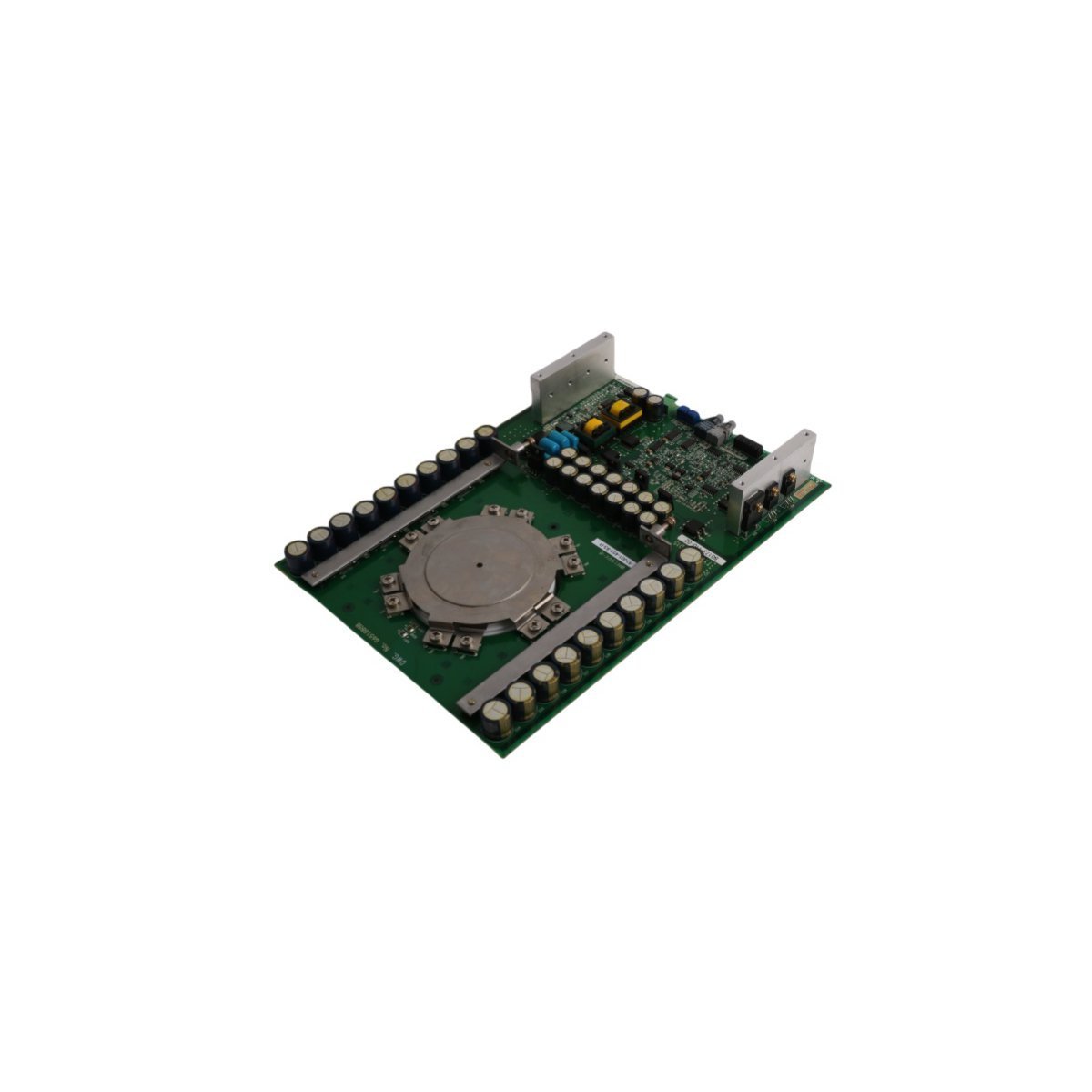

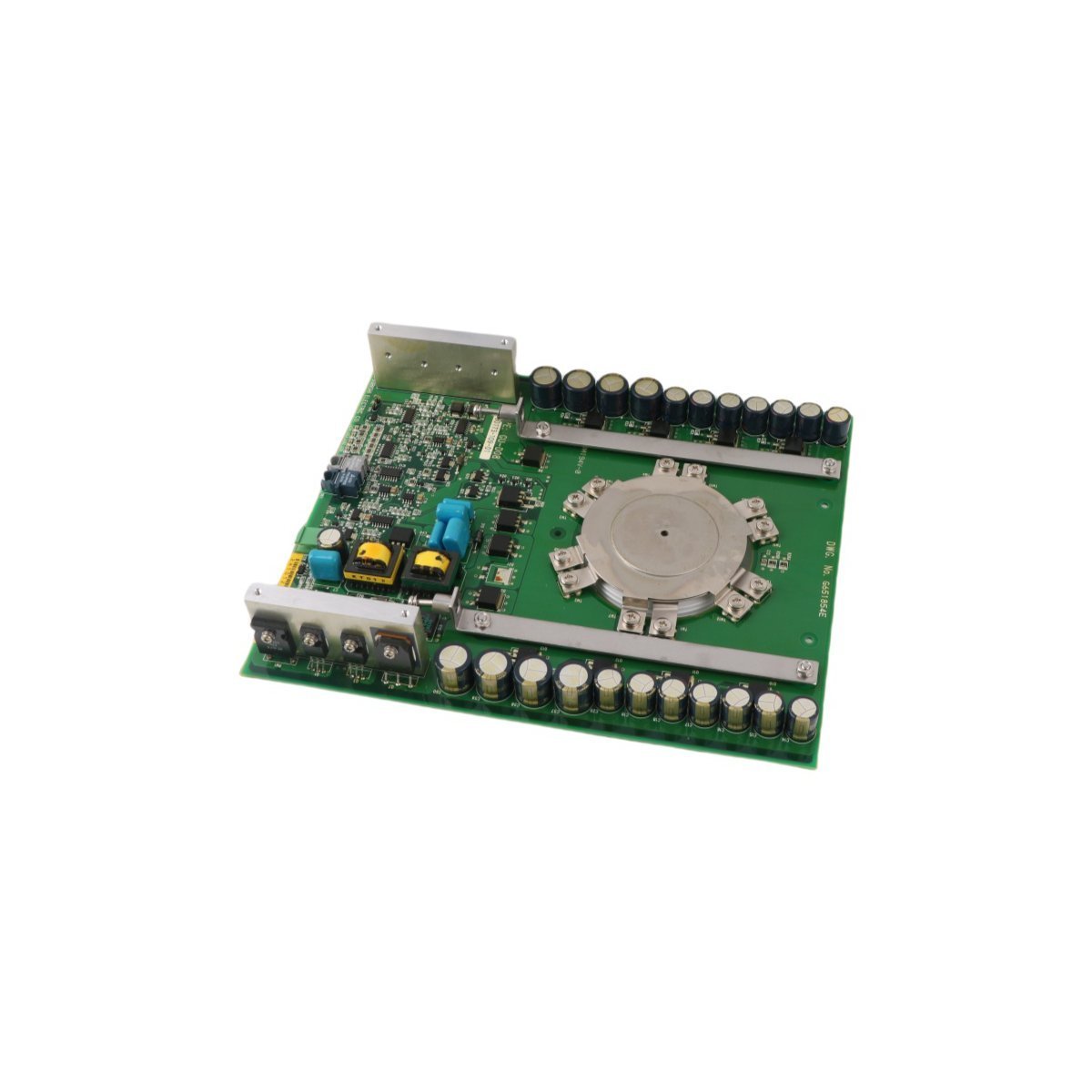

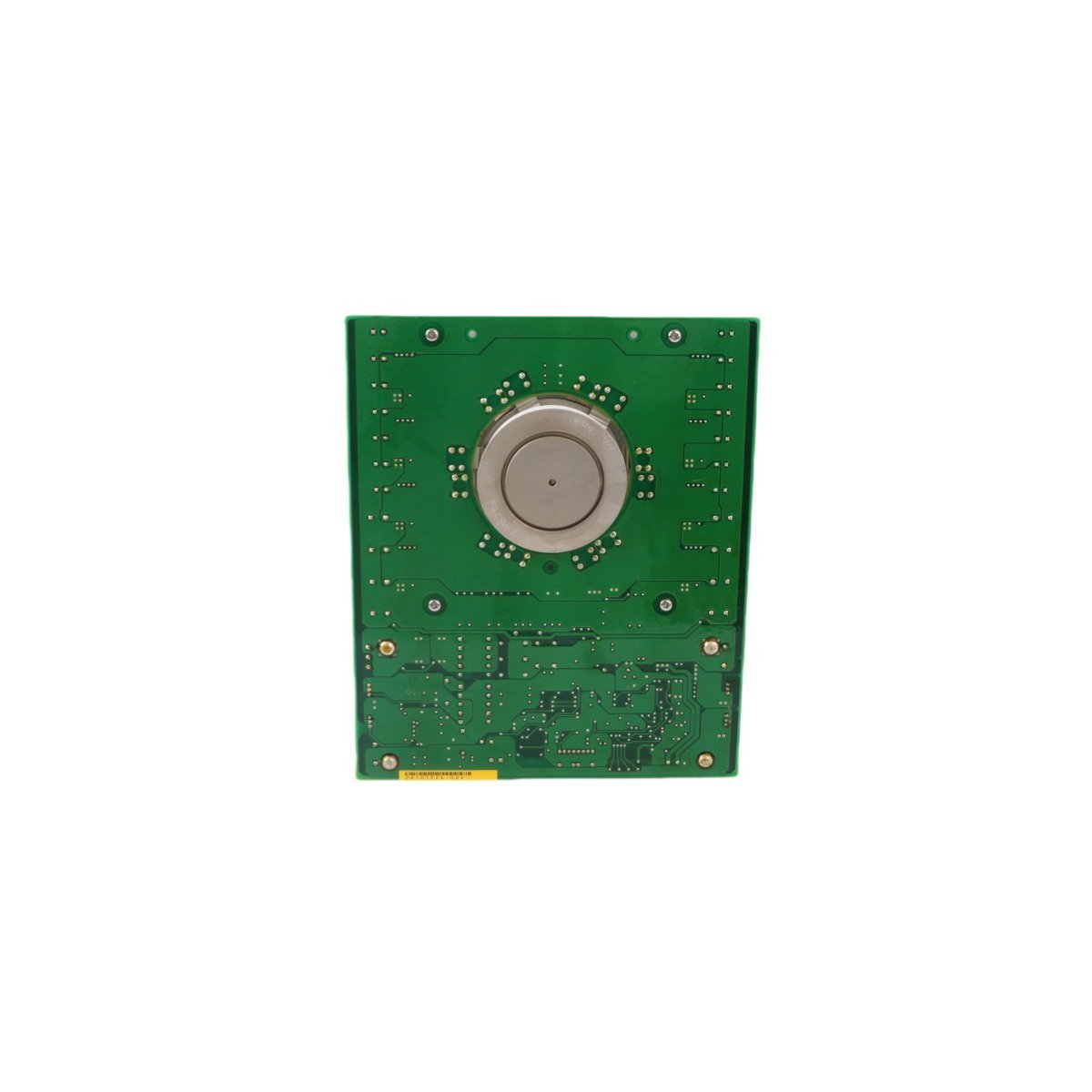

80173-110-02-R Allen Bradley Power Distribution Thyristor Board

Brief Product Description

The Allen Bradley 80173-110-02-R serves as a specialized thyristor firing and control board, regulating electrical current for industrial drives and power conversion systems. This PCB ensures synchronized power delivery and equipment protection within complex automation environments.

Product Overview

The 80173-110-02-R functions as a high-integrity thyristor control assembly within the Allen Bradley power hardware ecosystem. This printed circuit board manages the switching and regulation of silicon-controlled rectifiers (SCRs) to provide stable 10A current distribution to critical loads. By utilizing precision-engineered gate firing circuitry, the board facilitates smooth power modulation for PLCs, heavy-duty relays, and motor control centers. Furthermore, the module’s architecture prioritizes signal integrity, which prevents electrical noise from disrupting the timing of power pulses. Consequently, the 80173-110-02-R provides a reliable foundation for automated systems in the automotive, material handling, and high-speed packaging industries.

Technical Specifications

• Brand: Allen Bradley / Rockwell Automation
• Model Number: 80173-110-02-R
• Component Type: Thyristor Board / Power PCB
• Current Rating: 10 Amperes
• Mounting Configuration: Optimized for Control Cabinets
• Terminal Type: Vibration-resistant High-Grade Copper
• Protection Circuits: Short-circuit and Overload Prevention
• Shipping Weight: 1.56 kg
• Physical Dimensions: 29.2 x 20.7 x 5.5 cm
• Country of Origin: USA

Operational Characteristics

The 80173-110-02-R incorporates advanced thermal management features to dissipate heat effectively during continuous high-load operations. This design choice prevents thermal runaway and extends the functional lifespan of the onboard semiconductors. Additionally, the board features ruggedized connection points that secure wiring against the constant mechanical vibrations typical of factory floors. Because the board supports precise current regulation, it enables automation components to operate at peak efficiency with minimal energy waste. Transitioning to this thyristor-based solution also simplifies the electrical layout of control panels, as it replaces bulkier, less efficient power regulation methods.
