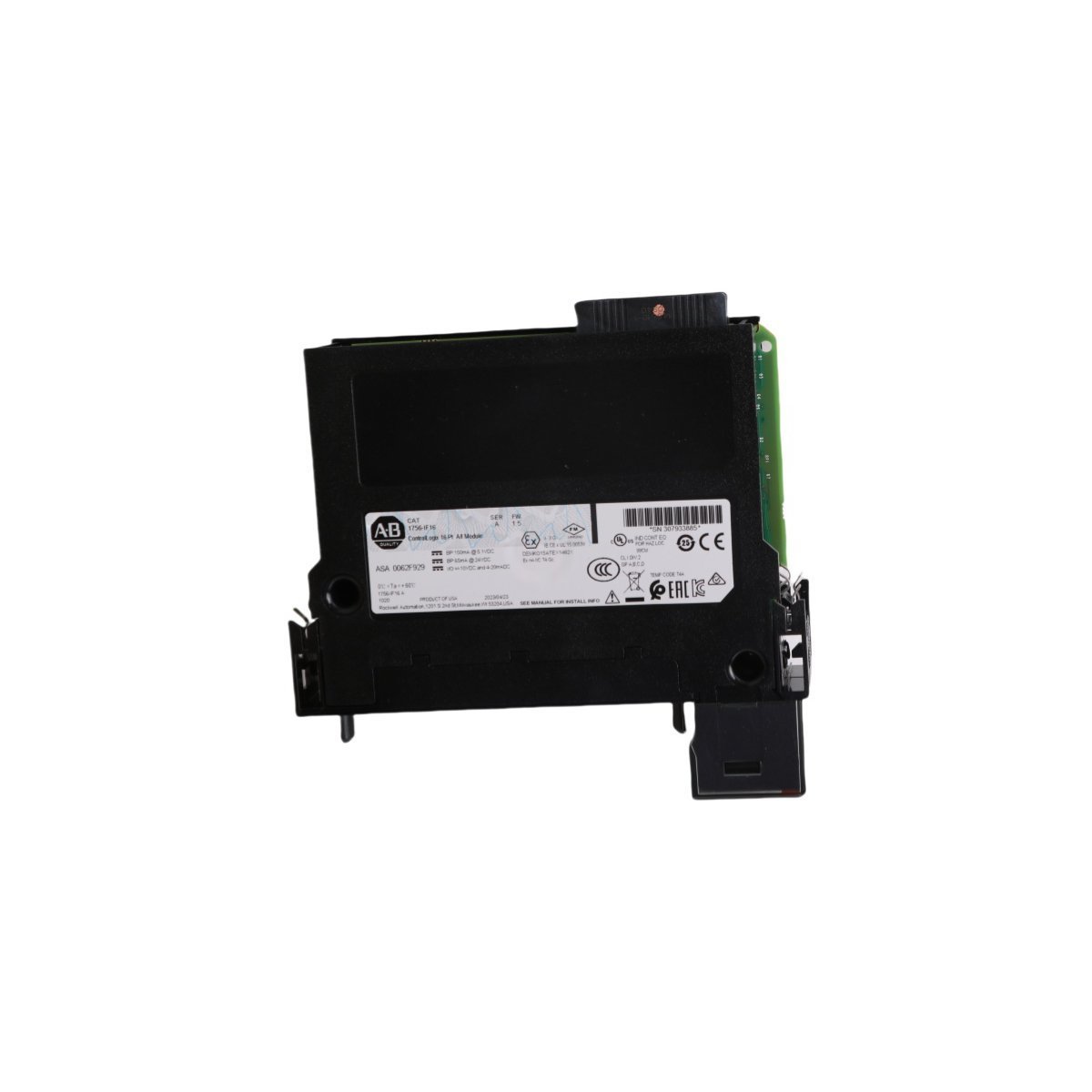

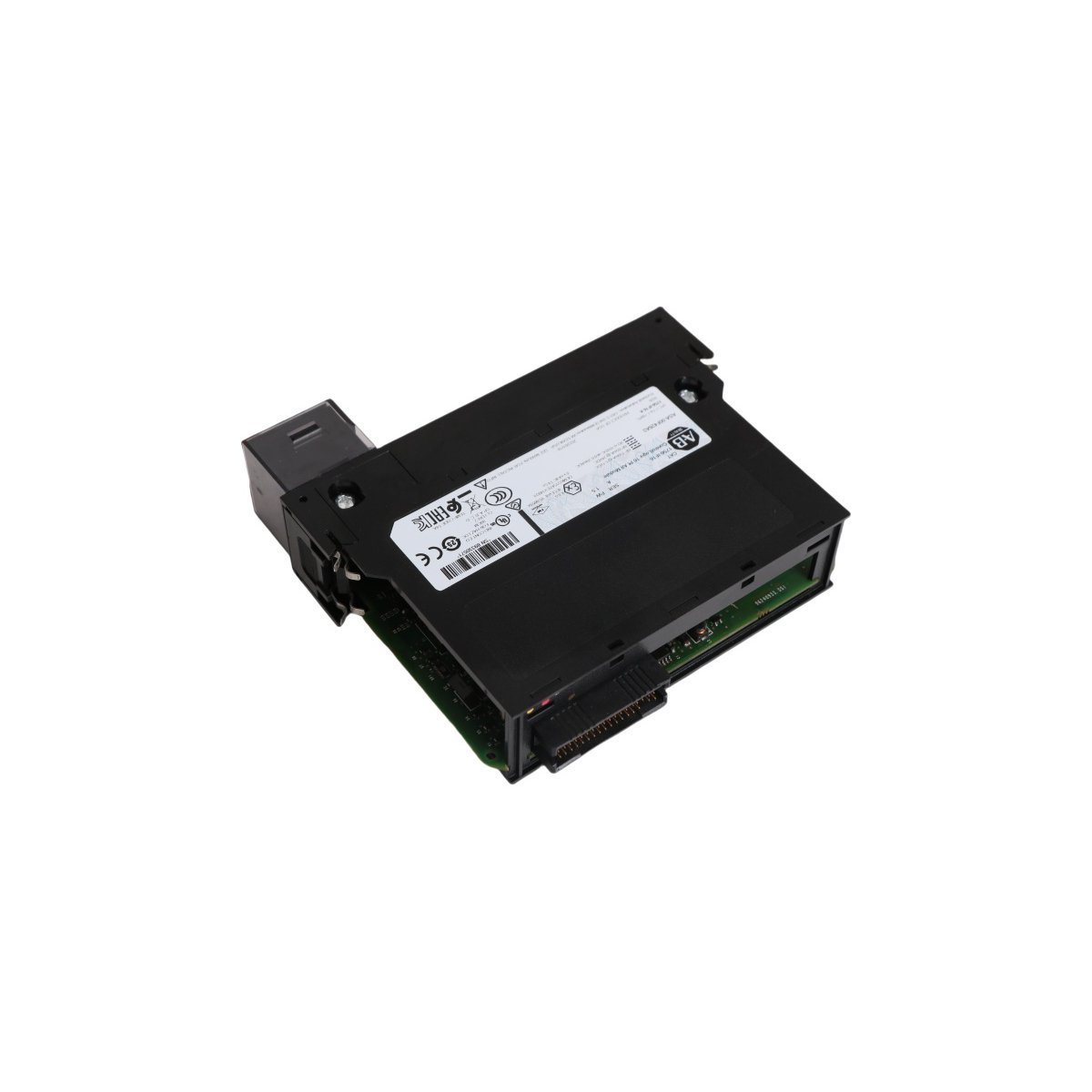

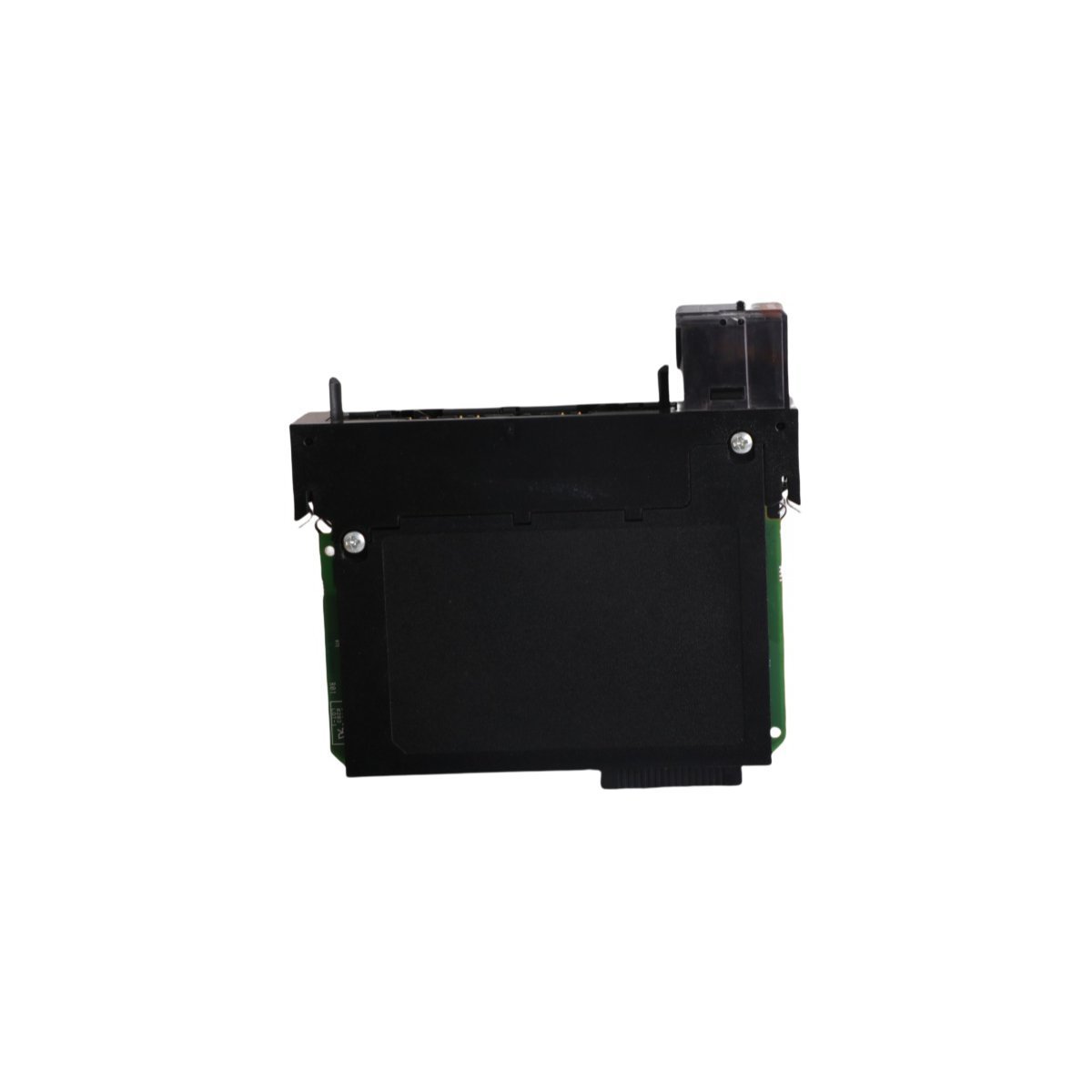

1756-IF16 Rockwell Automation ControlLogix 16 Pt Voltage/Current Input Card

Brief Product Description

The Allen Bradley 1756-IF16 functions as a high-density analog acquisition module, converting 16 independent field signals into precise digital data for ControlLogix processors. This module supports both voltage and current ranges, providing the versatility required for complex industrial monitoring and PID control loops.

Product Overview

The 1756-IF16 serves as a primary interface between field instrumentation and the Rockwell Automation ControlLogix architecture. This module converts analog signals from sensors such as pressure transducers, flow meters, and level transmitters into 16-bit digital values. By offering 16 single-ended or 8 differential channels, the unit maximizes chassis density while maintaining superior signal fidelity. Furthermore, the module utilizes a high-speed backplane interface that leverages Producer/Consumer technology, which allows multiple controllers to access input data simultaneously without redundant hardware. Consequently, the 1756-IF16 effectively supports large-scale distributed I/O configurations in industries ranging from water treatment to high-precision pharmaceutical manufacturing.

Technical Specifications

• Brand: Allen Bradley / Rockwell Automation
• Catalog Number: 1756-IF16
• Inputs: 16 single-ended, 8 differential, or 4 differential (high-speed)
• Resolution: 16-bit
• Input Voltage Ranges: ±10V, 0…10V, 0…5V, 1…5V
• Input Current Ranges: 0…20 mA, 4…20 mA
• Backplane Current: 150 mA @ 5.1V DC; 120 mA @ 24V DC
• Accuracy: 0.1% of Full Scale
• Notch Filter: 10 Hz, 50 Hz, 60 Hz, 100 Hz, 200 Hz, 500 Hz, 1000 Hz
• Data Format: Integer (16-bit), Floating Point (32-bit IEEE 754)
• Removable Terminal Block (RTB): 1756-TBNH or 1756-TBSH (Sold separately)

Operational Capabilities

The 1756-IF16 incorporates advanced signal conditioning features that ensure reliable data acquisition in challenging electrical environments. Specifically, the module provides programmable digital filters that suppress line noise and process-induced fluctuations. These filters allow engineers to balance the trade-off between response speed and signal stability. Moreover, the hardware supports real-time calibration and scaling, converting raw electrical signals directly into engineering units within the module’s memory. This functionality reduces the computational overhead on the main CPU and simplifies the development of HMI and SCADA interfaces.

In addition to signal conversion, the 1756-IF16 features a comprehensive diagnostic suite. The module constantly monitors for hardware faults, including open-wire conditions for current loops and over-range or under-range excursions. If a fault occurs, the module triggers a status bit in the I/O data stream, alerting the controller to take immediate safety actions. This proactive monitoring makes the 1756-IF16 essential for systems requiring high availability and precise equipment condition tracking.

Engineering Advantages

The primary engineering benefit of the 1756-IF16 lies in its integration within the Studio 5000 environment. The software provides a streamlined configuration interface that eliminates the need for complex ladder logic to initialize channels. Furthermore, the module supports electronic keying, which prevents the system from operating if a technician installs an incorrect module type during maintenance. This feature significantly reduces the risk of process downtime caused by hardware mismatches. Because the 1756-IF16 maintains 16-bit resolution across all channels, it provides the granularity necessary for fine-tuned PID control in refineries and other critical process industries. Ultimately, specifying the 1756-IF16 ensures a scalable, high-accuracy solution that adheres to global industrial safety and performance standards.
