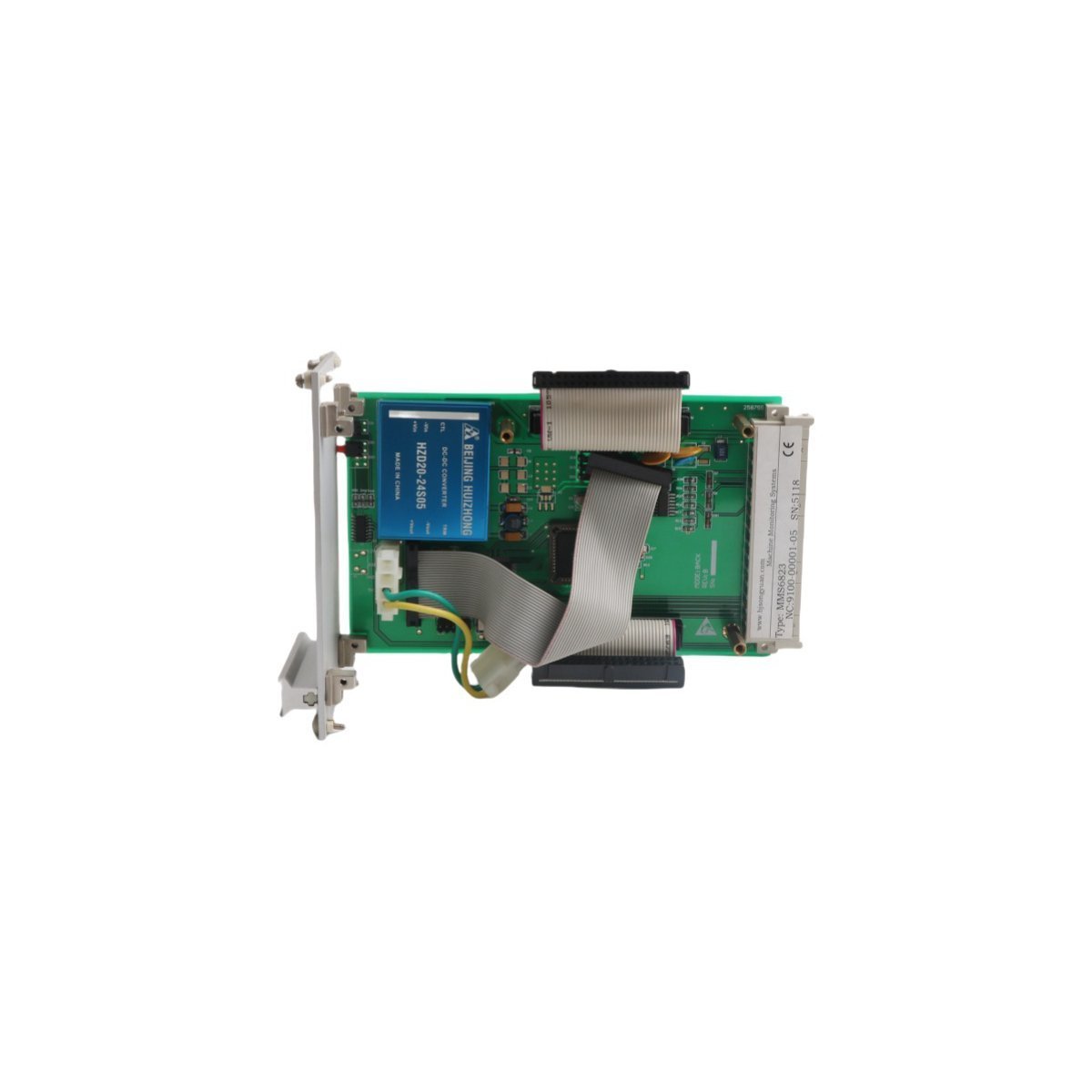

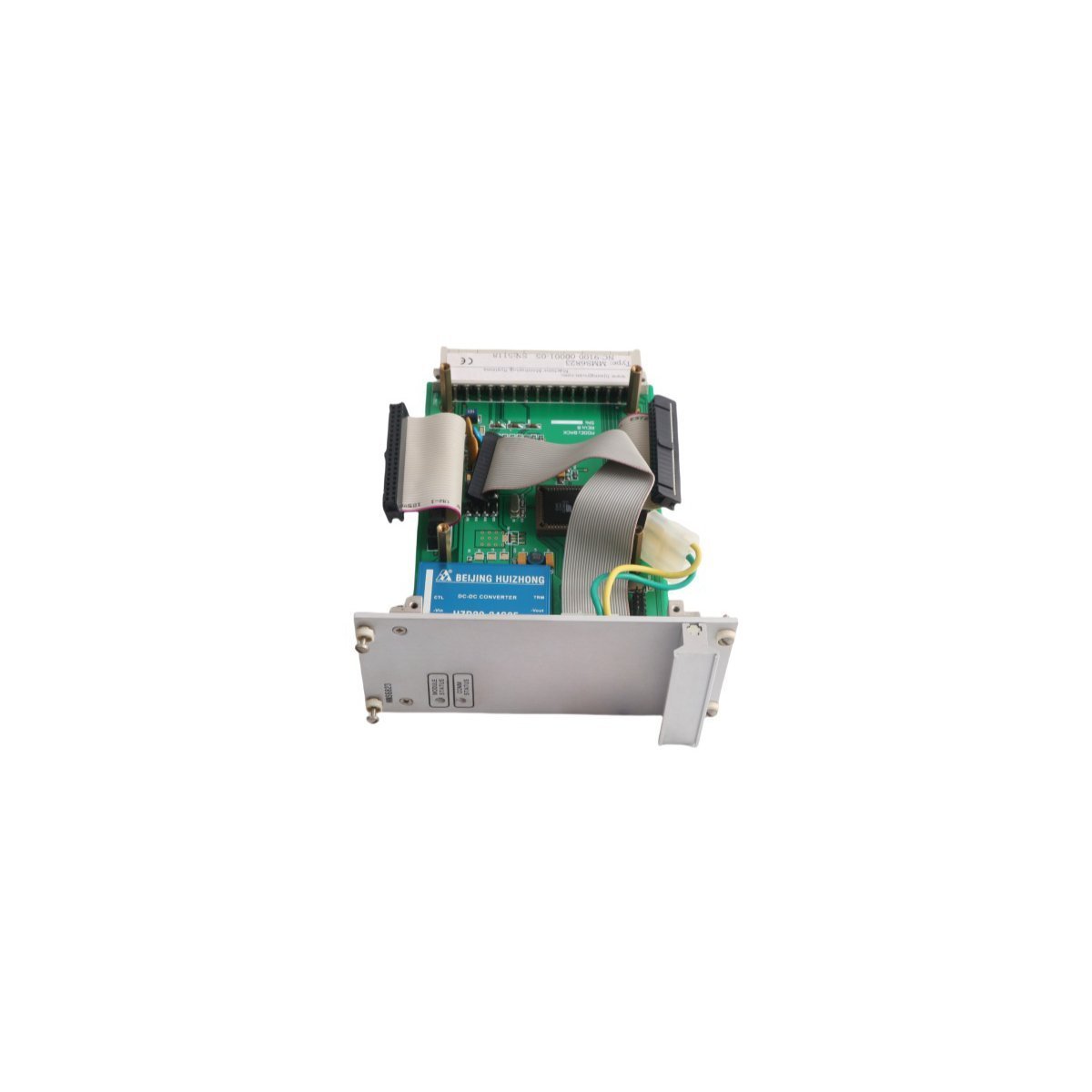

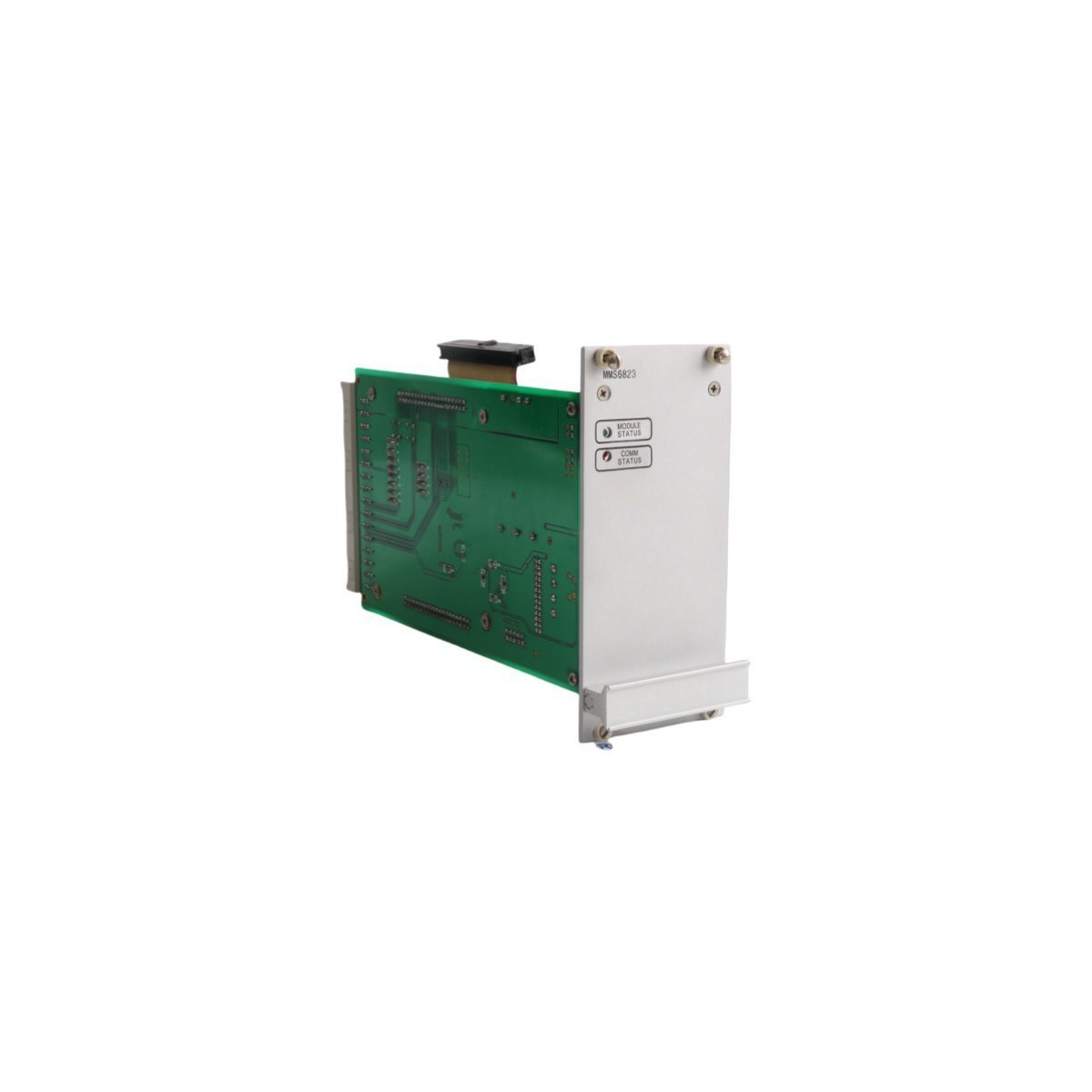

Emerson EPRO MMS6823 Data Acquisition Unit for DCS Systems

Product Overview

The Emerson MMS6823 operates as a specialized data acquisition and processing module within the IMR 6000/00 monitoring system. It provides high-speed signal conditioning and analysis for industrial automation, facilitating precise control over complex mechanical processes.

Product Description

This high-performance custom processing module excels in demanding industrial environments where signal integrity remains paramount. The MMS6823 captures and processes field data at an output frequency of 30 kHz, which allows the system to monitor rapid transients in real-time. By utilizing advanced filtering and acquisition logic, the module ensures consistent measurement accuracy even in settings characterized by high electromagnetic interference.

The module interfaces seamlessly with Distributed Control Systems (DCS) to provide actionable insights into machinery health and process stability. Its robust internal architecture supports continuous operation at high voltages, while the specialized processing capabilities allow for tailored configurations based on specific application requirements. Consequently, plant engineers utilize the MMS6823 for critical tasks ranging from large-scale system synchronization to the monitoring of high-speed automation sequences.

Furthermore, the compact form factor simplifies the installation process within standard control cabinets. Although the manufacturer officially withdrew this series from active production in late 2018, the module remains a fundamental component for maintaining legacy IMR systems. Its durability and precision empower operators to maintain peak system efficiency while significantly reducing the risk of unplanned equipment downtime.

Technical Specifications

• Manufacturer: Emerson (EPRO series)
• Model Number: MMS6823
• Product Series: IMR 6000/00 System
• Function: Data Acquisition and Custom Signal Processing
• Output Frequency: 30 kHz
• Operating Voltage: 220V Typical
• Communication Support: Ethernet Integration
• Weight: 0.28 kg
• Dimensions: 6 x 18.8 x 12.8 cm
• Origin: USA
• HS Code: 8537101190

Engineering Advantages

• High-Frequency Sampling: The 30 kHz frequency response enables the detection of minute process fluctuations that standard modules might overlook.
• Rugged Industrial Design: Certified construction ensures the module withstands thermal stress and vibration in harsh factory settings.
• Seamless Integration: The design facilitates rapid deployment into existing DCS frameworks with minimal software overhead.
• Enhanced System Reliability: Continuous health monitoring and self-diagnostics contribute to the overall functional safety of the automation line.

FAQs

• What is the primary application of the MMS6823?This module primarily handles high-speed data acquisition and custom signal processing within the Emerson IMR 6000 ecosystem.
• Is the MMS6823 compatible with Ethernet communications?Yes, the module supports Ethernet router communication services, allowing for efficient data transfer across industrial networks.
• Can this module be used in legacy DCS environments?Specifically designed for DCS integration, the MMS6823 provides a reliable solution for maintaining systems that utilize the IMR 6000/00 series hardware.
