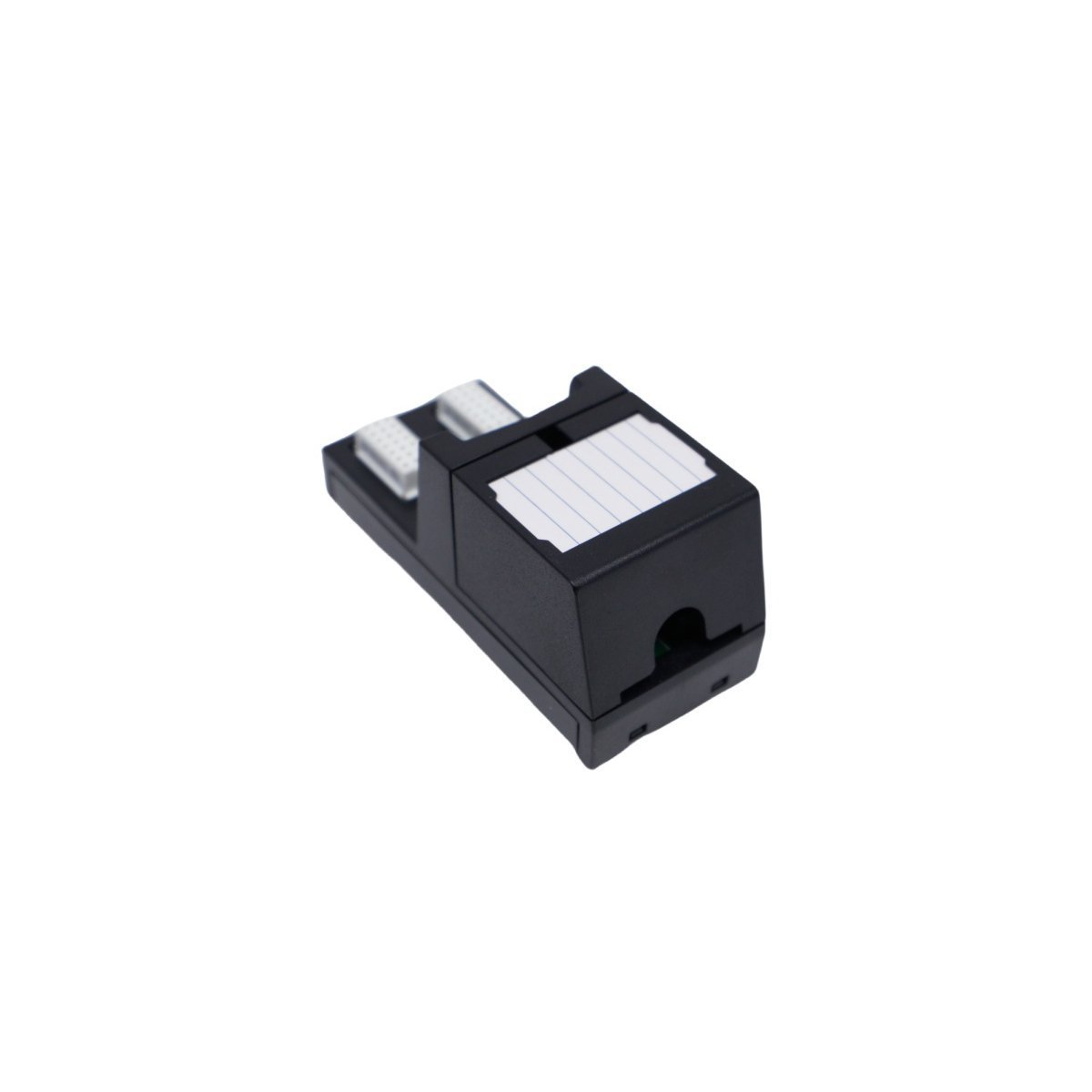

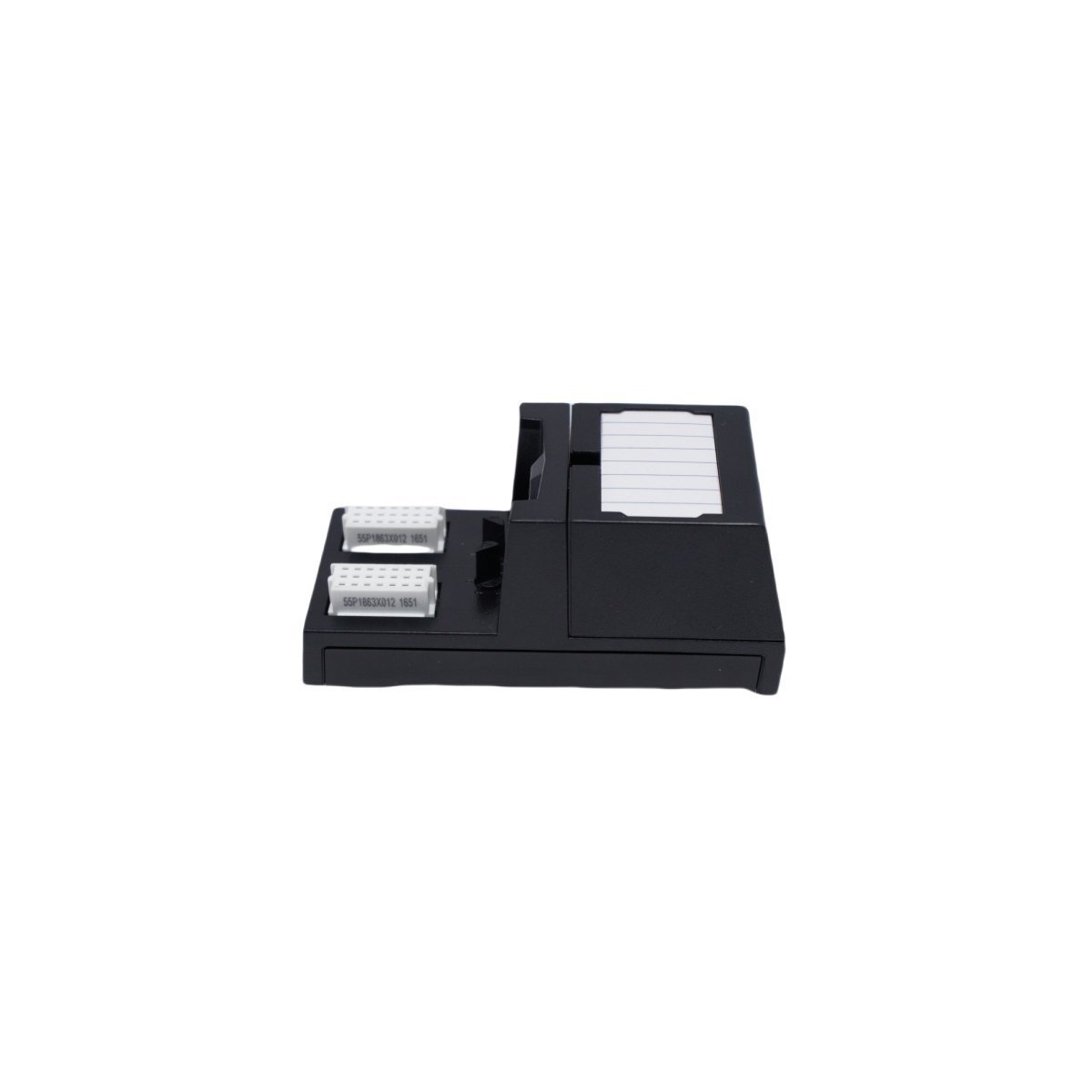

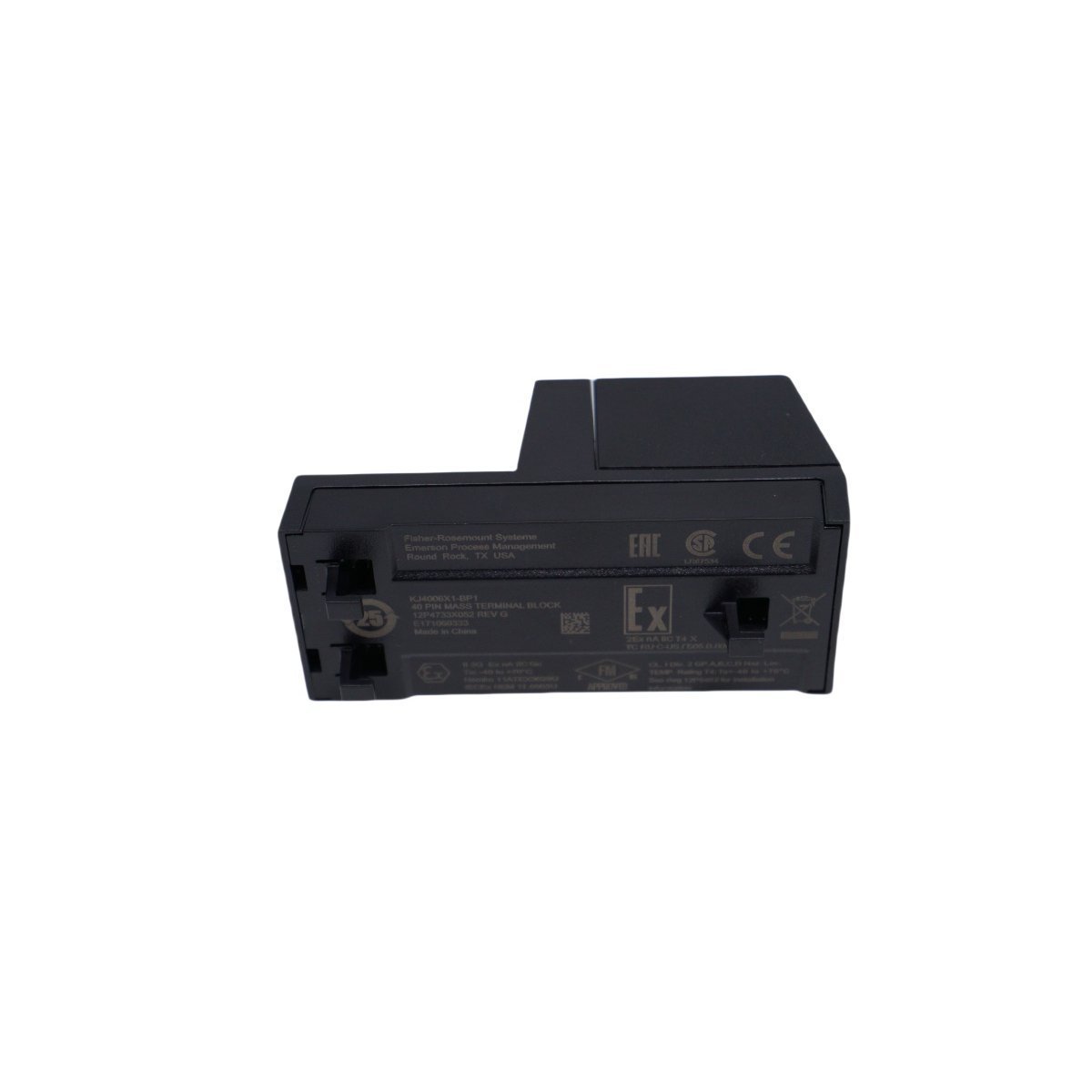

Emerson KJ4006X1-BP1 DeltaV M-series I/O Terminal Block Base

Emerson KJ4006X1-BP1 DeltaV M-series Terminal Block

Configured for direct field wiring termination in DeltaV M-series I/O Subsystem networks, the Emerson KJ4006X1-BP1 (KJ4006X1-BP1 Terminal Block) provides direct physical/electrical execution. This passive connection block mounts directly onto standard M-series carrier bases to route field instrument signals and power supply lines into the I/O bus interface. Technicians connect field sensor wires and actuator cables to these screw terminals, which establish low-resistance electrical pathways between process transmitters and internal backplane processing circuits across DCS architectures.

Hardware Specifications

Field Signal Isolation & Loop Protocol Routing

The Emerson KJ4006X1-BP1 preserves signal integrity across field wiring channels while maintaining strict channel-to-channel isolation parameters established by the parent I/O module. Internal heavy-duty copper bus contacts route 4-20 mA HART loop protocol signals directly from field transmitters to active carrier slots without introducing line impedance or signal attenuation. Although the terminal block functions as a passive physical interface, its internal circuit pathways maintain balanced voltage references across field loops. Consequently, this construction prevents ground loops, reduces common-mode voltage fluctuations, and ensures clean digital data packet transfer between field devices and the DCS controller.

Frequently Asked Questions

Q: Does this terminal block support hot-swapping while field loops remain energized?

A: Technicians can remove or insert the upper I/O module without disturbing the field wiring connected to this terminal block. However, maintenance personnel must isolate external power sources before loosening individual terminal screws to prevent accidental short circuits across adjacent wiring channels.

Q: What wire gauge range does the screw terminal assembly accommodate?

A: The terminal screws accept solid or stranded copper conductors ranging from 0.2 mm2 to 2.5 mm2 (24 to 12 AWG). Installers must strip wire ends to 7 mm and torque terminal screws to 0.5 Nm to maintain a gas-tight electrical bond.

Field Installation Guidelines

Technicians must snap the terminal block assembly firmly onto the designated M-series carrier slot until the mechanical retention latch clicks into place. Verify alignment with the base keying mechanism before applying physical force to prevent pin damage.

During field wiring, technicians must strip wire insulation cleanly without nicking the copper strands and insert the conductors fully into the terminal clamps. Route signal leads separately from high-voltage AC lines inside panel trunking to suppress electromagnetic coupling. Connect cable shield drain wires directly to the designated earth grounding bar using short, low-impedance grounding straps. After completing conductor termination, apply the specified tightening torque to all terminal screws to prevent thermal loosening over time.
