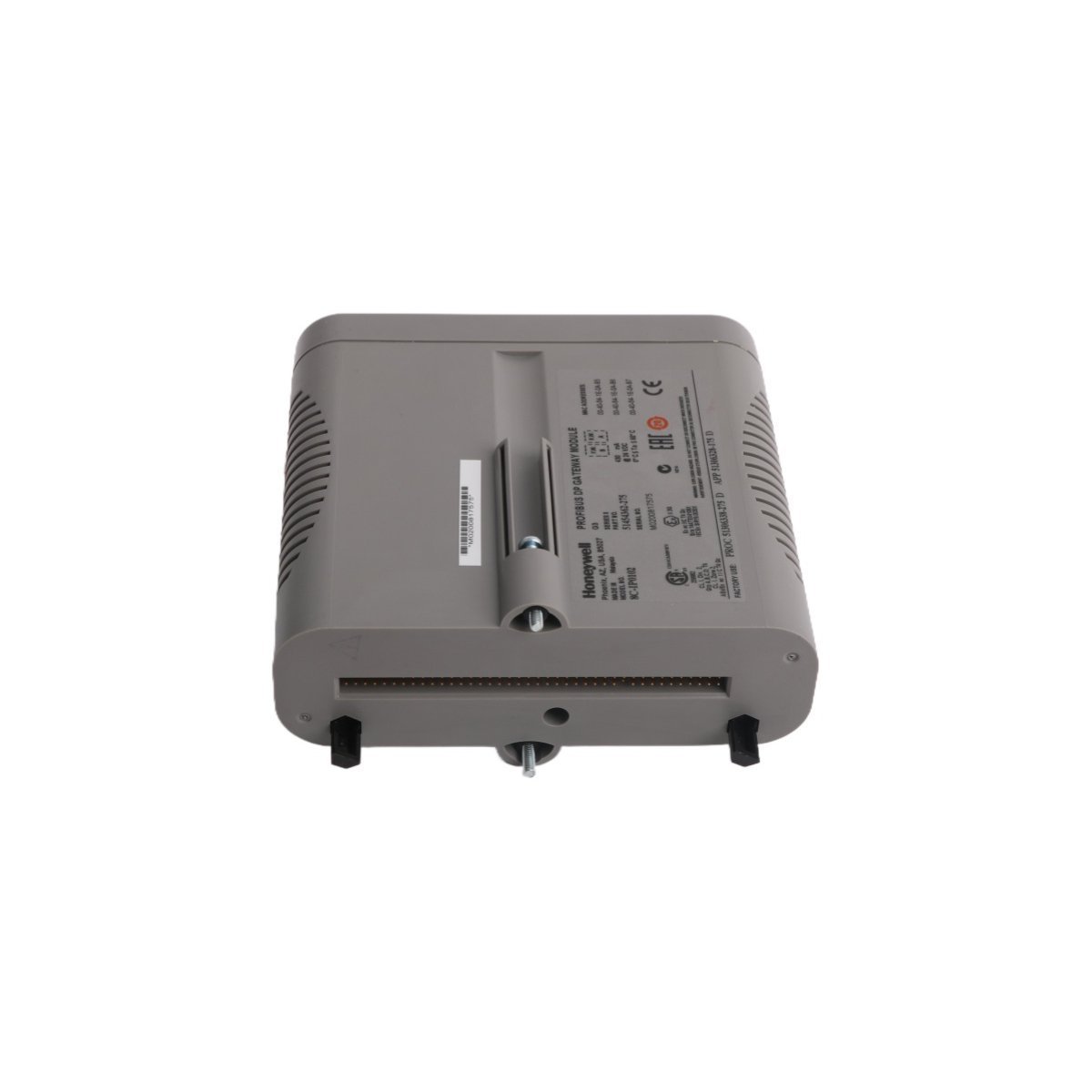

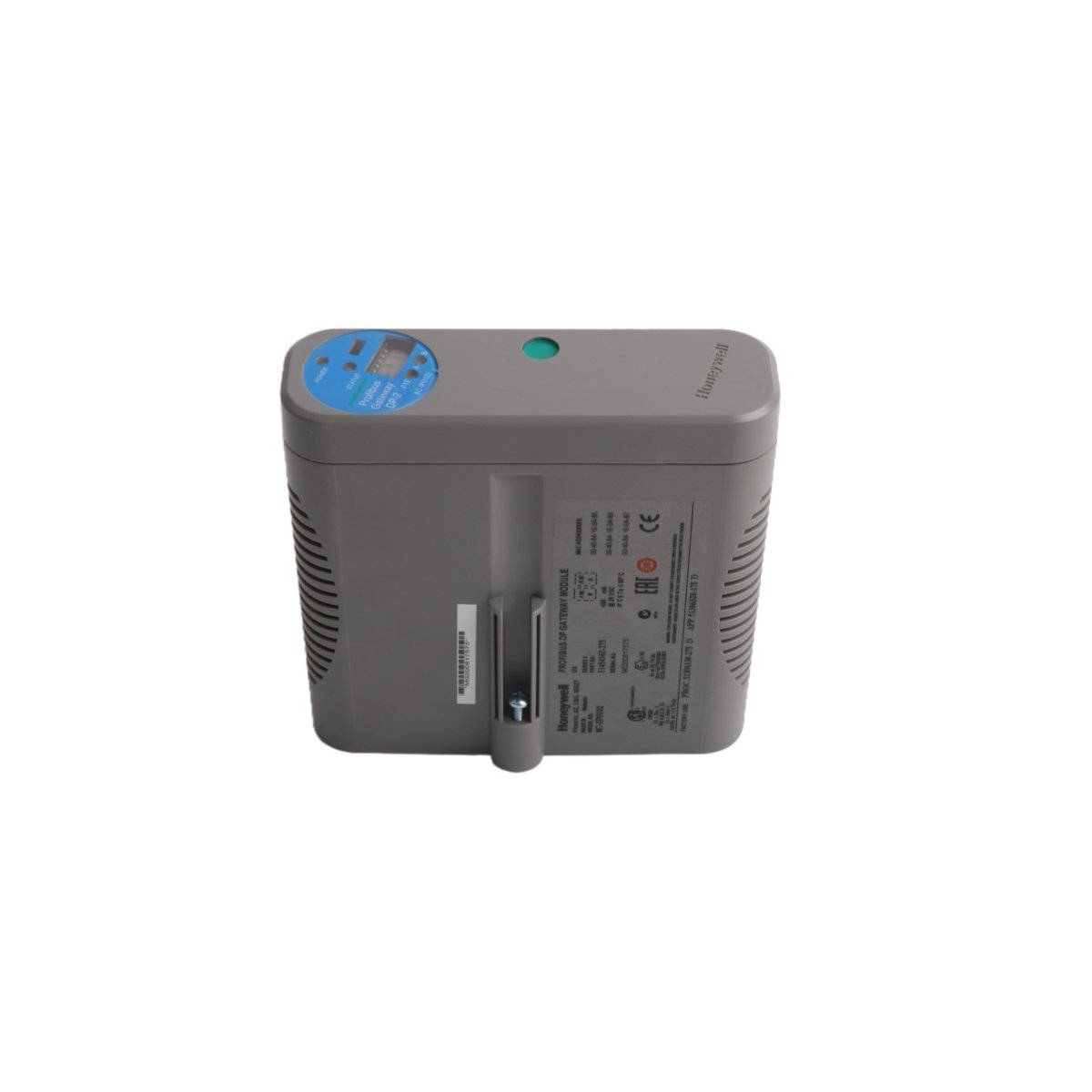

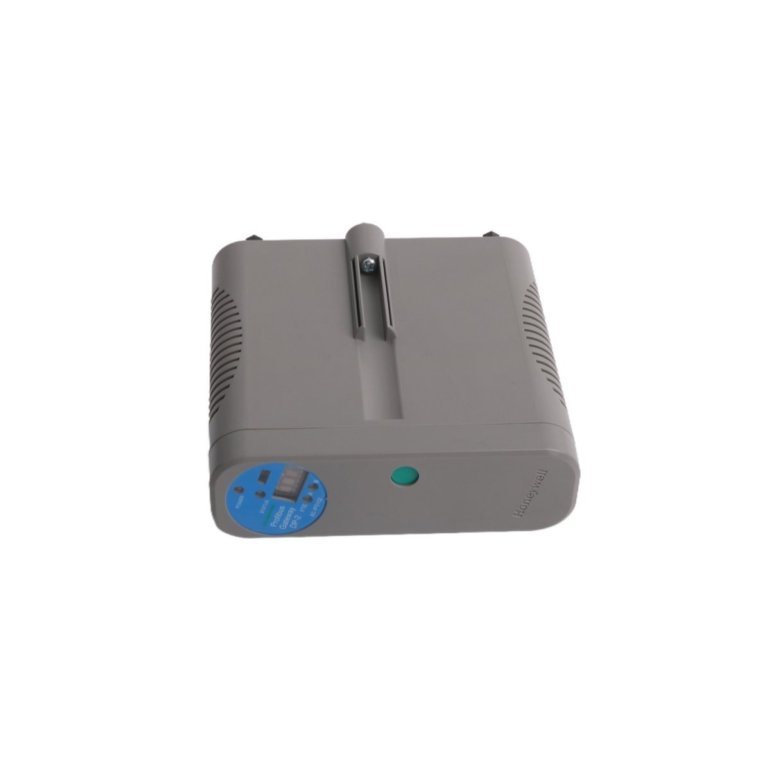

The Honeywell 8C-IP0102 (Order Number 51454362-275) serves as a dedicated PROFIBUS gateway for the Experion PKS and Series 8 control systems. This module functions as a DP Master Class-2 device to bridge controllers with field-level PROFIBUS DP and PA devices. Engineers install this unit on standard Series 8 IOTA assemblies to enable robust industrial network communication. The coated assembly ensures reliable operation in harsh environments with temperatures ranging from 0°C to 60°C. Operators utilize this gateway to integrate third-party field instruments seamlessly into the Honeywell architecture. Its design supports hot-swapping capabilities to facilitate maintenance without system shutdowns.
Technical Specifications and Capabilities
This gateway operates on a 24VDC power supply with a current consumption of approximately 430mA. The device supports comprehensive PROFIBUS DP protocols including standard and extended status bytes for detailed diagnostics. Users can manage field devices via the Field Device Manager (FDM) using vendor-supplied Device Type Managers (DTMs). The module enables DPV1 messaging capabilities to enhance data exchange with intelligent field instruments. Integration of PROFIBUS PA devices occurs through external third-party couplers or converters. Network reliability increases through support for media redundancy using compatible third-party link modules.
| Feature | Specification |
|---|
| Model Number | 8C-IP0102 |
| Order Number | 51454362-275 |
| Manufacturer | Honeywell |
| Product System | Experion PKS / Series 8 |
| Module Type | PROFIBUS Gateway Module |
| Power Requirement | 24VDC |
| Current Rating | 430 mA |
| Operating Temperature | 0°C to 60°C |
| Protocol Support | PROFIBUS DP / DPV1 |
| Master Class | Class 2 (FDM) |
| Mounting Base | Series 8 IOTA Assembly |
| Hot-Swappable | Yes |
| Origin | USA |
Application and Integration Benefits
Industrial facilities deploy this module to connect diverse automation assets within process control networks. The hot-swap feature allows technicians to replace faulty units quickly while the system remains active. Asset management teams leverage FDM integration to monitor device health and configure parameters remotely. The gateway supports HART over PROFIBUS when paired with compatible slave devices for enhanced diagnostics. Media redundancy options ensure continuous communication even during cable faults or network disruptions. Companies rely on this solution to maintain high availability in critical manufacturing and refining applications.
