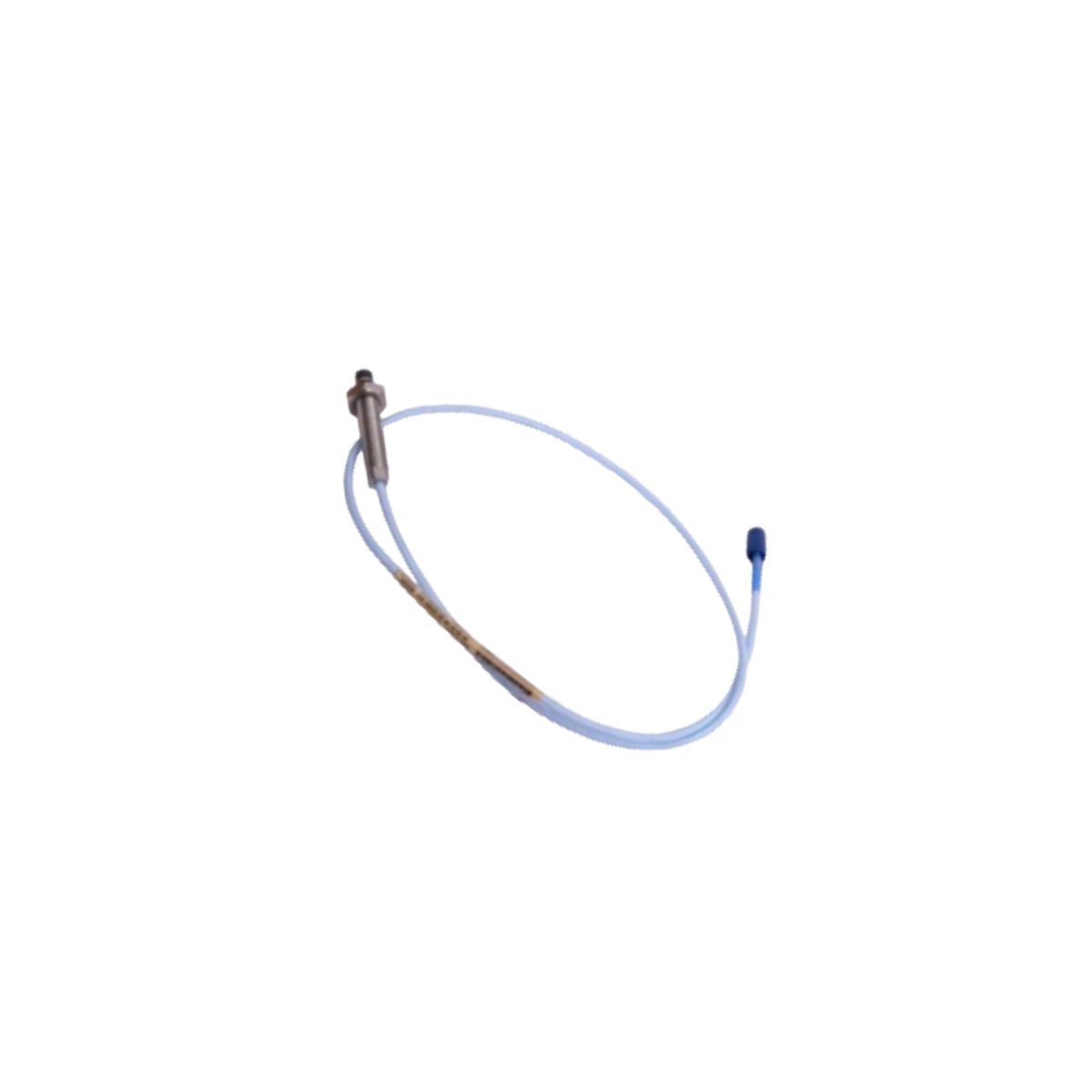

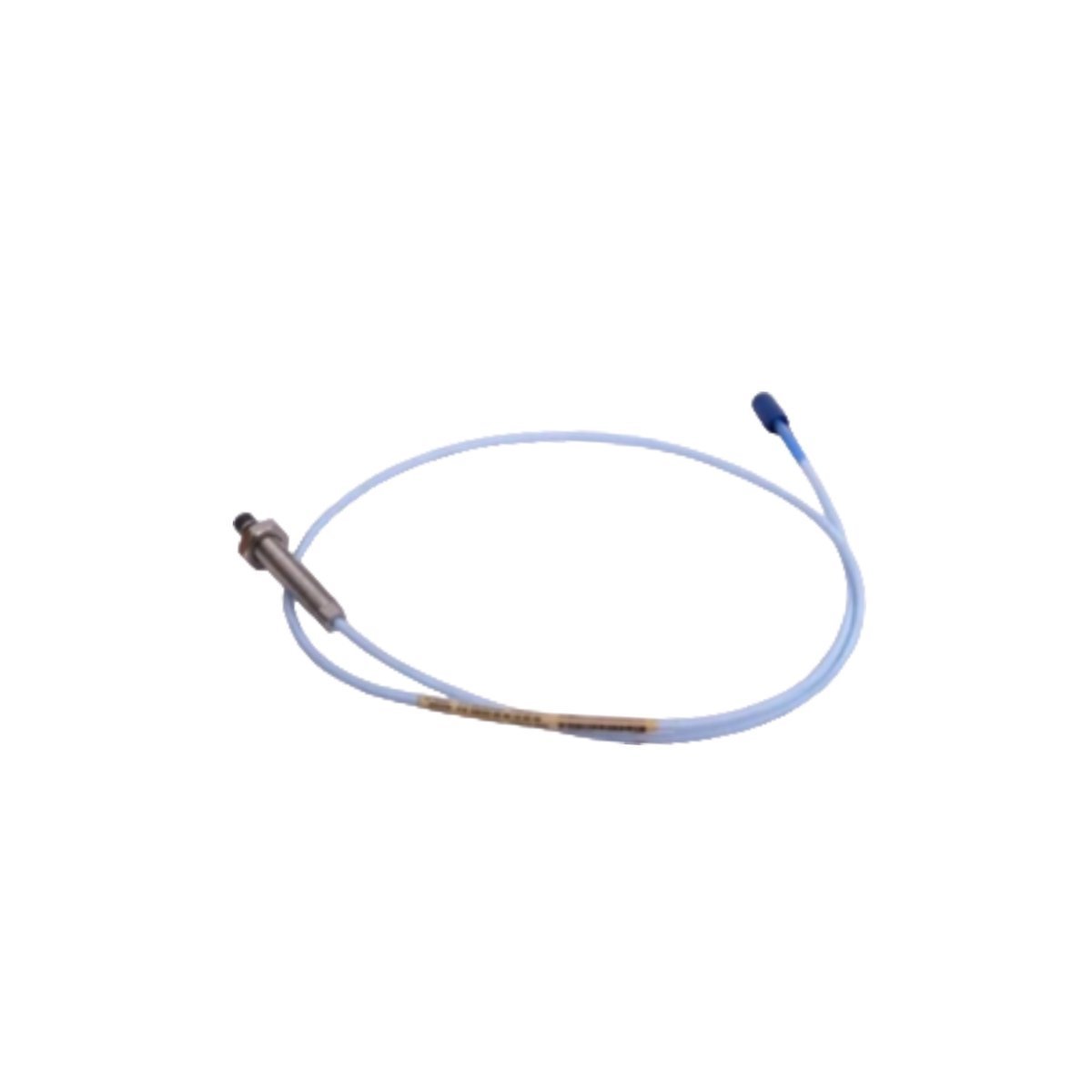

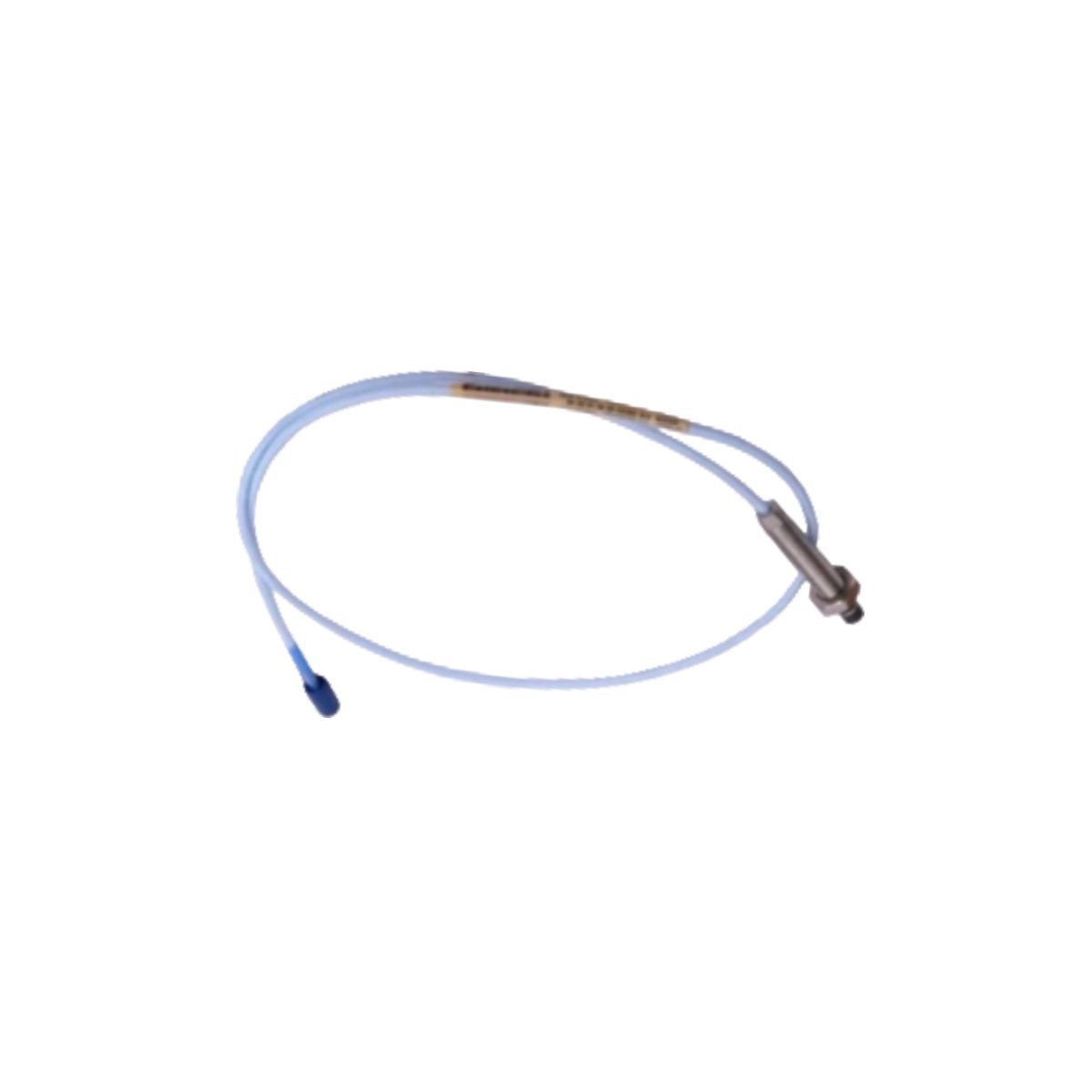

The Bently Nevada 330103-00-06-05-02-CN is a specialized 8 mm proximity probe engineered for high-precision machinery monitoring. This sensor functions as a non-contacting transducer within the 3300 XL series ecosystem. It effectively measures the distance between the probe tip and a rotating shaft to identify mechanical anomalies. Specifically, this module tracks radial vibration, axial position, and phase reference. By delivering high-resolution data to a Proximitor sensor, it enables early detection of shaft misalignment and bearing degradation.
Product Specifications
This configuration of the 3300 XL 8 mm probe utilizes specific physical dimensions and certifications to suit various industrial mounting requirements.
- Manufacturer: Bently Nevada (Baker Hughes)
- Model Identification: 330103-00-06-05-02-CN
- Unthreaded Length: 0.0 inches
- Overall Case Length: 0.6 inches
- Total Length: 0.5 meters (1.6 feet)
- Connector: Miniature coaxial ClickLoc connector with silicone boot
- Approval Option: CN (China Specific hazardous area certifications)
- Thread Type: 3/8-24 UNF-2A standard thread
Operational Applications
Industrial facilities rely on this probe to maintain the integrity of high-speed rotating assets. It is a critical component for Turbine Supervisory Instrumentation (TSI) systems. Common deployment areas include:
- Petrochemical Processing: Monitoring centrifugal compressors and high-pressure pumps.
- Energy Sector: Tracking vibration and thrust in gas and steam turbines.
- Manufacturing: Overseeing large-scale fans and electric motor shaft stability.
- Condition Monitoring: Serving as the primary data source for predictive maintenance software.
Design Features and Reliability
Bently Nevada designed the 330103-00-06-05-02-CN for longevity in extreme environments. The probe tip features a robust polyphenylene sulfide (PPS) overmold, which protects the internal coil from chemical exposure and moisture. Furthermore, the 3300 XL design significantly reduces signal drift caused by temperature variations. This stability ensures that measurements remain accurate across a broad operating range. The ClickLoc connector provides a secure physical link, preventing accidental disconnections caused by industrial vibration.
